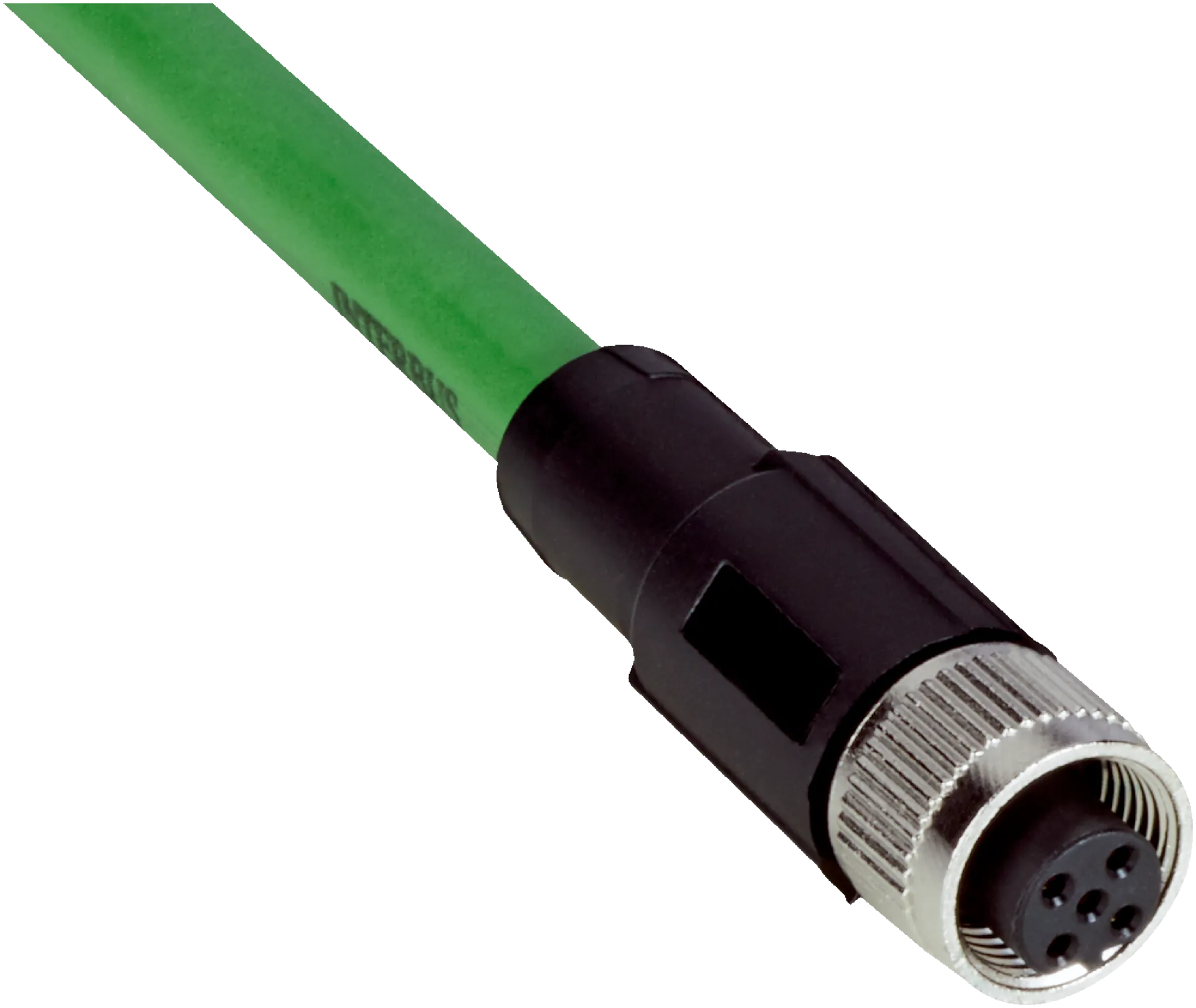

Sick YF2B25-100IB1XLEAX
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YF2B25-100IB1XLEAX | Connection type head A: Female connector, M12, 5-pin, straight, B-coded | Connection type head B: Flying l…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YF2B25-100IB1XLEAX | Connection type head A: Female connector, M12, 5-pin, straight, B-coded | Connection type head B: Flying leads | Signal type: Fieldbus, Interbus | Cable: 10 m, 5-wire, PUR | Description: Fieldbus, shielded, Interbus | Application: Drag chain operation
Specification
Technical specifications
| Connection type head A | Female connector, M12, 5-pin, straight, B-coded |
|---|---|
| Connection type head B | Flying leads |
| Locking plug connector | Screw connection |
| Connector material | TPU |
| Connector color | Black |
| Locking nut material | Zinc die-cast, nickel-plated |
| Tightening torque | 0.4Â Nm |
| Cable | 10Â m, 5-wire, PUR |
| Jacket material | PUR |
| Jacket color | Green |
| Cable diameter | 8Â mm |
| Conductor cross section | 3 x 2 x 0.22 mm² |
| Shielding | Shielded |
| Flexible use | > 15Â x cable diameter |
| Drag chain operation | > 15Â x cable diameter |
| Bending cycles | 5,000,000 |
| Current loading | 4Â mA |
| Traversing speed | 1.6Â m/s |
| Travelling distance | 10Â m |
| Acceleration | â¤Â 3 m/s² |
| Signal type | Fieldbus, Interbus |
| Application | Drag chain operation |
| Enclosure rating | IP65/ IP67 |
| Flexible use | â30 °C ... +70 °C |
| Stationary position | â40 °C ... +80 °C |
| Head | â25 °C ... +90 °C |
| Contamination rating | 3 |
| Insulation resistance | 100 MΩ |
| Overvoltage category | II |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| China RoHS | â |
Classifications
| ECLASS 5.0 | 19030312 |
|---|---|
| ECLASS 5.1.4 | 19030312 |
| ECLASS 6.0 | 27060304 |
| ECLASS 6.2 | 27060304 |
| ECLASS 7.0 | 27060304 |
| ECLASS 8.0 | 27060304 |
| ECLASS 8.1 | 27060304 |
| ECLASS 9.0 | 27060304 |
| ECLASS 10.0 | 27060304 |
| ECLASS 11.0 | 27060304 |
| ECLASS 12.0 | 27060304 |
| ETIM 5.0 | EC000830 |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
| ETIM 8.0 | EC003249 |
| UNSPSC 16.0901 | 26121604 |
