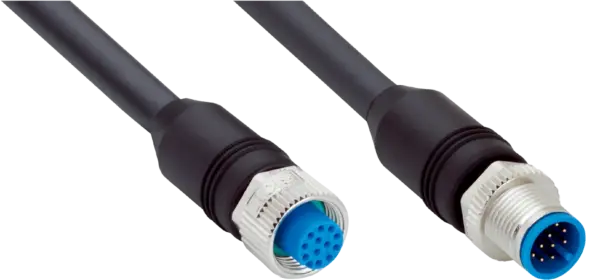

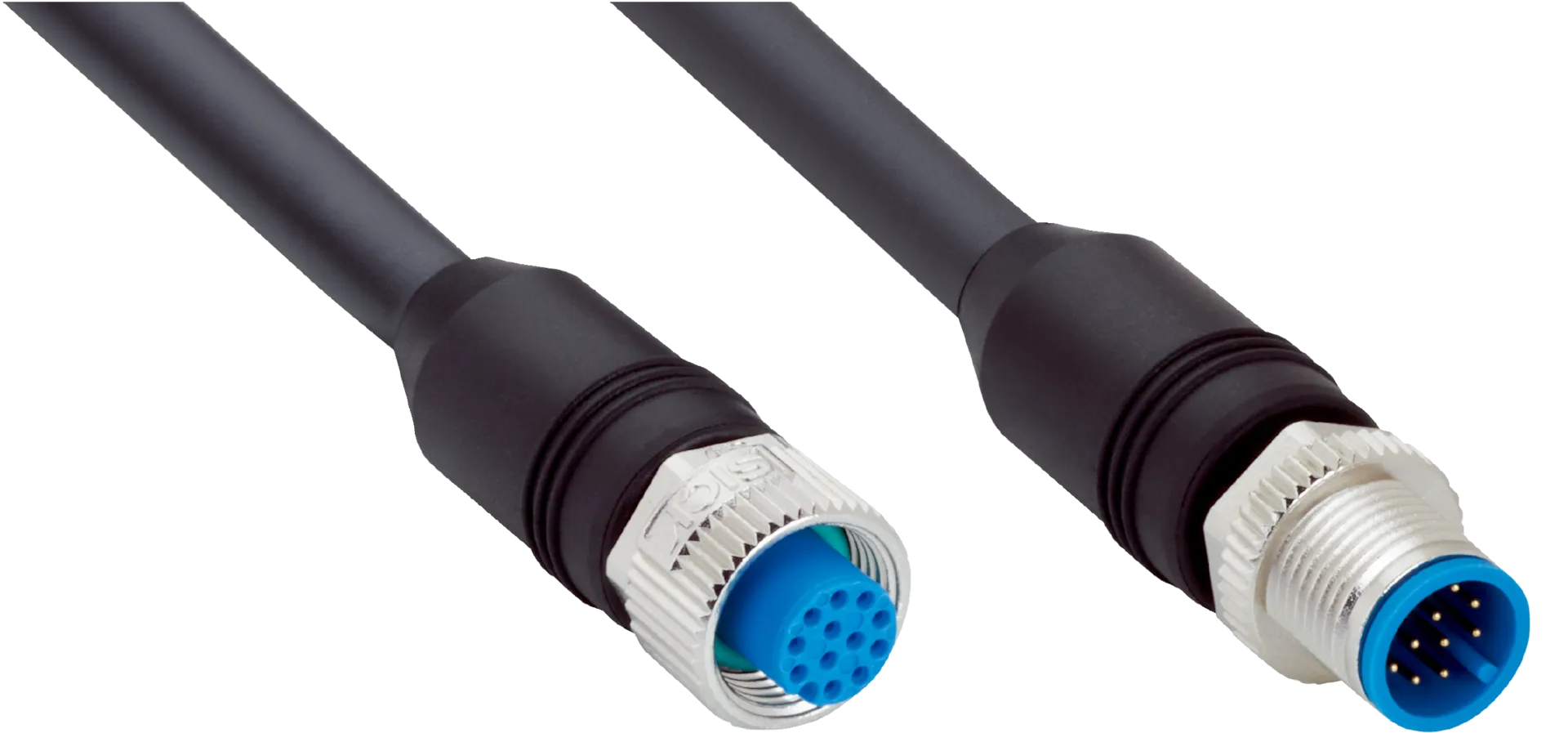

Sick YF2A1B-020UD1M2A1B
Connectors and cables | Sensor-actuator cables | YF2A1B-020UD1M2A1B | Connection type head A: Female connector, M12, 12-pin, straight, A-coded | Connection type head B: Male connector, M12, 12-pin, st…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Sensor-actuator cables | YF2A1B-020UD1M2A1B | Connection type head A: Female connector, M12, 12-pin, straight, A-coded | Connection type head B: Male connector, M12, 12-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 2 m, 12-wire, PUR, halogen-free | Description: Sensor/actuator cable, unshielded | Application: Uncontaminated zones, Zones with oils and lubricants, Robot, Drag chain operation
Specification
Technical specifications
| Connection type head A | Female connector, M12, 12-pin, straight, A-coded |
|---|---|
| Connection type head B | Male connector, M12, 12-pin, straight, A-coded |
| Locking plug connector | Screw connection |
| Connector material | TPU |
| Connector color | Black |
| Locking nut material | Zinc die-cast, nickel-plated |
| Seal material | FKM |
| Tightening torque | 0.6Â Nm |
| Width across flats | 13 |
| Cable | 2Â m, 12-wire, PUR, halogen-free |
| Jacket material | PUR, halogen-free |
| Jacket color | Black |
| Cable diameter | 6Â mm |
| Conductor cross section | 0,14 mm² |
| Shielding | Unshielded |
| Flexible use | > 10Â x cable diameter |
| Stationary position | > 7.5Â x cable diameter |
| Drag chain operation | > 10Â x cable diameter |
| Bending cycles | >Â 2,000,000 |
| Nominal voltage, cable | 300Â VÂ AC |
| Test voltage, cable | 1,500Â VÂ AC |
| Rated impulse voltage | 0.8Â kV |
| Current loading | 1.5Â A |
| Traversing speed | 3.3Â m/s |
| Travelling distance | 5Â m |
| Acceleration | â¤Â 5 m/s² |
| Signal type | Sensor/actuator cable |
| Torsion force | 180° / 1 m |
| Torsion cycles | 2,000,000 |
| Application | Uncontaminated zonesZones with oils and lubricantsRobotDrag chain operation |
| Enclosure rating | IP65 / IP66K / IP67 |
| Flexible use | â25 °C ... +85 °C |
| Stationary position | â40 °C ... +85 °C |
| Drag chain operation | â25 °C ... +85 °C |
| Head | â25 °C ... +85 °C |
| Contamination rating | 3 |
| Insulation resistance | 100 MΩ |
| Overvoltage category | III |
| Specific insulation resistance | 30 mΩ |
Certificates
| EU declaration of conformity | â |
|---|---|
| China RoHS | â |
| cULus certificate | â |
Classifications
| ECLASS 5.0 | 19030312 |
|---|---|
| ECLASS 5.1.4 | 19030312 |
| ECLASS 6.0 | 27060304 |
| ECLASS 6.2 | 27060304 |
| ECLASS 7.0 | 27060304 |
| ECLASS 8.0 | 27060304 |
| ECLASS 8.1 | 27060304 |
| ECLASS 9.0 | 27060304 |
| ECLASS 10.0 | 27060304 |
| ECLASS 11.0 | 27060304 |
| ECLASS 12.0 | 27060304 |
| ETIM 5.0 | EC000830 |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
| ETIM 8.0 | EC003249 |
| UNSPSC 16.0901 | 26121604 |
