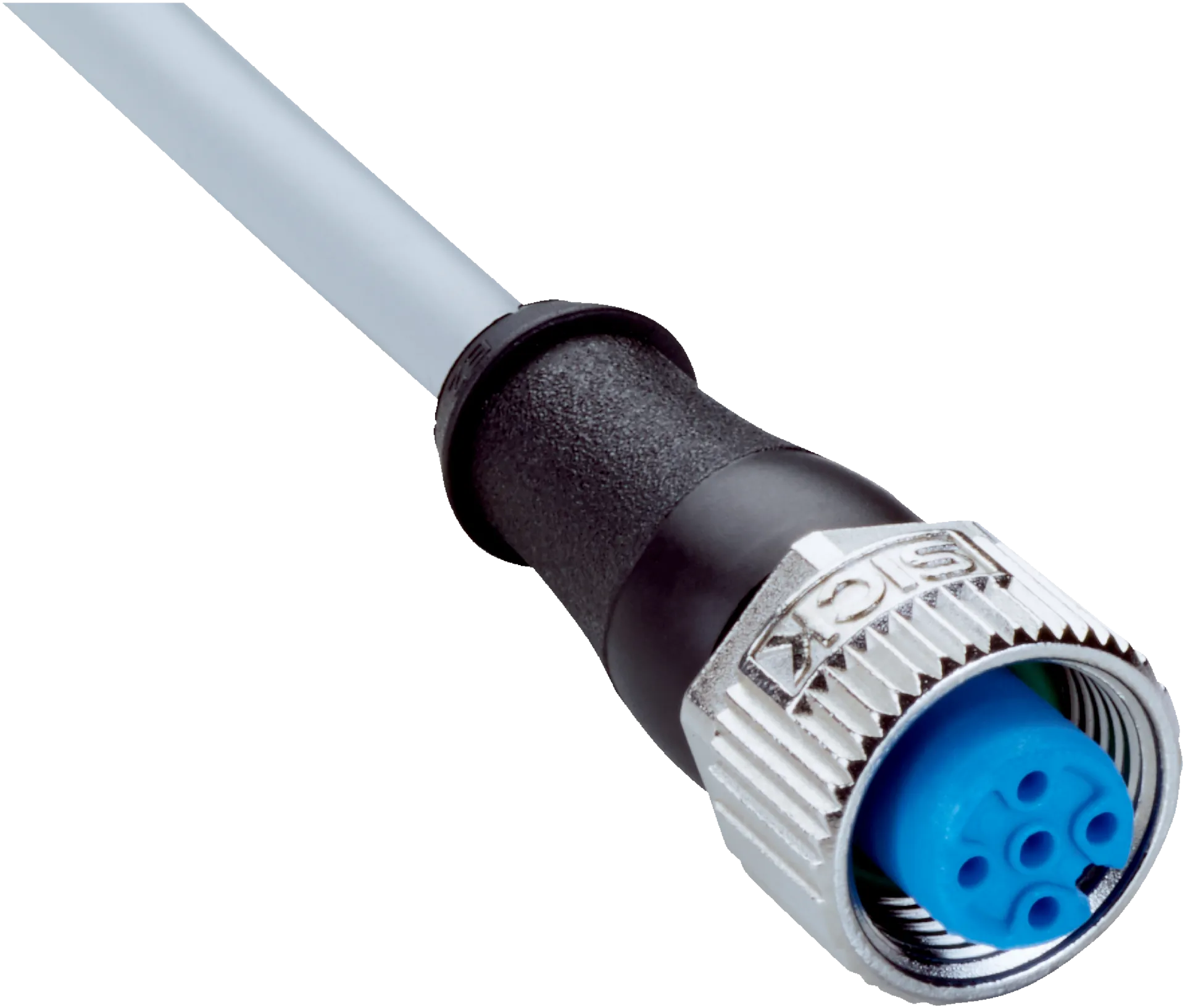

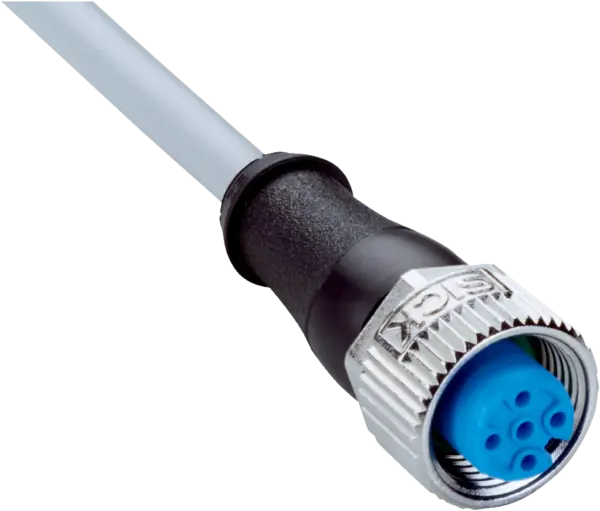

Sick YF2A15-050VB5XLEAX
Connectors and cables | Sensor-actuator cables | YF2A15-050VB5XLEAX | Connection type head A: Female connector, M12, 5-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sens…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Sensor-actuator cables | YF2A15-050VB5XLEAX | Connection type head A: Female connector, M12, 5-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 5 m, 5-wire, PVC | Description: Sensor/actuator cable, unshielded | Application: Zones with chemicals, Uncontaminated zones
Specification
Technical specifications
| Connection type head A | Female connector, M12, 5-pin, straight, A-coded |
|---|---|
| Connection type head B | Flying leads |
| Locking plug connector | Screw connection |
| Connector material | TPU |
| Connector color | Black |
| Locking nut material | Zinc die-cast, nickel-plated |
| Seal material | FKM |
| Tightening torque | 0.6Â Nm |
| Width across flats | 13 |
| Cable | 5Â m, 5-wire, PVC |
| Jacket material | PVC |
| Jacket color | Gray |
| Cable diameter | 5.2Â mm |
| Conductor cross section | 0.34 mm² |
| Shielding | Unshielded |
| Flexible use | > 10Â x cable diameter |
| Stationary position | > 5Â x cable diameter |
| Nominal voltage, cable | 300Â VÂ AC |
| Test voltage, cable | 2,000Â VÂ AC |
| Rated impulse voltage | 1.5Â kV |
| Current loading | ≤ 4 A |
| Signal type | Sensor/actuator cable |
| Application | Zones with chemicalsUncontaminated zones |
| UL File No. | E335179 |
| Enclosure rating | IP65 / IP66K / IP67 |
| Flexible use | –5 °C ... +80 °C |
| Stationary position | –30 °C ... +80 °C |
| Head | –25 °C ... +85 °C |
| Contamination rating | 3 |
| Insulation resistance | 100 MΩ |
| Overvoltage category | III |
| Specific insulation resistance | 30 mΩ |
| Thermal resistance, piping | Flame retardant according to UL 1581Â VW1 / CSA FT1 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
Classifications
| ECLASS 5.0 | 19030312 |
|---|---|
| ECLASS 5.1.4 | 19030312 |
| ECLASS 6.0 | 27060304 |
| ECLASS 6.2 | 27060304 |
| ECLASS 7.0 | 27060304 |
| ECLASS 8.0 | 27060304 |
| ECLASS 8.1 | 27060304 |
| ECLASS 9.0 | 27060304 |
| ECLASS 10.0 | 27060304 |
| ECLASS 11.0 | 27060304 |
| ECLASS 12.0 | 27060304 |
| ETIM 5.0 | EC000830 |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
| ETIM 8.0 | EC003249 |
| UNSPSC 16.0901 | 26121604 |
