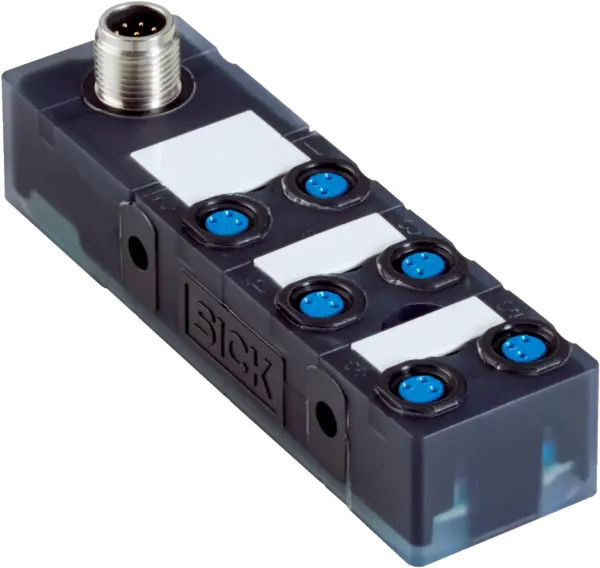

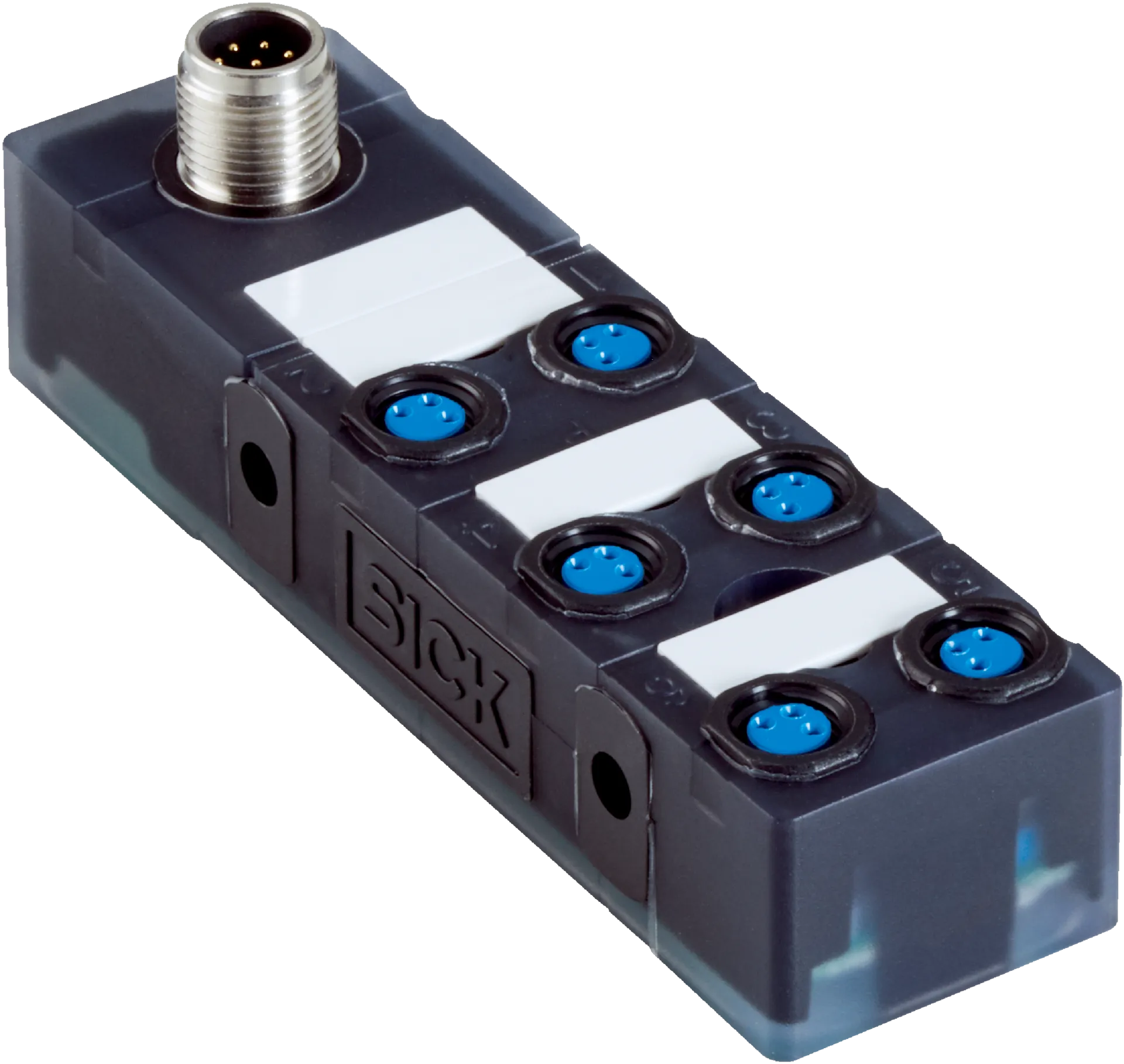

Sick Y8A36A2-C2A8000XXX
Connectors and cables | Passive distribution boxes | Y8A36A2-C2A8000XXX | Number of slots: 6 | Slot connection type: M8, 3-pin, A-coded, female connector | Items supplied: 5 x labeling plates | Descri…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Passive distribution boxes | Y8A36A2-C2A8000XXX | Number of slots: 6 | Slot connection type: M8, 3-pin, A-coded, female connector | Items supplied: 5 x labeling plates | Description: Unshielded
Specification
Technical specifications
| Switching output | PNP |
|---|---|
| Shielding | Unshielded |
| Number of slots | 6 |
| Slot connection type | M8, 3-pin, A-coded, female connector |
| Root port connection type | M12, 8-pin, A-coded, male connector |
| Root port | 13 |
| Slots | 0.4Â Nm |
| Root port | 0.6Â Nm |
| Slots | 1Â x per socket |
| Root port | 1x per distributor |
| Reference voltage | â¤Â 24 V DC |
| Current loading | 2Â A |
| Overvoltage category | III |
| Distributor box | â20 °C ... +55 °C |
| Enclosure rating | IP65/ IP67 |
| UL File No. | E238799 |
| Authorizations | ULCE |
| Items supplied | 5Â x labeling plates |
Certificates
| EU declaration of conformity | â |
|---|---|
| China RoHS | â |
| cULus certificate | â |
Classifications
| ECLASS 5.0 | 27279201 |
|---|---|
| ECLASS 5.1.4 | 27279201 |
| ECLASS 6.0 | 27279201 |
| ECLASS 6.2 | 27279201 |
| ECLASS 7.0 | 27279201 |
| ECLASS 8.0 | 27279201 |
| ECLASS 8.1 | 27279201 |
| ECLASS 9.0 | 27440108 |
| ECLASS 10.0 | 27440108 |
| ECLASS 11.0 | 27440108 |
| ECLASS 12.0 | 27440108 |
| ETIM 5.0 | EC002585 |
| ETIM 6.0 | EC002585 |
| ETIM 7.0 | EC002585 |
| ETIM 8.0 | EC002585 |
| UNSPSC 16.0901 | 31163032 |
