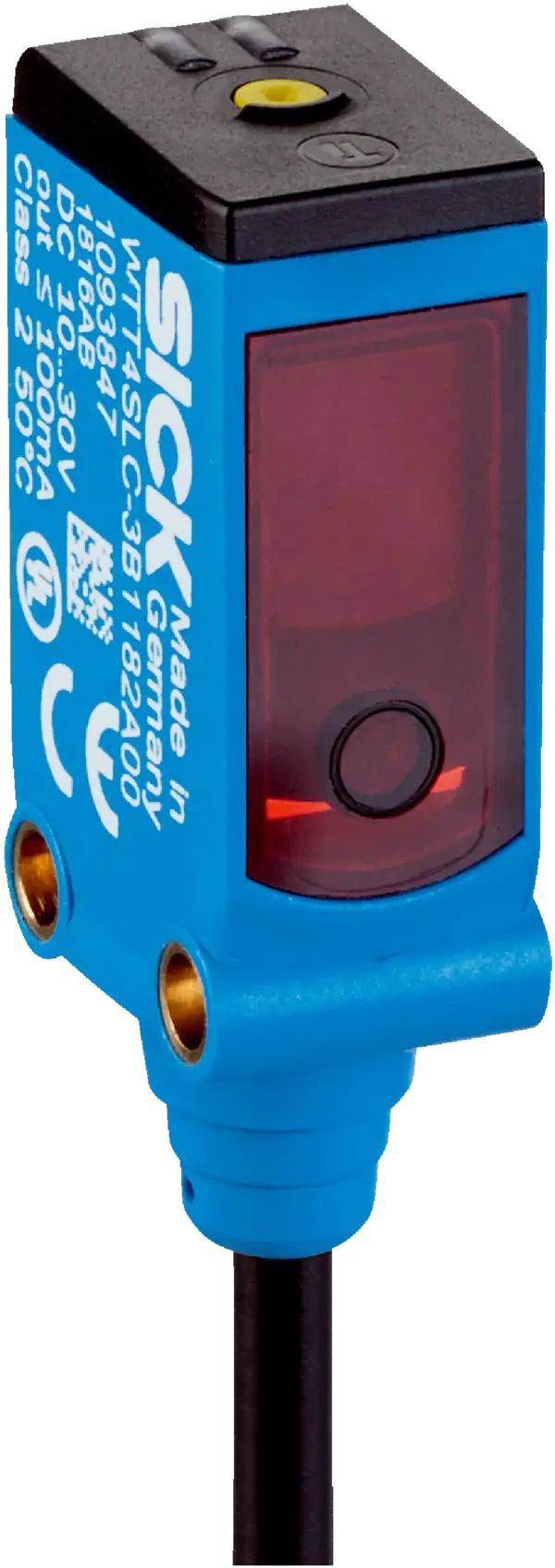

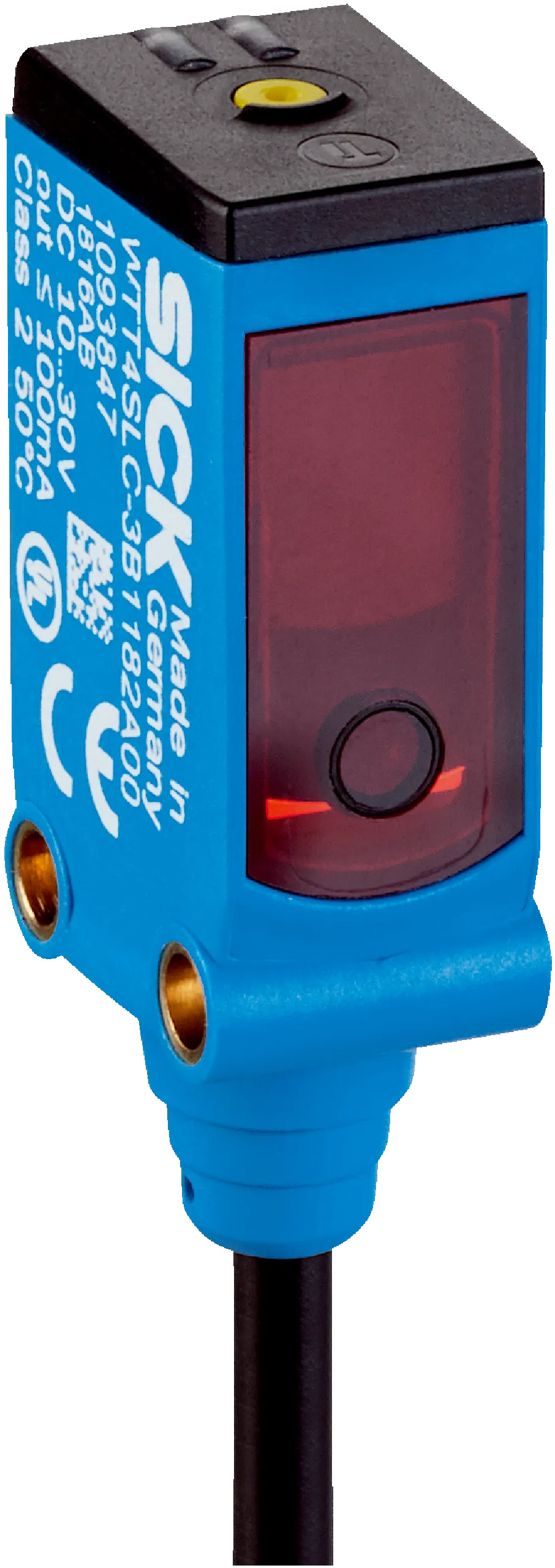

Sick WTT4SLC-3B1132A00
Laser distance sensors | WTT4 PowerProx | WTT4SLC-3B1132A00 | Product version: PowerProx Mini Speed | Sensing range max.: 50 mm … 1,000 mm | Functional principle: Photoelectric proximity sensor | Fu…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Laser distance sensors | WTT4 PowerProx | WTT4SLC-3B1132A00 | Product version: PowerProx Mini Speed | Sensing range max.: 50 mm … 1,000 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, Optical time-of-flight, distance value | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable, 4-wire, 2 m | Communication interface: IO-Link | Smart Sensor: Enhanced Sensing, efficient communication, Smart Task | Smart Task name: Base logics
Specification
Features
| Functional principle | Photoelectric proximity sensor |
|---|---|
| Functional principle detail | Background suppression, Optical time-of-flight, distance value |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 50 mm ... 1,000 mm 1) |
| Sensing range | 100 mm ... 1,000 mm 2) |
| Measuring range | 90 mm ... 1,000 mm 1) |
| Resolution | 1,000 µm |
| Repeatability | 7,5 mm ... 13 mm 3) 4) 5) |
| Accuracy | -Â 10Â mm, +Â 80Â mm |
| Distance value output | Via IO-Link |
| Update rate of the distance value | 0.8Â ms |
| Type of light | Visible red light |
| Light source | Laser 6) |
| Light spot size (distance) | ÃÂ 4Â mm (1,000Â mm) |
| Wave length | 658Â nm |
| Laser class | 1Â (IECÂ 60825-1 / CDRH 21Â CFR 1040.10Â & 1040.11) |
| Adjustment | Single teach-in button, IO-Link |
| Pin 2Â configuration | External input, Teach-in input, Sender off input, Detection output, logic output |
| MTTFD | 256Â years |
| DCavg | 0Â % |
| TM (mission time) | 20Â years |
Interfaces
| Communication interface | IO-Link V1.1 |
|---|---|
| Communication Interface detail | COM3 (230,4Â kBaud) |
| Cycle time | 0.8Â ms |
| Process data length | 4Â Byte |
| Process data structure | Bit 0Â = switching signal QL1Bit 1Â = switching signal QL2Bit 2Â = detection signal Qint.1Bit 3Â = detection signal Qint.2Bit 4Â = detection signal Qint.3Bit 5Â = detection signal Qint.4Bit 6Â = detection signal Qint.5Bit 7Â = detection signal Qint.6Bit 8Â = detection signal Qint.7Bit 9Â = detection signal Qint.8Bit 10Â ... 15Â = emptyBit 16Â ... 31Â = distance value |
| VendorID | 26 |
| DeviceID HEX | 0x7FFA4B |
| DeviceID DEC | 8387147 |
Electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | <Â 5Â Vpp |
| Current consumption | 25Â mAÂ 2) |
| Switching output | Push-pull: PNP/NPN |
| Output function | Factory setting: Pin 2Â /Â white (MF): NPN normally open (light switching), PNP normally closed (dark switching), Pin 4Â /Â black (QL1Â /Â C): NPN normally closed (dark switching), PNP normally open (light switching), IO-Link |
| Switching mode | Light/dark switching |
| Output current Imax. | â¤Â 50 mA |
| Response time | 0.5 ms 3) |
| Switching frequency | 1,000 Hz 4) |
| Input | MFin = multifunctional input programmable |
| Circuit protection | AÂ 5)BÂ 6)DÂ 7) |
| Protection class | III |
| Enclosure rating | IP67 |
| Warm-up time | < 10 min 8) |
| Initialization time | <Â 300Â ms |
Mechanics
| Dimensions (W x H x D) | 12.2 mm x 41.8 mm x 17.3 mm |
|---|---|
| Housing material | Plastic, MABSABS |
| Optics material | Plastic, PMMA |
| Weight | 10Â g |
| Connection type | Cable, 4-wire, 2Â m |
| Cable diameter | ÃÂ 3.4Â mm |
| Conductor cross section | 0.14 mm² |
Ambient data
| Ambient operating temperature | â40 °C ... +50 °C 1) |
|---|---|
| Ambient temperature, storage | â40 °C ... +75 °C |
Smart Task
| Smart Task name | Base logics |
|---|---|
| Logic function | DirectANDORWINDOWHysteresis |
| Timer function | DeactivatedSwitch-on delayOff delayON and OFF delayImpulse (one shot) |
| Inverter | Yes |
| Switching signal QL1 | Switching output |
| Switching signal QL2 | Switching output |
Classifications
| ECLASS 5.0 | 27270904 |
|---|---|
| ECLASS 5.1.4 | 27270904 |
| ECLASS 6.0 | 27270904 |
| ECLASS 6.2 | 27270904 |
| ECLASS 7.0 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 8.1 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| IO-Link certificate | â |
| Laser safety (IEC 60825-1) certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
