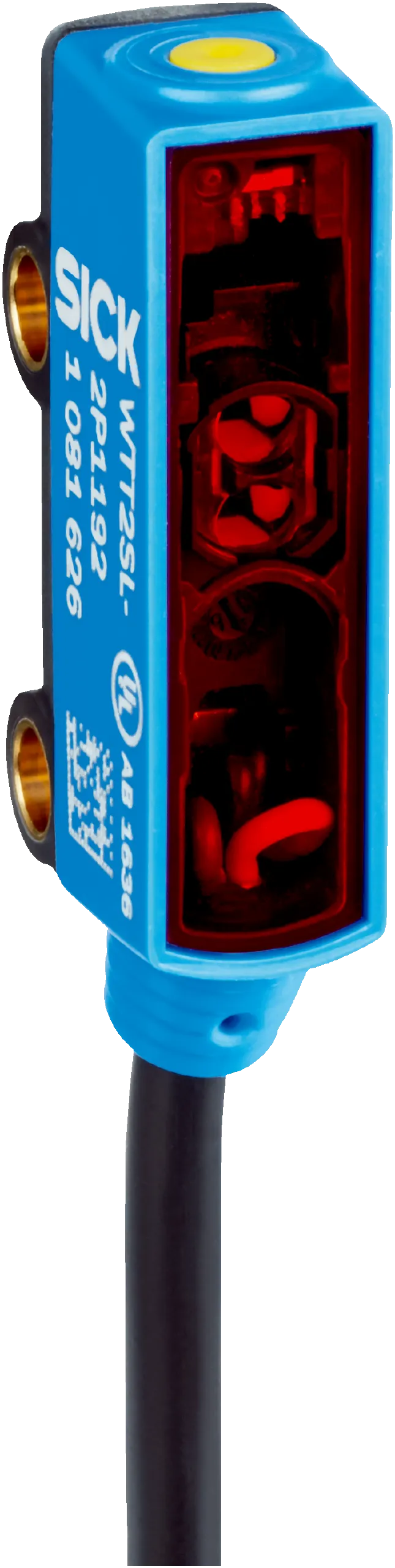

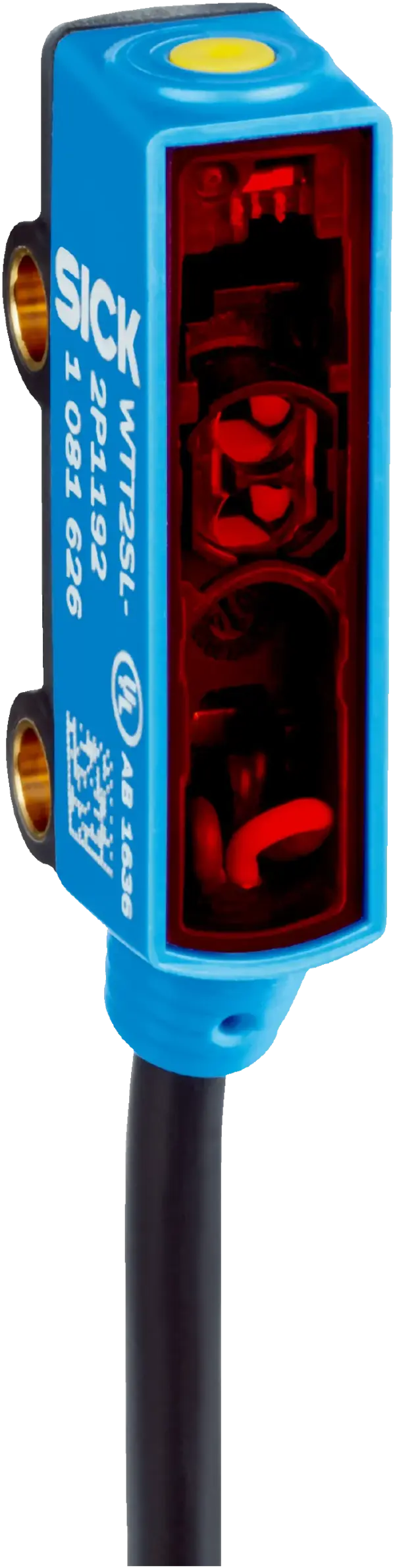

Sick WTT2SL-2P3292
Laser distance sensors | WTT2 PowerProx | WTT2SL-2P3292 | Product version: PowerProx Micro | Sensing range max.: 50 mm … 800 mm | Functional principle: Photoelectric proximity sensor | Functional pr…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Laser distance sensors | WTT2 PowerProx | WTT2SL-2P3292 | Product version: PowerProx Micro | Sensing range max.: 50 mm … 800 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, Optical time-of-flight | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with M8 male connector, 4-pin, 200 mm | Analog output: – | Communication interface: –
Specification
Features
| Functional principle | Photoelectric proximity sensor |
|---|---|
| Functional principle detail | Background suppression, Optical time-of-flight |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 50 mm ... 800 mm 1) |
| Sensing range | 50 mm ... 800 mm 1) |
| Type of light | Infrared light |
| Light source | Laser 2) |
| Light spot size (distance) | ÃÂ 10Â mm (300Â mm) |
| Wave length | 940Â nm |
| Laser class | 1 |
| Adjustment | Single teach-in button 3) |
| Special applications | Detecting small objects |
| MTTFD | 925Â years |
| DCavg | 0Â % |
Electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | < 5 Vpp 2) |
| Current consumption | 20Â mAÂ 3) |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Output current Imax. | â¤Â 50 mA |
| Response time | Typ. 90 ms 4) |
| Switching frequency | 5 Hz 5) |
| Analog output | - |
| Circuit protection | AÂ 6)BÂ 7)DÂ 8) |
| Protection class | III |
| Enclosure rating | IP67 |
Mechanics
| Dimensions (W x H x D) | 7.7 mm x 27.5 mm x 13.5 mm |
|---|---|
| Housing material | Plastic, MABSABS |
| Optics material | Plastic, PMMA |
| Connection type | Cable with M8 male connector, 4-pin, 200Â mm |
| Cable diameter | ÃÂ 3Â mm |
| Cable material | Plastic, PVC |
Ambient data
| Ambient operating temperature | â25 °C ... +50 °C |
|---|---|
| Ambient temperature, storage | â40 °C ... +75 °C |
Classifications
| ECLASS 5.0 | 27270904 |
|---|---|
| ECLASS 5.1.4 | 27270904 |
| ECLASS 6.0 | 27270904 |
| ECLASS 6.2 | 27270904 |
| ECLASS 7.0 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 8.1 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Laser safety (IEC 60825-1) certificate | â |
