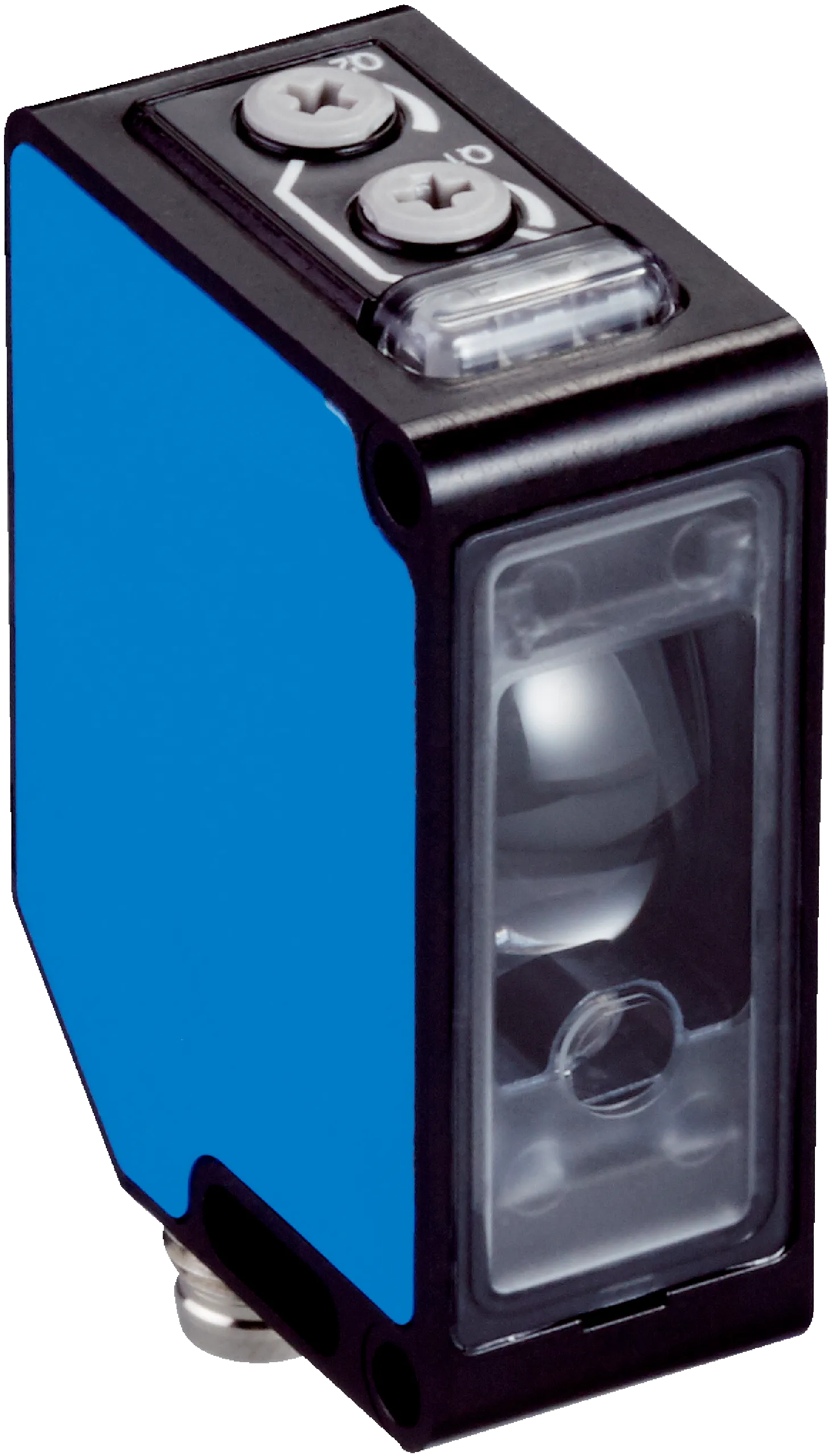

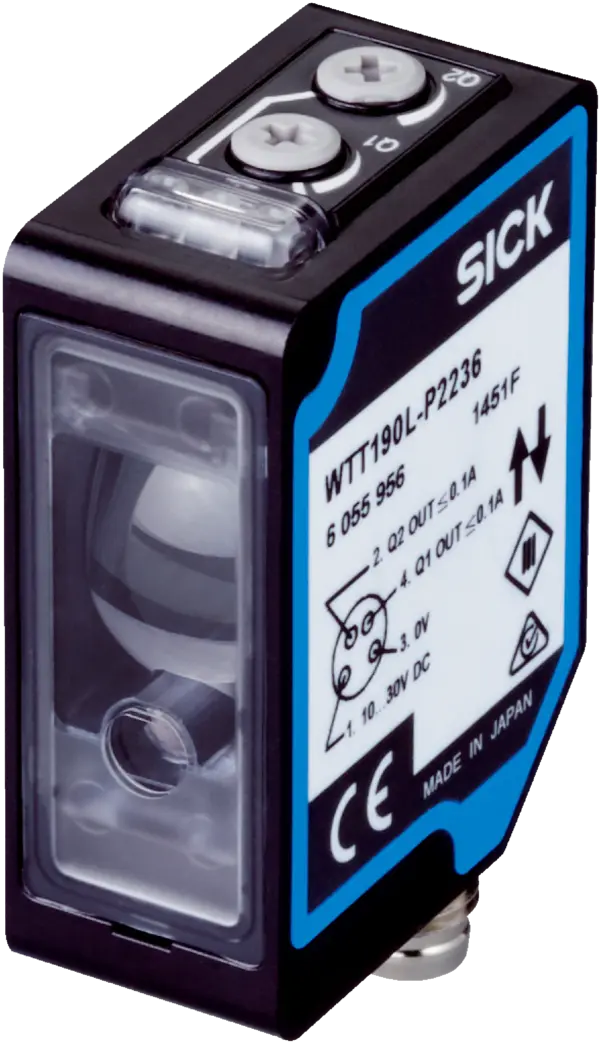

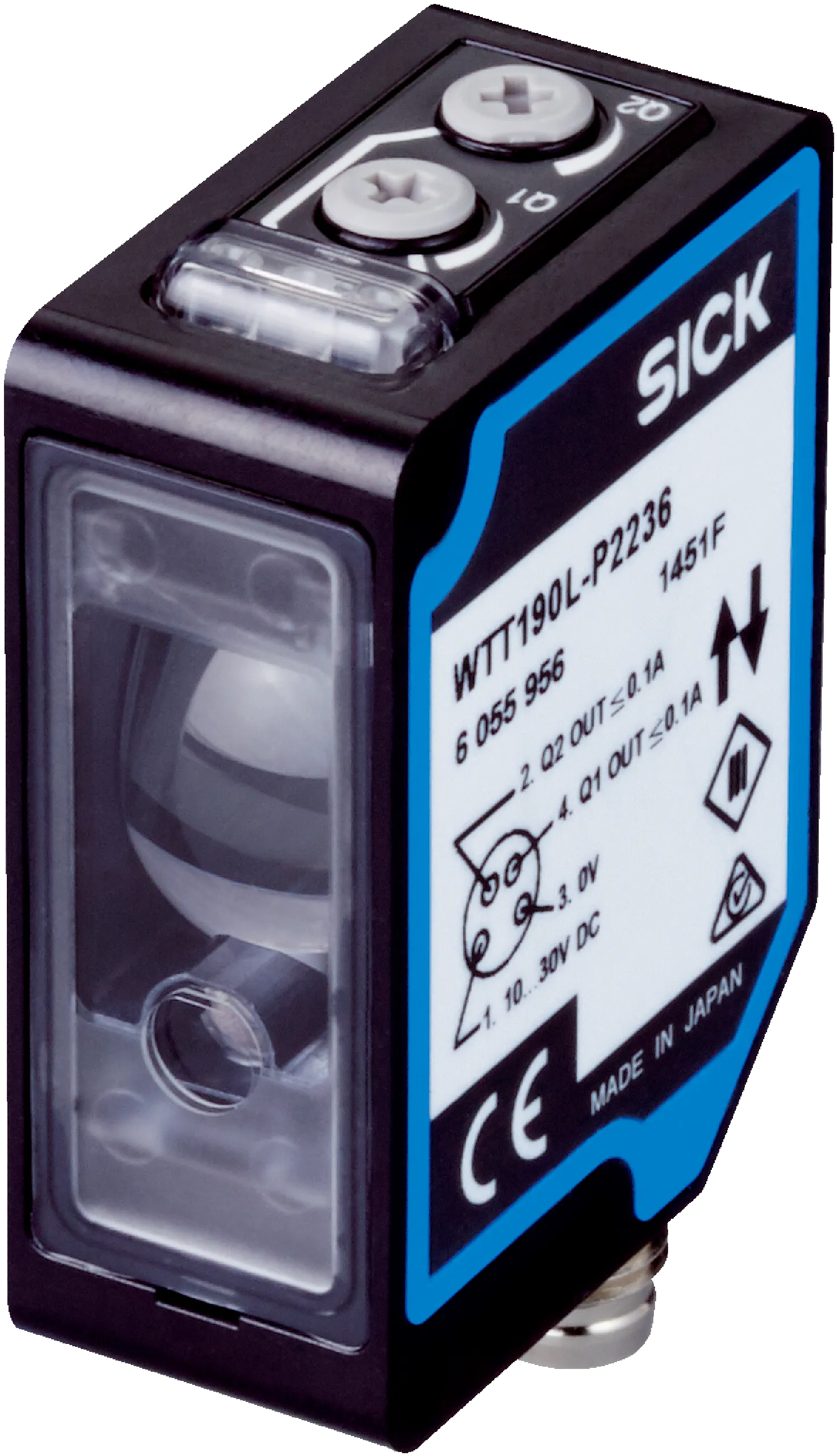

Sick WTT190L-P2236
Laser distance sensors | WTT190 PowerProx | WTT190L-P2236 | Product version: PowerProx Small | Sensing range max.: 200 mm … 2,500 mm | Functional principle: Photoelectric proximity sensor | Function…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Laser distance sensors | WTT190 PowerProx | WTT190L-P2236 | Product version: PowerProx Small | Sensing range max.: 200 mm … 2,500 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, Optical time-of-flight | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Analog output: – | Communication interface: –
Specification
Features
| Functional principle | Photoelectric proximity sensor |
|---|---|
| Functional principle detail | Background suppression, Optical time-of-flight |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 200 mm ... 2,500 mm 1) |
| Sensing range | 200 mm ... 2,500 mm 2) 1) |
| Type of light | Visible red light |
| Light source | Laser 3) |
| Light spot size (distance) | ÃÂ 10Â mm (2,500Â mm) |
| Wave length | 658Â nm |
| Laser class | 1Â (IECÂ 60825-1 / CDRH 21Â CFR 1040.10Â & 1040.11) |
| Adjustment | Potentiometer, 4Â turns (2Â x) |
| Items supplied | BEF-W190 mounting bracket |
| MTTFD | 205Â years |
| DCavg | 0Â % |
Electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | < 5 Vpp 2) |
| Current consumption | 75Â mAÂ 3) |
| Switching output | PNPÂ 4) |
| Number of switching outputs | 2Â (Q1, Q2)Â 4) |
| Switching mode | Light/dark switching 4) |
| Switching mode selector | Selectable via light/dark selector |
| Output current Imax. | â¤Â 100 mA |
| Response time | â¤Â 0.5 ms 5) |
| Switching frequency | 1,000 Hz 6) |
| Analog output | - |
| Circuit protection | AÂ 7)BÂ 8)CÂ 9) |
| Protection class | III |
| Enclosure rating | IP67 |
| Warm-up time | < 5 min 10) |
| Initialization time | <Â 300Â ms |
Mechanics
| Dimensions (W x H x D) | 17.6 mm x 46.5 mm x 34.1 mm |
|---|---|
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Weight | 25Â g |
| Connection type | Male connector M8, 4-pin |
Ambient data
| Ambient operating temperature | â10 °C ... +50 °C |
|---|---|
| Ambient temperature, storage | â40 °C ... +70 °C |
Classifications
| ECLASS 5.0 | 27270904 |
|---|---|
| ECLASS 5.1.4 | 27270904 |
| ECLASS 6.0 | 27270904 |
| ECLASS 6.2 | 27270904 |
| ECLASS 7.0 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 8.1 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cRUus certificate | â |
| Laser safety (IEC 60825-1) certificate | â |
