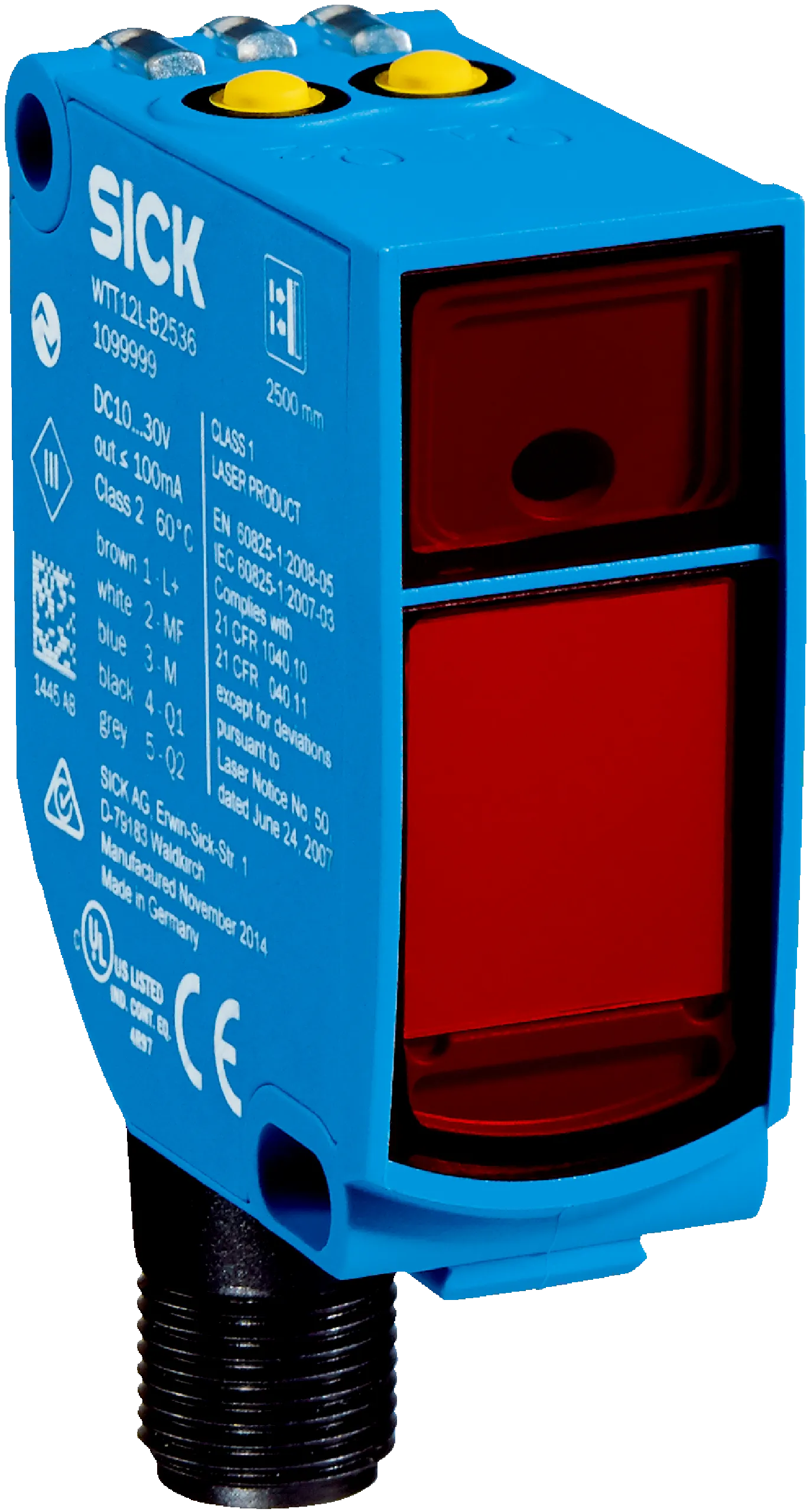

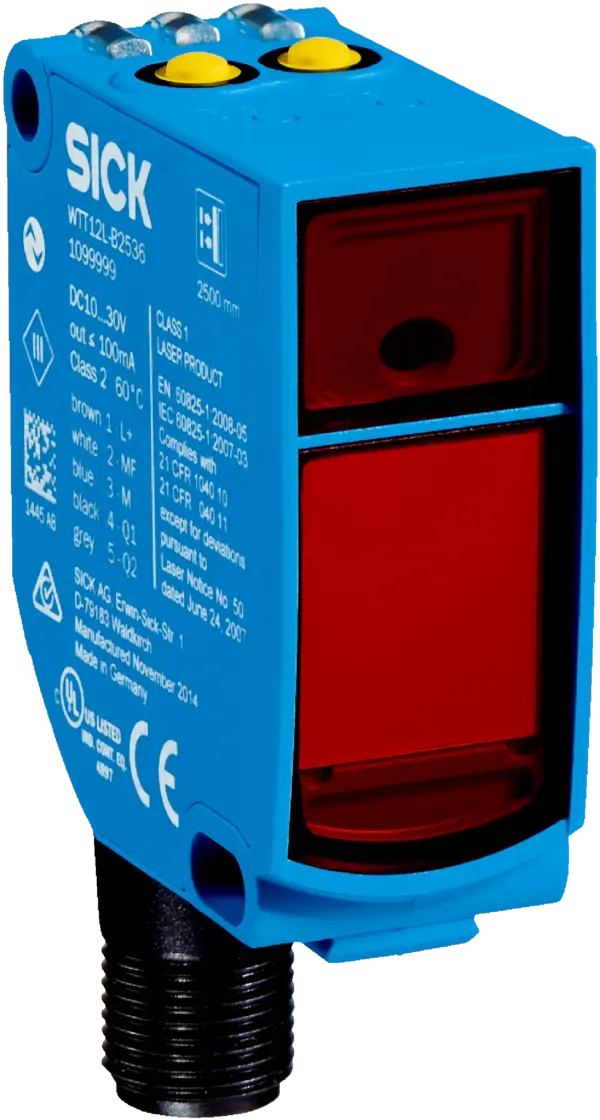

Laser distance sensors | WTT12 PowerProx | WTT12LC-B2563S11 | Product version: PowerProx Distance | Sensing range max.: 50 mm … 3,800 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, Optical time-of-flight | Switching output: Push-pull: PNP/NPN | Switching mode: Light switching | Connection type: Plug, M12, 5-pin | Analog output: – | Communication interface: IO-Link | Smart Sensor: Enhanced Sensing, efficient communication
Specification
Features
| Functional principle | Photoelectric proximity sensor |
|---|---|
| Functional principle detail | Background suppression, Optical time-of-flight |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 50 mm ... 3,800 mm 1) |
| Sensing range | 100 mm ... 3,800 mm 2) 1) |
| Measuring range | 50 mm ... 3,800 mm 1) |
| Resolution | 1,000 µm |
| Repeatability | 1,1 mm ... 3,0 mm 3) 4) 5) |
| Accuracy | Typ. ± 15 mm |
| Type of light | Visible red light |
| Light source | Laser 6) |
| Light spot size (distance) | ÃÂ 18Â mm (3,800Â mm) |
| Wave length | 658Â nm |
| Laser class | 1Â (IECÂ 60825-1 / CDRH 21Â CFR 1040.10Â & 1040.11) |
| Adjustment | Single teach-in button (2Â x), IO-Link |
| Special features | Sensing range pre-set: Q1Â = 1800Â mm, Q2Â = 1400Â mm |
| MTTFD | 124Â years |
| DCavg | 0Â % |
| TM (mission time) | 20Â years |
Interfaces
| Communication interface | IO-Link V1.1 |
|---|---|
| Communication Interface detail | COM2 (38,4Â kBaud) |
| Cycle time | 5Â ms |
| Process data length | 32Â Bit |
| Process data structure | Bit 0Â = switching signal QO1Bit 1Â = switching signal QO2Bit 2Â ... 8Â = BDC 2Â ... 8Bit 9Â ... 15Â = emptyBit 16Â ... 31Â = distance value |
| Additional features | 8Â switching points for distance to object, of which 2Â can be inverted, 1Â switching point as switching window or configurable with hysteresis., multifunctional input: sender off, external teach, inactive |
| VendorID | 26 |
| DeviceID HEX | 0x800097 |
| DeviceID DEC | 8388759 |
Electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1)Â 2) |
|---|---|
| Ripple | < 5 Vpp 3) |
| Current consumption | 70Â mAÂ 4) |
| Switching output | Push-pull: PNP/NPNÂ 5) |
| Number of switching outputs | 2Â (Q1, Q2)Â 5) |
| Switching mode | Light switching 5) |
| Output current Imax. | â¤Â 100 mA |
| Response time | â¤Â 5 ms 6) |
| Switching frequency | 100 Hz 7) |
| Analog output | - |
| Input | MFin = multifunctional input programmable |
| Circuit protection | AÂ 8)BÂ 9)CÂ 10) |
| Protection class | III |
| Enclosure rating | IP67 |
| Warm-up time | < 15 min 11) |
| Initialization time | <Â 300Â ms |
Mechanics
| Dimensions (W x H x D) | 20 mm x 49.6 mm x 44.2 mm |
|---|---|
| Housing material | Plastic, VISTAL® |
| Optics material | Plastic, PMMA |
| Weight | 48Â g |
| Connection type | Plug, M12, 5-pin |
Ambient data
| Ambient operating temperature | â35 °C ... +50 °C 1) |
|---|---|
| Ambient temperature, storage | â40 °C ... +70 °C |
Classifications
| ECLASS 5.0 | 27270904 |
|---|---|
| ECLASS 5.1.4 | 27270904 |
| ECLASS 6.0 | 27270904 |
| ECLASS 6.2 | 27270904 |
| ECLASS 7.0 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 8.1 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| IO-Link certificate | â |
| Laser safety (IEC 60825-1) certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
