Sick WTS16P-24161300CZZ - Image 1

Fast delivery within 72 Hours

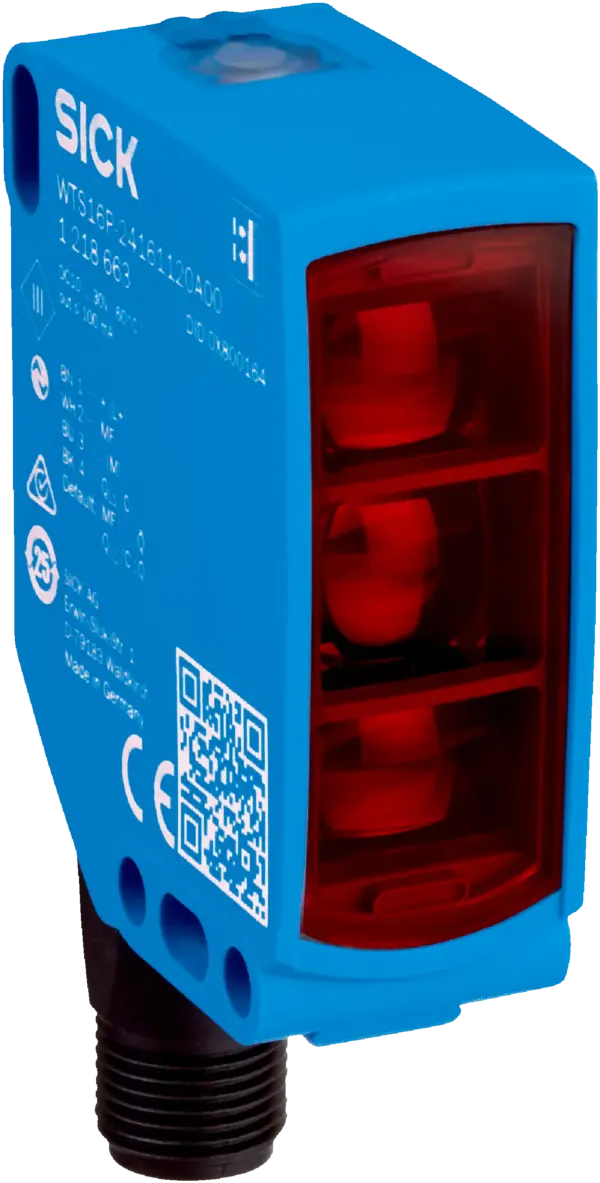

Sick WTS16P-24161300CZZ

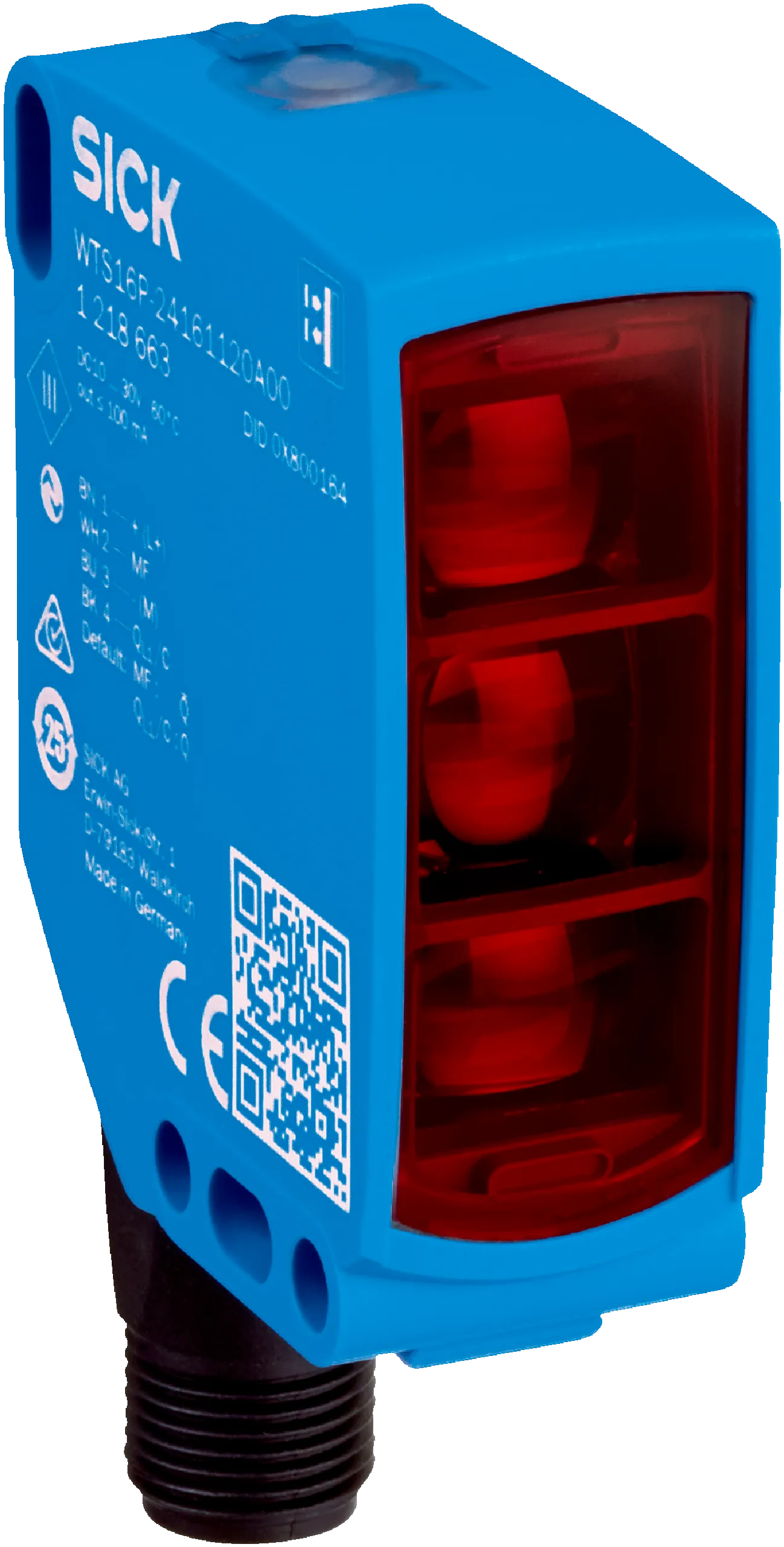

Photoelectric sensors | W16 | WTS16P-24161300CZZ | Sensing range min. / max.: 50 mm / 750 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppressio…

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Photoelectric sensors | W16 | WTS16P-24161300CZZ | Sensing range min. / max.: 50 mm / 750 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, TwinEye technology, MultiPulse | Switching output: Push-pull: PNP/NPN | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: IO-Link | Communication interface: IO-Link V1.1 | Smart Sensor: Enhanced Sensing, efficient communication, Smart Task | Smart Task name: Base logics | Special features: Factory setting: sensing range 205 mm, Dynamic blind zone 50 mm … 75 mm, Factory setting: sensing range 205 mm, MultiPulse: sensor with self-monitoring | Housing: Rectangular

Specification

Features

Functional principlePhotoelectric proximity sensor
Functional principle detailBackground suppression, TwinEye technology, MultiPulse
Sensing range min.50Â mm
Sensing range max.750Â mm
Adjustable switching threshold for background suppression100 mm ... 750 mm
Reference objectObject with 90% remission factor (complies with standard white according to DINÂ 5033)
Minimum distance between set sensing range and background (black 6% / white 90%)50Â mm, at a distance of 100Â mm
Recommended sensing range for the best performance100 mm ... 300 mm
Light sourcePinPoint LED
Type of lightVisible red light
Shape of light spotPoint-shaped
Light spot size (distance)Ø 8 mm (300 mm)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle)< +/- 1.0° (at Ta = +23 °C)
Normative referenceENÂ 62471:2008-09 | IECÂ 62471:2006, modified
LED risk group markingFree group
Wave length635Â nm
Average service life100,000 h at Ta = +25 °C
IO-LinkFor configuring the sensor parameters and Smart Task functions
LED blueBluePilot: sensing range indicator
LED yellowStatus of received light beamStatic on: object presentStatic off: object not present
Special featuresFactory setting: sensing range 205 mmDynamic blind zone 50 mm ... 75 mmMultiPulse: sensor with self-monitoring
Special applicationsDetecting uneven, shiny objects, Detecting objects wrapped in film

Safety-related parameters

MTTFD419Â years
DCavg0%
TM (mission time)20Â years

Communication interface

IO-Link✔ , V1.1
Data transmission rateCOM2 (38,4Â kBaud)
Cycle time2.3Â ms
Process data length16Â Bit
Process data structureBit 0Â = switching signal QL1
VendorID26
DeviceID HEX0x800277
DeviceID DEC8389239
Compatible master port typeA
SIO mode supportYes

Electronics

Supply voltage UB10Â VÂ DCÂ ... 30Â VÂ DCÂ 1)
Ripple≤ 5 Vpp
Usage categoryDC-12 (According to ENÂ 60947-5-2)DC-13 (According to ENÂ 60947-5-2)
Current consumption≤ 30 mA, without load. At UB = 24 V
Protection classIII
Number2Â (Complementary)
TypePush-pull: PNP/NPN
Signal voltage PNP HIGH/LOWApprox. UB-2.5Â V / 0Â V
Signal voltage NPN HIGH/LOWApprox. UBÂ /Â <Â 2.5Â V
Output current Imax.≤ 100 mA
Circuit protection outputsReverse polarity protected
Response time≤ 0.1 s 2)
Switching frequency10 Hz 3)
Function of pin 4/black (BK)Digital output, object present → output QL1, HIGH/LOW oscillating 10 Hz; IO-Link communication C 4)
Function of pin 4/black (BK) – detailThe pin 4 function of the sensor can be configured
Function of pin 2/white (WH)Digital output, object present → output QL1, LOW/HIGH oscillating 10 Hz 4)
Function of pin 2/white (WH) – detailThe pin 2 function of the sensor can be configured

Mechanics

HousingRectangular
Dimensions (W x H x D)20 mm x 55.7 mm x 42 mm
ConnectionMale connector M12, 4-pin
HousingPlastic, VISTAL®
Front screenPlastic, PMMA
Male connectorPlastic, VISTAL®
WeightApprox. 50 g
Maximum tightening torque of the fixing screws1.3Â Nm

Ambient data

Enclosure ratingIP66 (ENÂ 60529)IP67 (ENÂ 60529)IP69 (ENÂ 60529)Â 1)
Ambient operating temperature–40 °C ... +60 °C
Ambient temperature, storage–40 °C ... +75 °C
Shock resistance50Â g, 11Â ms (25Â positive and 25Â negative shocks per axis, for X, Y, Z axes, 150Â shocks in total (EN60068-2-27))50Â g, 6Â ms (5,000Â positive and 5,000Â negative shocks per axis, for X, Y, Z axes, 30,000Â shocks in total (EN60068-2-27))
Vibration resistance10 Hz ... 2,000 Hz (Amplitude 0.5 mm / 10 g, 20 sweeps per axis, for X, Y, Z axes, 1 octave/min, (EN60068-2-6))
Air humidity35Â %Â ... 95Â %, relative humidity (no condensation)
Electromagnetic compatibility (EMC)ENÂ 60947-5-2
Resistance to cleaning agentECOLAB
UL File No.NRKH.E181493 & NRKH7.E181493

Smart Task

Smart Task nameBase logics
Logic functionDirectANDORWindowHysteresis
Timer functionDeactivatedSwitch-on delayOff delayON and OFF delayImpulse (one shot)
InverterYes
Switching frequencySIO Logic: 10 Hz 1)IOL: 10 Hz 2)
Response timeSIO Logic: < 0.1 s 1)IOL: < 0.1 s 2)
Repeatability 2)
Switching signal QL1Switching output
Switching signal ǬL1Switching output

Diagnosis

Device statusYes
Quality of teachYes

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
Moroccan declaration of conformity✔
China RoHS✔
ECOLAB certificate✔
cULus certificate✔
IO-Link certificate✔
Photobiological safety (DIN EN 62471) certificate✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)✔

Classifications

ECLASS 5.027270904
ECLASS 5.1.427270904
ECLASS 6.027270904
ECLASS 6.227270904
ECLASS 7.027270904
ECLASS 8.027270904
ECLASS 8.127270904
ECLASS 9.027270904
ECLASS 10.027270904
ECLASS 11.027270904
ECLASS 12.027270903
ETIM 5.0EC002719
ETIM 6.0EC002719
ETIM 7.0EC002719
ETIM 8.0EC002719
UNSPSC 16.090139121528
