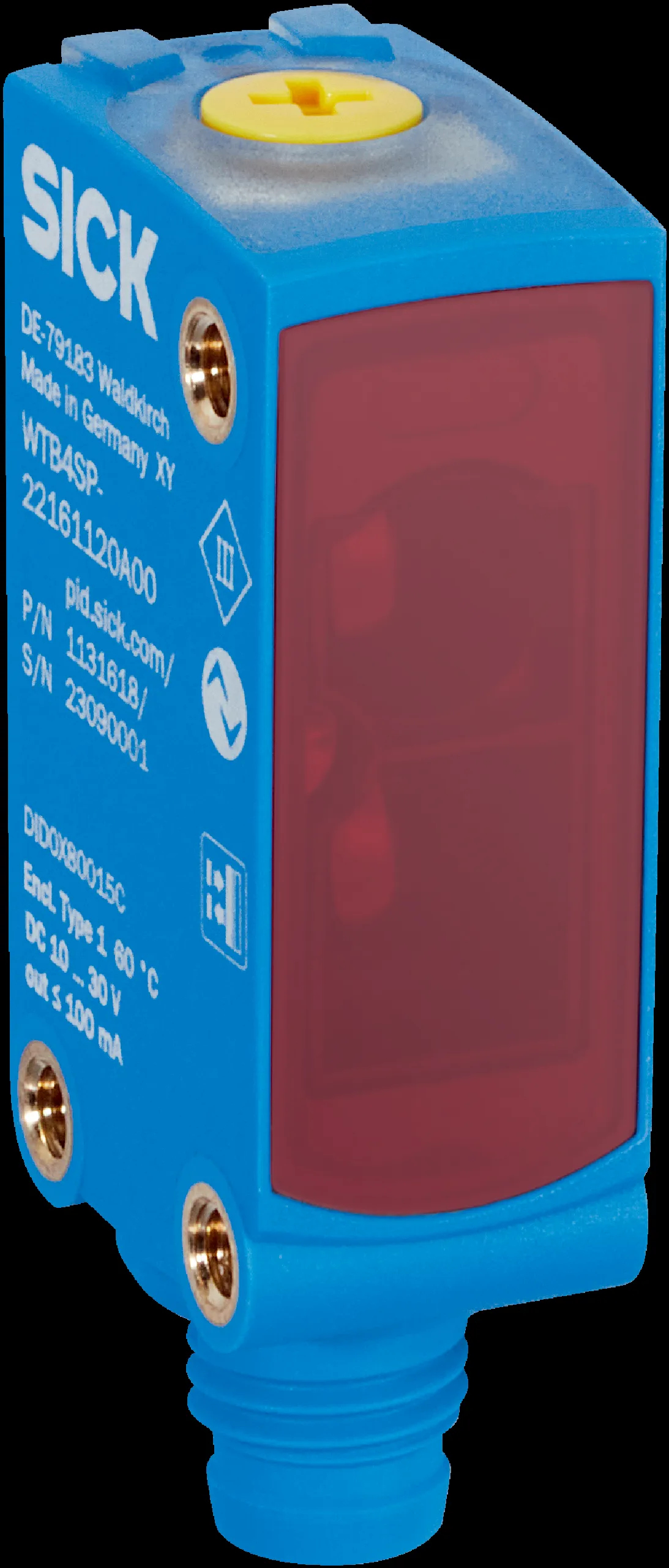

Sick WTM4SP-22161120A00

Photoelectric sensors | W4 | WTM4SP-22161120A00 | Sensing range min. / max.: 4 mm / 250 mm0 mm / 250 mm4 mm / 500 mm | Functional principle: Photoelectric proximity sensor | Functional principle detai…

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Photoelectric sensors | W4 | WTM4SP-22161120A00 | Sensing range min. / max.: 4 mm / 250 mm0 mm / 250 mm4 mm / 500 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, Foreground suppression, MultiMode, distance value | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in button, Potentiometer, Teach-Turn adjustment, IO-Link | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task | Smart Task name: Base logics | Special features: MultiMode | Housing: Rectangular

Specification

Features

Functional principlePhotoelectric proximity sensor
Functional principle detailBackground suppression, Foreground suppression, MultiMode, distance value
MultiMode1Â Background suppression2Â Foreground suppression3Â Two-point teach-in4Â Two independent switching points5Â Window6Â ApplicationSelectM manual / measurement
Sensing range min.4Â mm (mode 1, 3, 4, 5)
Sensing range max.250Â mm (mode 1, 3, 4, 5)
Adjustable switching threshold for background suppression10 mm ... 250 mm (mode 1, 3, 4, 5)
Adjustable switching threshold for foreground suppression10 mm ... 250 mm (mode 2)
Reference objectObject with 90% remission factor (complies with standard white according to DINÂ 5033)
Minimum distance between set sensing range and background (black 6% / white 90%)5Â mm, at a distance of 150Â mm (mode 1, 3, 4, 5)
Minimum object height at set sensing range in front of black background (6% remission factor)1.8Â mm, at a distance of 100Â mm (mode 2)
Recommended sensing range for the best performance40 mm ... 170 mm (mode 1, 3, 4, 5)
Measuring range10 mm ... 250 mm
Resolution0.1Â mm
Repeatability0,2 mm ... 6 mm 1) 2) 3)
AccuracyTyp. 5.0 mm at 10 ... 50 mm distance 1)
Distance value outputVia IO-Link
Update rate of the distance value20Â ms
Light sourcePinPoint LED
Type of lightVisible red light
Shape of light spotPoint-shaped
Light spot size (distance)4Â mm (150Â mm)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle)< +/- 1.5° (at Ta = +23 °C)
Normative referenceENÂ 62471:2008-09 | IECÂ 62471:2006, modified
LED risk group markingFree group
Wave length635Â nm
Average service life100,000 h at Ta = +25 °C
Teach-Turn adjustmentBluePilot: For adjusting the sensing range with mode selection
IO-LinkFor configuring the sensor parameters and Smart Task functions
LED blueBluePilot: Display of mode, display of output states QL1 (LED 3Â permanently on) and QL2 (LED 5Â permanently on)
LED greenOperating indicatorStatic on: power onFlashing: IO-Link mode
LED yellowStatus of received light beamStatic on: object presentStatic off: object not present
Special featuresMultiMode
Special applicationsDetecting uneven, shiny objects, Detection of poorly remitting and tilted objects

Safety-related parameters

MTTFD1,404Â years
DCavg0%

Communication interface

IO-Link✔ , IO-Link V1.1
Data transmission rateCOM2 (38,4Â kBaud)
Cycle time2.3Â ms
Process data length16Â Bit
Process data structureBit 0Â = switching signal QL1
VendorID26
DeviceID HEX0x80031A
DeviceID DEC8389402
Compatible master port typeA
SIO mode supportYes

Electronics

Supply voltage UB10Â VÂ DCÂ ... 30Â VÂ DCÂ 1)
Ripple≤ 5 Vpp
Usage categoryDC-12 (According to ENÂ 60947-5-2)DC-13 (According to ENÂ 60947-5-2)
Current consumption≤ 20 mA, without load. At UB = 24 V
Protection classIII
Number2
TypePush-pull: PNP/NPN
Switching modeLight/dark switching
Signal voltage PNP HIGH/LOWApprox. UB-2.5Â V / 0Â V
Signal voltage NPN HIGH/LOWApprox. UBÂ /Â <Â 2.5Â V
Output current Imax.≤ 100 mA
Circuit protection outputsReverse polarity protected
Response time≤ 500 µs (mode 1, 2, 3) 2)
Repeatability (response time)500 µs (mode 1, 2, 3) 2)
Switching frequency1,000Â Hz (mode 1, 2, 3)Â 3)
Function of pin 4/black (BK)Digital output, light switching, object present → output QL1 HIGH (Mode 1, 3, 4, 5, 6) 4)
Function of pin 4/black (BK) – detailThe pin 4 function of the sensor can be configured
Function of pin 2/white (WH)Digital output, dark switching, object present → output ǬL1 LOW (Mode 1, 3, 5, 6) 4)
Function of pin 2/white (WH) – detailThe pin 2 function of the sensor can be configured

Mechanics

HousingRectangular
Design detailSlim
Dimensions (W x H x D)12.1 mm x 41.9 mm x 18.6 mm
ConnectionMale connector M8, 4-pin
HousingPlastic, VISTAL®
Front screenPlastic, PMMA
Male connectorPlastic, VISTAL®
Maximum tightening torque of the fixing screws0.4Â Nm

Ambient data

Enclosure ratingIP66 (ENÂ 60529)IP67 (ENÂ 60529)
Ambient operating temperature–40 °C ... +60 °C
Ambient temperature, storage–40 °C ... +75 °C
Typ. Ambient light immunityArtificial light: ≤ 50,000 lxSunlight: ≤ 50,000 lx
Shock resistance30Â g, 11Â ms (3Â positive and 3Â negative shocks along X, Y, Z axes, 18Â total shocks (EN60068-2-27))
Vibration resistance10 Hz ... 1,000 Hz (Amplitude 1 mm, 3 x 30 min (EN60068-2-6))
Air humidity35Â %Â ... 95Â %, relative humidity (no condensation)
Electromagnetic compatibility (EMC)ENÂ 60947-5-2
Resistance to cleaning agentECOLAB
UL File No.NRKH.E181493 & NRKH7.E181493

Smart Task

Smart Task nameBase logics
Logic functionDirectANDOR
Timer functionDeactivatedSwitch-on delayOff delayON and OFF delayImpulse (one shot)
InverterYes
Switching frequencySIO Logic: 900Â Hz (mode 1, 2, 3)Â 1)SIO Logic: 450Â Hz (mode 4, 5)Â 1)SIO Logic: 30Â Hz (mode 1Â and 6Â combined)Â 1)IOL: 800Â Hz (mode 1, 2, 3)Â 2)IOL: 450Â Hz (mode 4, 5)Â 2)IOL: 30Â Hz (mode 1Â and 6Â combined)Â 2)
Response timeSIO Logic: 550 µs (mode 1, 2, 3) 1)SIO Logic: 1100 µs (mode 4, 5) 1)SIO Logic: 15 ms (mode 1 and 6 combined) 1)IOL: 600 µs (mode 1, 2, 3) 2)IOL: 1100 µs (mode 4, 5) 2)IOL: 15 ms (mode 1 and 6 combined) 2)
RepeatabilitySIO Logic: 200 µs 1)SIO Logic: 400 µs 1)SIO Logic: 5 ms 1)IOL: 250 µs 2)IOL: 450 µs 2)IOL: 5 ms 2)
Switching signal QL1Switching output
Switching signal ǬL1Switching output

Diagnosis

Measuring rangeVery cold, cold, moderate, warm, hot
Device statusYes
Detailed device statusYes
Operating hour counterYes
Operating hours counter with reset functionYes
Quality of teachYes

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
Moroccan declaration of conformity✔
China RoHS✔
cULus certificate✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)✔

Classifications

ECLASS 5.027270904
ECLASS 5.1.427270904
ECLASS 6.027270904
ECLASS 6.227270904
ECLASS 7.027270904
ECLASS 8.027270904
ECLASS 8.127270904
ECLASS 9.027270904
ECLASS 10.027270904
ECLASS 11.027270904
ECLASS 12.027270903
ETIM 5.0EC002719
ETIM 6.0EC002719
ETIM 7.0EC002719
ETIM 8.0EC002719
UNSPSC 16.090139121528
