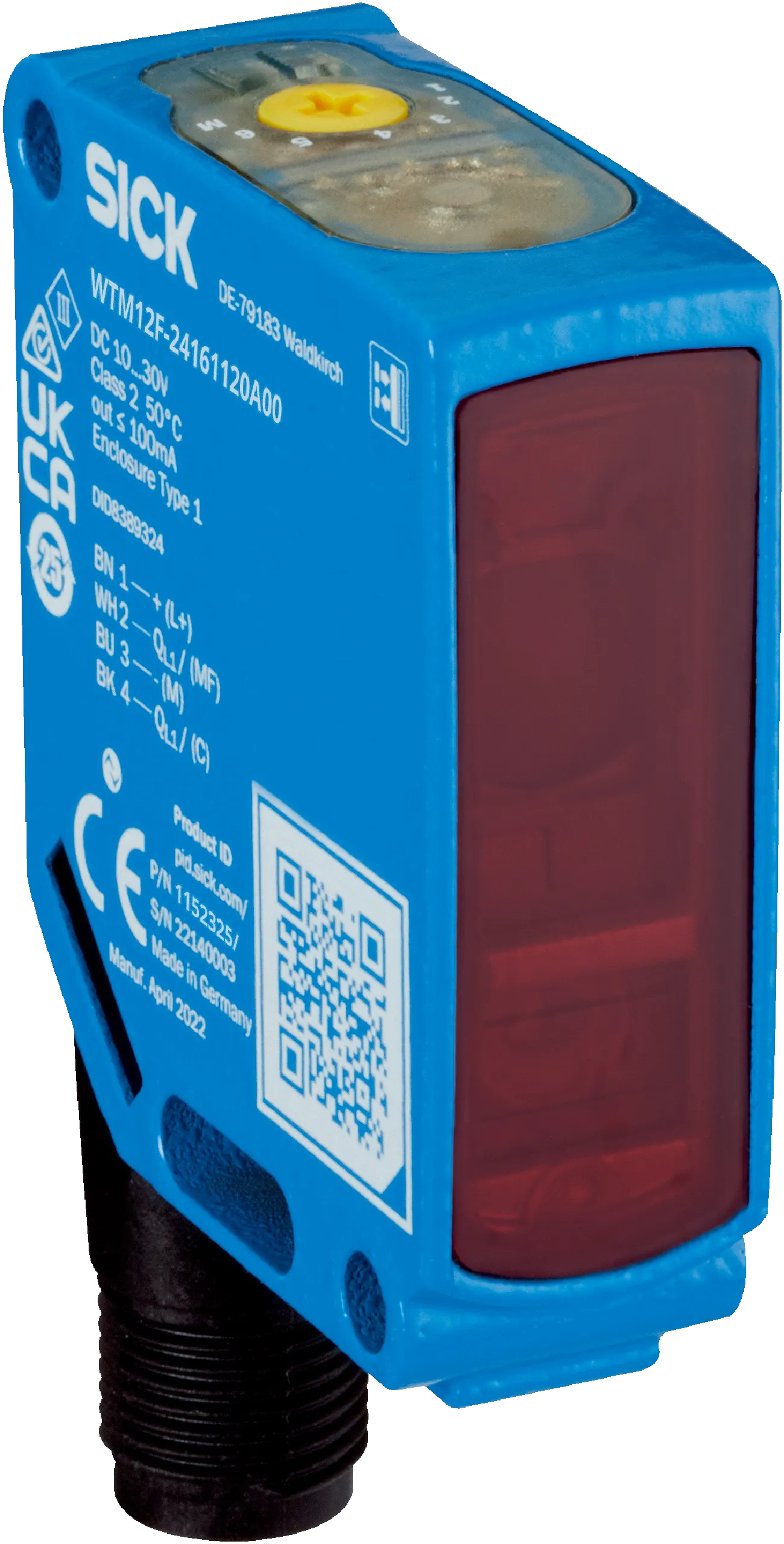

Sick WTM12F-24161220A00ZDZZZZZZZZZ1 - Image 1

Fast delivery within 72 Hours

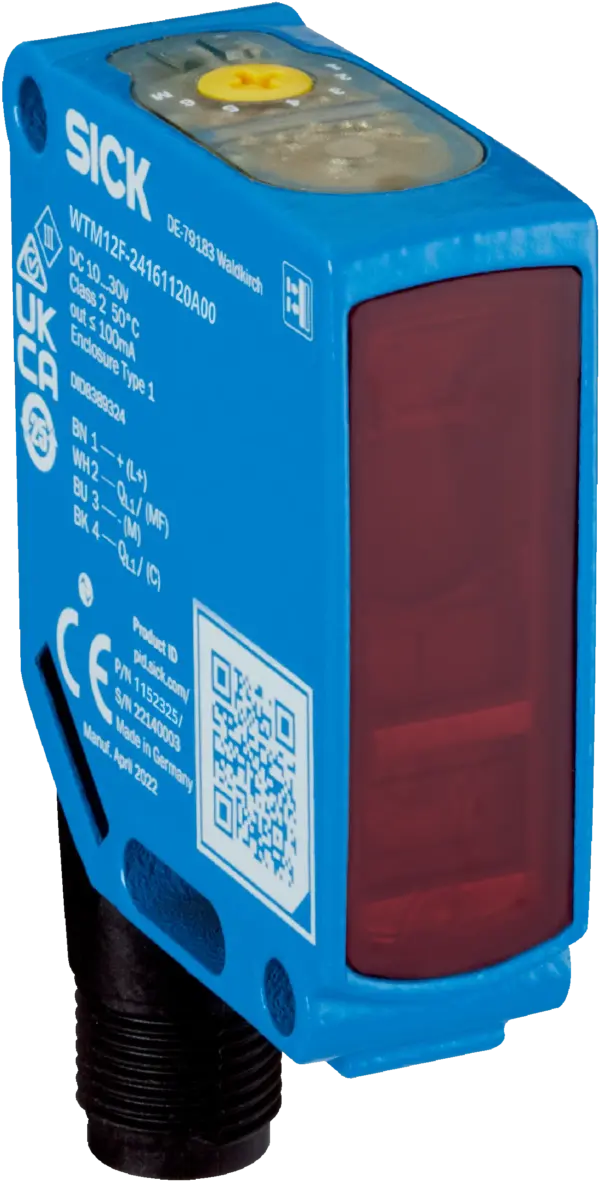

Sick WTM12F-24161220A00ZDZZZZZZZZZ1

Photoelectric sensors | W12 | WTM12F-24161220A00ZDZZZZZZZZZ1 | Sensing range min. / max.: 10 mm / 600 mm, 0 mm / 500 mm, 10 mm / 800 mm, 0 mm / 700 mm | Functional principle: Photoelectric proximity s…

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Photoelectric sensors | W12 | WTM12F-24161220A00ZDZZZZZZZZZ1 | Sensing range min. / max.: 10 mm / 600 mm, 0 mm / 500 mm, 10 mm / 800 mm, 0 mm / 700 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, Foreground suppression, MultiMode | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint Pro LED | Type of light: Visible red light | Housing material: Zinc diecast | Adjustment: Teach-in button, Potentiometer, Teach-Turn adjustment, IO-Link | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task | Smart Task name: Base logics | Special features: MultiMode | Housing: Rectangular | Focus position: 200 mm

Specification

Features

Functional principlePhotoelectric proximity sensor
Functional principle detailBackground suppression, Foreground suppression, MultiMode
MultiMode1Â Background suppression2Â Foreground suppression3Â Two Value Teach-in4Â Two independent switching points5Â Window6Â ApplicationSelectM manual / measurement
Sensing range min.10Â mm (mode 1, 3, 4, 5)
Sensing range max.600Â mm (mode 1, 3, 4, 5)
Adjustable switching threshold for background suppression40 mm ... 600 mm (mode 1, 3, 4, 5)
Adjustable switching threshold for foreground suppression40 mm ... 500 mm (mode 2)
Reference objectObject with 90% remission factor (complies with standard white according to DINÂ 5033)
Minimum distance between set sensing range and background (black 6% / white 90%)1Â mm, at a distance of 200Â mm (mode 1, 3, 4, 5)
Minimum object height at set sensing range in front of black background (6% remission factor)1Â mm, at a distance of 200Â mm (mode 2)
Recommended sensing range for the best performance50 mm ... 320 mm
Measuring range50 mm ... 600 mm
Resolution1Â mm
Repeatability0.2 mm ... 4 mm 1) 2) 3)
AccuracyTyp. 12 mm at a distance of 50 ... 250 mm 1) 4)
Distance value outputVia IO-Link
Update rate of the distance value8Â ms
Light sourcePinPoint Pro LED
Type of lightVisible red light
Shape of light spotRectangular
Light spot size (distance)8 mm x 7 mm (200 mm)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle)< +/- 1.0° (at TU = +23 °C)
Focus position200Â mm
Normative referenceENÂ 62471:2008-09 | IECÂ 62471:2006, modified
LED risk group markingFree group
Wave length635Â nm
Average service life100,000 h at Ta = +25 °C
Teach-Turn adjustmentBluePilotFor adjusting the sensing range with mode selection
IO-LinkFor configuring the sensor parameters and Smart Task functions
LED blueBluePilot: Display of mode, display of output states QL1 (LED 3Â permanently on) and QL2 (LED 5Â permanently on)
LED greenOperating indicatorStatic on: power onFlashing: IO-Link mode
LED yellowStatus of received light beamStatic on: object presentStatic off: object not present
Special featuresMultiMode

Safety-related parameters

MTTFD1,208Â years
DCavg0Â %
TM (mission time)20Â years

Communication interface

IO-Link✔ , IO-Link V1.1
Data transmission rateCOM2 (38,4Â kBaud)
Cycle time2.3Â ms
Process data length16Â Bit
Process data structureBit 0Â = switching signal
VendorID26
DeviceID HEX0x8003A5
DeviceID DEC8389541
Compatible master port typeA
SIO mode supportYes

Electronics

Supply voltage UB10Â VÂ DCÂ ... 30Â VÂ DCÂ 1)
Ripple≤ 5 V
Usage categoryDC-12 (According to ENÂ 60947-5-2)DC-13 (According to ENÂ 60947-5-2)
Current consumption≤ 40 mA, without load. At UB = 24 V
Protection classIII
Number2Â (Complementary)
TypePush-pull: PNP/NPN
Switching modeLight/dark switching
Signal voltage PNP HIGH/LOWApprox. UB-2.5Â V / 0Â V
Signal voltage NPN HIGH/LOWApprox. UBÂ /Â <Â 2.5Â V
Output current Imax.≤ 100 mA
Circuit protection outputsReverse polarity protected
Response time≤ 330 µs (mode 1, 2, 3) 2)
Repeatability (response time)100 µs (mode 1, 2, 3) 2)
Switching frequency1,500Â Hz (mode 1, 2, 3)Â 3)
Function of pin 4/black (BK)Digital output, light switching, object present → output QL1 HIGH (Mode 1, 3, 4, 5, 6) 4)
Function of pin 4/black (BK) – detailThe pin 4 function of the sensor can be configured
Function of pin 2/white (WH)Digital output, dark switching, object present → output ǬL1 LOW (Mode 1, 3, 5, 6) 4)
Function of pin 2/white (WH) – detailThe pin 2 function of the sensor can be configured

Mechanics

HousingRectangular
Dimensions (W x H x D)15.6 mm x 49.5 mm x 43.1 mm
ConnectionMale connector M12, 4-pin
HousingMetal, zinc diecast
Front screenPlastic, PMMA
Male connectorPlastic, VISTAL®
WeightApprox. 77 g
Maximum tightening torque of the fixing screws1.4Â Nm

Ambient data

Enclosure ratingIP66 (ENÂ 60529)IP67 (ENÂ 60529)IP69 (ENÂ 60529)
Ambient operating temperature–40 °C ... +60 °C
Ambient temperature, storage–40 °C ... +75 °C
Typ. Ambient light immunityArtificial light: ≤ 50,000 lxSunlight: ≤ 50,000 lx
Shock resistance50Â g, 11Â ms (25Â positive and 25Â negative shocks along X, Y, Z axes, 150Â total shocks (EN60068-2-27))
Vibration resistance10 Hz ... 2,000 Hz (Amplitude 0.5 mm / 10 g, 20 sweeps per axis, for X, Y, Z axes, 1 octave/min, (EN60068-2-6))
Air humidity35Â %Â ... 95Â %, relative humidity (no condensation)
Electromagnetic compatibility (EMC)ENÂ 60947-5-2
Resistance to cleaning agentECOLAB
UL File No.NRKH.E181493 & NRKH7.E181493

Smart Task

Smart Task nameBase logics
Logic functionDirectANDOR
Timer functionDeactivatedSwitch-on delayOff delayON and OFF delayImpulse (one shot)
InverterYes
Switching frequencySIO Logic: 1300Â Hz (mode 1, 2, 3)Â 1)SIO Logic: 450Â Hz (mode 4, 5)Â 1)SIO Logic: 30Â Hz (Mode 1, 2, 3Â combined with 6)Â 1)SIO Logic: 15Â Hz (Mode 4, 5Â combined with 6)Â 1)IOL: 1200Â Hz (mode 1, 2, 3)Â 2)IOL: 450Â Hz (mode 4, 5)Â 2)IOL: 30Â Hz (Mode 1, 2, 3Â combined with 6)Â 2)IOL: 15Â Hz (Mode 4, 5Â combined with 6)Â 2)
Response timeSIO Logic: 390 µs (mode 1, 2, 3) 1)SIO Logic: 400 µs (mode 4, 5) 1)SIO Logic: 15 ms (Mode 1, 2, 3 combined with 6) 1)SIO Logic: 30 ms (Mode 4, 5 combined with 6) 1)IOL: 420 µs (mode 1, 2, 3) 2)IOL: 450 µs (mode 4, 5) 2)IOL: 15 ms (Mode 1, 2, 3 combined with 6) 2)IOL: 30 ms (Mode 4, 5 combined with 6) 2)
RepeatabilitySIO Logic: 140 µs (mode 1, 2, 3) 1)SIO Logic: 1100 µs (mode 4, 5) 1)SIO Logic: 5 ms (Mode 1, 2, 3 combined with 6) 1)SIO Logic: 10 ms (Mode 4, 5 combined with 6) 1)IOL: 170 µs (mode 1, 2, 3) 2)IOL: 1100 µs (mode 4, 5) 2)IOL: 5 ms (Mode 1, 2, 3 combined with 6) 2)IOL: 10 ms (Mode 4, 5 combined with 6) 2)
Switching signal QL1Switching output
Switching signal ǬL1Switching output

Diagnosis

Measuring rangeVery cold, cold, moderate, warm, hot
Device statusYes
Detailed device statusYes
Operating hour counterYes
Operating hours counter with reset functionYes
Quality of teachYes

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
Moroccan declaration of conformity✔
China RoHS✔
ECOLAB certificate✔
cULus certificate✔
IO-Link certificate✔
Photobiological safety (IEC EN 62471)✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)✔

Classifications

ECLASS 5.027270904
ECLASS 5.1.427270904
ECLASS 6.027270904
ECLASS 6.227270904
ECLASS 7.027270904
ECLASS 8.027270904
ECLASS 8.127270904
ECLASS 9.027270904
ECLASS 10.027270904
ECLASS 11.027270904
ECLASS 12.027270903
ETIM 5.0EC002719
ETIM 6.0EC002719
ETIM 7.0EC002719
ETIM 8.0EC002719
UNSPSC 16.090139121528
