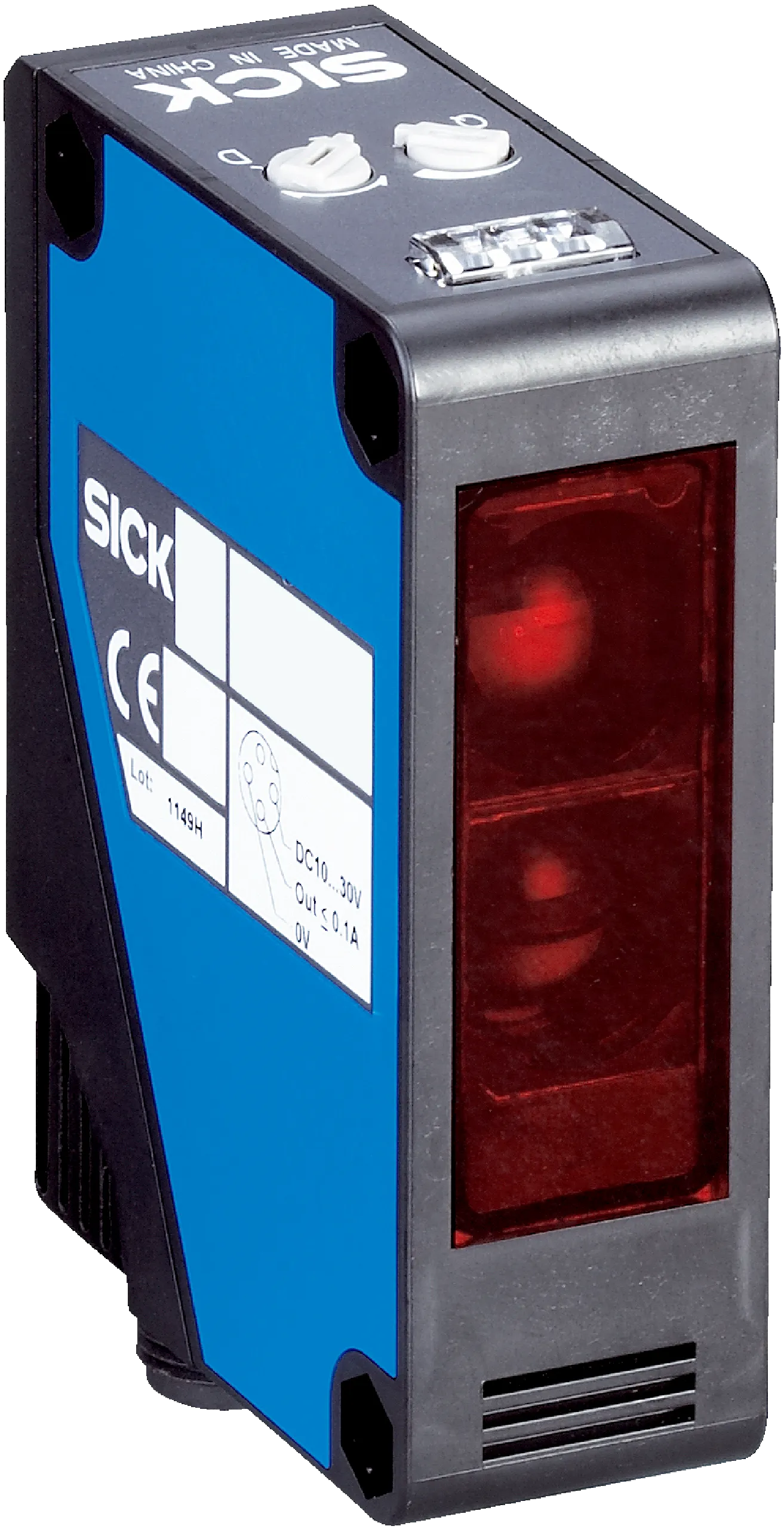

Sick WTE280-2P2431
Photoelectric sensors | W280-2 | WTE280-2P2431 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: PNP | Switching mode: Light/dark swit…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | W280-2 | WTE280-2P2431 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: – | Included with delivery: Mounting bracket BEF-W280
Specification
Features
| Functional principle | Photoelectric proximity sensor |
|---|---|
| Functional principle detail | Energetic |
| Dimensions (W x H x D) | 23.5 mm x 74.5 mm x 63 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 10 mm ... 2,000 mm 1) |
| Sensing range | 10 mm ... 1,500 mm |
| Type of light | Visible red light |
| Light source | LEDÂ 2) |
| Light spot size (distance) | ÃÂ 45Â mm (1,500Â mm) |
| Adjustment | Potentiometeradjustable via sensing range adjustment |
Mechanics/electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | < 5 Vpp 2) |
| Current consumption | 20Â mAÂ 3) |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark rotary switch |
| Output current Imax. | â¤Â 100 mA |
| Response time | â¤Â 0.5 ms 4) |
| Switching frequency | 1,000 Hz 5) |
| Connection type | Male connector M12, 4-pin |
| Circuit protection | AÂ 6)BÂ 7)CÂ 8)DÂ 9) |
| Protection class | III |
| Weight | 150Â g |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP66IP67 |
| Items supplied | Mounting bracket BEF-W280 |
| Electromagnetic compatibility (EMC) | ENÂ 60947-5-2Â 10) |
| Ambient operating temperature | â25 °C ... +55 °C |
| Ambient temperature, storage | â40 °C ... +70 °C |
| UL File No. | NRKH2.E300503 & NRKH8.E300503 |
Safety-related parameters
| MTTFD | 1,440Â years |
|---|---|
| DCavg | 0Â % |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cRUus certificate | â |
| Photobiological safety (DIN EN 62471) certificate | â |
Classifications
| ECLASS 5.0 | 27270903 |
|---|---|
| ECLASS 5.1.4 | 27270903 |
| ECLASS 6.0 | 27270903 |
| ECLASS 6.2 | 27270903 |
| ECLASS 7.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 8.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
