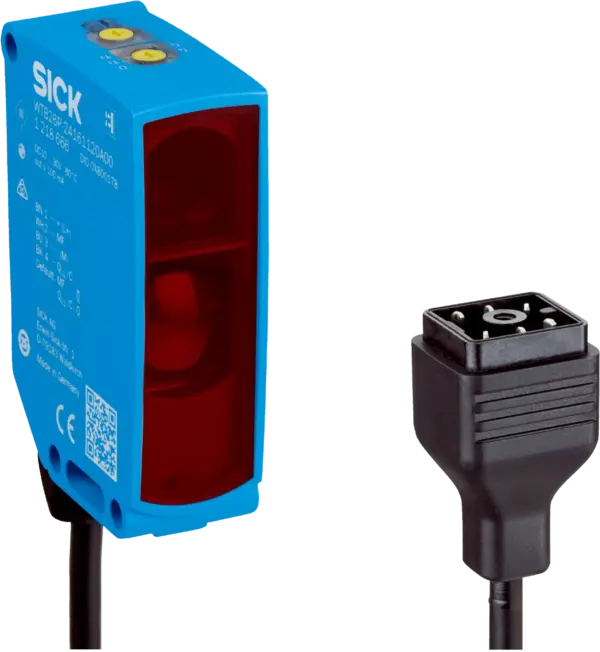

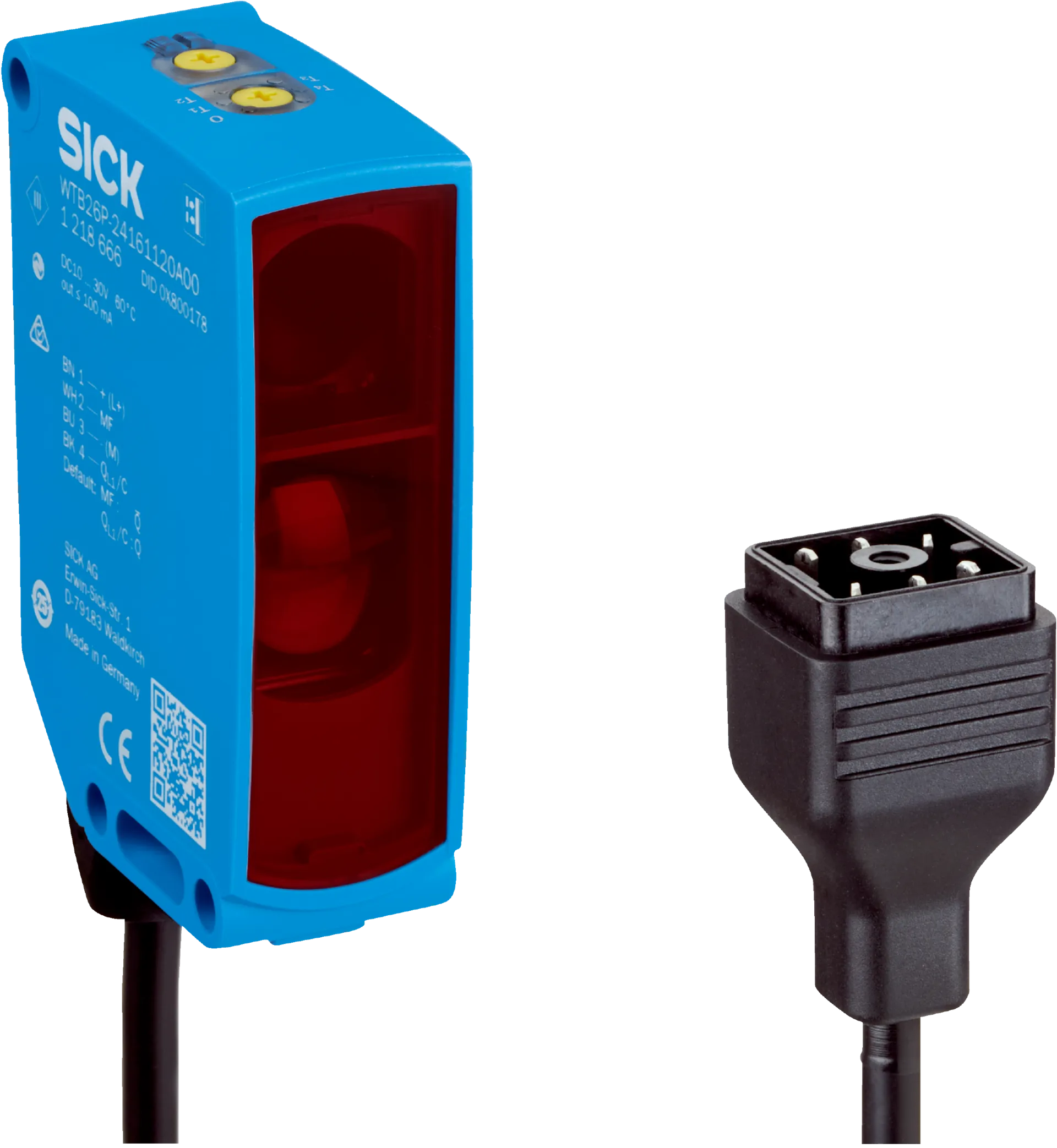

Photoelectric sensors | W26 | WTB26I-39422122ZZZ | Sensing range min. / max.: 30 mm / 2,000 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with Q6 male connector, 6-pin, DC-coded, 298 mm | Light source: LED | Type of light: Infrared light | Housing material: VISTAL® | Adjustment: Teach-in button, Potentiometer, Teach-Turn adjustment | Housing: Rectangular

Specification

Features

Functional principlePhotoelectric proximity sensor
Functional principle detailBackground suppression
Sensing range min.30Â mm
Sensing range max.2,000Â mm
Adjustable switching threshold for background suppression180 mm ... 2,000 mm
Reference objectObject with 90% remission factor (complies with standard white according to DINÂ 5033)
Minimum distance between set sensing range and background (black 6% / white 90%)85Â mm, at a distance of 800Â mm
Recommended sensing range for the best performance200 mm ... 800 mm
Light sourceLED
Type of lightInfrared light
Shape of light spotPoint-shaped
Light spot size (distance)Ø 14 mm (1,000 mm)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle)< +/- 1.0° (at Ta = +23 °C)
Normative referenceENÂ 62471:2008-09 | IECÂ 62471:2006, modified
LED risk group markingFree group
Wave length850Â nm
Average service life100,000 h at Ta = +25 °C
Teach-Turn adjustment 1BluePilot: For setting the sensing range
Teach-Turn adjustment 2BluePilot: for configuring the time function
Wire/pinFor activating the test input
LED blue 1BluePilot: sensing range indicator
LED blue 2BluePilot: Time function display
LED greenOperating indicatorStatic on: power on
LED yellowStatus of received light beamStatic on: object presentStatic off: object not present

Safety-related parameters

MTTFD507Â years
DCavg0Â %
TM (mission time)20Â years

Electronics

Supply voltage UB10Â VÂ DCÂ ... 30Â VÂ DCÂ 1)
Ripple≤ 5 Vpp
Usage categoryDC-12 (According to ENÂ 60947-5-2)DC-13 (According to ENÂ 60947-5-2)
Current consumption≤ 30 mA, without load. At UB = 24 V
Protection classIII
Number2Â (Complementary)
TypePush-pull: PNP/NPN
Switching modeLight/dark switching
Signal voltage PNP HIGH/LOWApprox. UB-2.5Â V / 0Â V
Signal voltage NPN HIGH/LOWApprox. UBÂ /Â <Â 2.5Â V
Output current Imax.≤ 100 mA
Circuit protection outputsReverse polarity protected
Response time≤ 500 µs 2)
Repeatability (response time)150 µs
Switching frequency1,000 Hz 3)
Time functionsDeactivated (factory setting), switch-on delay, off delay, ON and OFF delay, Impulse (one shot)
Delay timeTeach-turn adjustment, 0 ms ... 30,000 ms, 0 ms (factory setting)
Function of pin 4/black (BK)Digital output, dark switching, object present → output Ǭ LOW 4)
Pin 5 function/white (WH)Digital output, light switching, object present → output Q HIGH
Pin 6Â function/gray (GY)Test after L+

Mechanics

HousingRectangular
Dimensions (W x H x D)24.6 mm x 82.5 mm x 53.3 mm
ConnectionCable with Q6 male connector, 6-pin, DC-coded, 298Â mm
Deep-freeze propertyDo not bend below 0 °C
Conductor size0.14 mm²
Cable diameterØ 4.8 mm
Length of cable (L)270Â mm
Bending radiusFor flexible use >Â 12Â x cable diameter
Bending cycles1,000,000
HousingPlastic, VISTAL®
Front screenPlastic, PMMA
CablePlastic, PVC
Male connectorPlastic, VISTAL®
WeightApprox. 100 g
Maximum tightening torque of the fixing screws1.3Â Nm

Ambient data

Enclosure ratingIP65 (ENÂ 60529)
Ambient operating temperature–40 °C ... +60 °C
Ambient temperature, storage–40 °C ... +75 °C
Shock resistance50Â g, 11Â ms (25Â positive and 25Â negative shocks per axis, for X, Y, Z axes, 150Â shocks in total (EN60068-2-27))50Â g, 6Â ms (5,000Â positive and 5,000Â negative shocks per axis, for X, Y, Z axes, 30,000Â shocks in total (EN60068-2-27))
Vibration resistance10 Hz ... 2,000 Hz (Amplitude 0.5 mm / 10 g, 20 sweeps per axis, for X, Y, Z axes, 1 octave/min, (EN60068-2-6))
Air humidity35Â %Â ... 95Â %, relative humidity (no condensation)
Electromagnetic compatibility (EMC)ENÂ 60947-5-2
UL File No.NRKH.E181493 & NRKH7.E181493

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
Moroccan declaration of conformity✔
China RoHS✔
ECOLAB certificate✔
cULus certificate✔
Photobiological safety (DIN EN 62471) certificate✔

Classifications

ECLASS 5.027270904
ECLASS 5.1.427270904
ECLASS 6.027270904
ECLASS 6.227270904
ECLASS 7.027270904
ECLASS 8.027270904
ECLASS 8.127270904
ECLASS 9.027270904
ECLASS 10.027270904
ECLASS 11.027270904
ECLASS 12.027270903
ETIM 5.0EC002719
ETIM 6.0EC002719
ETIM 7.0EC002719
ETIM 8.0EC002719
UNSPSC 16.090139121528
