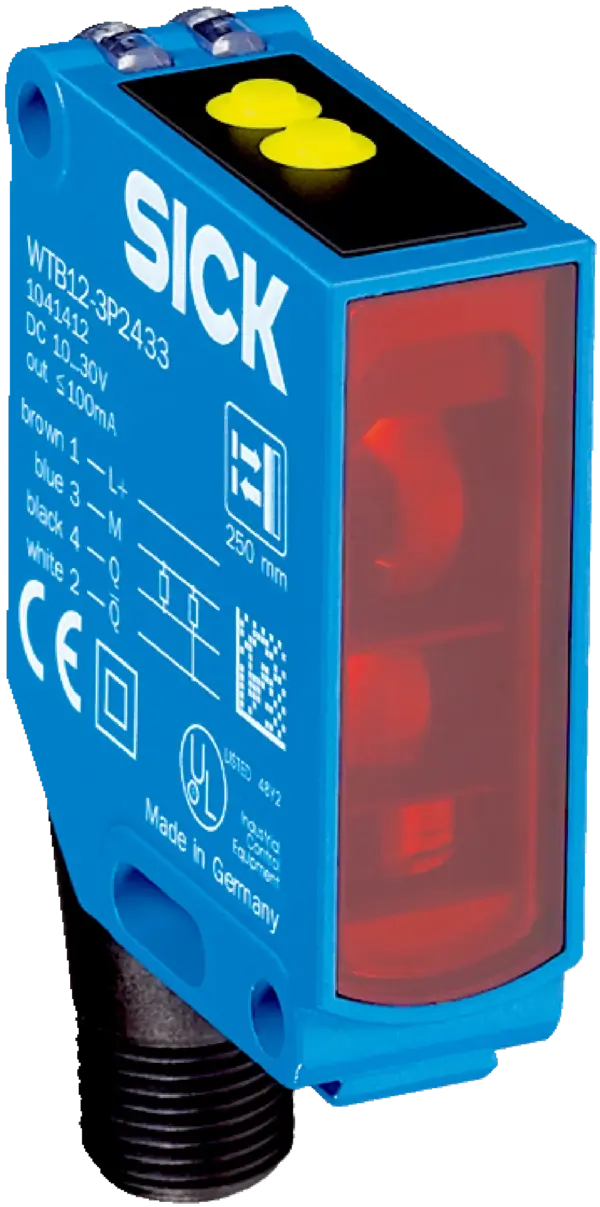

Sick WTB12-3N1011S42
Photoelectric sensors | W12-3 | WTB12-3N1011S42 | Sensing range max.: 20 mm … 150 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Sw…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | W12-3 | WTB12-3N1011S42 | Sensing range max.: 20 mm … 150 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: NPN | Switching mode: Light switching | Connection type: Cable with AMP connector, 320 mm | Light source: LED | Type of light: Infrared light | Adjustment: None | Special features: Sensing range pre-set: 150 mm | Housing: Rectangular
Specification
Features
| Functional principle | Photoelectric proximity sensor |
|---|---|
| Functional principle detail | Background suppression |
| Sensing range max. | 20 mm ... 150 mm 1) |
| Sensing range | 20 mm ... 150 mm 2) |
| Light source | LEDÂ 3) |
| Type of light | Infrared light |
| Light spot size (distance) | 200Â mm |
| Wave length | 850Â nm |
| Adjustment | None |
| Special features | Sensing range pre-set: 150Â mm |
Electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | < 5 Vpp 2) |
| Current consumption | 55Â mAÂ 3) |
| Protection class | III |
| Type | NPN |
| Switching mode | Light switching |
| Signal voltage NPN HIGH/LOW | Approx. VS / < 2.5Â V |
| Output current Imax. | â¤Â 100 mA |
| Response time | â¤Â 330 µs 4) |
| Switching frequency | 1,500 Hz 5) |
| Circuit protection | AÂ 6)CÂ 7)DÂ 8) |
Mechanics
| Housing | Rectangular |
|---|---|
| Dimensions (W x H x D) | 15.6 mm x 48.5 mm x 42 mm |
| Connection | Cable with AMP connector, 320 mm 1) |
| Conductor size | 0.85 mm² |
| Length of cable (L) | 320 mm 1) |
| Housing | Metal |
| Front screen | Plastic, PMMA |
| Cable | Plastic, PVC |
| Weight | 200Â g |
Ambient data
| Enclosure rating | IP66IP67IP69K |
|---|---|
| Ambient operating temperature | â40 °C ... +60 °C |
| Ambient temperature, storage | â40 °C ... +75 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| ECOLAB certificate | â |
| cULus certificate | â |
| Photobiological safety (DIN EN 62471) certificate | â |
Classifications
| ECLASS 5.0 | 27270904 |
|---|---|
| ECLASS 5.1.4 | 27270904 |
| ECLASS 6.0 | 27270904 |
| ECLASS 6.2 | 27270904 |
| ECLASS 7.0 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 8.1 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
