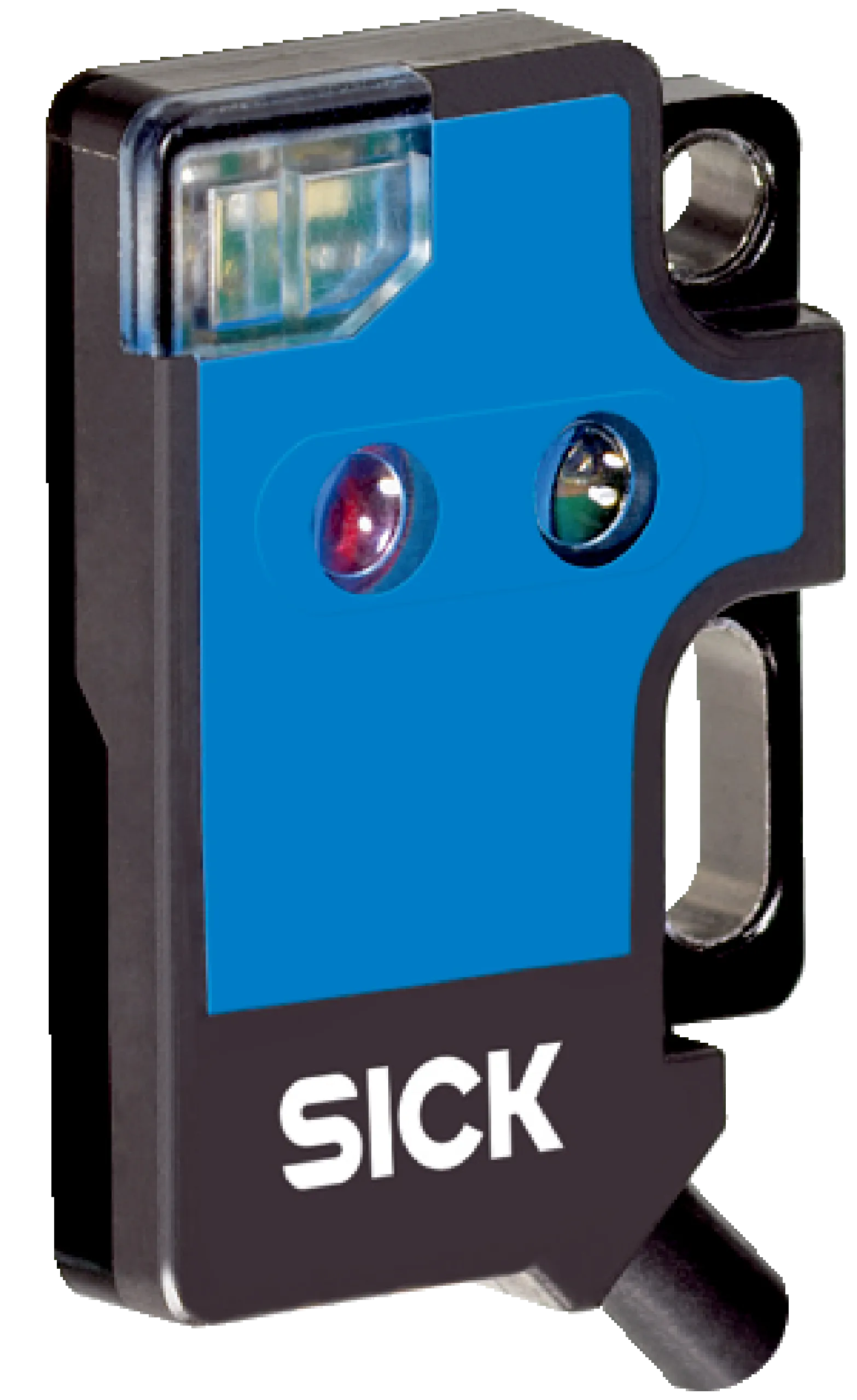

Sick WT2F-P440
Photoelectric sensors | W2 | WT2F-P440 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: PNP | Switching mode: Light switching | Conne…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | W2 | WT2F-P440 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: PNP | Switching mode: Light switching | Connection type: Cable with M8 male connector, 4-pin, 200 mm | Light source: LED | Adjustment: None | Communication interface: –
Specification
Features
| Functional principle | Photoelectric proximity sensor |
|---|---|
| Functional principle detail | Energetic |
| Dimensions (W x H x D) | 14 mm x 19.5 mm x 3.5 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 2 mm ... 18 mm 1) |
| Sensing range | 2 mm ... 18 mm 1) |
| Type of light | Visible red light |
| Light source | LEDÂ 2) |
| Wave length | 660Â nm |
| Adjustment | None |
Mechanics/electronics
| Supply voltage UB | 12Â VÂ DCÂ ... 24Â VÂ DCÂ 1) |
|---|---|
| Ripple | < 5 Vpp 2) |
| Switching output | PNP |
| Switching mode | Light switching |
| Signal voltage PNP HIGH/LOW | Approx. VS â 1.8Â V / 0Â V |
| Signal voltage NPN HIGH/LOW | Approx. VS / < 1.8Â V |
| Output current Imax. | â¤Â 50 mA |
| Response time | â¤Â 0.5 ms 3) |
| Switching frequency | 1,000 Hz 4) |
| Connection type | Cable with M8 male connector, 4-pin, 200 mm 5) |
| Cable material | Plastic, PVC |
| Cable diameter | ÃÂ 2.4Â mm |
| Circuit protection | AÂ 6)CÂ 7)DÂ 8) |
| Weight | 20Â g |
| Reverse polarity protection | â |
| Short-circuit protection | â |
| Housing material | Plastic, PC |
| Optics material | Plastic, PC |
| Enclosure rating | IP67 |
| Ambient operating temperature | â20 °C ... +55 °C |
| Ambient temperature, storage | â40 °C ... +75 °C |
Safety-related parameters
| MTTFD | 1,526Â years |
|---|---|
| DCavg | 0Â % |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| Photobiological safety (DIN EN 62471) certificate | â |
Classifications
| ECLASS 5.0 | 27270903 |
|---|---|
| ECLASS 5.1.4 | 27270903 |
| ECLASS 6.0 | 27270903 |
| ECLASS 6.2 | 27270903 |
| ECLASS 7.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 8.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
