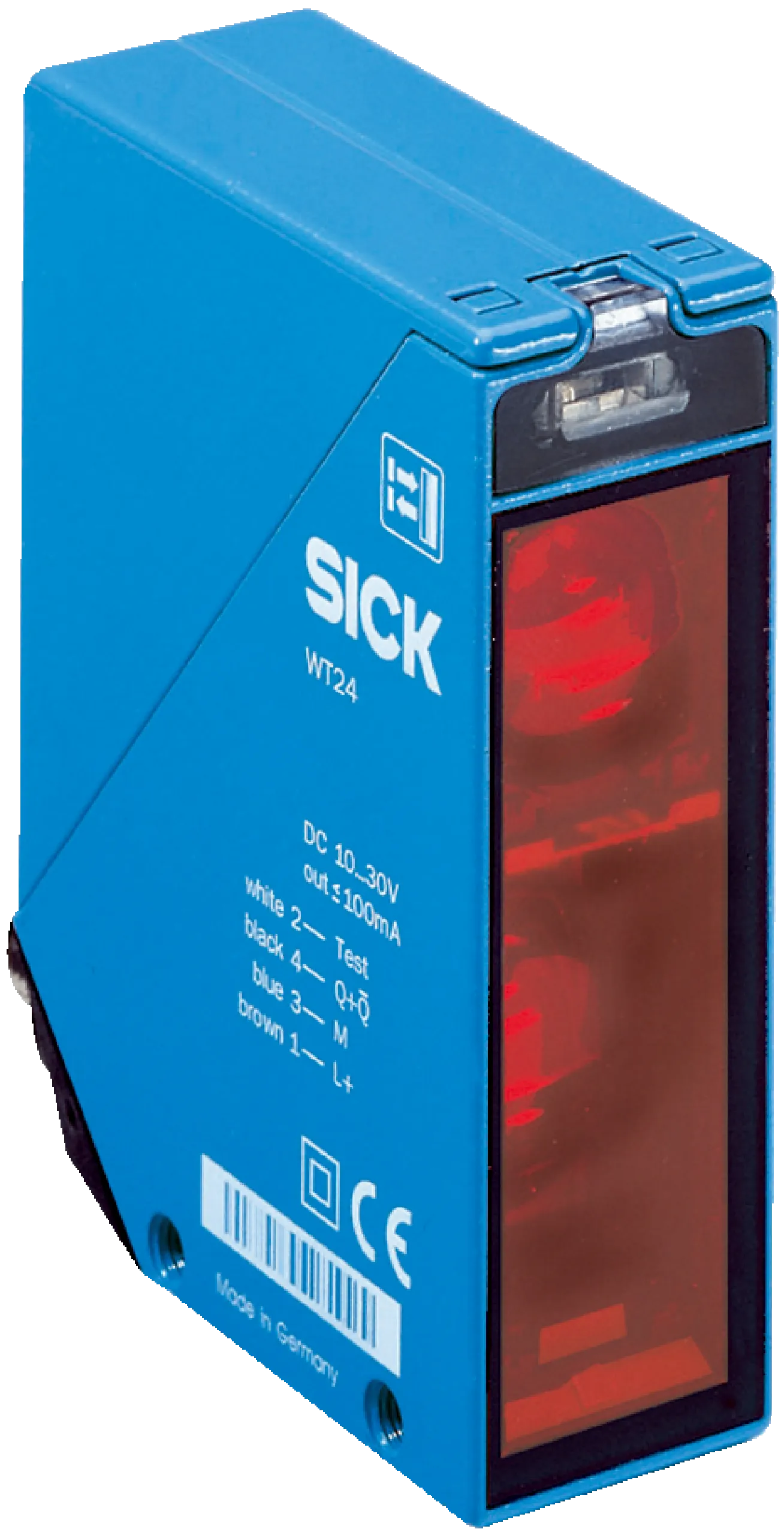

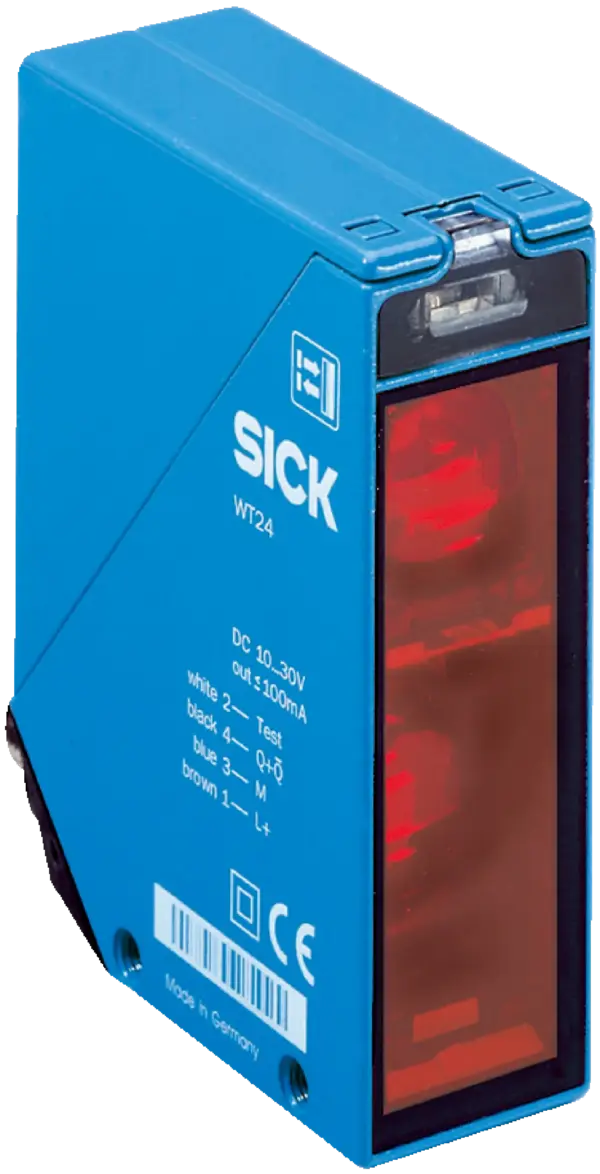

Sick WT24-2R220
Photoelectric sensors | W24 | WT24-2R220 | Sensing range max.: 100 mm … 2,500 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switch…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | W24 | WT24-2R220 | Sensing range max.: 100 mm … 2,500 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: Relay | Switching mode: Light/dark switching | Connection type: Terminal connection with M16 gland | Adjustment: Potentiometer
Specification
Features
| Functional principle | Photoelectric proximity sensor |
|---|---|
| Functional principle detail | Background suppression |
| Dimensions (W x H x D) | 27 mm x 87.5 mm x 65 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 100 mm ... 2,500 mm 1) |
| Sensing range | 100 mm ... 2,500 mm 1) |
| Type of light | Infrared light |
| Light source | LEDÂ 2) |
| Light spot size (distance) | ÃÂ 80Â mm (2,500Â mm) |
| Adjustment | Potentiometer |
Mechanics/electronics
| Supply voltage UB | 20Â VÂ AC/DCÂ ... 250Â VÂ AC/DC |
|---|---|
| Power consumption | <Â 3Â VA |
| Switching output | Relay, electrically isolated 1) |
| Output function | Change-over contacts |
| Switching mode | Light/dark switching 1) |
| Switching mode selector | Selectable via light/dark selector |
| Switching current (switching voltage) | 4Â A @ 250Â VÂ AC, 4Â A @ 24Â VÂ DC, 0.125Â A @ 250Â VÂ DCUL: 4Â A @ 250Â VÂ AC, general use / 4Â A @ 250Â VÂ AC, resistive (NO) / 3Â A @ 250Â VÂ AC, resistive (NC) / 4Â A @ 24Â VÂ DC, NO, general use / 3Â A @ 24Â VÂ DC, NC, general use / R300 / B300 (NO contacts only) |
| Response time | â¤Â 10 ms |
| Switching frequency | 10 Hz 2) |
| Time functions | Switch-on delayOff delay |
| Delay time | Adjustable via time delay selector switch, 0.5 s ... 10 s |
| Connection type | Terminal connection with M16 gland |
| Circuit protection | AÂ 3)CÂ 4) |
| Protection class | IIÂ 5) |
| Weight | 330Â g |
| Front screen heating | â 6) |
| Housing material | Metal, zinc diecast |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Usage category | AC-15, DC-13According to ENÂ 60947-1 |
| Ambient operating temperature | â40 °C ... +60 °C |
| Ambient temperature, storage | â40 °C ... +75 °C |
Safety-related parameters
| MTTFD | 535Â years |
|---|---|
| DCavg | 0Â % |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| CCC certificate | â |
| cULus certificate | â |
| Photobiological safety (DIN EN 62471) certificate | â |
Classifications
| ECLASS 5.0 | 27270904 |
|---|---|
| ECLASS 5.1.4 | 27270904 |
| ECLASS 6.0 | 27270904 |
| ECLASS 6.2 | 27270904 |
| ECLASS 7.0 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 8.1 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270904 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
