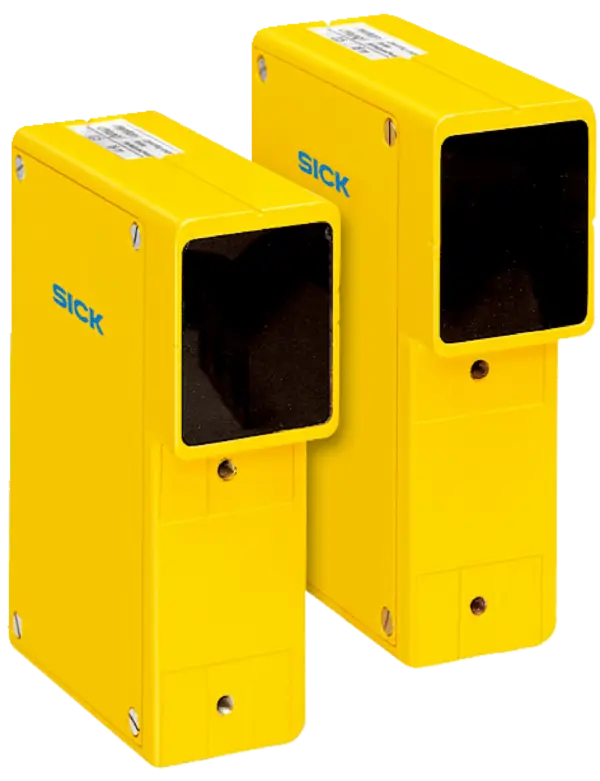

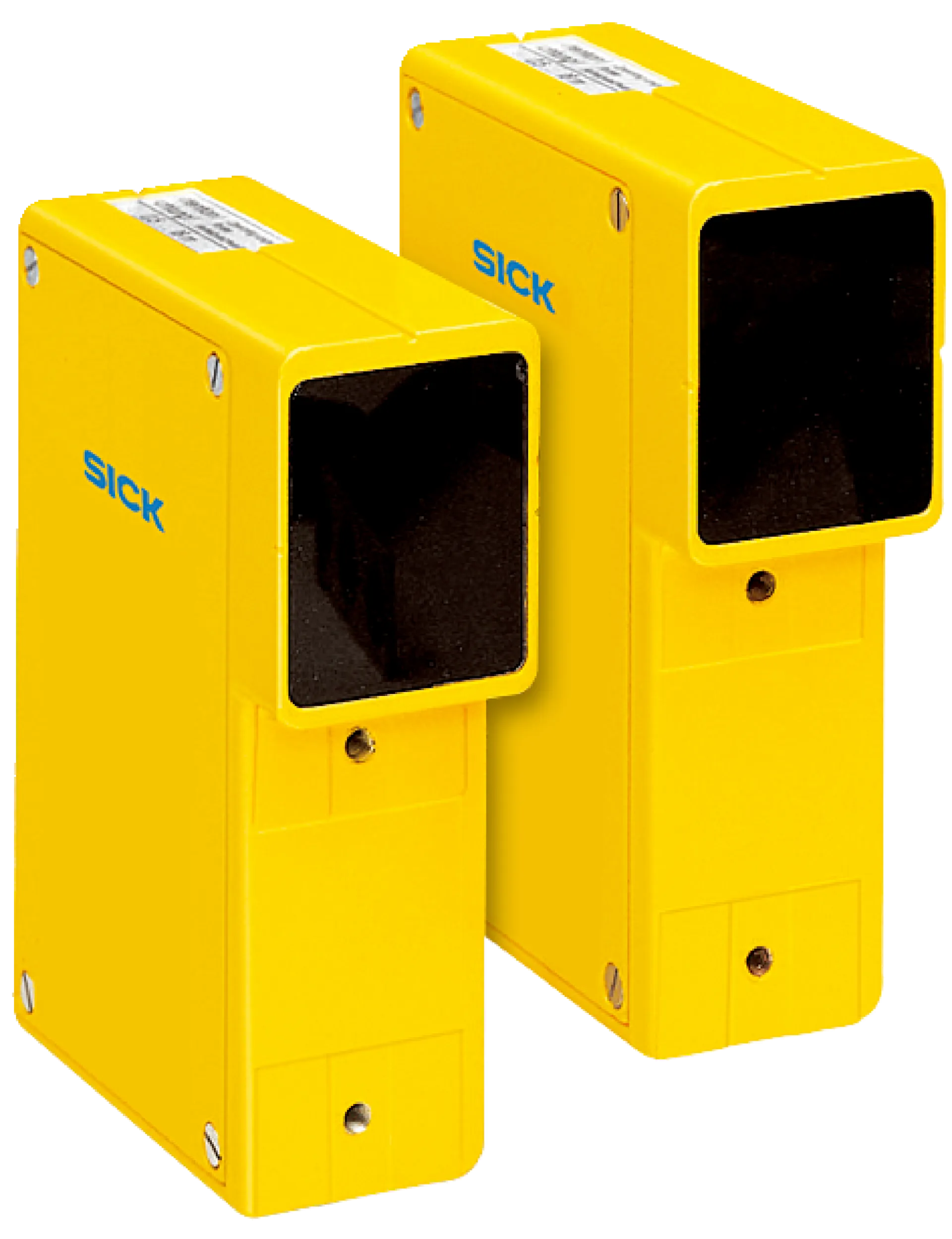

Sick WSU26/3-103A00S01, WEU26/3-203A00S01
Safety light-beam sensors | WSU/WEU26-3 | WSU26/3-103A00S01, WEU26/3-203A00S01 | System part: Pair | Safety level: PL e, SIL 3, Type 4 | Scanning range: 70 m | Housing material: Aluminum die cast | Co…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety light-beam sensors | WSU/WEU26-3 | WSU26/3-103A00S01, WEU26/3-203A00S01 | System part: Pair | Safety level: PL e, SIL 3, Type 4 | Scanning range: 70 m | Housing material: Aluminum die cast | Connection type: Male connector M12, 8-pin | Front screen heating: yes
Specification
Features
| Scanning range | 70Â m |
|---|---|
| Dimension of the light path | 15 m ... 70 m |
| Number of beams | 1 |
| Detection capability | 30Â mm |
| Response time | ≤ 22 ms |
| Front screen heating | ✔ |
| Synchronization | Optical synchronization |
Safety-related parameters
| Type | Type 4Â (IECÂ 61496-1) |
|---|---|
| Safety integrity level | SIL 3Â (IECÂ 61508) |
| Category | Category 4Â (ENÂ ISOÂ 13849) |
| Performance level | PL e (EN ISO 13849) |
| B10d parameter | 1 x 106 switching cycles (DC-13, 24 V, 0.6 A), 2 x 105 switching cycles (DC-13, 24 V, 1.5 A) |
| PFHD (mean probability of a dangerous failure per hour) | 4.0 x 10-9 (EN ISO 13849) |
| TM (mission time) | 20Â years (ENÂ ISOÂ 13849) |
Interfaces
| Connection type | Male connector M12, 8-pin |
|---|---|
| Display elements | LEDs |
Electronics
| Protection class | I (ENÂ 50178) |
|---|---|
| Supply voltage VS | 24Â VÂ DC (19.2Â VÂ DCÂ ... 28.8Â VÂ DC) |
| Switch-on time | ≤ 10 s 1) |
| Usage category | AC-15/DC-13 (ENÂ 60947-5-1) |
| Switching voltage | 10Â VÂ DCÂ ... 30Â VÂ DC |
| Current loading | 0.02Â AÂ ... 2Â A |
Mechanics
| Design | Rectangular |
|---|---|
| Dimensions (W x H x D) | 50 mm x 156 mm x 116 mm |
| Housing material | Aluminum die cast |
| Front screen material | Polycarbonate, scratch-resistant coating |
| Weight | ≤ 1 kg |
Ambient data
| Enclosure rating | IP67 (ENÂ 60529) |
|---|---|
| Ambient operating temperature | –25 °C ... +55 °C |
| Storage temperature | –25 °C ... +70 °C |
| Air humidity | 15Â %Â ... 95Â %, Non-condensing |
| Vibration resistance | 5 g, 10 Hz ... 55 Hz (IEC 60068-2-6) |
| Shock resistance | 10Â g, 16Â ms (IECÂ 60068-2-27) |
Other information
| Wave length | 850Â nm |
|---|
Classifications
| ECLASS 5.0 | 27272701 |
|---|---|
| ECLASS 5.1.4 | 27272701 |
| ECLASS 6.0 | 27272701 |
| ECLASS 6.2 | 27272701 |
| ECLASS 7.0 | 27272701 |
| ECLASS 8.0 | 27272701 |
| ECLASS 8.1 | 27272701 |
| ECLASS 9.0 | 27272701 |
| ECLASS 10.0 | 27272701 |
| ECLASS 11.0 | 27272701 |
| ECLASS 12.0 | 27272701 |
| ETIM 5.0 | EC001831 |
| ETIM 6.0 | EC001831 |
| ETIM 7.0 | EC001831 |
| ETIM 8.0 | EC001831 |
| UNSPSC 16.0901 | 46171620 |
