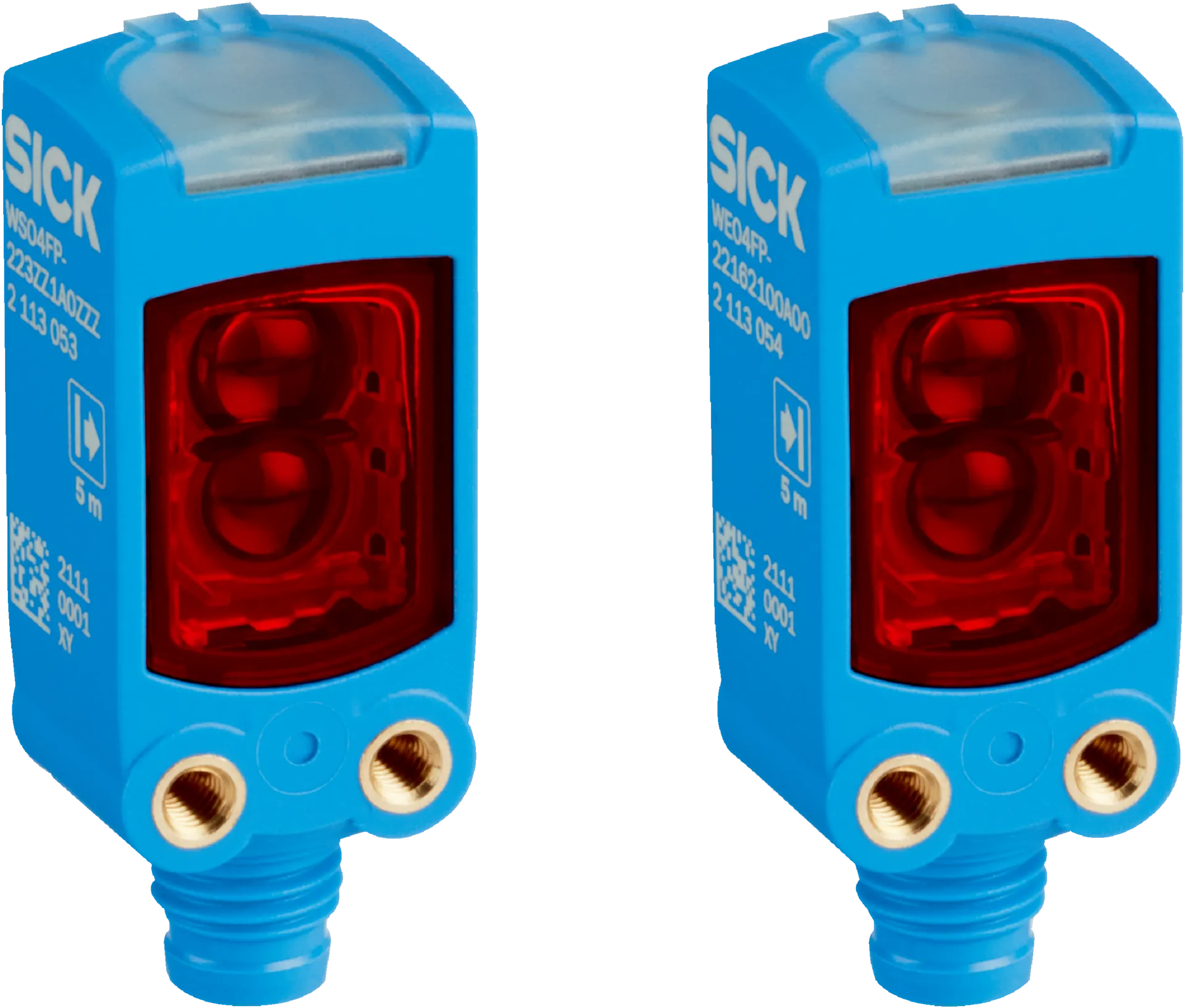

Sick WSE4FP-21311700ZZZ - Image 1

Fast delivery within 72 Hours

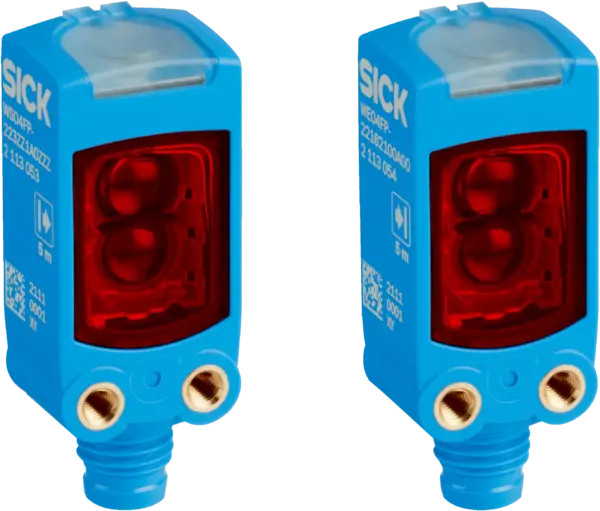

Sick WSE4FP-21311700ZZZ

Photoelectric sensors | W4 | WSE4FP-21311700ZZZ | Sensing range min. / max.: 0 m / 1.5 m | Functional principle: Through-beam photoelectric sensor | Switching output: Push-pull: PNP/NPN | Switching mo…

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Photoelectric sensors | W4 | WSE4FP-21311700ZZZ | Sensing range min. / max.: 0 m / 1.5 m | Functional principle: Through-beam photoelectric sensor | Switching output: Push-pull: PNP/NPN | Switching mode: Dark switching | Connection type: Connector M8, 3-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Wire/pin | Special features: Reduced sensitivity | Housing: Rectangular

Specification

Features

Functional principleThrough-beam photoelectric sensor
Sensing range min.0Â m
Sensing range max.1.5Â m
Maximum distance range from receiver to sender (operating reserve 1)0 m ... 1.5 m
Recommended distance range from receiver to sender (operating reserve 2)0 m ... 1.2 m
Recommended sensing range for the best performance0 m ... 1.2 m
Light sourcePinPoint LED
Type of lightVisible red light
Shape of light spotPoint-shaped
Light spot size (distance)Ø 40 mm (1,000 mm)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle)< +/- 1.5° (at Ta = +23 °C)
Normative referenceENÂ 62471:2008-09 | IECÂ 62471:2006, modified
LED risk group markingFree group
Wave length635Â nm
Average service life100,000 h at Ta = +25 °C
Wire/pinFor deactivation of the sender and execution of test logic
LED blueBluePilot: Alignment aid
LED greenOperating indicatorStatic on: power on
LED yellowStatus of received light beamStatic on: object not presentStatic off: object present
Special featuresReduced sensitivity
Part number of individual componentsWSO4FP-213ZZ7A0ZZZ, 2124468"WEO4FP-21311700ZZZ, 2124453

Safety-related parameters

MTTFD574Â years
DCavg0Â %
TM (mission time)20Â years

Electronics

Supply voltage UB10Â VÂ DCÂ ... 30Â VÂ DCÂ 1)
Ripple≤ 5 Vpp
Usage categoryDC-12 (According to ENÂ 60947-5-2)DC-13 (According to ENÂ 60947-5-2)
Current consumption≤ 20 mA, without load. At UB = 24 V
Protection classIII
Number1
TypePush-pull: PNP/NPN
Switching modeDark switching
Signal voltage PNP HIGH/LOWApprox. UB-2.5Â V / 0Â V
Signal voltage NPN HIGH/LOWApprox. UBÂ /Â <Â 2.5Â V
Output current Imax.≤ 100 mA
Circuit protection outputsReverse polarity protected
Response time≤ 500 µs
Switching frequency1,000 Hz 2)
Function of pin 4/black (BK)Input, sender off, LOW active
Function of pin 4/black (BK)Digital output, dark switching, object present → output Q HIGH 3)

Mechanics

HousingRectangular
Design detailFlat
Dimensions (W x H x D)16 mm x 40.1 mm x 12.1 mm
ConnectionConnector M8, 3-pin
HousingPlastic, VISTAL®
Front screenPlastic, PMMA
Male connectorPlastic, VISTAL®
WeightApprox. 30 g
Maximum tightening torque of the fixing screws0.4Â Nm

Ambient data

Enclosure ratingIP66 (ENÂ 60529)IP67 (ENÂ 60529)
Ambient operating temperature–40 °C ... +60 °C
Ambient temperature, storage–40 °C ... +75 °C
Typ. Ambient light immunityArtificial light: ≤ 15,000 lxSunlight: ≤ 50,000 lx
Shock resistance30Â g, 11Â ms (3Â positive and 3Â negative shocks along X, Y, Z axes, 18Â total shocks (EN60068-2-27))
Vibration resistance10 Hz ... 1,000 Hz (Amplitude 1 mm, 3 x 30 min (EN60068-2-6))
Air humidity35Â %Â ... 95Â %, relative humidity (no condensation)
Electromagnetic compatibility (EMC)ENÂ 60947-5-2
Resistance to cleaning agentECOLAB
UL File No.NRKH.E181493 & NRKH7.E181493

Diagnosis

Measuring rangeVery cold, cold, moderate, warm, hot
Device statusYes
Detailed device statusYes
Operating hour counterYes
Operating hours counter with reset functionYes
Quality of teachYes

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
Moroccan declaration of conformity✔
China RoHS✔
ECOLAB certificate✔
cULus certificate✔
EAC certificate / DoC✔

Classifications

ECLASS 5.027270901
ECLASS 5.1.427270901
ECLASS 6.027270901
ECLASS 6.227270901
ECLASS 7.027270901
ECLASS 8.027270901
ECLASS 8.127270901
ECLASS 9.027270901
ECLASS 10.027270901
ECLASS 11.027270901
ECLASS 12.027270901
ETIM 5.0EC002716
ETIM 6.0EC002716
ETIM 7.0EC002716
ETIM 8.0EC002716
UNSPSC 16.090139121528
