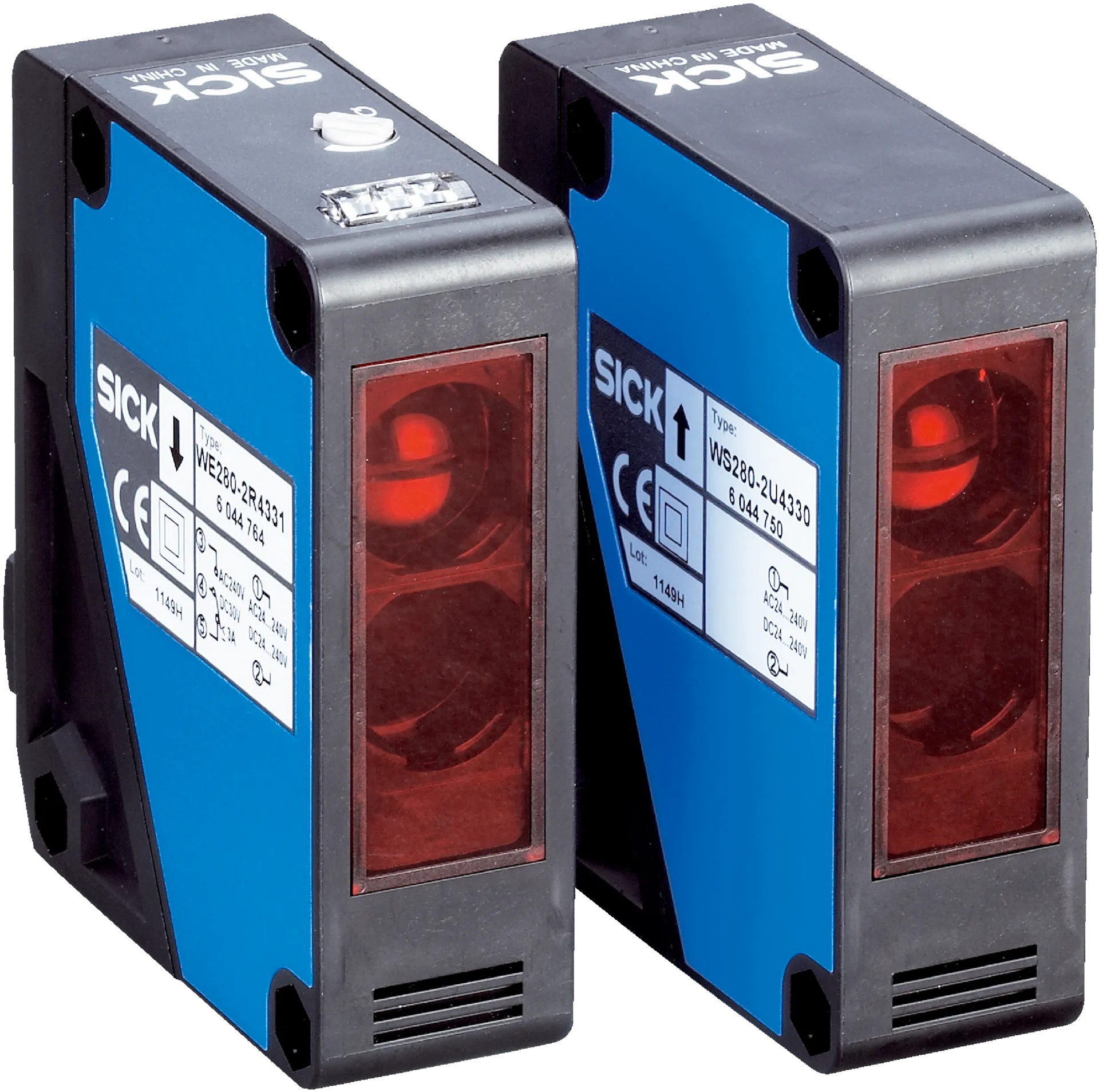

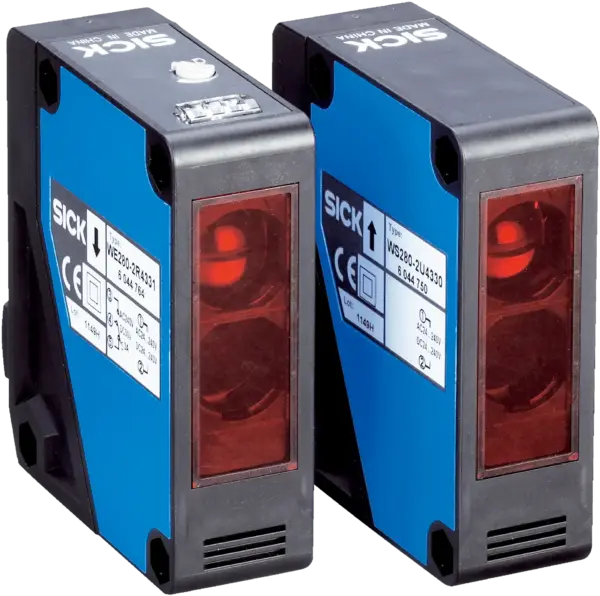

Sick WSE280-2H1531
Photoelectric sensors | W280-2 | WSE280-2H1531 | Functional principle: Through-beam photoelectric sensor | Switching output: Relay | Switching mode: Light switching | Connection type: Cable, 5-wire, 2…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | W280-2 | WSE280-2H1531 | Functional principle: Through-beam photoelectric sensor | Switching output: Relay | Switching mode: Light switching | Connection type: Cable, 5-wire, 2 m | Light source: LED | Adjustment: Potentiometer | Communication interface: – | Included with delivery: Mounting bracket BEF-W280
Specification
Features
| Functional principle | Through-beam photoelectric sensor |
|---|---|
| Dimensions (W x H x D) | 23.5 mm x 74.5 mm x 63 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0 m ... 60 m |
| Sensing range | 0 m ... 50 m |
| Type of light | Visible red light |
| Light source | LEDÂ 1) |
| Light spot size (distance) | Ø 0.6 m (20 m) |
| Adjustment | Potentiometer |
Mechanics/electronics
| Supply voltage UB | 24Â VÂ DCÂ ... 240Â VÂ DCÂ 1)24Â VÂ ACÂ ... 240Â VÂ ACÂ 1) |
|---|---|
| Power consumption, sender | ≤ 3.5 VA |
| Power consumption, receiver | ≤ 3.5 VA |
| Switching output | Relay, electrically isolated 2) |
| Output function | Change-over contacts |
| Switching mode | Light switching 2) |
| Switching current (switching voltage) | 3Â A (240Â VÂ AC)3Â A (30Â VÂ DC) |
| Response time | ≤ 15 ms |
| Switching frequency | 33 Hz 3) |
| Connection type | Cable, 5-wire, 2 m 4) |
| Cable material | Plastic, PVC |
| Conductor cross section | 0.76 mm² |
| Circuit protection | AÂ 5)CÂ 6) |
| Protection class | IIÂ 7) |
| Overvoltage category | 2 |
| Weight | 300Â g |
| Interference emission | EN 61000-6-3 (only –2Hxxxx) 8) |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP66IP67 |
| Items supplied | Mounting bracket BEF-W280 |
| Usage category | AC-15, DC-13According to ENÂ 60947-1 |
| Electromagnetic compatibility (EMC) | EN 60947-5-2EN 61000-6-3 (only –2Hxxxx) 9) 9) |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
Safety-related parameters
| MTTFD | 441Â years |
|---|---|
| DCavg | 0Â % |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
Classifications
| ECLASS 5.0 | 27270901 |
|---|---|
| ECLASS 5.1.4 | 27270901 |
| ECLASS 6.0 | 27270901 |
| ECLASS 6.2 | 27270901 |
| ECLASS 7.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 8.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 10.0 | 27270901 |
| ECLASS 11.0 | 27270901 |
| ECLASS 12.0 | 27270901 |
| ETIM 5.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| UNSPSC 16.0901 | 39121528 |
