Description

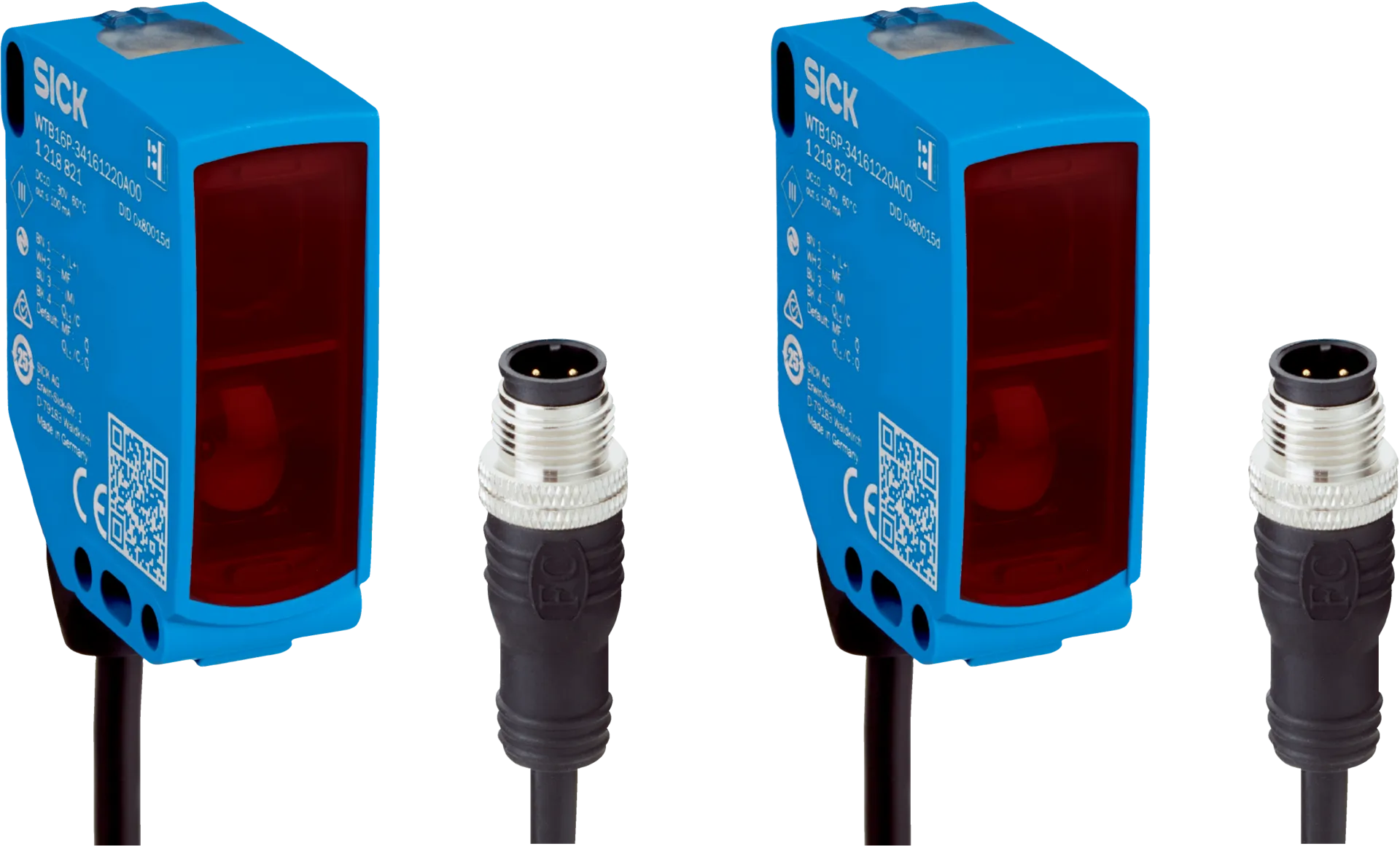

Photoelectric sensors | W16 | WSE16I-34162100A00 | Sensing range min. / max.: 0 m / 45 m | Functional principle: Through-beam photoelectric sensor | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with M12 male connector, 4-pin, 318 mm | Light source: LED | Type of light: Infrared light | Housing material: VISTAL® | Adjustment: IO-Link | Communication interface: IO-Link V1.1 | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task | Smart Task name: Base logics | Housing: Rectangular

Specification

Features

Functional principleThrough-beam photoelectric sensor
Sensing range min.0Â m
Sensing range max.45Â m
Maximum distance range from receiver to sender (operating reserve 1)0 m ... 45 m
Recommended distance range from receiver to sender (operating reserve 2)0 m ... 30 m
Recommended sensing range for the best performance0 m ... 30 m
Light sourceLED
Type of lightInfrared light
Shape of light spotPoint-shaped
Light spot size (distance)Ø 110 mm (8 m)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle)< +/- 1.0° (at Ta = +23 °C)
Normative referenceENÂ 62471:2008-09 | IECÂ 62471:2006, modified
LED risk group markingFree group
Wave length850Â nm
Average service life100,000 h at Ta = +25 °C
IO-LinkFor configuring the sensor parameters and Smart Task functions
Wire/pinFor activating the test input
LED blueBluePilot: Alignment aid
LED greenOperating indicatorStatic on: power onFlashing: IO-Link mode
LED yellowStatus of received light beamStatic on: object not presentStatic off: object presentFlashing: Below the 1.5Â function reserve

Safety-related parameters

MTTFD524Â years
DCavg0%
TM (mission time)20Â years

Communication interface

IO-Link✔ , V1.1
Data transmission rateCOM2 (38,4Â kBaud)
Cycle time2.3Â ms
Process data length16Â Bit
Process data structureBit 0Â = switching signal QL1
VendorID26
DeviceID HEX0x800174
DeviceID DEC8388980
Compatible master port typeA
SIO mode supportYes

Electronics

Supply voltage UB10Â VÂ DCÂ ... 30Â VÂ DCÂ 1)
Ripple≤ 5 Vpp
Usage categoryDC-12 (According to ENÂ 60947-5-2)DC-13 (According to ENÂ 60947-5-2)
Current consumption, sender≤ 30 mA, without load. At UB = 24 V< 50 mA
Current consumption, receiver≤ 30 mA, without load. At UB = 24 V< 50 mA
Protection classIII
Number2Â (Complementary)
TypePush-pull: PNP/NPN
Switching modeLight/dark switching
Signal voltage PNP HIGH/LOWApprox. UB-2.5Â V / 0Â V
Signal voltage NPN HIGH/LOWApprox. UBÂ /Â <Â 2.5Â V
Output current Imax.≤ 100 mA
Circuit protection outputsReverse polarity protected
Response time≤ 500 µs 2)
Repeatability (response time)150 µs
Switching frequency1,000 Hz 3)
Function of pin 4/black (BK)Test at 0Â V
Function of pin 4/black (BK)Digital output, light switching, object present → output QL1 LOW; IO-Link communication C 4)
Function of pin 4/black (BK) – detailThe pin 4 function of the sensor can be configured, Additional possible settings via IO-Link
Function of pin 2/white (WH)Digital output, dark switching, object present → output ǬL1 HIGH
Function of pin 2/white (WH) – detailThe pin 2 function of the sensor can be configured, Additional possible settings via IO-Link

Mechanics

HousingRectangular
Dimensions (W x H x D)20 mm x 55.7 mm x 42 mm
ConnectionCable with M12 male connector, 4-pin, 318Â mm
Deep-freeze propertyDo not bend below 0 °C
Conductor size0.14 mm²
Cable diameterØ 4.8 mm
Length of cable (L)270Â mm
Length of male connector48Â mm
Bending radiusFor flexible use >Â 12Â x cable diameter
Bending cycles1,000,000
HousingPlastic, VISTAL®
Front screenPlastic, PMMA
CablePlastic, PVC
Male connectorPlastic, VISTAL®
WeightApprox. 140 g
Maximum tightening torque of the fixing screws1.3Â Nm

Ambient data

Enclosure ratingIP66 (ENÂ 60529)IP67 (ENÂ 60529)IP69 (ENÂ 60529)Â 1)
Ambient operating temperature–40 °C ... +60 °C
Ambient temperature, storage–40 °C ... +75 °C
Shock resistance50Â g, 11Â ms (25Â positive and 25Â negative shocks per axis, for X, Y, Z axes, 150Â shocks in total (EN60068-2-27))50Â g, 6Â ms (5,000Â positive and 5,000Â negative shocks per axis, for X, Y, Z axes, 30,000Â shocks in total (EN60068-2-27))
Vibration resistance10 Hz ... 2,000 Hz (Amplitude 0.5 mm / 10 g, 20 sweeps per axis, for X, Y, Z axes, 1 octave/min, (EN60068-2-6))
Air humidity35Â %Â ... 95Â %, relative humidity (no condensation)
Electromagnetic compatibility (EMC)ENÂ 60947-5-2
Resistance to cleaning agentECOLAB
UL File No.NRKH.E181493 & NRKH7.E181493

Smart Task

Smart Task nameBase logics
Logic functionDirectANDORWindowHysteresis
Timer functionDeactivatedSwitch-on delayOff delayON and OFF delayImpulse (one shot)
InverterYes
Switching frequencySIO Logic: 800 Hz 1)IOL: 650 Hz 2)
Response timeSIO Logic: 600 µs 1)IOL: 750 µs 2)
RepeatabilitySIO Logic: 300 µs 1)IOL: 400 µs 2)
Switching signal QL1Switching output

Diagnosis

Device statusYes
Quality of teachYes
Quality of runYes, Contamination display

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
Moroccan declaration of conformity✔
China RoHS✔
ECOLAB certificate✔
cULus certificate✔
IO-Link certificate✔
Photobiological safety (DIN EN 62471) certificate✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)✔
