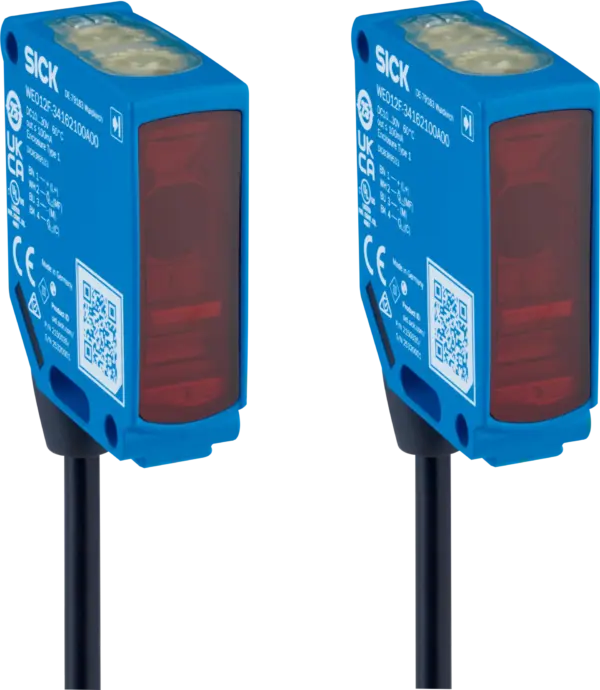

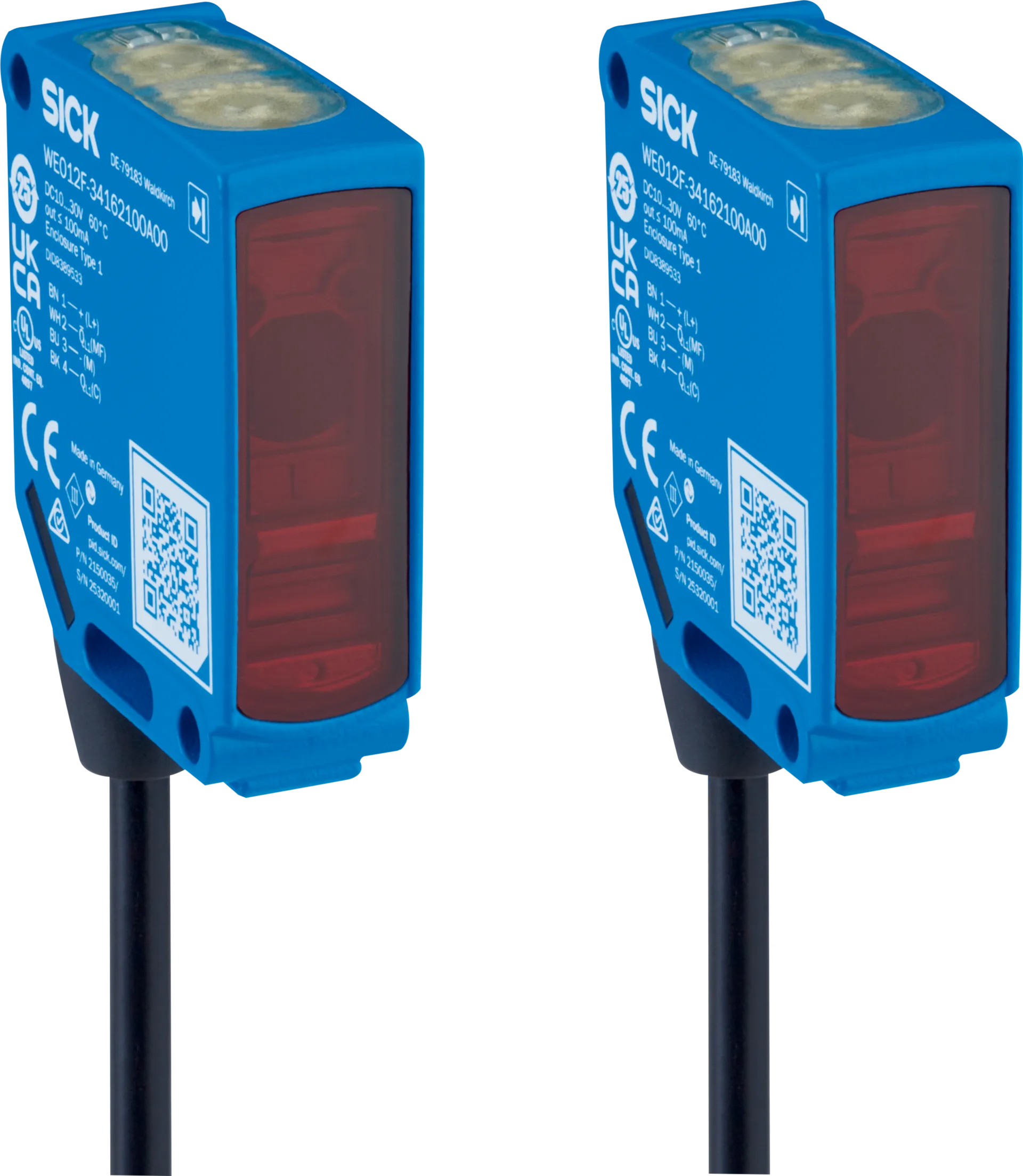

Sick WSE12I-1H162100A00ZDZZZZZZZZZ1
Photoelectric sensors | W12 | WSE12I-1H162100A00ZDZZZZZZZZZ1 | Sensing range min. / max.: 0 m / 25 m | Functional principle: Through-beam photoelectric sensor | Switching output: Push-pull: PNP/NPN |…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | W12 | WSE12I-1H162100A00ZDZZZZZZZZZ1 | Sensing range min. / max.: 0 m / 25 m | Functional principle: Through-beam photoelectric sensor | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable, 4-wire, 2 m | Light source: LED | Type of light: Infrared light | Housing material: Zinc diecast | Adjustment: IO-Link | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task | Smart Task name: Base logics | Housing: Rectangular
Specification
Features
| Functional principle | Through-beam photoelectric sensor |
|---|---|
| Sensing range min. | 0Â m |
| Sensing range max. | 25Â m |
| Recommended sensing range for the best performance | 0 m ... 17 m |
| Light source | LED |
| Type of light | Infrared light |
| Shape of light spot | Point-shaped |
| Light spot size (distance) | 100Â mm (5Â m) |
| Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) | < +/- 1.5° (at TU = +23 °C) |
| Normative reference | ENÂ 62471:2008-09 | IECÂ 62471:2006, modified |
| LED risk group marking | Free group |
| Wave length | 850Â nm |
| Average service life | 100,000 h at Ta = +25 °C |
| IO-Link | For configuring the sensor parameters and Smart Task functions |
| LED blue | BluePilot: Alignment aid |
| LED green | Operating indicatorStatic on: power onFlashing: IO-Link mode |
| LED yellow | Status of received light beamStatic on: object presentStatic off: object not present |
| Part number of individual components | WSO12I-1H3ZZ1A0ZZZZDZZZZZZZZZ1, 2150043WEO12I-1H162100A00ZDZZZZZZZZZ1, 2150038 |
Safety-related parameters
| MTTFD | 1,066Â years |
|---|---|
| DCavg | 0Â % |
| TM (mission time) | 20Â years |
Communication interface
| IO-Link | ✔ , IO-Link V1.1 |
|---|---|
| Data transmission rate | COM2 (38,4Â kBaud) |
| Cycle time | 2.3Â ms |
| Process data length | 8Â Bit |
| Process data structure | Bit 0Â = switching signal |
| VendorID | 26 |
| DeviceID HEX | 0x80039E |
| DeviceID DEC | 8389534 |
| Compatible master port type | A |
| SIO mode support | Yes |
Electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | ≤ 5 V |
| Usage category | DC-12 (According to ENÂ 60947-5-2)DC-13 (According to ENÂ 60947-5-2) |
| Current consumption, sender | ≤ 25 mA, without load. At UB = 24 V |
| Current consumption, receiver | ≤ 20 mA, without load. At UB = 24 V |
| Protection class | III |
| Number | 2Â (Complementary) |
| Type | Push-pull: PNP/NPN |
| Switching mode | Light/dark switching |
| Signal voltage PNP HIGH/LOW | Approx. UB-2.5Â V / 0Â V |
| Signal voltage NPN HIGH/LOW | Approx. UBÂ /Â <Â 2.5Â V |
| Output current Imax. | ≤ 100 mA |
| Circuit protection outputs | Reverse polarity protected |
| Response time | ≤ 330 µs |
| Repeatability (response time) | 100 µs |
| Switching frequency | 1,500Â Hz |
| Function of pin 4/black (BK) | Input, sender off, LOW active |
| Function of pin 4/black (BK) | Digital output, light switching, object present → output QL1 LOW 2) |
| Function of pin 4/black (BK) – detail | The pin 4 function of the sensor can be configured, Additional possible settings via IO-Link |
| Function of pin 2/white (WH) | Digital output, dark switching, object present → output ǬL1 HIGH |
| Function of pin 2/white (WH) – detail | The pin 2 function of the sensor can be configured, Additional possible settings via IO-Link |
Mechanics
| Housing | Rectangular |
|---|---|
| Dimensions (W x H x D) | 15.6 mm x 49.5 mm x 43.1 mm |
| Connection | Cable, 4-wire, 2Â m |
| Deep-freeze property | Do not bend below 0 °C |
| Conductor size | 0.14 mm² |
| Cable diameter | Ø 3.4 mm |
| Length of cable (L) | 2Â m |
| Bending radius | For flexible use >Â 12Â x cable diameter |
| Bending cycles | 1,000,000 |
| Housing | Metal, zinc diecast |
| Front screen | Plastic, PMMA |
| Cable | Plastic, PVC |
| Weight | Approx. 264 g |
| Maximum tightening torque of the fixing screws | 1.4Â Nm |
Ambient data
| Enclosure rating | IP66 (ENÂ 60529)IP67 (ENÂ 60529)IP69 (ENÂ 60529) |
|---|---|
| Ambient operating temperature | –40 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| Typ. Ambient light immunity | Artificial light: ≤ 50,000 lxSunlight: ≤ 50,000 lx |
| Shock resistance | 50Â g, 11Â ms (25Â positive and 25Â negative shocks along X, Y, Z axes, 150Â total shocks (EN60068-2-27)) |
| Vibration resistance | 10 Hz ... 2,000 Hz (Amplitude 0.5 mm / 10 g, 20 sweeps per axis, for X, Y, Z axes, 1 octave/min, (EN60068-2-6)) |
| Air humidity | 35Â %Â ... 95Â %, relative humidity (no condensation) |
| Electromagnetic compatibility (EMC) | ENÂ 60947-5-2 |
| Resistance to cleaning agent | ECOLAB |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
Smart Task
| Smart Task name | Base logics |
|---|---|
| Logic function | DirectANDOR |
| Timer function | DeactivatedSwitch-on delayOff delayON and OFF delayImpulse (one shot) |
| Inverter | Yes |
| Switching frequency | SIO Logic: 1300 Hz 1)IOL: 1200 Hz 2) |
| Response time | SIO Logic: 390 µs 1)IOL: 420 µs 2) |
| Repeatability | SIO Logic: 140 µs 1)IOL: 170 µs 2) |
| Switching signal QL1 | Switching output |
| Switching signal ǬL1 | Switching output |
Diagnosis
| Measuring range | Very cold, cold, moderate, warm, hot |
|---|---|
| Device status | Yes |
| Detailed device status | Yes |
| Operating hour counter | Yes |
| Operating hours counter with reset function | Yes |
| Quality of teach | Yes |
| Quality of run | Yes, Contamination display |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| ECOLAB certificate | ✔ |
| cULus certificate | ✔ |
| IO-Link certificate | ✔ |
| Photobiological safety (IEC EN 62471) | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
Classifications
| ECLASS 5.0 | 27270901 |
|---|---|
| ECLASS 5.1.4 | 27270901 |
| ECLASS 6.0 | 27270901 |
| ECLASS 6.2 | 27270901 |
| ECLASS 7.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 8.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 10.0 | 27270901 |
| ECLASS 11.0 | 27270901 |
| ECLASS 12.0 | 27270901 |
| ETIM 5.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| UNSPSC 16.0901 | 39121528 |
