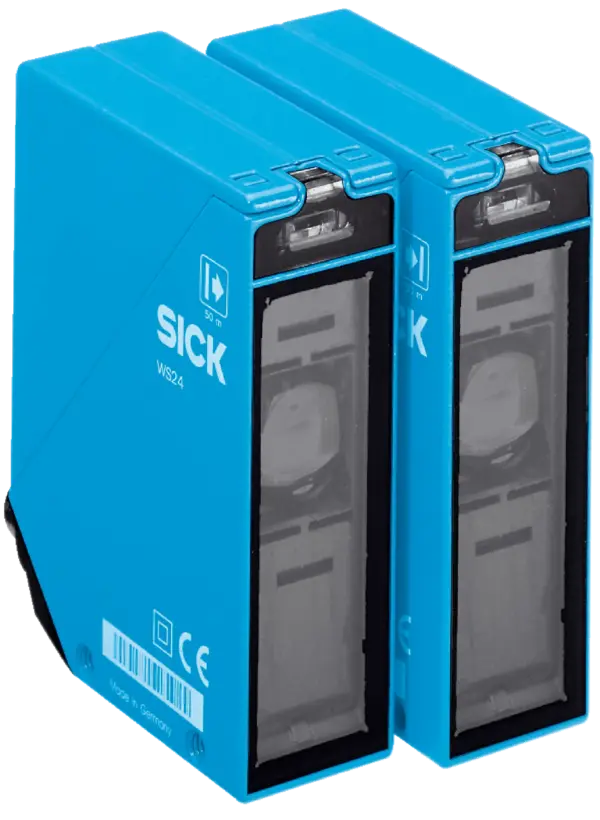

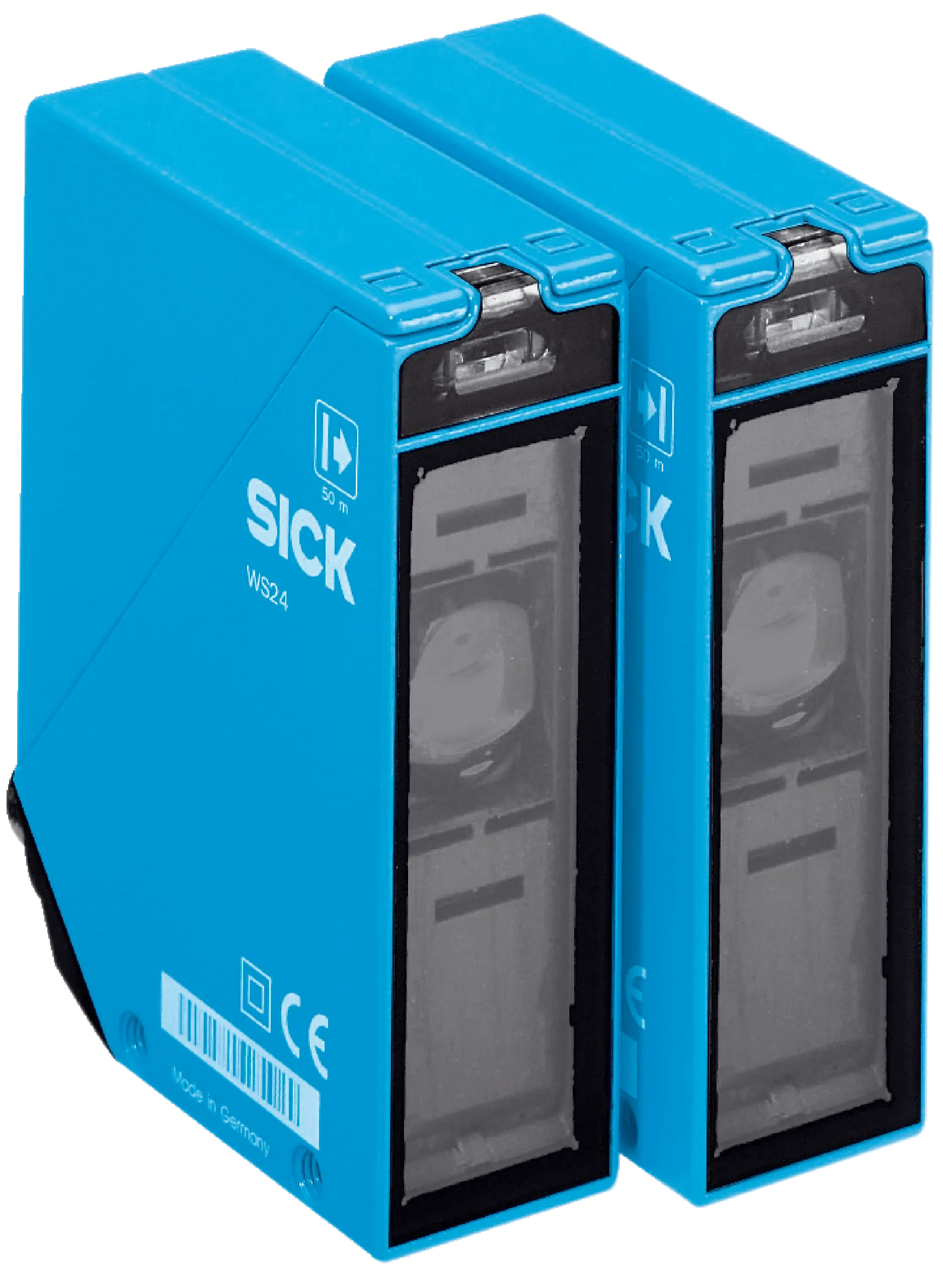

Sick WS/WE24-2R230
Photoelectric sensors | W24 | WS/WE24-2R230 | Sensing range max.: 0 m … 60 m | Functional principle: Through-beam photoelectric sensor | Switching output: Relay | Switching mode: Light/dark switchin…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | W24 | WS/WE24-2R230 | Sensing range max.: 0 m … 60 m | Functional principle: Through-beam photoelectric sensor | Switching output: Relay | Switching mode: Light/dark switching | Connection type: Terminal connection with M16 gland | Adjustment: Potentiometer
Specification
Features
| Functional principle | Through-beam photoelectric sensor |
|---|---|
| Dimensions (W x H x D) | 27 mm x 87.5 mm x 65 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0 m ... 60 m |
| Sensing range | 0 m ... 50 m |
| Focus | Approx. 1° |
| Type of light | Visible red light |
| Light source | LEDÂ 1) |
| Light spot size (distance) | ÃÂ 700Â mm (50Â m) |
| Angle of dispersion | Approx. 1° |
| Adjustment | Potentiometer |
Mechanics/electronics
| Supply voltage UB | 20Â VÂ AC/DCÂ ... 250Â VÂ AC/DC |
|---|---|
| Power consumption, sender | 50Â mAÂ 1) |
| Power consumption, receiver | 40Â mAÂ 1) |
| Power consumption | <Â 2Â VA |
| Switching output | Relay, electrically isolated 2) |
| Output function | Change-over contacts |
| Switching mode | Light/dark switching 2) |
| Switching mode selector | Selectable via light/dark selector |
| Switching current (switching voltage) | 4Â A @ 250Â VÂ AC, 4Â A @ 24Â VÂ DC, 0.125Â A @ 250Â VÂ DCUL: 4Â A @ 250Â VÂ AC, general use / 4Â A @ 250Â VÂ AC, resistive (NO) / 3Â A @ 250Â VÂ AC, resistive (NC) / 4Â A @ 24Â VÂ DC, NO, general use / 3Â A @ 24Â VÂ DC, NC, general use / R300 / B300 (NO contacts only) |
| Response time | â¤Â 10 ms |
| Switching frequency | 10 Hz 3) |
| Angle of reception | Approx. 2.5° |
| Connection type | Terminal connection with M16 gland |
| Circuit protection | AÂ 4)CÂ 5) |
| Protection class | IIÂ 6) |
| Weight | 660Â g |
| Housing material | Metal, zinc diecast |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Usage category | AC-15, DC-13According to ENÂ 60947-1 |
| Ambient operating temperature | â40 °C ... +60 °C |
| Ambient temperature, storage | â40 °C ... +75 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
| Part number of individual components | 2021158Â WS24-2U230 2021162Â WE24-2R230 |
Safety-related parameters
| MTTFD | 316Â years |
|---|---|
| DCavg | 0Â % |
| TM (mission time) | 20Â years |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| CCC certificate | â |
| cULus certificate | â |
| Photobiological safety (DIN EN 62471) certificate | â |
Classifications
| ECLASS 5.0 | 27270901 |
|---|---|
| ECLASS 5.1.4 | 27270901 |
| ECLASS 6.0 | 27270901 |
| ECLASS 6.2 | 27270901 |
| ECLASS 7.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 8.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 10.0 | 27270901 |
| ECLASS 11.0 | 27270901 |
| ECLASS 12.0 | 27270901 |
| ETIM 5.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| UNSPSC 16.0901 | 39121528 |
