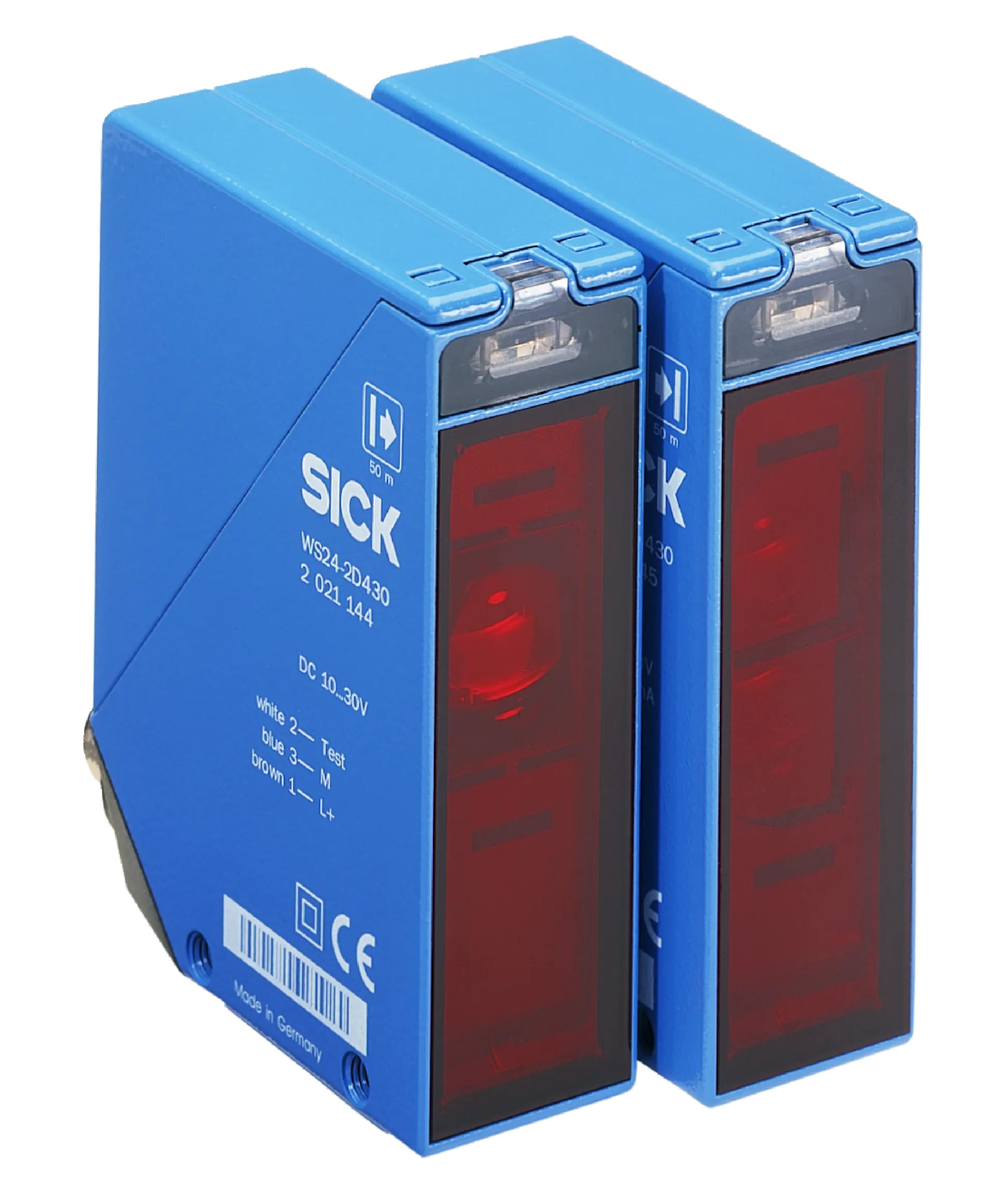

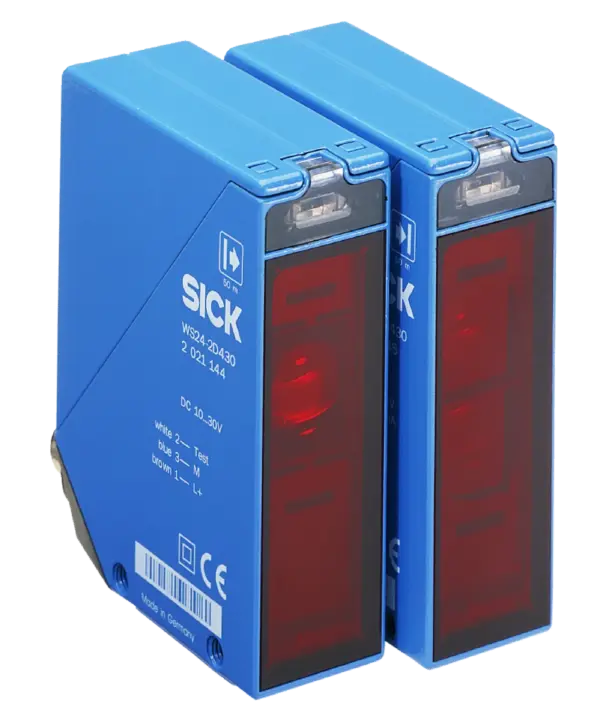

Sick WS/WE24-2B440
Photoelectric sensors | W24 | WS/WE24-2B440 | Sensing range max.: 0 m … 60 m | Functional principle: Through-beam photoelectric sensor | Switching output: NPN, PNP | Switching mode: Light/dark switc…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | W24 | WS/WE24-2B440 | Sensing range max.: 0 m … 60 m | Functional principle: Through-beam photoelectric sensor | Switching output: NPN, PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Adjustment: Potentiometer
Specification
Features
| Functional principle | Through-beam photoelectric sensor |
|---|---|
| Dimensions (W x H x D) | 27 mm x 87.5 mm x 65 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0 m ... 60 m |
| Sensing range | 0 m ... 50 m |
| Focus | Approx. 1° |
| Type of light | Visible red light |
| Light source | LEDÂ 1) |
| Light spot size (distance) | ÃÂ 700Â mm (50Â m) |
| Angle of dispersion | Approx. 1° |
| Adjustment | Potentiometer |
Mechanics/electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | < 5 Vpp 2) |
| Power consumption, sender | 50Â mAÂ 3) |
| Power consumption, receiver | 50Â mAÂ 3) |
| Switching output | NPN, PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via PNP/NPN selector, selectable via light/dark selector |
| Output current Imax. | â¤Â 100 mA |
| Response time | â¤Â 500 µs 4) |
| Switching frequency | 1,000 Hz 5) |
| Angle of reception | Approx. 2.5° |
| Time functions | Switch-on delayOff delay |
| Delay time | Adjustable via time delay selector switch, 0.5 s ... 10 s |
| Connection type | Male connector M12, 4-pin |
| Circuit protection | AÂ 6)CÂ 7)DÂ 8) |
| Protection class | IIÂ 9) |
| Weight | 660Â g |
| Front screen heating | â 10) |
| Housing material | Metal, zinc diecast |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP69K |
| Test input sender off | TE to 0Â V |
| Ambient operating temperature | â40 °C ... +60 °C |
| Ambient temperature, storage | â40 °C ... +75 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
| Part number of individual components | 2021418Â WE24-2B440 2021465Â WS24-2D440 |
Safety-related parameters
| MTTFD | 392Â years |
|---|---|
| DCavg | 0Â % |
| TM (mission time) | 20Â years |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Photobiological safety (DIN EN 62471) certificate | â |
Classifications
| ECLASS 5.0 | 27270901 |
|---|---|
| ECLASS 5.1.4 | 27270901 |
| ECLASS 6.0 | 27270901 |
| ECLASS 6.2 | 27270901 |
| ECLASS 7.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 8.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 10.0 | 27270901 |
| ECLASS 11.0 | 27270901 |
| ECLASS 12.0 | 27270901 |
| ETIM 5.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| UNSPSC 16.0901 | 39121528 |
