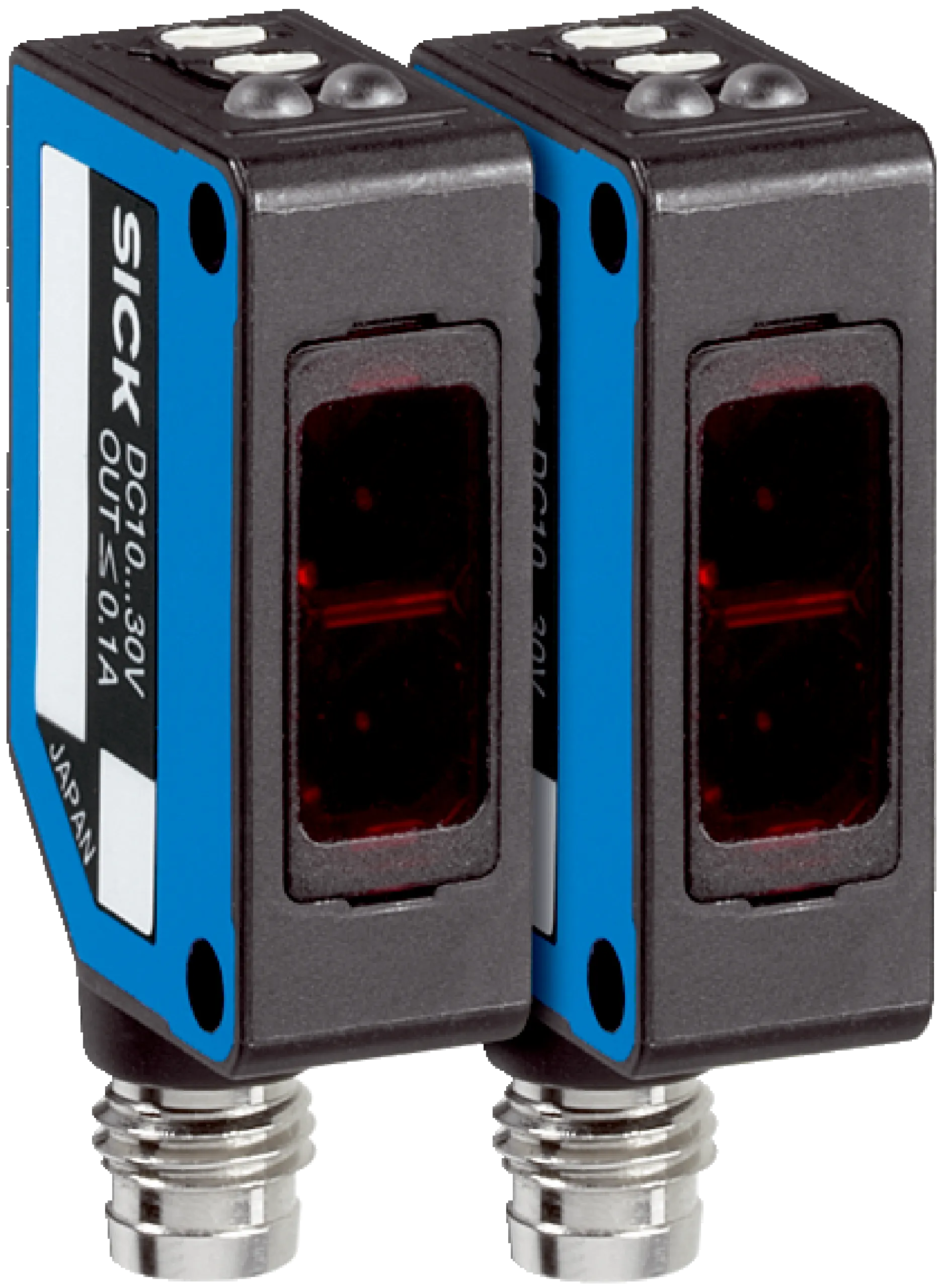

Sick WS/WE100L-E2131
Photoelectric sensors | W100 Laser | WS/WE100L-E2131 | Functional principle: Through-beam photoelectric sensor | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Connect…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | W100 Laser | WS/WE100L-E2131 | Functional principle: Through-beam photoelectric sensor | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Connector M8, 3-pin | Light source: Laser | Adjustment: Potentiometer | Laser class: 1 | Communication interface: – | Included with delivery: 2Â Stainless steel mounting brackets (1.4301/304) BEF-W100-A
Specification
Features
| Functional principle | Through-beam photoelectric sensor |
|---|---|
| Dimensions (W x H x D) | 11 mm x 31 mm x 20 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0 m ... 35 m |
| Sensing range | 0 m ... 30 m |
| Type of light | Visible red light |
| Light source | Laser 1) |
| Light spot size (distance) | Ø 30 mm (30 m) |
| Wave length | 650Â nm |
| Laser class | 1Â 2) |
| Adjustment | Potentiometer, 270° |
| Special applications | Detecting small objects, Detection of objects moving at high speeds |
Mechanics/electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | ± 10 % 2) |
| Power consumption, sender | ≤ 15 mA 3) |
| Power consumption, receiver | ≤ 20 mA 3) |
| Switching output | NPN |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark rotary switch |
| Signal voltage NPN HIGH/LOW | Approx. VS / < 1.8Â V |
| Output current Imax. | ≤ 100 mA |
| Response time | < 0.25 ms 4) |
| Switching frequency | 2,000 Hz 5) |
| Connection type | Connector M8, 3-pin |
| Circuit protection | AÂ 6)BÂ 7)DÂ 8) |
| Weight | 10Â g |
| Housing material | Plastic, ABS/PC/POM |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP65 |
| Items supplied | 2Â Stainless steel mounting brackets (1.4301/304) BEF-W100-A |
| Ambient operating temperature | –10 °C ... +50 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
Safety-related parameters
| MTTFD | 994Â years |
|---|---|
| DCavg | 0Â % |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cRUus certificate | ✔ |
| Laser safety (IEC 60825-1) certificate | ✔ |
Classifications
| ECLASS 5.0 | 27270901 |
|---|---|
| ECLASS 5.1.4 | 27270901 |
| ECLASS 6.0 | 27270901 |
| ECLASS 6.2 | 27270901 |
| ECLASS 7.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 8.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 10.0 | 27270901 |
| ECLASS 11.0 | 27270901 |
| ECLASS 12.0 | 27270901 |
| ETIM 5.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| UNSPSC 16.0901 | 39121528 |
