Description

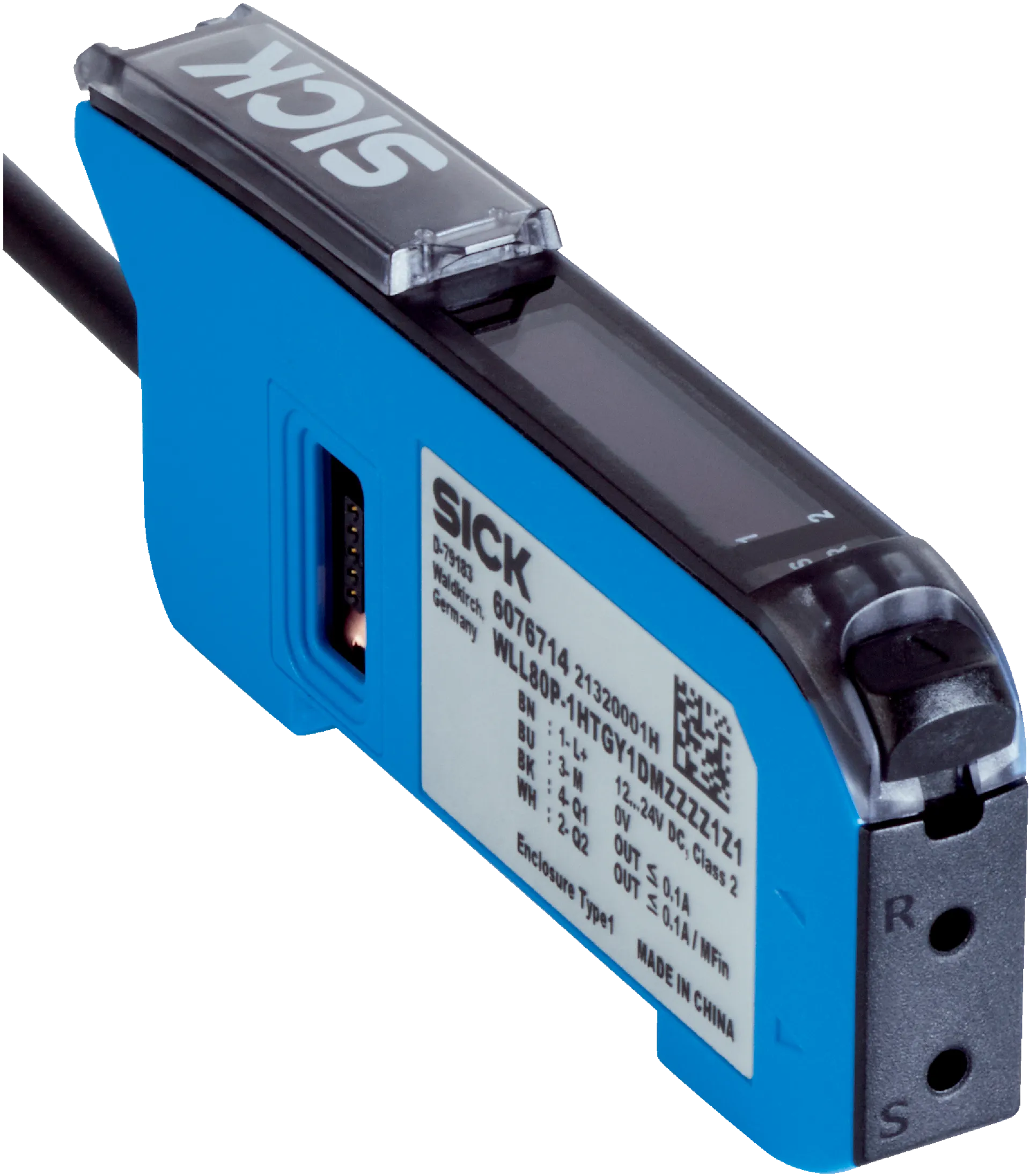

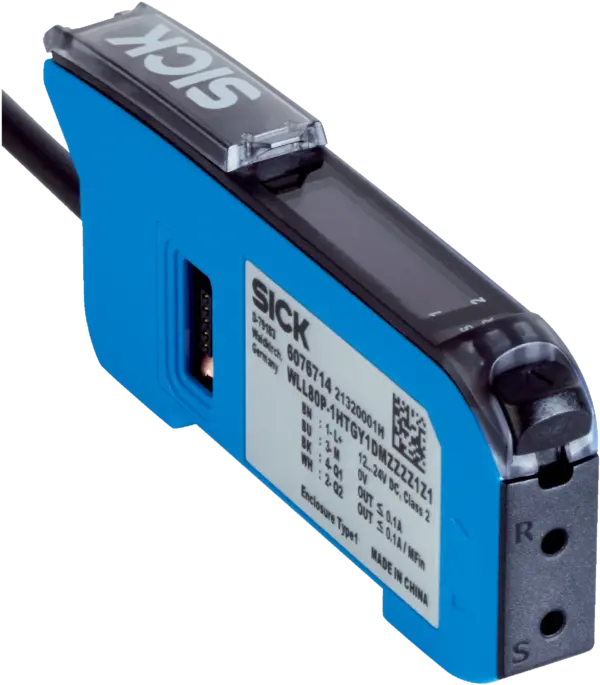

Fiber-optic sensors | WLL80 | WLL80P-1HTGY1DMZZZZ1Z1 | Device type: Fiber-optic amplifier | Device type detail: Base unit | Switching output: Push-pull: PNP/NPN, PNP, NPN: open collector | Connection type: Cable, 4-wire, 2 m | Type of light: Visible red light | Adjustment: Teach-in button, cable, Menu-controlled | Display: OLED display | Smart Sensor: Smart Task | Included with delivery: BEF-WLL180 mounting bracket
Specification
Features
| Device type | Fiber-optic amplifier |
|---|---|
| Device type detail | Base unit 1) |
| Functional principle detail | Depending on the optical fiber cable used |
| Sensing range max. | Depending on the optical fiber cable used |
| Light source | LED |
| Type of light | Visible red light |
| Normative reference | ENÂ 62471:2008-09 | IECÂ 62471:2006, modified |
| LED risk group marking | Free group |
| Wave length | 660Â nm |
| Average service life | 100,000 h at Ta = +25 °C |
| Wire/pin | For deactivating the sender and executing the test logic/for setting the sensing range/for resetting the counter |
| Display + operating buttons | For configuring the sensor parameters |
| LED green | Operating indicatorPermanently on: Switching output 1Â active |
| LED yellow 1 | Status of switching output 1Permanently on: Switching output 2Â activePermanently off: Switching output 1Â not activeFlashing: Executing teach-in/teach-in error |
| LED yellow 2 | Status of switching output 2Permanently on: Switching output 2Â activePermanently off: Switching output 2Â not activeFlashing: Executing teach-in/teach-in error |
| Display | Display of sensor functionsMenu languages. German, English, Chinese, Korean, Japanese |
| Items supplied | BEF-WLL180 mounting bracket |
Safety-related parameters
| MTTFD | 311.3Â years |
|---|---|
| DCavg | 0% |
| TM (mission time) | 20Â years |
Communication interface
| Serial | â |
|---|
Electronics
| Supply voltage UB | 12Â VÂ DCÂ ... 24Â VÂ DCÂ 1) |
|---|---|
| Ripple | ± 10 % 2) |
| Current consumption | â¤Â 50 mA 3) |
| Protection class | III |
| Number | 2Â (individually adjustable) |
| Type | Push-pull: PNP/NPNÂ 4) |
| Switching mode | Light/dark switching |
| Signal voltage PNP HIGH/LOW | Approx. UB-2.5Â V / 0Â V |
| Signal voltage NPN HIGH/LOW | Approx. UBÂ /Â <Â 2.5Â V |
| Output current Imax. | â¤Â 100 mA |
| Circuit protection outputs | Reverse polarity protected |
| Response time | â¤Â 16 µs 5) |
| Switching frequency | 31.2 kHz 6) |
| Time functions | Switch-on delay, off delay, ON and OFF delay, Impulse (one shot), Switch-on delay and pulse, deactivated |
| Delay time | Adjustment via operating buttons / via gateway, 0 ms ... 30,000 ms |
| Function of pin 4/black (BK) | Digital output, object present â Output Q1 HIGH |
| Function of pin 4/black (BK) â detail | The pin 4Â function of the sensor can be configured |
| Function of pin 2/white (WH) | Digital output, object present â Output QL2 HIGH |
| Function of pin 2/white (WH) â detail | The pin 2Â function of the sensor can be configured |
Mechanics
| Housing | Rectangular |
|---|---|
| Dimensions (W x H x D) | 10.5 mm x 33.2 mm x 79.9 mm |
| Connection | Cable, 4-wire, 2Â m |
| Deep-freeze property | Do not bend below 0 °C |
| Conductor size | 0.18 mm² |
| Cable diameter | ÃÂ 4Â mm |
| Length of cable (L) | 2Â m |
| Housing | Plastic, PC |
| Protection hood | Plastic, PC |
| Operating buttons | Plastic, Rubber |
| Cable | Plastic, PVC |
| Weight | Approx. 75 g |
Ambient data
| Enclosure rating | IP54 (ENÂ 60529) |
|---|---|
| Ambient operating temperature | â25 °C ... +55 °C 1) |
| Ambient temperature, storage | â40 °C ... +70 °C |
| Typ. Ambient light immunity | Artificial light: â¤Â 16,000 lxSunlight: â¤Â 67,000 lx |
| Shock resistance | 50Â g, 11Â ms (3Â positive and 3Â negative shocks along X, Y, Z axes, 18Â total shocks (EN60068-2-27)) |
| Vibration resistance | 10 Hz ... 55 Hz (Amplitude 1 mm, 3 x 30 min (EN60068-2-6)) |
| Air humidity | 35Â %Â ... 85Â %, relative humidity (no condensation) |
| Electromagnetic compatibility (EMC) | ENÂ 60947-5-2 |
Smart Task
| Smart Task name | Counter + debouncing |
|---|---|
| Timer function | DeactivatedSwitch-on delayOff delayON and OFF delayImpulse (one shot)Switch-on delay and pulse |
| Inverter | Yes |
| Switching signal QL1 | Switching output |
| Switching signal QL2 | Switching output |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Photobiological safety (DIN EN 62471) certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270905 |
|---|---|
| ECLASS 5.1.4 | 27270905 |
| ECLASS 6.0 | 27270905 |
| ECLASS 6.2 | 27270905 |
| ECLASS 7.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 8.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 10.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
