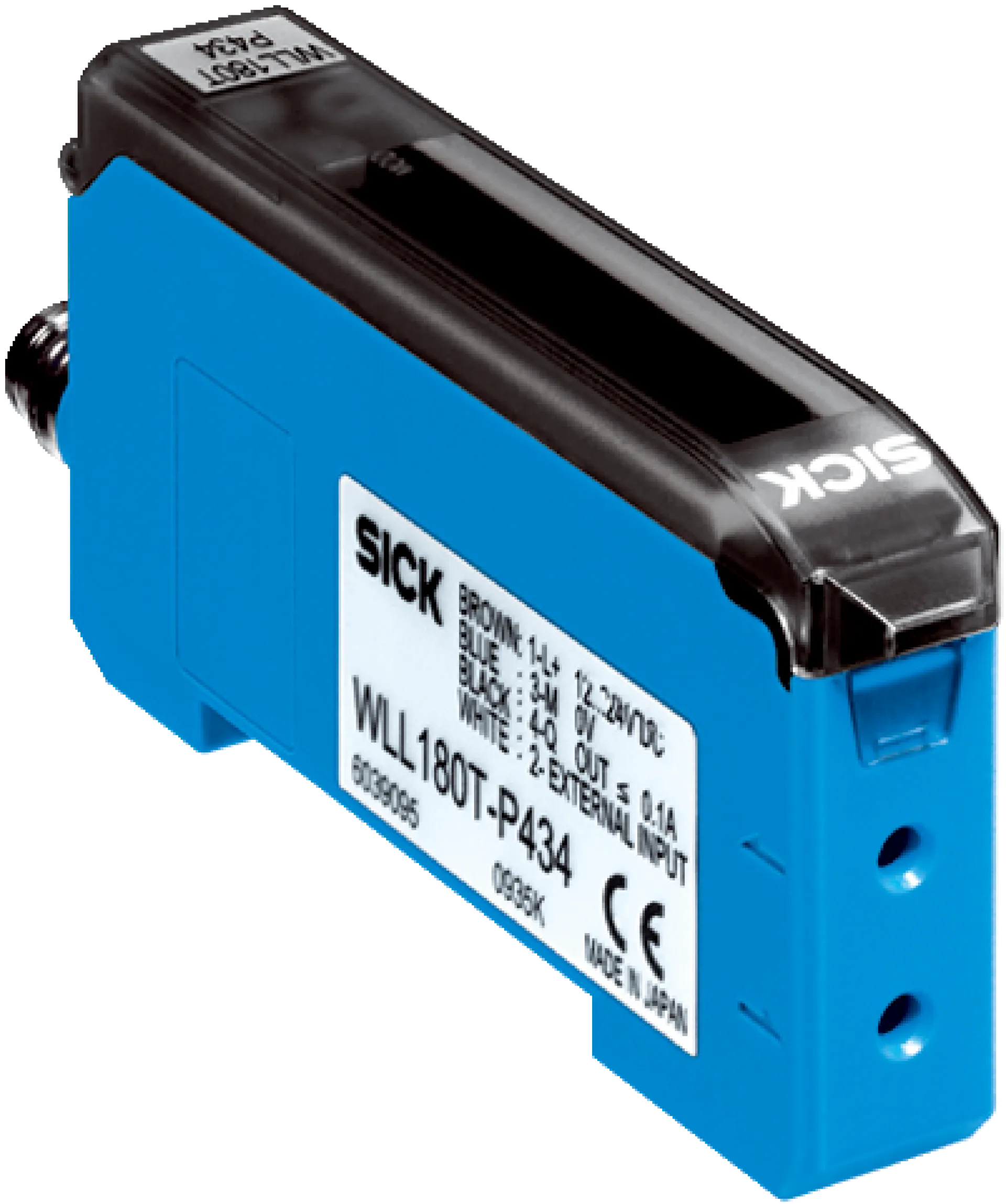

Sick WLL180T-P474S01
Fiber-optic sensors | WLL180 | WLL180T-P474S01 | Device type: Fiber-optic amplifier | Device type detail: Stand-alone | Switching output: PNP | Connection type: Male connector M8, 4-pin | Type of ligh…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fiber-optic sensors | WLL180 | WLL180T-P474S01 | Device type: Fiber-optic amplifier | Device type detail: Stand-alone | Switching output: PNP | Connection type: Male connector M8, 4-pin | Type of light: Infrared light | Adjustment: Menu-controlled, Teach-in button, cable | Display: 7-segment, 8-digit | Included with delivery: BEF-WLL180 mounting bracket
Specification
Features
| Device type | Fiber-optic amplifier |
|---|---|
| Device type detail | Stand-alone |
| Functional principle detail | Depending on the optical fiber cable used |
| Sensing range max. | Depending on the optical fiber cable used |
| Light source | LED |
| Type of light | Infrared light |
| Normative reference | ENÂ 62471:2008-09 | IECÂ 62471:2006, modified |
| LED risk group marking | Free group |
| Wave length | 1,300Â nm |
| Average service life | 100,000 h at Ta = +25 °C |
| Wire/pin | For deactivating the sender and executing the test logic/for setting the sensing range/synchronization with input signal |
| Display + operating buttons | For configuring the sensor parameters |
| LED yellow | Status of digital outputPermanently on: Switching output activePermanently off: Digital output not active |
| Display | Display of sensor functions |
| Items supplied | BEF-WLL180 mounting bracket |
Safety-related parameters
| MTTFD | 365Â years |
|---|---|
| DCavg | 0Â % |
| TM (mission time) | 20Â years |
Electronics
| Supply voltage UB | 12Â VÂ DCÂ ... 24Â VÂ DCÂ 1) |
|---|---|
| Ripple | â¤Â 10 % 2) |
| Current consumption | â¤Â 50 mA 3) |
| Protection class | III |
| Number | 1 |
| Type | PNPÂ 4) |
| Switching mode | Light/dark switching |
| Switching mode selector | Manually selectable |
| Circuit protection outputs | Reverse polarity protected |
| Response time | â¤Â 16 µs |
| Switching frequency | 31.2Â kHz |
| Time functions | Without time delay, off delay, switch-on delay, ON and OFF delay, one shot |
| Delay time | Programmable, 0 ms ... 9,999 ms |
| Function of pin 4/black (BK) | Digital output, received light â Output Q1 HIGH |
| Function of pin 4/black (BK) â detail | The pin 4Â function of the sensor can be configured |
| Function of pin 2/white (WH) | Teach-in input |
| Function of pin 2/white (WH) â detail | The pin 2Â function of the sensor can be configured |
Mechanics
| Housing | Rectangular |
|---|---|
| Dimensions (W x H x D) | 10.5 mm x 34.6 mm x 71.9 mm |
| Connection | Male connector M8, 4-pin |
| Housing | Plastic, ABS/PC |
| Weight | 20Â g |
Ambient data
| Enclosure rating | IP50 (ENÂ 60529) |
|---|---|
| Ambient operating temperature | â25 °C ... +55 °C |
| Ambient temperature, storage | â40 °C ... +70 °C |
| Typ. Ambient light immunity | Artificial light: â¤Â 3,000 lxSunlight: â¤Â 10,000 lx |
| Shock resistance | 50Â g, 11Â ms (3Â positive and 3Â negative shocks along X, Y, Z axes, 18Â total shocks (EN60068-2-27)) |
| Vibration resistance | 10 Hz ... 55 Hz (Amplitude 1 mm, 3 x 30 min (EN60068-2-6)) |
| Air humidity | 35Â %Â ... 85Â %, relative humidity (no condensation) |
| Electromagnetic compatibility (EMC) | ENÂ 60947-5-2 |
| UL File No. | NRKH.E300503 |
| RoHS certificate | â |
Smart Task
| Timer function | DeactivatedSwitch-on delayOff delayON and OFF delayImpulse (one shot)Switch-on delay and pulse |
|---|
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Photobiological safety (DIN EN 62471) certificate | â |
Classifications
| ECLASS 5.0 | 27270905 |
|---|---|
| ECLASS 5.1.4 | 27270905 |
| ECLASS 6.0 | 27270905 |
| ECLASS 6.2 | 27270905 |
| ECLASS 7.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 8.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 10.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
