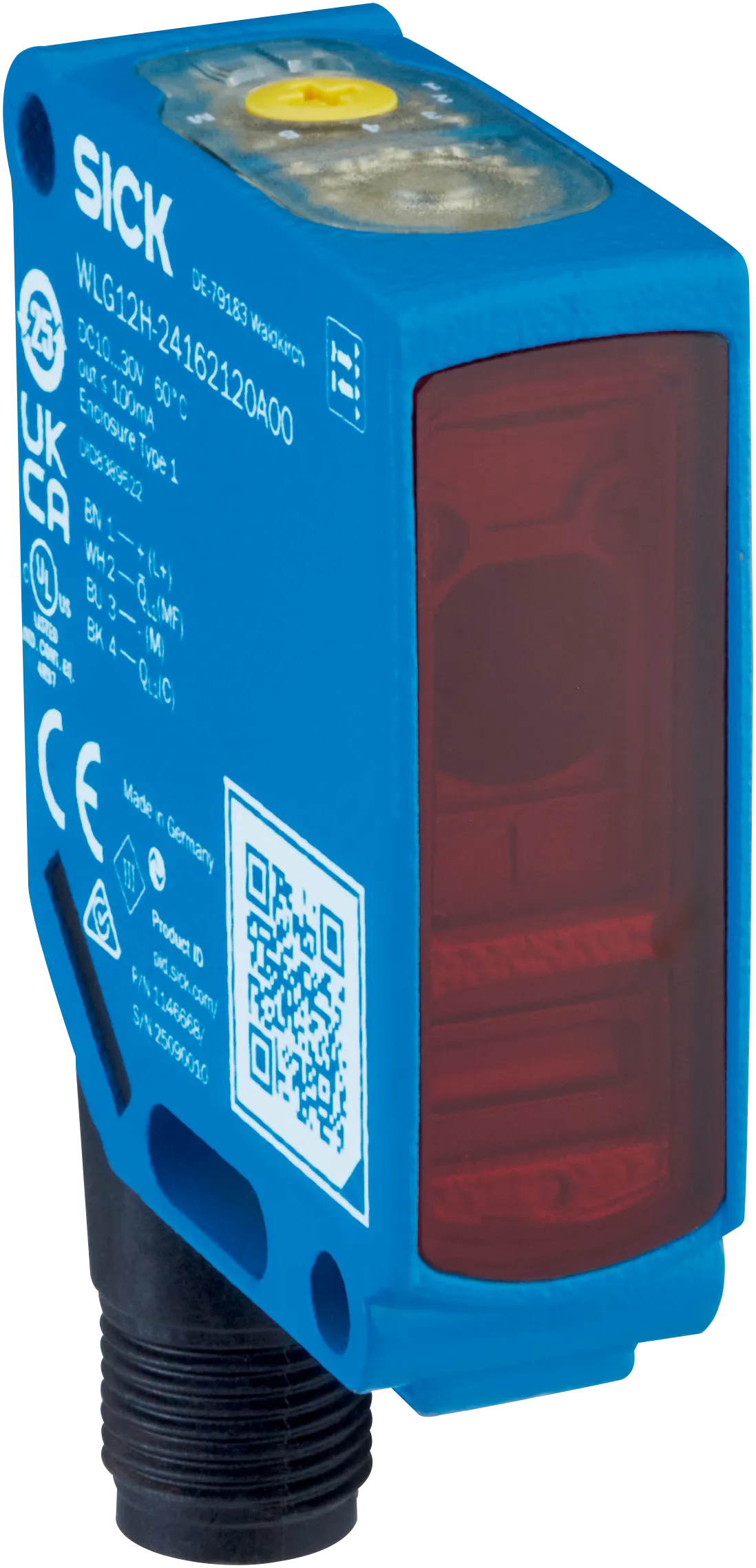

Sick WLG12H-24162120A00ZDZZZZZZZZZ1

Photoelectric sensors | W12 | WLG12H-24162120A00ZDZZZZZZZZZ1 | Sensing range min. / max.: 0 m / 5 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without…

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Photoelectric sensors | W12 | WLG12H-24162120A00ZDZZZZZZZZZ1 | Sensing range min. / max.: 0 m / 5 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics), ClearSens, MultiMode | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: Hybrid LED | Type of light: Infrared light | Housing material: Zinc diecast | Adjustment: Teach-in button, Potentiometer, Teach-Turn adjustment, IO-Link | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task | Smart Task name: Base logics | Housing: Rectangular

Specification

Features

Functional principlePhotoelectric retro-reflective sensor
Functional principle detailWithout reflector minimum distance (autocollimation/coaxial optics), ClearSens, MultiMode
MultiMode1Â Highly-transparent objects2Â Semi-transparent objects3Â Opaque objects4Â Bottles/Trays5Â Check of foil tear6Â Manual (specific setting via IO-Link)
Sensing range min.0Â m
Sensing range max.5Â m
Maximum distance range from reflector to sensor (operating reserve 1)0 m ... 5 m
Recommended distance range from reflector to sensor (operating reserve 3,75)0 m ... 3.2 m
Reference reflectorReflector PL80A
Recommended sensing range for the best performance0 m ... 3.2 m
Polarisation filterYes
Light sourceHybrid LED
Type of lightInfrared light
Shape of light spotPoint-shaped
Light spot size (distance)90Â mm (5Â m)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle)< +/- 1.5° (at TU = +23 °C)
Normative referenceENÂ 62471:2008-09 | IECÂ 62471:2006, modified
LED risk group markingFree group
Wave length875Â nm
Average service life100,000 h at Ta = +25 °C
Teach-Turn adjustmentBluePilotTeach-in plus user mode selector
IO-LinkFor configuring the sensor parameters and Smart Task functions
LED blueBluePilot: Mode display
LED greenOperating indicatorStatic on: power onFlashing: IO-Link mode
LED yellowStatus of received light beamStatic on: object not presentStatic off: object presentFlashing: Below the 1.5Â function reserve
Pilot transmission beam redHybrid LED: Alignment aid
Special applicationsDetecting objects wrapped in film, Detecting transparent objects

Safety-related parameters

MTTFD1,467Â years
DCavg0Â %
TM (mission time)20Â years

Communication interface

IO-Link✔ , IO-Link V1.1
Data transmission rateCOM2 (38,4Â kBaud)
Cycle time2.3Â ms
Process data length8Â Bit
Process data structureBit 0Â = switching signal
VendorID26
DeviceID HEX0x800392
DeviceID DEC8389522
Compatible master port typeA
SIO mode supportYes

Electronics

Supply voltage UB10Â VÂ DCÂ ... 30Â VÂ DCÂ 1)
Ripple≤ 5 V
Usage categoryDC-12 (According to ENÂ 60947-5-2)DC-13 (According to ENÂ 60947-5-2)
Current consumption≤ 40 mA, without load. At UB = 24 V
Protection classIII
Number2Â (Complementary)
TypePush-pull: PNP/NPN
Switching modeLight/dark switching
Signal voltage PNP HIGH/LOWApprox. UB-2.5Â V / 0Â V
Signal voltage NPN HIGH/LOWApprox. UBÂ /Â <Â 2.5Â V
Output current Imax.≤ 100 mA
Circuit protection outputsReverse polarity protected
Response time≤ 330 µs
Repeatability (response time)100 µs
Switching frequency1,500Â Hz
Function of pin 4/black (BK)Digital output, light switching, object present → output QL1 LOW 2)
Function of pin 4/black (BK) – detailThe pin 4 function of the sensor can be configured
Function of pin 2/white (WH)Digital output, dark switching, object present → output ǬL1 HIGH 2)
Function of pin 2/white (WH) – detailThe pin 2 function of the sensor can be configured

Mechanics

HousingRectangular
Dimensions (W x H x D)15.6 mm x 49.5 mm x 43.1 mm
ConnectionMale connector M12, 4-pin
HousingMetal, zinc diecast
Front screenPlastic, PMMA
Male connectorPlastic, VISTAL®
WeightApprox. 77 g
Maximum tightening torque of the fixing screws1.4Â Nm

Ambient data

Enclosure ratingIP66 (ENÂ 60529)IP67 (ENÂ 60529)IP69 (ENÂ 60529)
Ambient operating temperature–40 °C ... +60 °C
Ambient temperature, storage–40 °C ... +75 °C
Typ. Ambient light immunityArtificial light: ≤ 50,000 lxSunlight: ≤ 50,000 lx
Shock resistance50Â g, 11Â ms (25Â positive and 25Â negative shocks along X, Y, Z axes, 150Â total shocks (EN60068-2-27))
Vibration resistance10 Hz ... 2,000 Hz (Amplitude 0.5 mm / 10 g, 20 sweeps per axis, for X, Y, Z axes, 1 octave/min, (EN60068-2-6))
Air humidity35Â %Â ... 95Â %, relative humidity (no condensation)
Electromagnetic compatibility (EMC)ENÂ 60947-5-2
Resistance to cleaning agentECOLAB
UL File No.NRKH.E181493 & NRKH7.E181493

Smart Task

Smart Task nameBase logics
Logic functionDirectANDOR
Timer functionDeactivatedSwitch-on delayOff delayON and OFF delayImpulse (one shot)
InverterYes
Switching frequencySIO Logic: 1300 Hz 1)IOL: 1200 Hz 2)
Response timeSIO Logic: 390 µs 1)IOL: 420 µs 2)
RepeatabilitySIO Logic: 140 µs 1)IOL: 170 µs 2)
Switching signal QL1Switching output
Switching signal ǬL1Switching output

Diagnosis

Measuring rangeVery cold, cold, moderate, warm, hot
Device statusYes
Detailed device statusYes
Operating hour counterYes
Operating hours counter with reset functionYes
Quality of teachYes
Quality of runYes, Contamination display

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
Moroccan declaration of conformity✔
China RoHS✔
ECOLAB certificate✔
cULus certificate✔
IO-Link certificate✔
Photobiological safety (IEC EN 62471)✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)✔
