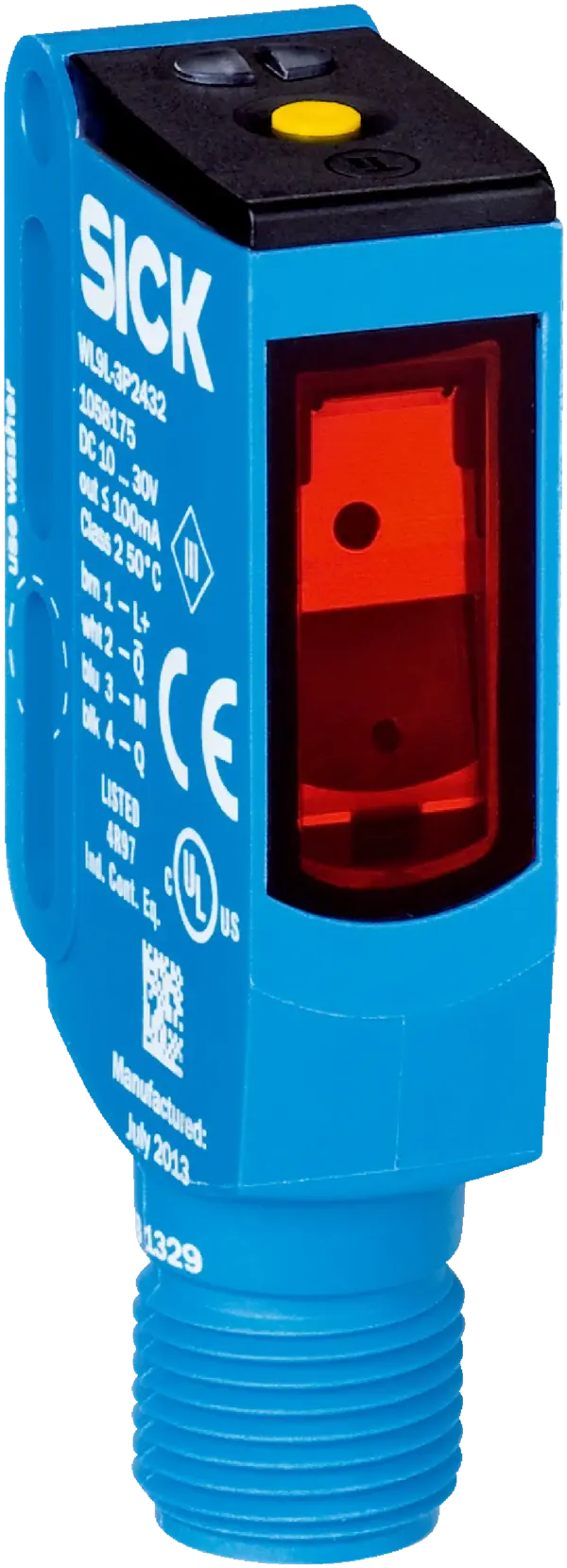

Photoelectric sensors | W9 | WL9LC-3P3432A00 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial op…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | W9 | WL9LC-3P3432A00 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with M12 male connector, 4-pin, 120 mm | Light source: Laser | Adjustment: IO-Link, Teach-in button | Laser class: 1 | Communication interface: IO-Link | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis, Smart Task | Smart Task name: Base logics
Specification
Features
| Functional principle | Photoelectric retro-reflective sensor |
|---|---|
| Functional principle detail | Without reflector minimum distance (autocollimation/coaxial optics) |
| Dimensions (W x H x D) | 12.2 mm x 52.2 mm x 23.6 mm |
| Housing design (light emission) | Rectangular |
| Mounting hole | M3 |
| Sensing range max. | 0 m ... 12 m 1) |
| Sensing range | 0 m ... 8 m 1) |
| Type of light | Visible red light |
| Light source | Laser 2) |
| Light spot size (distance) | Ø 1 mm (500 mm) |
| Wave length | 650Â nm |
| Laser class | 1Â (IECÂ 60825-1 / CDRH 21Â CFR 1040.10Â & 1040.11)Â 3) |
| Adjustment | IO-Link, Single teach-in button |
| Pin 2Â configuration | External input, Teach-in input, Sender off input, Detection output, logic output, Device contamination alarm output |
| Special applications | Detecting small objects |
Mechanics/electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | < 5 Vpp 2) |
| Current consumption | 30Â mAÂ 3) |
| Switching output | PNPÂ 4)Â 5) |
| Output function | Complementary |
| Switching mode | Light/dark switching 4) |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 0.5 ms 6) |
| Response time Q/ on Pin 2 | 300 µs ... 450 µs 6) 7) |
| Switching frequency | 1,000 Hz 8) |
| Switching frequency Q / to pin 2 | ≤ 1,000 Hz 9) |
| Connection type | Cable with M12 male connector, 4-pin, 120Â mm |
| Circuit protection | AÂ 10)BÂ 11)CÂ 12) |
| Protection class | III |
| Weight | 13Â g |
| Polarizing filter | ✔ |
| Housing material | Plastic, VISTAL® |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP66IP67IP69K |
| Ambient operating temperature | –10 °C ... +50 °C |
| Ambient operating temperature extended | –30 °C ... +55 °C 13) 14) |
| Ambient temperature, storage | –30 °C ... +70 °C |
| UL File No. | NRKH.E181493 |
| Repeatability Q/ on Pin 2: | 150 µs 7) |
Safety-related parameters
| MTTFD | 562Â years |
|---|---|
| DCavg | 0Â % |
| TM (mission time) | 10Â years |
Communication interface
| Communication interface | IO-Link V1.1 |
|---|---|
| Communication Interface detail | COM2 (38,4Â kBaud) |
| Cycle time | 2.3Â ms |
| Process data length | 16Â Bit |
| Process data structure | Bit 0Â = switching signal QL1Bit 1Â = switching signal QL2Bit 2Â ... 15Â = empty |
| VendorID | 26 |
| DeviceID HEX | 0x800110 |
| DeviceID DEC | 8388880 |
Smart Task
| Smart Task name | Base logics |
|---|---|
| Logic function | DirectANDORWINDOWHysteresis |
| Timer function | DeactivatedSwitch-on delayOff delayON and OFF delayImpulse (one shot) |
| Inverter | Yes |
| Switching frequency | SIO Direct: 1000 Hz 1)SIO Logic: 1000 Hz 2)IOL: 900 Hz 3) |
| Response time | SIO Direct: 300 µs ... 450 µs 1)SIO Logic: 500 µs ... 600 µs 2)IOL: 500 µs ... 900 µs 3) |
| Repeatability | SIO Direct: 150 µs 1)SIO Logic: 150 µs 2)IOL: 400 µs 3) |
| Switching signal QL1 | Output type (dependant on the adjusted threshold) |
| Switching signal QL2 | Output type (dependant on the adjusted threshold) |
Diagnosis
| Device status | Yes |
|---|---|
| Quality of teach | Yes |
| Quality of run | Yes, Contamination display |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| ECOLAB certificate | ✔ |
| cULus certificate | ✔ |
| IO-Link certificate | ✔ |
| Laser safety (IEC 60825-1) certificate | ✔ |
Classifications
| ECLASS 5.0 | 27270902 |
|---|---|
| ECLASS 5.1.4 | 27270902 |
| ECLASS 6.0 | 27270902 |
| ECLASS 6.2 | 27270902 |
| ECLASS 7.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 8.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 10.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| UNSPSC 16.0901 | 39121528 |
