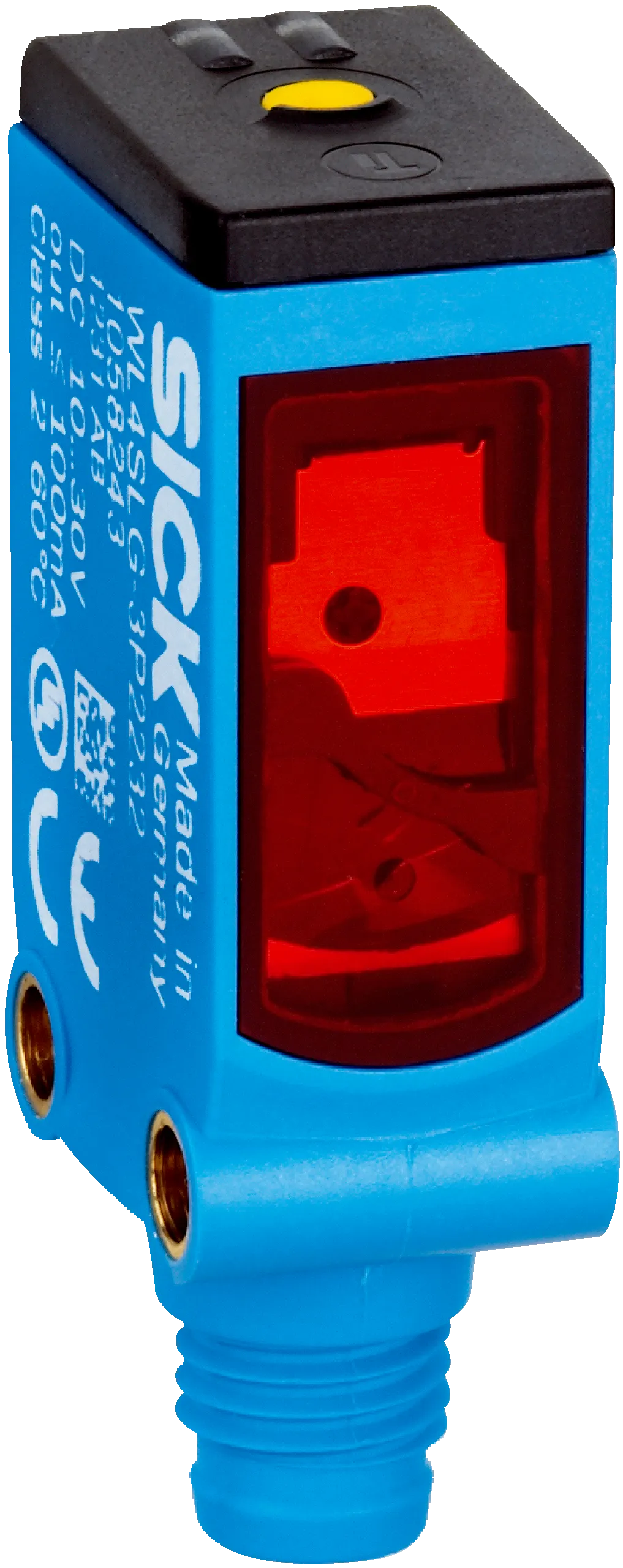

Sick WL4SL-3F3232
Photoelectric sensors | W4 | WL4SL-3F3232 | Sensing range max.: 0 m … 12 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum dist…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | W4 | WL4SL-3F3232 | Sensing range max.: 0 m … 12 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with M8 male connector, 4-pin | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: Novodur | Adjustment: Teach-in button | Housing: Rectangular
Specification
Features
| Functional principle | Photoelectric retro-reflective sensor |
|---|---|
| Functional principle detail | Without reflector minimum distance (autocollimation/coaxial optics) |
| Sensing range max. | 0 m ... 12 m 1) |
| Sensing range | 0 m ... 8 m 1) |
| Polarisation filters | Yes |
| Light source | Laser 2) |
| Type of light | Visible red light |
| Light spot size (distance) | ÃÂ 1Â mm (500Â mm) |
| Normative reference | ENÂ 60825-1:2014, IECÂ 60825-1:2014 / CDRH 21Â CFR 1040.10Â & 1040.11 |
| Laser class | 1 |
| Wave length | 650Â nm |
| Adjustment | Single teach-in button |
| Special applications | Detecting small objects |
| Mounting hole | M3 |
Safety-related parameters
| MTTFD | 643Â years (ENÂ ISOÂ 13849-1)Â 1) |
|---|---|
| DCavg | 0Â % |
Electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | < 5 Vpp 2) |
| Current consumption | 30Â mAÂ 3) |
| Protection class | III |
| Type | PNP |
| Switching mode | Light/dark switching |
| Output current Imax. | â¤Â 100 mA |
| Response time | â¤Â 0.5 ms 4) |
| Switching frequency | 1,000 Hz 5) |
| Output function | Complementary |
| Circuit protection | AÂ 6)BÂ 7)CÂ 8) |
Mechanics
| Housing | Rectangular |
|---|---|
| Design detail | Slim |
| Dimensions (W x H x D) | 12.2 mm x 41.8 mm x 17.3 mm |
| Connection | Cable with M8 male connector, 4-pin 1) |
| Conductor size | 0.14 mm² |
| Length of cable (L) | 120 mm 1) |
| Housing | Plastic, Novodur |
| Front screen | Plastic, PMMA |
| Cable | Plastic, PVC |
| Weight | 100Â g |
Ambient data
| Enclosure rating | IP66IP67 |
|---|---|
| Ambient operating temperature | â10 °C ... +50 °C |
| Ambient operating temperature extended | â30 °C ... +55 °C 1) 2) |
| Ambient temperature, storage | â30 °C ... +70 °C |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| ECOLAB certificate | â |
| Laser safety (IEC 60825-1) certificate | â |
Classifications
| ECLASS 5.0 | 27270902 |
|---|---|
| ECLASS 5.1.4 | 27270902 |
| ECLASS 6.0 | 27270902 |
| ECLASS 6.2 | 27270902 |
| ECLASS 7.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 8.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 10.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| UNSPSC 16.0901 | 39121528 |
