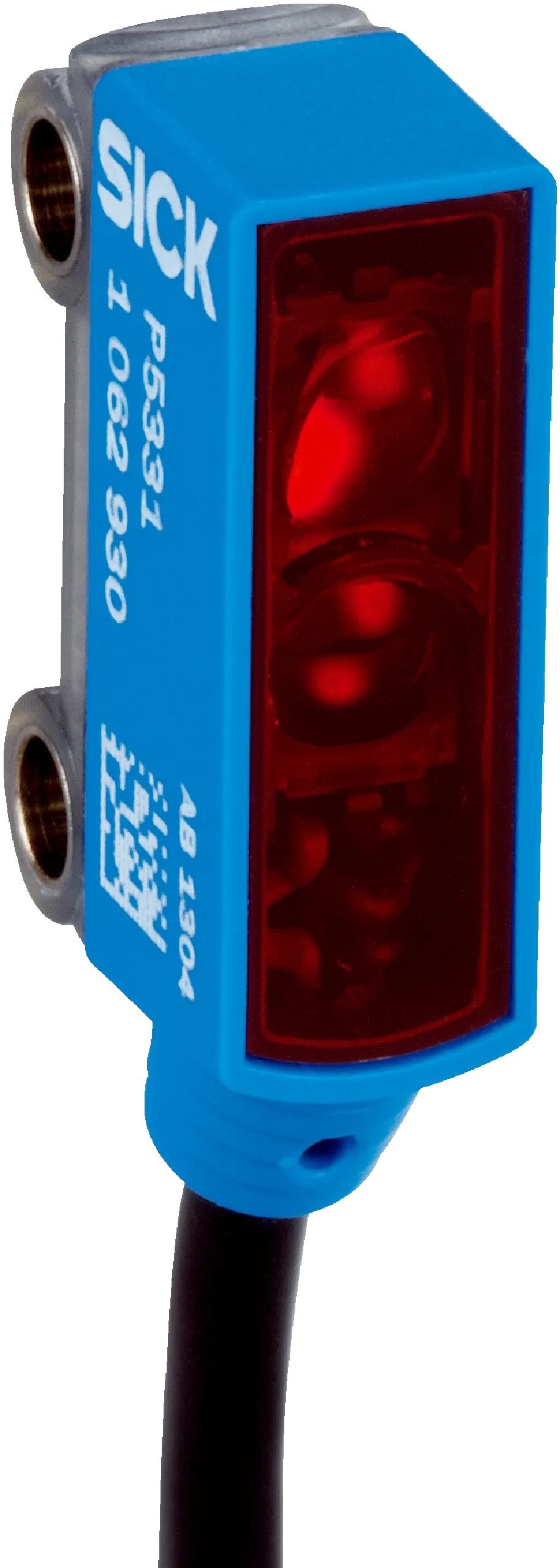

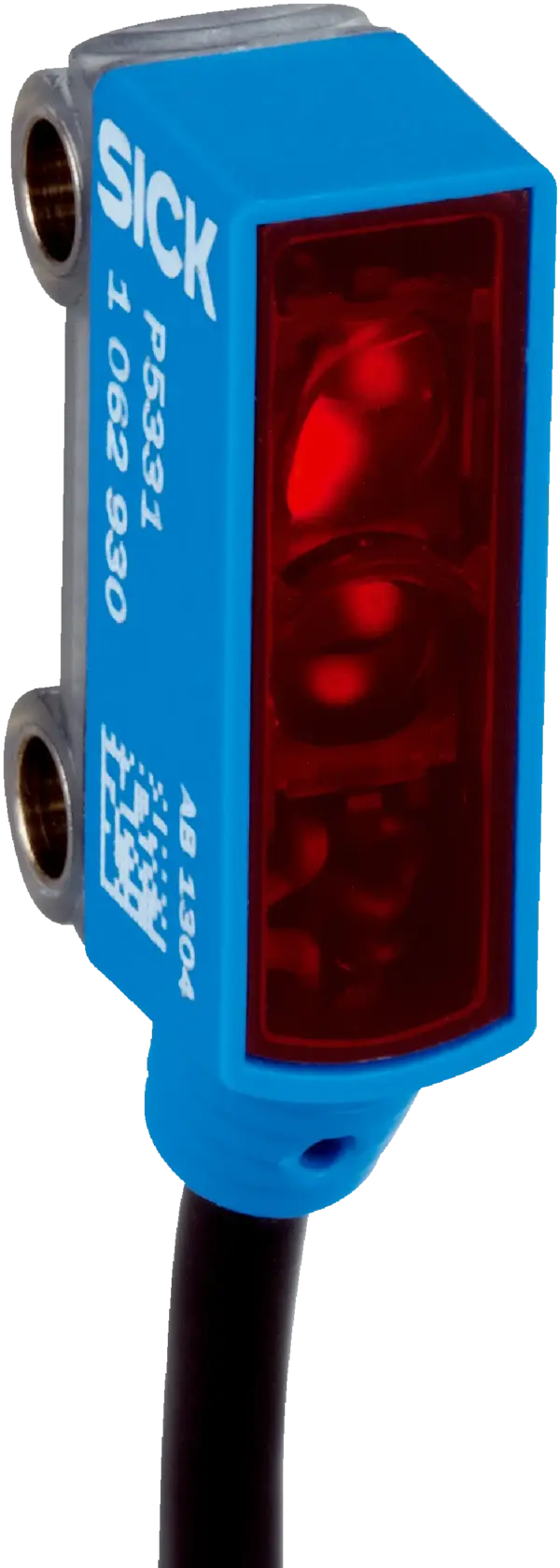

Sick WL2SG-2P3236
Photoelectric sensors | W2 | WL2SG-2P3236 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optic…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | W2 | WL2SG-2P3236 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Light switching | Connection type: Cable with M8 male connector, 4-pin, 355 mm | Light source: PinPoint LED | Adjustment: Teach-in button | Communication interface: – | Included with delivery: Teach-in male contact
Specification
Features
| Functional principle | Photoelectric retro-reflective sensor |
|---|---|
| Functional principle detail | Without reflector minimum distance (autocollimation/coaxial optics) |
| Dimensions (W x H x D) | 7.7 mm x 21.8 mm x 13.5 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0 m ... 1.2 m 1) |
| Sensing range | 0 m ... 0.55 m 1) |
| Type of light | Visible red light |
| Light source | PinPoint LEDÂ 2) |
| Light spot size (distance) | ÃÂ 12Â mm (250Â mm) |
| Wave length | 640Â nm |
| AutoAdapt | â |
| Special applications | Detecting transparent objects |
Mechanics/electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | < 5 Vpp 2) |
| Current consumption | 20Â mAÂ 3) |
| Switching output | PNP |
| Switching mode | Light switching |
| Output current Imax. | â¤Â 50 mA |
| Response time | < 0.5 ms 4) |
| Switching frequency | 1,000 Hz 5) |
| Connection type | Cable with M8 male connector, 4-pin, 355 mm 6) |
| Cable material | Plastic, PVC |
| Conductor cross section | 0.09 mm² |
| Cable diameter | ÃÂ 3Â mm |
| Circuit protection | AÂ 7)BÂ 8)DÂ 9) |
| Polarizing filter | â |
| Housing material | Plastic, ABS/PC |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Items supplied | Teach-in male contact |
| Ambient operating temperature | â20 °C ... +50 °C |
| Ambient temperature, storage | â40 °C ... +75 °C |
| UL File No. | NRKH.E181493 |
Safety-related parameters
| MTTFD | 1,338Â years |
|---|---|
| DCavg | 0Â % |
| TM (mission time) | 20Â years |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Photobiological safety (DIN EN 62471) certificate | â |
Classifications
| ECLASS 5.0 | 27270902 |
|---|---|
| ECLASS 5.1.4 | 27270902 |
| ECLASS 6.0 | 27270902 |
| ECLASS 6.2 | 27270902 |
| ECLASS 7.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 8.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 10.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| UNSPSC 16.0901 | 39121528 |
