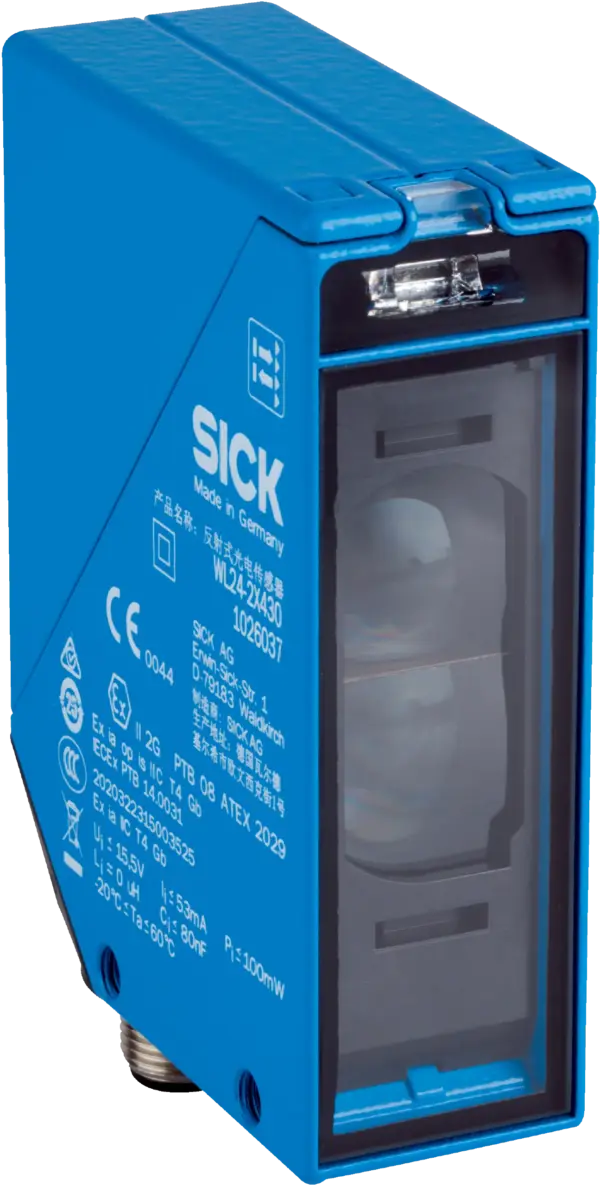

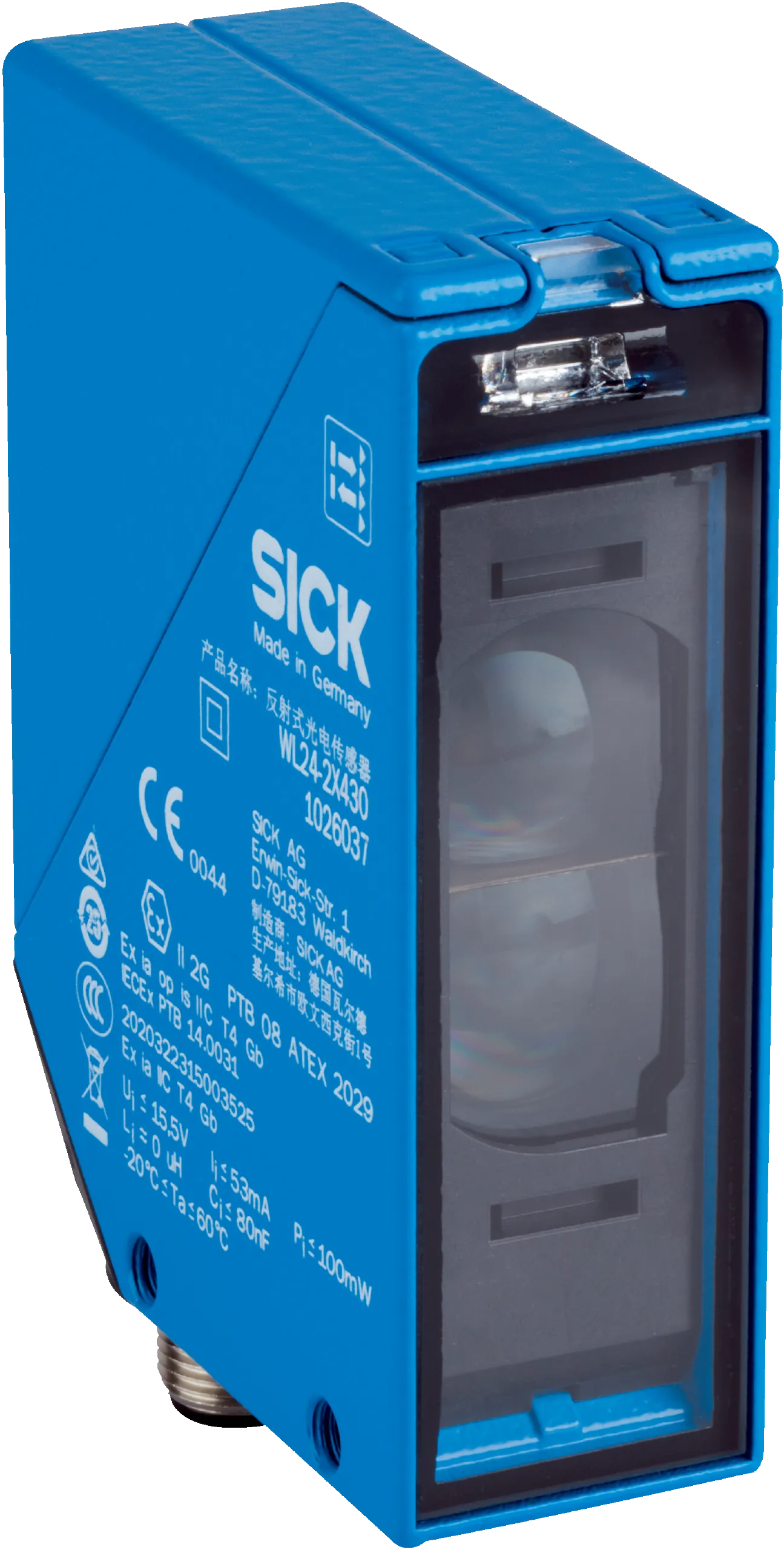

Sick WL24-2X430
Photoelectric sensors | W24 | WL24-2X430 | Sensing range max.: 0 m … 22 m | Functional principle: Photoelectric retro-reflective sensor | Switching output: NAMUR | Switching mode: Light switching |…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | W24 | WL24-2X430 | Sensing range max.: 0 m … 22 m | Functional principle: Photoelectric retro-reflective sensor | Switching output: NAMUR | Switching mode: Light switching | Connection type: Male connector M12, 4-pin | Adjustment: Potentiometer | Info: ATEX II 2G Ex ia op is IIC T4 Gb according to directive 2014/34/EU PTB 08 ATEX 2029 In the framework of directive 2014/34 / EU (ATEX) and DIN EN ISO/IEC 80079-34, we would like to point out that the traceability of the ordered device to your customer is your responsibility (documentation of your customer and associated product data, such as part number, datcode, serial number)
Specification
Features
| Functional principle | Photoelectric retro-reflective sensor |
|---|---|
| Dimensions (W x H x D) | 27 mm x 87.5 mm x 65 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0 m ... 22 m 1) |
| Sensing range | 0 m ... 15 m 1) |
| Type of light | Visible red light |
| Light source | LEDÂ 2) |
| Light spot size (distance) | ÃÂ 250Â mm (15Â m) |
| Adjustment | Potentiometer |
| Special applications | Explosive areas |
Mechanics/electronics
| Supply voltage UB | 5Â VÂ DCÂ ... 15.5Â VÂ DCÂ 1) |
|---|---|
| Ripple | < 0.4 Vpp 2) |
| Switching output | NAMUR |
| Switching mode | Light switching |
| Response time | â¤Â 10 ms 3) |
| Switching frequency | 50 Hz 4) |
| Connection type | Male connector M12, 4-pin |
| Circuit protection | AÂ 5)CÂ 6) |
| Protection class | IIÂ 7) |
| Weight | 330Â g |
| Polarisation filter | â |
| Housing material | Metal, zinc diecast |
| Optics material | Glass, glass |
| Enclosure rating | IP67 |
| Type approval certificate | PTB 08Â ATEX 2029 |
| Certificate (IECEx) | IECEx PTB 14.0031 |
| ATEX marking | ATEX II 2G Ex ia op is IIC T4 Gb according to directive 2014/34/EU |
| Ex area category | 2G |
| Input voltage Ui max. | 15.5Â VÂ 8) |
| Input power Pi max. | 100Â mWÂ 8) |
| Input current Ii max. | 53Â mAÂ 8) |
| Internal capacitance Ci max. | 80Â nFÂ 8) |
| Internal inductance Li max. | 0 µH 8) |
| Ambient operating temperature | â20 °C ... +60 °C |
| Ambient temperature, storage | â25 °C ... +70 °C |
Safety-related parameters
| MTTFD | 258Â years |
|---|---|
| DCavg | 0Â % |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| CCC certificate | â |
| ATEX certificate | â |
| IECEx certificate | â |
| Photobiological safety (DIN EN 62471) certificate | â |
Classifications
| ECLASS 5.0 | 27270902 |
|---|---|
| ECLASS 5.1.4 | 27270902 |
| ECLASS 6.0 | 27270902 |
| ECLASS 6.2 | 27270902 |
| ECLASS 7.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 8.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 10.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| UNSPSC 16.0901 | 39121528 |
