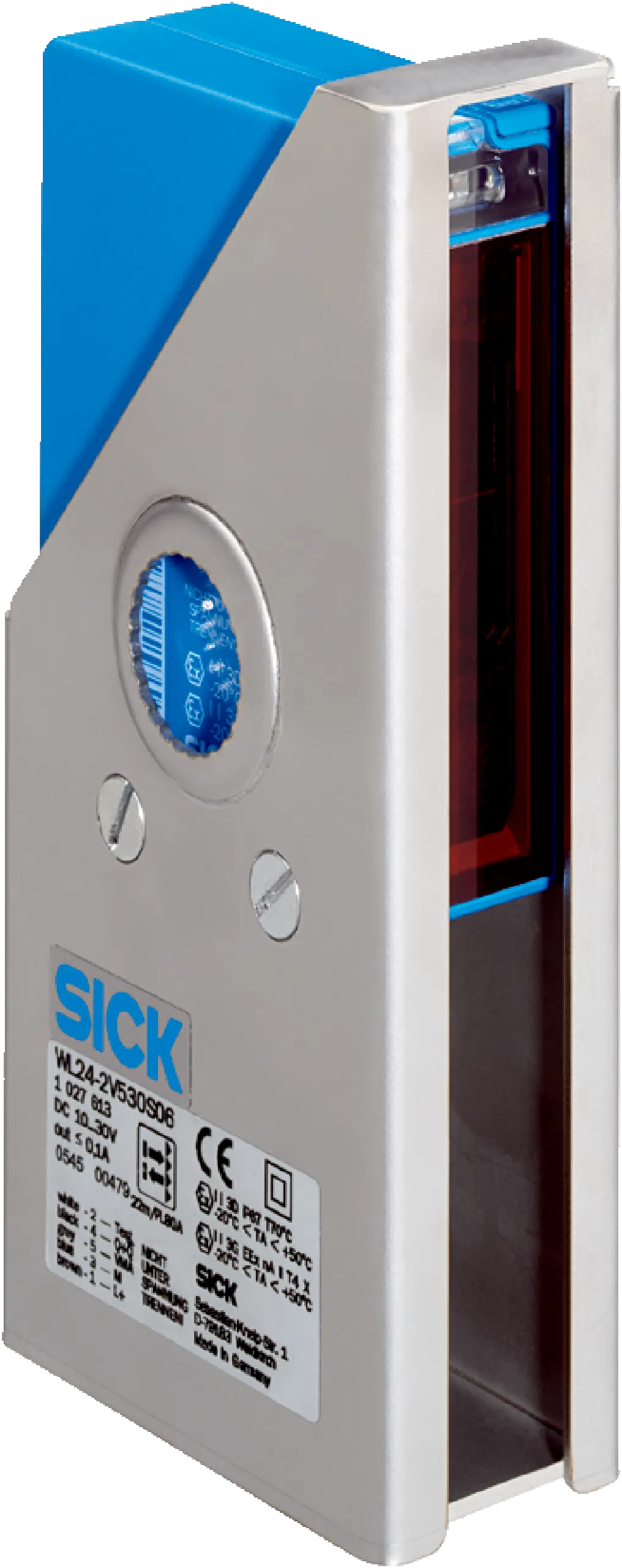

Sick WL24-2V530S06
Photoelectric sensors | W24 | WL24-2V530S06 | Sensing range max.: 0 m … 22 m | Functional principle: Photoelectric retro-reflective sensor | Switching output: NPN, PNP | Switching mode: Light/dark s…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | W24 | WL24-2V530S06 | Sensing range max.: 0 m … 22 m | Functional principle: Photoelectric retro-reflective sensor | Switching output: NPN, PNP | Switching mode: Light/dark switching, Light/dark switching | Connection type: Plug, M12, 5-pin | Adjustment: Potentiometer | Info: ATEX II 3G Ex nA op is IIB T4 Gc X ATEX II 3D Ex tc IIIB T135°C Dc X In accordance with directive 2014/34 / EU In the framework of directive 2014/34 / EU (ATEX) and DIN EN ISO/IEC 80079-34, we would like to point out that the traceability of the ordered device to your customer is your responsibility (documentation of your customer and associated product data, such as part number, datcode, serial number)
Specification
Features
| Functional principle | Photoelectric retro-reflective sensor |
|---|---|
| Dimensions (W x H x D) | 38 mm x 154.5 mm x 77 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0 m ... 22 m 1) |
| Sensing range | 0 m ... 15 m 1) |
| Type of light | Visible red light |
| Light source | LEDÂ 2) |
| Light spot size (distance) | ÃÂ 250Â mm (15Â m) |
| Adjustment | Potentiometer |
| Alarm output | â |
| Special applications | Explosive areas |
Mechanics/electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | < 5 Vpp 2) |
| Current consumption | 50Â mAÂ 3) |
| Switching output | NPN, PNP |
| Switching mode | Light/dark switching, Light/dark switching |
| Switching mode selector | Selectable via PNP/NPN selector, selectable via light/dark selector |
| Output current Imax. | â¤Â 100 mA |
| Response time | â¤Â 500 µs 4) |
| Switching frequency | 1,000 Hz 5) |
| Connection type | Plug, M12, 5-pin |
| Circuit protection | AÂ 6)CÂ 7)DÂ 8) |
| Protection class | IIÂ 9) |
| Weight | 800Â g |
| Polarisation filter | â |
| Special device | â |
| Housing material | Metal, zinc diecast |
| Enclosure rating | IP67 |
| Test input sender off | TE to 0Â V |
| ATEX marking | ATEX II 3G Ex nA op is IIB T4 Gc X ATEX II 3D Ex tc IIIB T135°C Dc X In accordance with directive 2014/34 / EU |
| Ex area category | 3D, 3G |
| Ambient operating temperature | â20 °C ... +50 °C |
| Ambient temperature, storage | â40 °C ... +75 °C |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Photobiological safety (DIN EN 62471) certificate | â |
Classifications
| ECLASS 5.0 | 27270902 |
|---|---|
| ECLASS 5.1.4 | 27270902 |
| ECLASS 6.0 | 27270902 |
| ECLASS 6.2 | 27270902 |
| ECLASS 7.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 8.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 10.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| UNSPSC 16.0901 | 39121528 |
