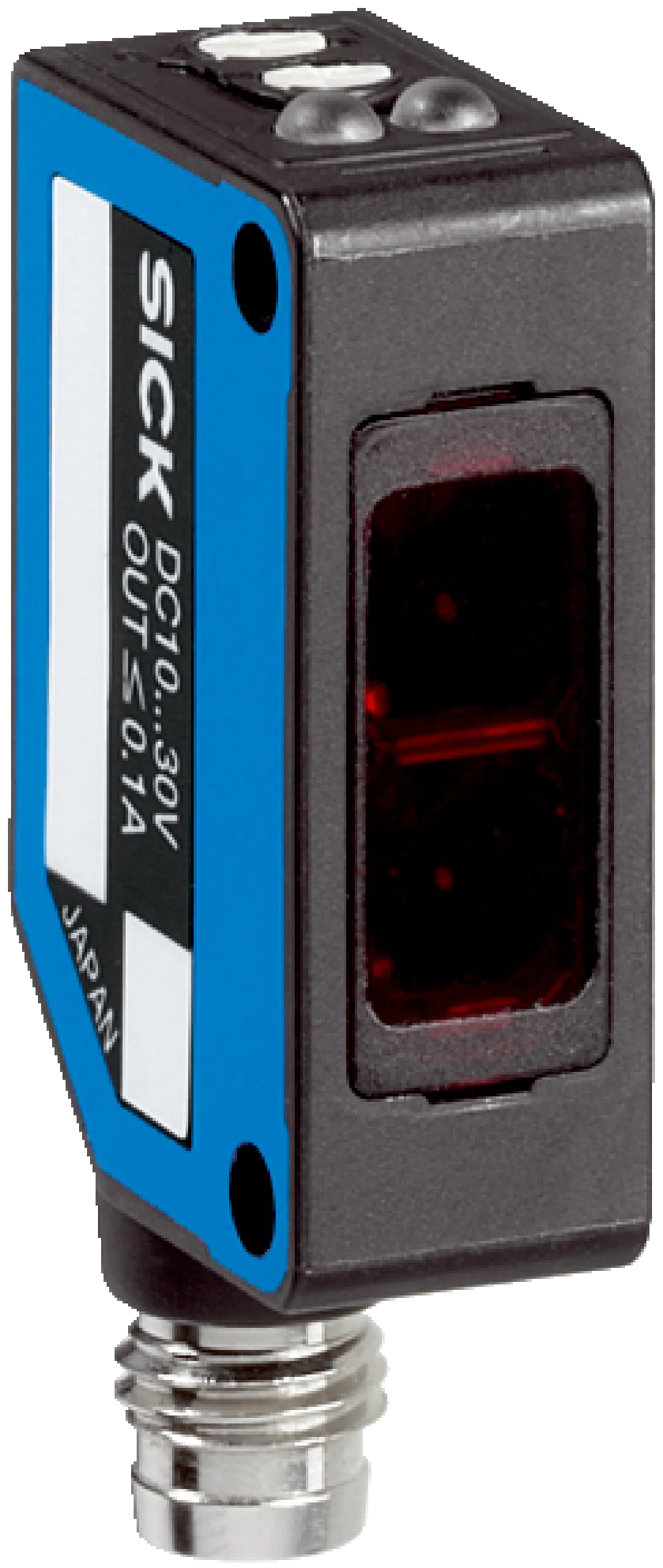

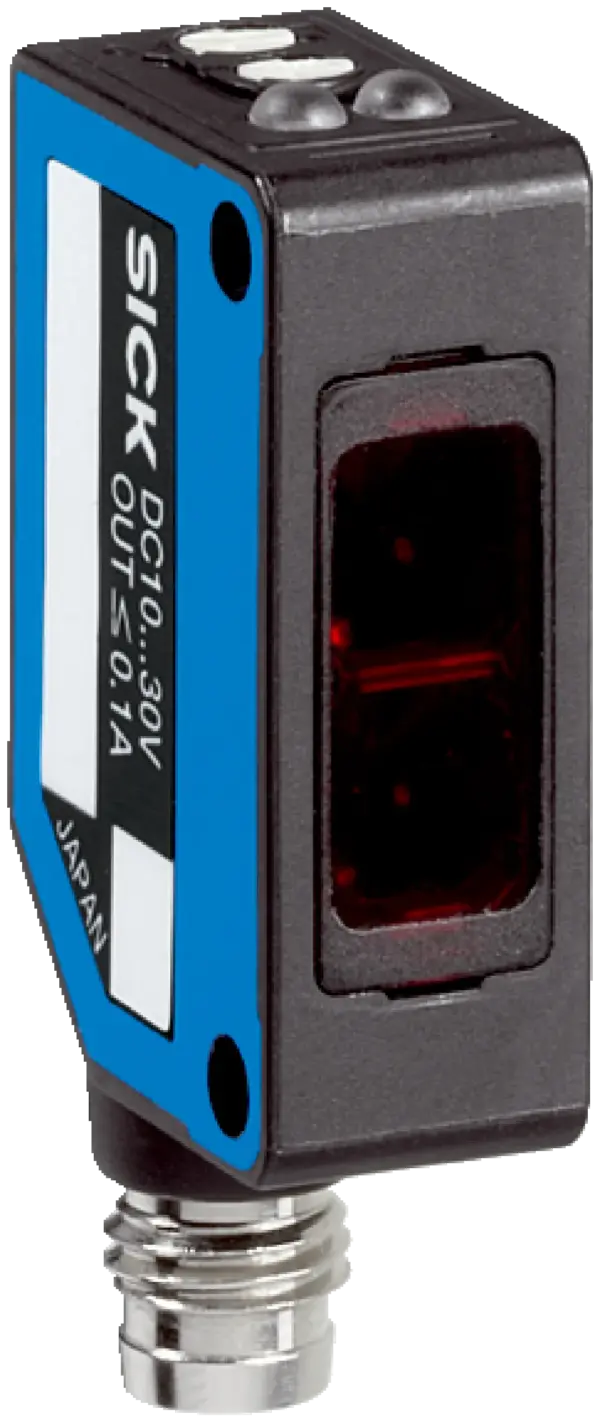

Sick WL100L-F1131S04
Photoelectric sensors | W100 Laser | WL100L-F1131S04 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system)…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | W100 Laser | WL100L-F1131S04 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with M12 male connector, 4-pin, 200 mm | Light source: Laser | Adjustment: Potentiometer | Laser class: 1 | Communication interface: – | Included with delivery: Stainless steel mounting bracket (1.4301/304) BEF-W100-A, Reflector P250F
Specification
Features
| Functional principle | Photoelectric retro-reflective sensor |
|---|---|
| Functional principle detail | With minimum distance to reflector (dual lens system) |
| Dimensions (W x H x D) | 11 mm x 31 mm x 20 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0.08 m ... 12 m 1) |
| Sensing range | 0.08 m ... 10 m 1) |
| Type of light | Visible red light |
| Light source | Laser 2) |
| Wave length | 650Â nm |
| Laser class | 1Â 3) |
| Adjustment | Potentiometer, 270° |
| Special applications | Detecting small objects, Detection of objects moving at high speeds |
Mechanics/electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | ± 10 % 2) |
| Current consumption | 30Â mAÂ 3) |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark rotary switch |
| Signal voltage PNP HIGH/LOW | UV - 1,8Â V / ca. 0Â V |
| Output current Imax. | â¤Â 100 mA |
| Response time | < 0.25 ms 4) |
| Switching frequency | 2,000 Hz 5) |
| Connection type | Cable with M12 male connector, 4-pin, 200 mm 6) |
| Cable material | Plastic, PUR |
| Conductor cross section | 0.18 mm² |
| Circuit protection | AÂ 7)BÂ 8)DÂ 9) |
| Weight | 50Â g |
| Polarizing filter | â |
| Special device | â |
| Housing material | Plastic, ABS/PC/POM |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP65 |
| Items supplied | Stainless steel mounting bracket (1.4301/304) BEF-W100-A, Reflector P250F |
| Ambient operating temperature | â10 °C ... +50 °C |
| Ambient temperature, storage | â40 °C ... +70 °C |
Safety-related parameters
| MTTFD | 438Â years |
|---|---|
| DCavg | 0% |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cRUus certificate | â |
| Laser safety (IEC 60825-1) certificate | â |
Classifications
| ECLASS 5.0 | 27270902 |
|---|---|
| ECLASS 5.1.4 | 27270902 |
| ECLASS 6.0 | 27270902 |
| ECLASS 6.2 | 27270902 |
| ECLASS 7.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 8.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 10.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 12.0 | 27270901 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| UNSPSC 16.0901 | 39121528 |
