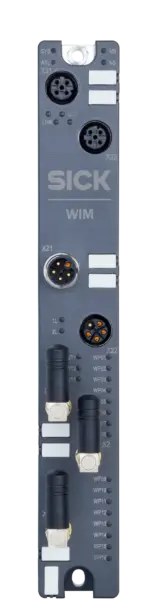

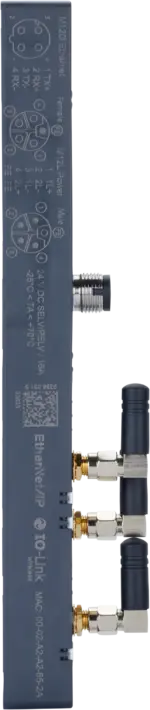

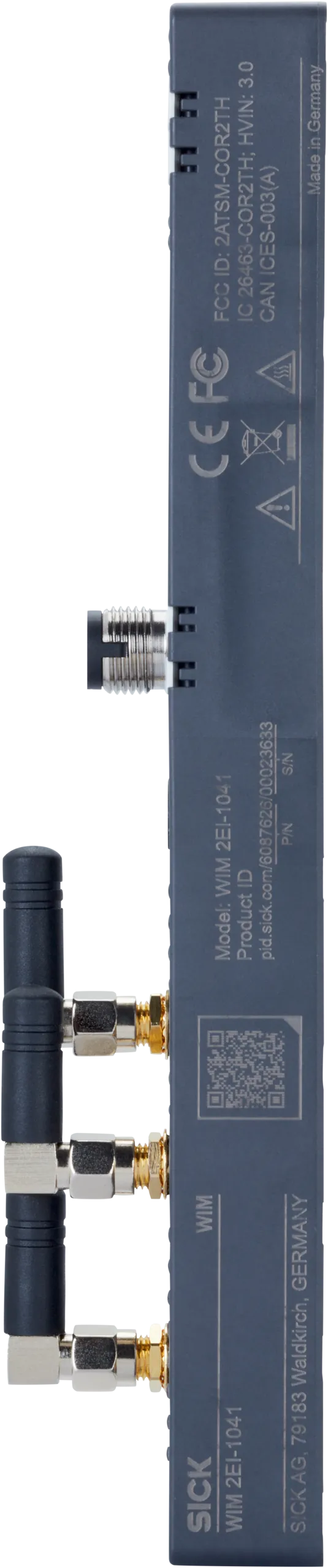

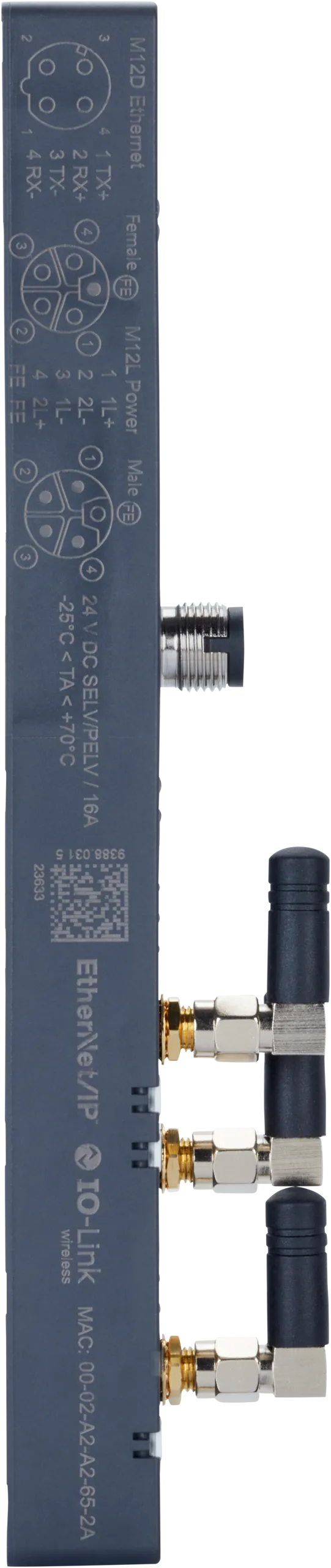

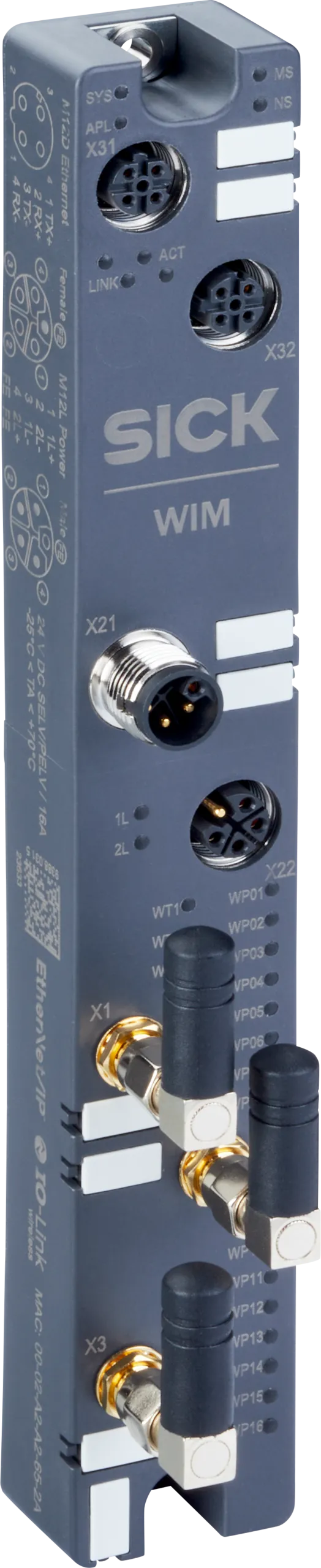

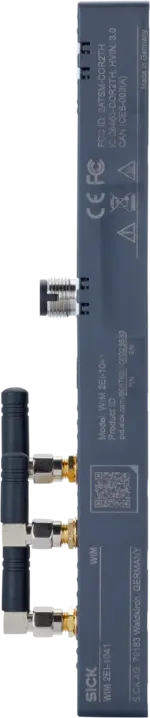

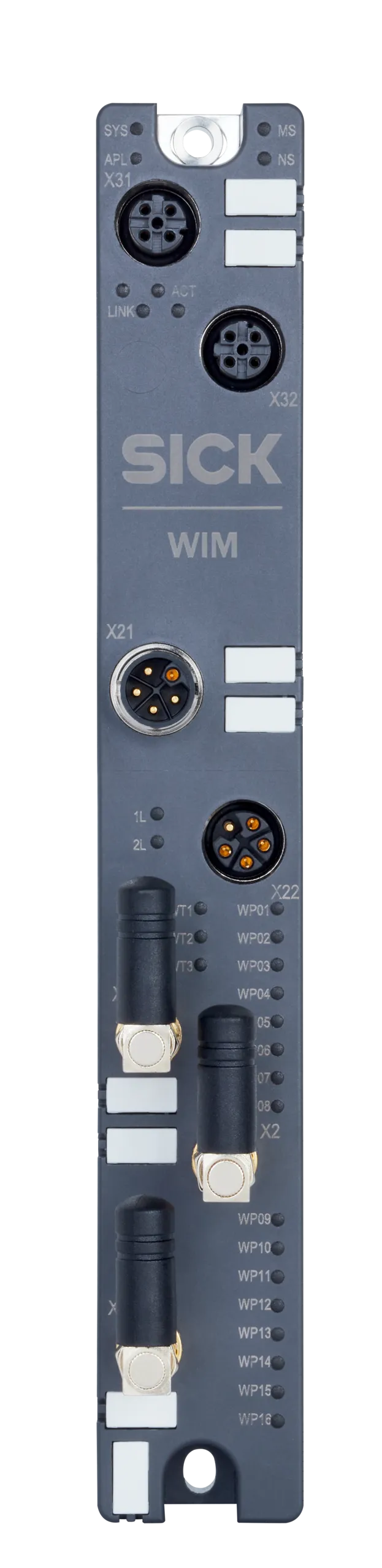

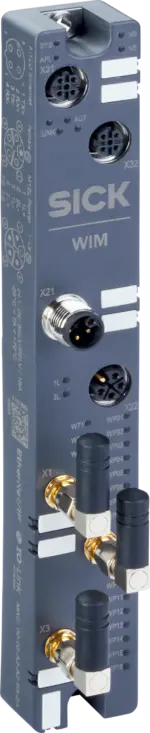

Sick WIM 2PN-1041
Network devices | IO-Link Wireless Gateway | WIM 2PN-1041 | Product category: IO-Link Wireless | Communication interface: Ethernet, PROFINET, REST API, OPC UA | Supported products: IO-Link Devices | S…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Network devices | IO-Link Wireless Gateway | WIM 2PN-1041 | Product category: IO-Link Wireless | Communication interface: Ethernet, PROFINET, REST API, OPC UA | Supported products: IO-Link Devices | Scope of delivery: WIM 2PN-1041 | Further functions: Initial setup, configuration and monitoring using WIE, via an internal Web Server interface or by a PLC
Specification
Features
| Product category | IO-Link Wireless |
|---|---|
| Supported products | IO-Link Devices |
| Further functions | Initial setup, configuration and monitoring using WIE, via an internal Web Server interface or by a PLC |
| Items supplied | WIM 2PN-1041 |
| Radio class | 3 SMA antennas2 track = 16 IO-Link devicesUnlicensed 2.4GHz ISM bandTx power 10 dBm maxRx Sensitivity PER 30% @ â92 dBm or better |
Mechanics/electronics
| Power | Power In/ Out: 2x M12, 5-pin, L-coded |
|---|---|
| Fieldbus Loop Through | 2x M12 Ports, 5-pin, D-coded |
| Supply voltage | 18Â VÂ ... 32Â V, 24Â VÂ DC |
| Current carrying capacity (PWR1, PWR2) max. | Max. 16 A |
| Current consumption | Typ. 30 mA |
| Optical indicators | LEDs (System and application, power supply, PROFINET communication, X31 Link and Activity, Wireless Tracks, Wireless Ports) |
| Enclosure rating | IP67 |
| Housing material | Lightweight plastic |
| Housing color | Dark gray |
| Dimensions (L x W x H) | 200 mm x 30 mm x 20 mm |
Communication interface
| Communication interface | EthernetPROFINETREST APIOPC UA |
|---|
Ambient data
| Ambient operating temperature | â25 °C ... +70 °C 1) |
|---|---|
| Ambient temperature, storage | â40 °C ... +85 °C 1) |
| Electromagnetic compatibility (EMC) | ENÂ 61000-6-2:2005 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| IO-Link certificate | â |
| Profinet certificate | â |
Classifications
| ECLASS 5.0 | 27242208 |
|---|---|
| ECLASS 5.1.4 | 27242608 |
| ECLASS 6.0 | 27242608 |
| ECLASS 6.2 | 27242608 |
| ECLASS 7.0 | 27242608 |
| ECLASS 8.0 | 27242608 |
| ECLASS 8.1 | 27242608 |
| ECLASS 9.0 | 27242608 |
| ECLASS 10.0 | 27242608 |
| ECLASS 11.0 | 27242608 |
| ECLASS 12.0 | 27242608 |
| ETIM 5.0 | EC001604 |
| ETIM 6.0 | EC001604 |
| ETIM 7.0 | EC001604 |
| ETIM 8.0 | EC001604 |
| UNSPSC 16.0901 | 32151705 |
