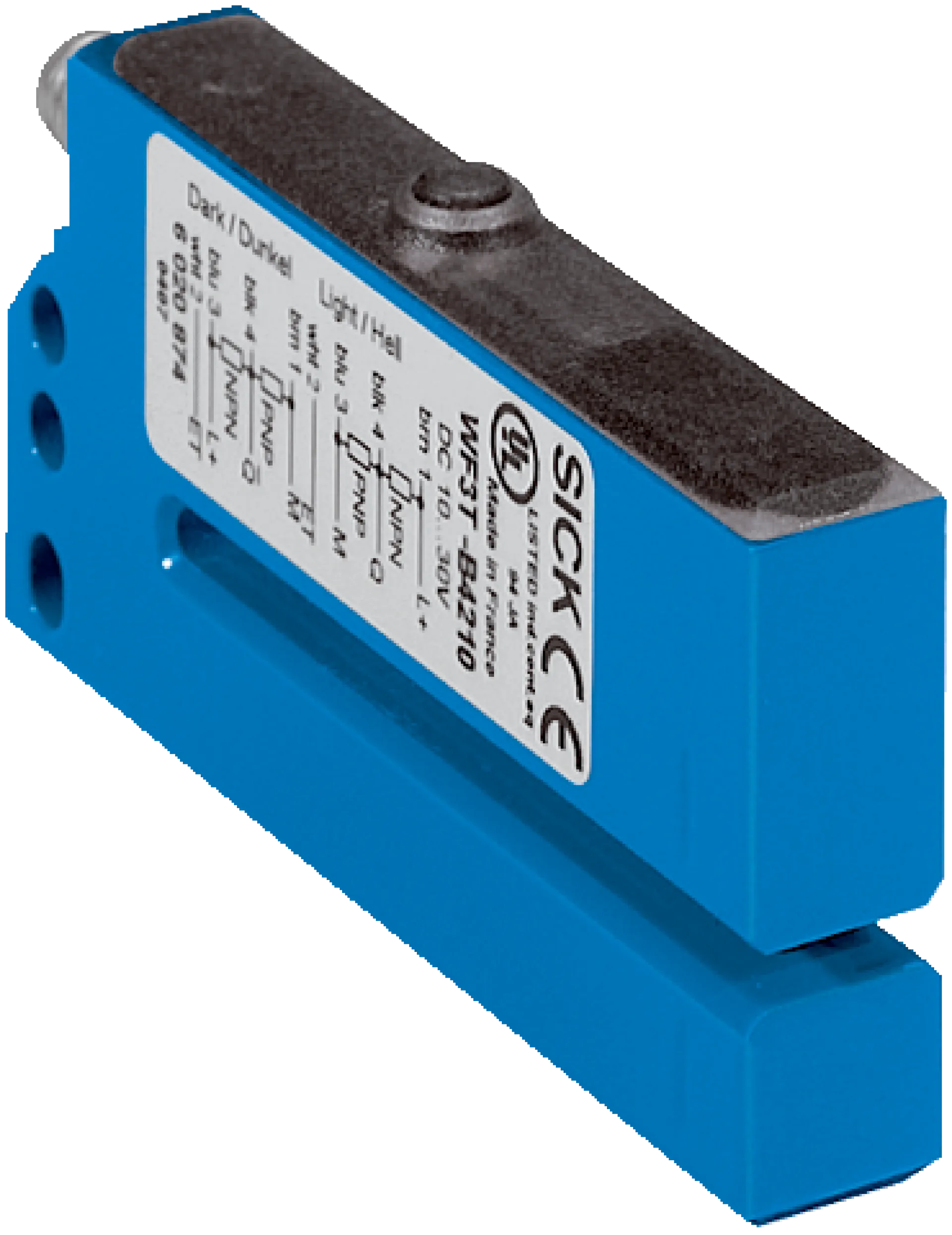

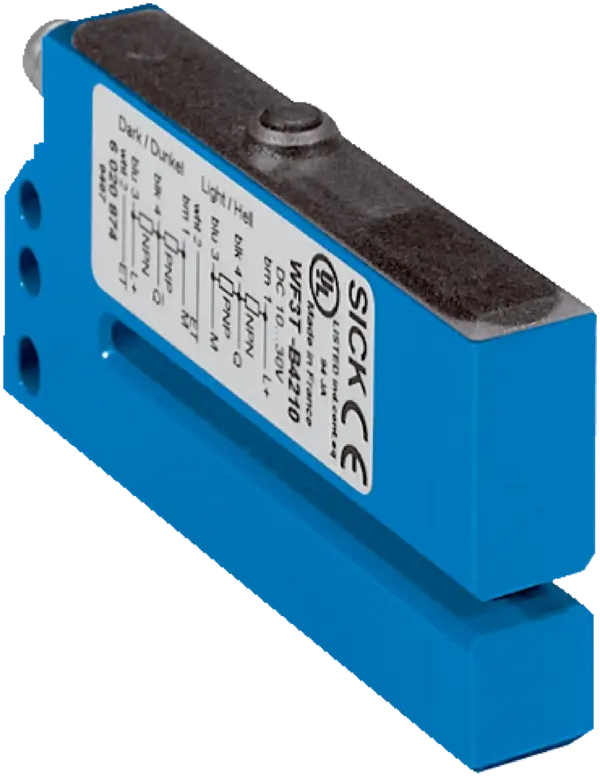

Sick WF3T-B4210
Fork sensors | WF | WF3T-B4210 | Light source: LED | Fork width/depth: 3 mm, 60 mm | Switching output: PNP/NPN | Switching mode: Light/dark switching | Connection type Detail: Male connector M8, 4-pin…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fork sensors | WF | WF3T-B4210 | Light source: LED | Fork width/depth: 3 mm, 60 mm | Switching output: PNP/NPN | Switching mode: Light/dark switching | Connection type Detail: Male connector M8, 4-pin | Switching frequency: 10 kHz | Response time: ≤ 50 µs | Enclosure rating: IP65
Specification
Features
| Functional principle | Optical detection principle |
|---|---|
| Dimensions (W x H x D) | 12 mm x 37.5 mm x 80 mm |
| Fork width | 3Â mm |
| Fork depth | 60Â mm |
| Light source | LED, Infrared light |
| Label detection | ✔ |
| Output function | Light/darkswitching, adjustable via reverse polarity |
Electronics
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DC |
|---|---|
| Ripple | <Â 10Â % |
| Current consumption | 40Â mAÂ 1) |
| Switching frequency | 10Â kHz |
| Switching output | PNP/NPN |
| Switching output (voltage) | PNP: HIGH = UV ≤ 2 V / LOW approx. 0 VNPN: HIGH = approx. UV / LOW ≤ 2 V |
| Switching mode | Light/dark switching |
| Output current Imax. | 100Â mA |
| Teach-in | ✔ |
| Protection class | IIIÂ 2) |
| Circuit protection | Output Q short-circuit protectedInterference pulse suppression |
Mechanics
| Housing material | Aluminum |
|---|---|
| Weight | Approx. 60 g 1) |
Ambient data
| Ambient operating temperature | –20 °C ... +60 °C 1) |
|---|---|
| Ambient temperature, storage | –30 °C ... +80 °C |
| Ambient light immunity | ≤ 3,000 klx |
| Shock load | According to ENÂ 60068-2-27 |
| Enclosure rating | IP65 |
| UL File No. | NRKH.E191603 |
Classifications
| ECLASS 5.0 | 27270909 |
|---|---|
| ECLASS 5.1.4 | 27270909 |
| ECLASS 6.0 | 27270909 |
| ECLASS 6.2 | 27270909 |
| ECLASS 7.0 | 27270909 |
| ECLASS 8.0 | 27270909 |
| ECLASS 8.1 | 27270909 |
| ECLASS 9.0 | 27270909 |
| ECLASS 10.0 | 27270909 |
| ECLASS 11.0 | 27270909 |
| ECLASS 12.0 | 27270909 |
| ETIM 5.0 | EC002720 |
| ETIM 6.0 | EC002720 |
| ETIM 7.0 | EC002720 |
| ETIM 8.0 | EC002720 |
| UNSPSC 16.0901 | 39121528 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Photobiological safety (IEC EN 62471) | ✔ |
