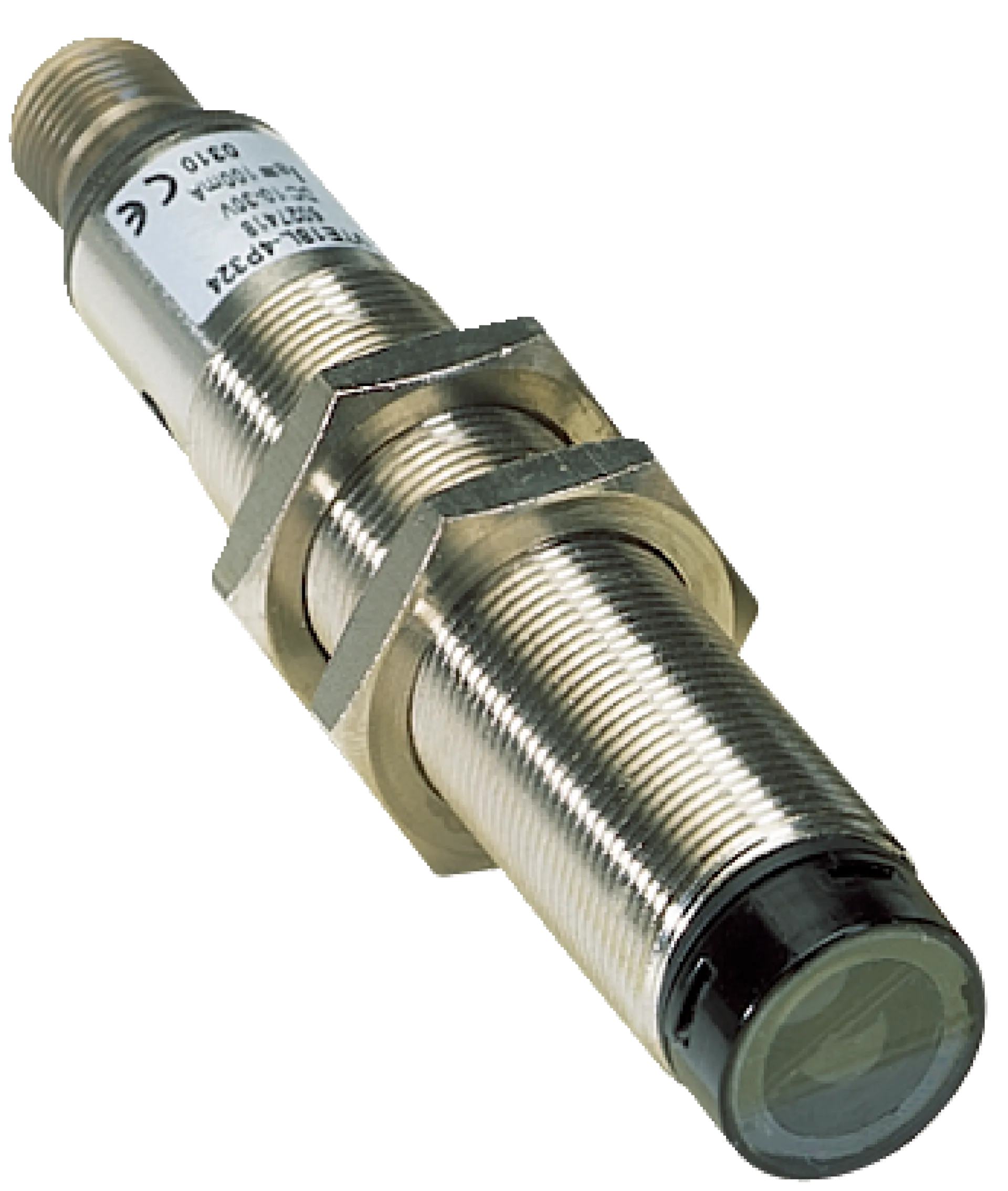

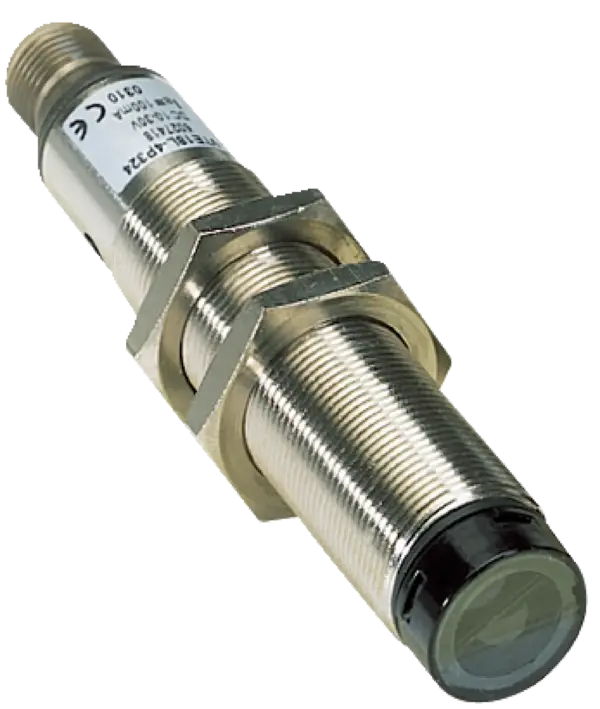

Sick VTE18L-4N324
Photoelectric sensors | V18 | VTE18L-4N324 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: NPN | Switching mode: Light/dark switchin…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | V18 | VTE18L-4N324 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: Laser | Adjustment: Wire/pin, Teach-in button | Laser class: 1 | Communication interface: –
Specification
Features
| Functional principle | Photoelectric proximity sensor |
|---|---|
| Functional principle detail | Energetic |
| Dimensions (W x H x D) | 18 mm x 18 mm x 97.7 mm |
| Housing design (light emission) | Cylindrical |
| Housing length | 97.7Â mm |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 0 mm ... 400 mm 1) |
| Sensing range | 5 mm ... 300 mm |
| Type of light | Visible red light |
| Light source | Laser 2) |
| Light spot size (distance) | Ø 8 mm (300 mm) |
| Wave length | 650Â nm |
| Laser class | 1Â (IECÂ 60825-1)Â 3) |
| Laser power output | 0.4Â mW |
| Adjustment | Cable, Single teach-in button (Sensing range, Sensing range)Â 4)Â 5) |
| Special feature | Focused optics |
| Special applications | Detecting small objects |
Mechanics/electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | ± 10 % 2) |
| Current consumption | 30Â mAÂ 3) |
| Switching output | NPN |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via control input C |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 0.625 ms 4) |
| Switching frequency | 800 Hz 5) |
| Connection type | Male connector M12, 4-pin |
| Circuit protection | AÂ 6)BÂ 7)CÂ 8)DÂ 9) |
| Protection class | III |
| Weight | 60Â g |
| Housing material | Metal, Nickel-plated brass/PC |
| Optics material | Plastic, PC with protective glass pane |
| Enclosure rating | IP67 |
| Special feature | Focused optics |
| Ambient operating temperature | –15 °C ... +55 °C |
| Ambient temperature, storage | –25 °C ... +70 °C |
| UL File No. | NRKH.E181493, CDRH-conform (0312012-00) |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| China RoHS | ✔ |
| cULus certificate | ✔ |
Classifications
| ECLASS 5.0 | 27270903 |
|---|---|
| ECLASS 5.1.4 | 27270903 |
| ECLASS 6.0 | 27270903 |
| ECLASS 6.2 | 27270903 |
| ECLASS 7.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 8.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
