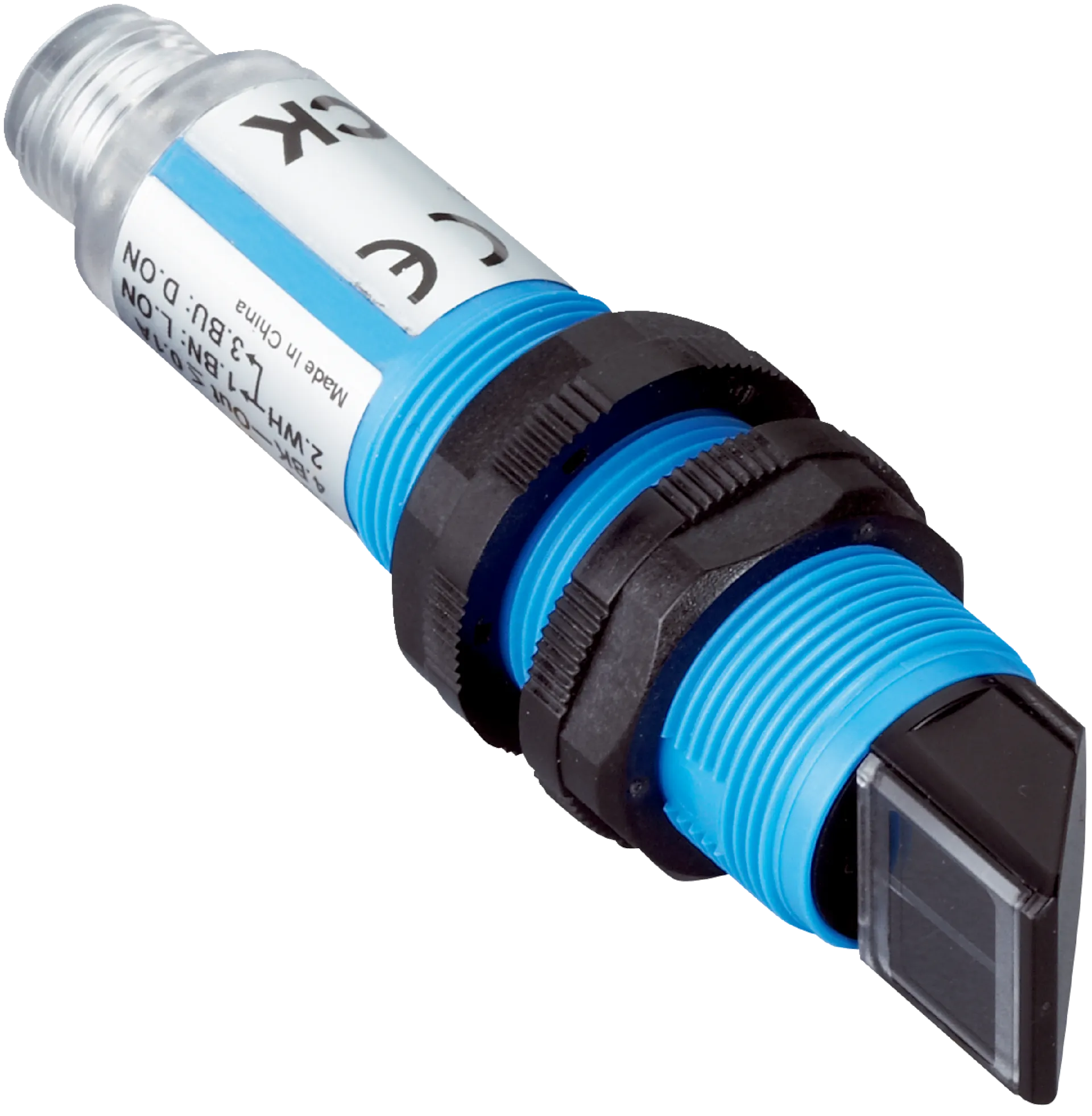

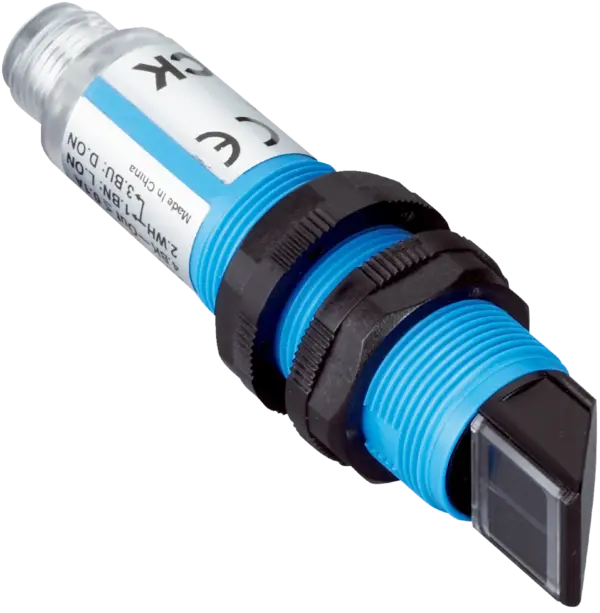

Sick VTE180-2N41189
Photoelectric sensors | V180 | VTE180-2N41189 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: NPN | Switching mode: Light/dark switc…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | V180 | VTE180-2N41189 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Cable, 4-wire, 2 m | Light source: LED | Adjustment: Potentiometer | Communication interface: –
Specification
Features
| Functional principle | Photoelectric proximity sensor |
|---|---|
| Functional principle detail | Energetic |
| Dimensions (W x H x D) | 18 mm x 18 mm x 76.5 mm |
| Housing design (light emission) | Cylindrical |
| Housing length | 76.5Â mm |
| Optical axis | Radial |
| Sensing range max. | 1 mm ... 900 mm 1) |
| Sensing range | 1 mm ... 650 mm 1) |
| Focus | Approx. 1.2° |
| Type of light | Visible red light |
| Light source | LEDÂ 2) |
| Light spot size (distance) | Ø 30 mm (800 mm) |
| Angle of dispersion | Approx. 1.2° |
| Wave length | 645Â nm |
| Adjustment | Potentiometer, 270° (Sensing range) |
Mechanics/electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | ± 10 % 2) |
| Current consumption | 30Â mAÂ 3) |
| Switching output | NPNÂ 4) |
| Switching mode | Light/dark switching 4) |
| Signal voltage NPN HIGH/LOW | Approx. VS / < 1.8Â V |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 0.5 ms 5) |
| Switching frequency | 1,000 Hz 6) |
| Connection type | Cable, 4-wire, 2 m 7) |
| Cable material | Plastic, PVC |
| Conductor cross section | 0.18 mm² |
| Cable diameter | Ø 3.8 mm |
| Circuit protection | AÂ 8)BÂ 9)DÂ 10) |
| Protection class | III |
| Weight | 62Â g |
| Housing material | Plastic, PBT/PC |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
Safety-related parameters
| MTTFD | 1,999Â years |
|---|---|
| DCavg | 0Â % |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cRUus certificate | ✔ |
| Photobiological safety (DIN EN 62471) certificate | ✔ |
Classifications
| ECLASS 5.0 | 27270903 |
|---|---|
| ECLASS 5.1.4 | 27270903 |
| ECLASS 6.0 | 27270903 |
| ECLASS 6.2 | 27270903 |
| ECLASS 7.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 8.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
