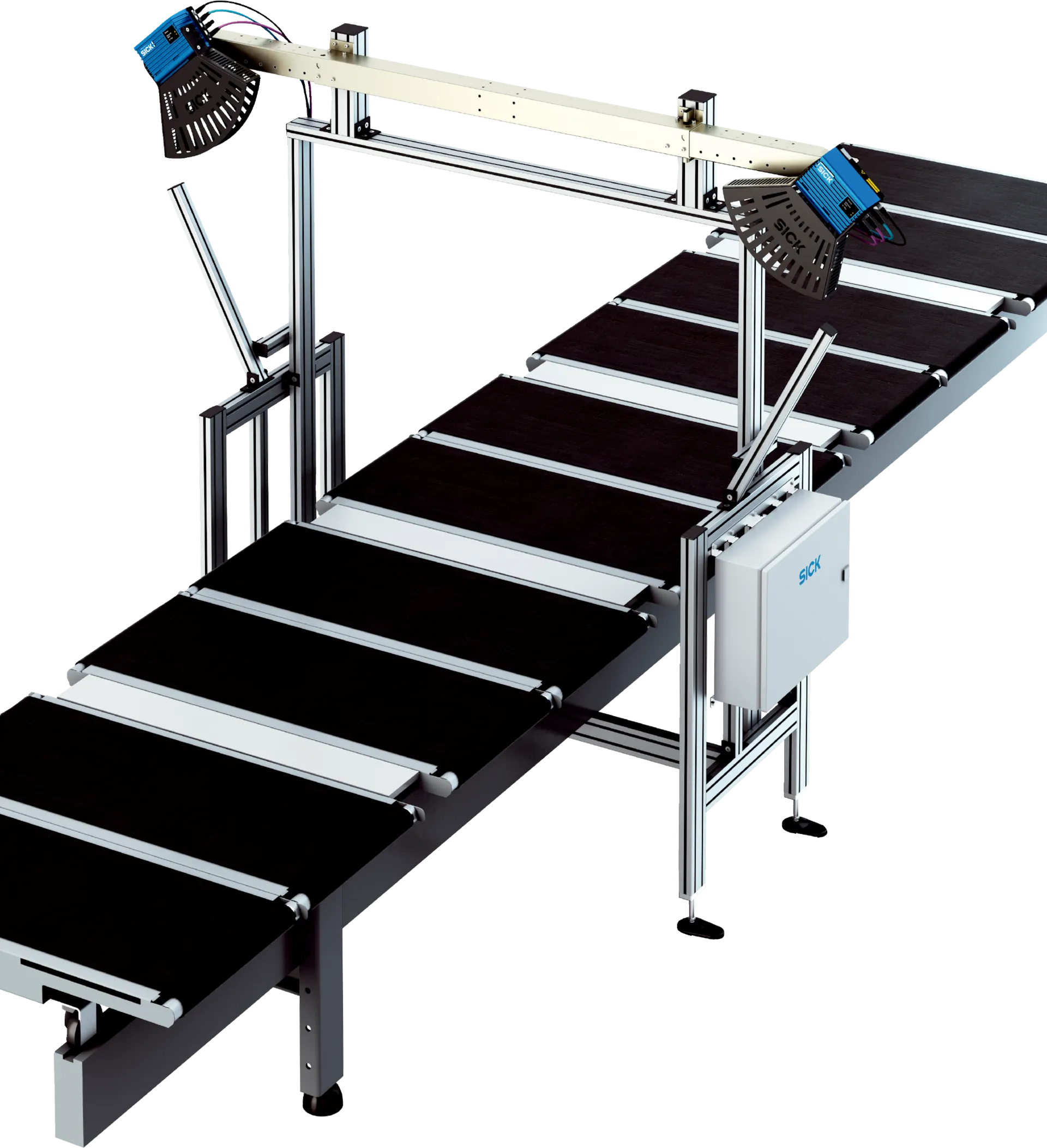

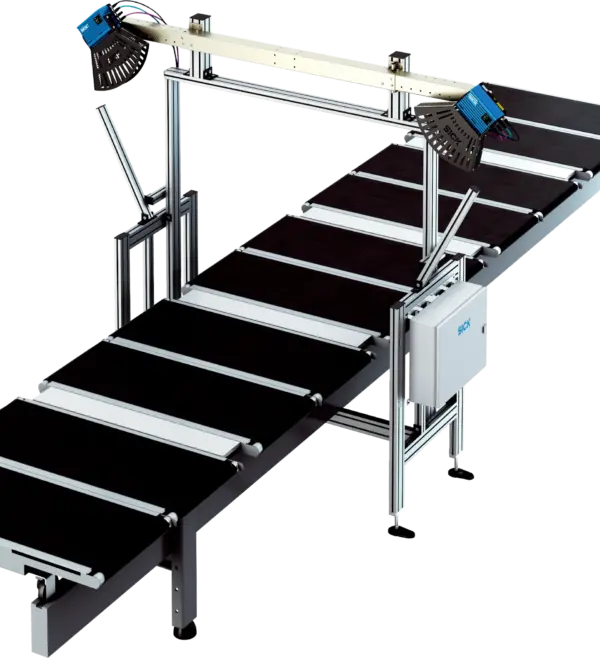

Sick VMS5200-x-2
Track and trace systems | VMS4x00/5×00 | VMS5200-x-2 | Conveyor type: Cross-belt sorter | Legal-for-trade: yes | Touching objects: no | Side-by-side: no | Deformation detection: no | Transport speed:…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Track and trace systems | VMS4x00/5×00 | VMS5200-x-2 | Conveyor type: Cross-belt sorter | Legal-for-trade: yes | Touching objects: no | Side-by-side: no | Deformation detection: no | Transport speed: 0.5 m/s 4 m/s | Accuracy of object coverage: ≥ 5 mm ≥ 5 mm ± 2 mm≥ 0.2 ″ ≥ 0.2 ″ ± 0.1 ″ | Maximum object size: 2,500 mm x 1,600 mm x 1,100 mm98 ″ x 63 ″ x 43 ″
Specification
Features
| Products by tasks | Measuring - Dimension, contour and volume |
|---|---|
| Applications | Object measurement (non-contact, dynamic) |
| Legal-for-trade | ✔ |
| Conveyor type | Cross-belt sorter |
| Object infeed and outfeed | Automatic |
Mechanics/electronics
| Enclosure rating | IP20 (DINÂ 40050) |
|---|
Performance
| Transport speed | 0.5 m/s ... 4 m/s |
|---|---|
| Minimum object size | 50 mm x 50 mm x 20 mm2 ″ x 2 ″ x 1 ″ |
| Maximum object size | 2,500 mm x 1,600 mm x 1,100 mm98 ″ x 63 ″ x 43 ″ |
| Minimum object distance | 50Â mm |
| Accuracy of object coverage | ≥ 5 mm x ≥ 5 mm x ± 2 mm≥ 0.2 ″ x ≥ 0.2 ″ x ± 0.1 ″ |
| Certification | MID, OIMLNTEP on request |
| Dynamic scale value | ✔ |
Interfaces
| Optical indicators | 1, display |
|---|---|
| Output data | Dimensions L/W/H (the minimum bounding box)Position dataPoint cloudStatus information |
Ambient data
| Ambient operating temperature | +5 °C ... +40 °C |
|---|---|
| Ambient temperature, storage | –20 °C ... +70 °C |
| Permissible relative humidity | 95Â %, Non-condensing |
| Electromagnetic compatibility (EMC) | ENÂ 61000-6-2:2005, ENÂ 61000-6-4:2007+A1:2011 |
| Object remission | 10Â %Â ... 200Â %, based on Kodak White Paper and red light laser), non-glossy (e.g. tape) |
| Shock load | EN 60068-2-6, –27, –29, –64 |
| Vibration load | EN 60068-2-6, –27, –29, –64 |
| Requirements conveyor | Straight and level conveying equipment with a uniform surface (in the measurement location area) |
General notes
| Laser class | 2, with laser protection cover |
|---|
