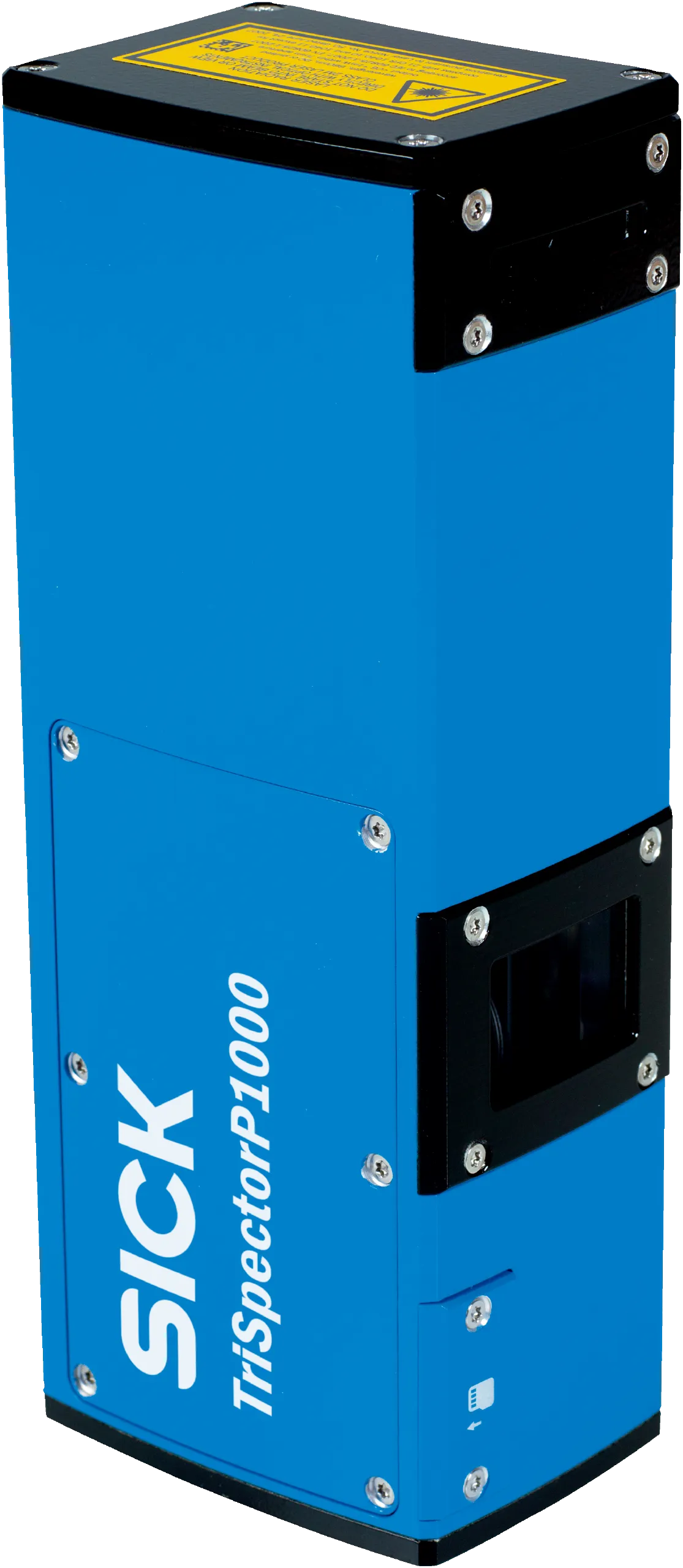

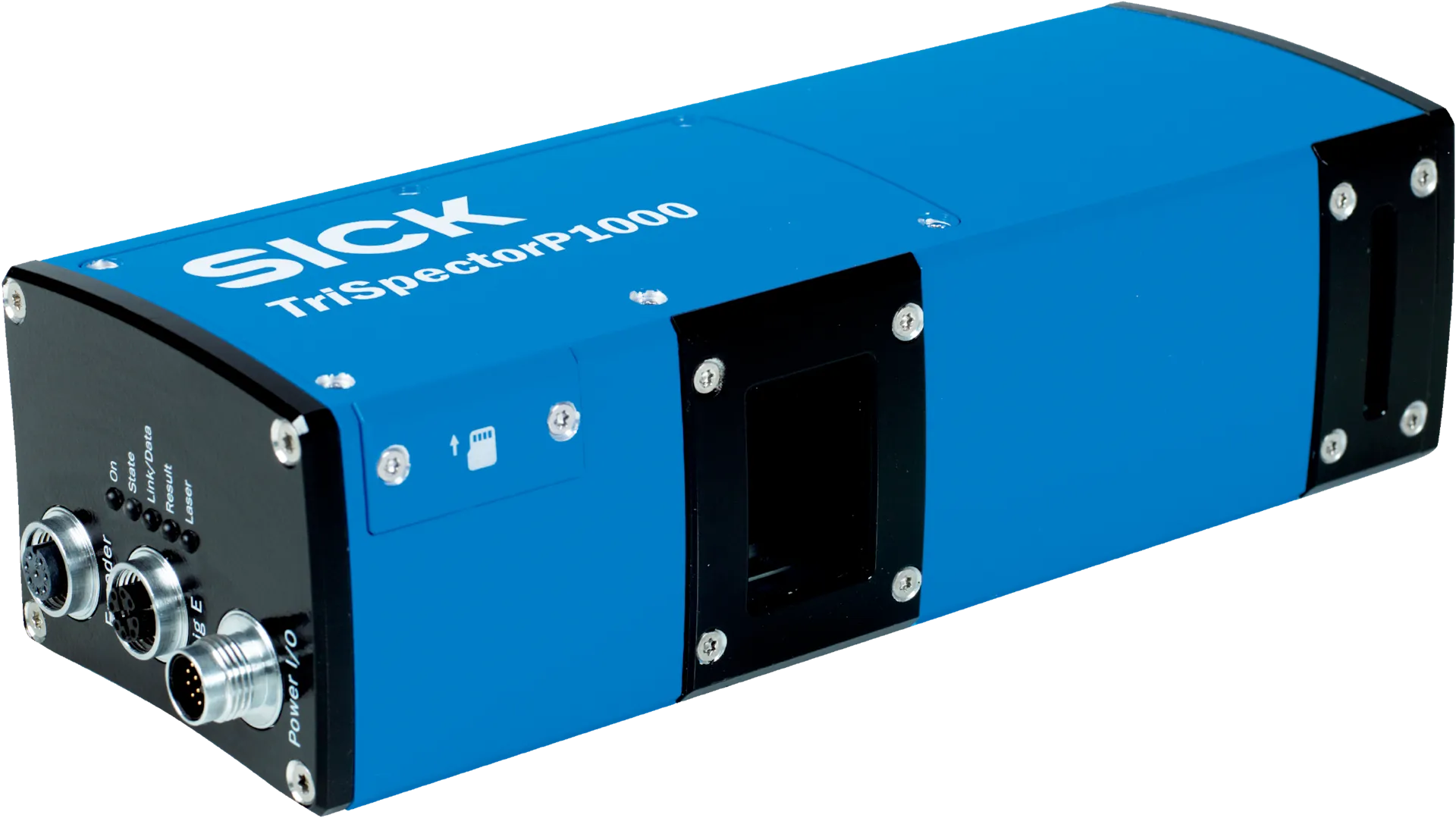

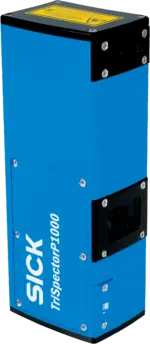

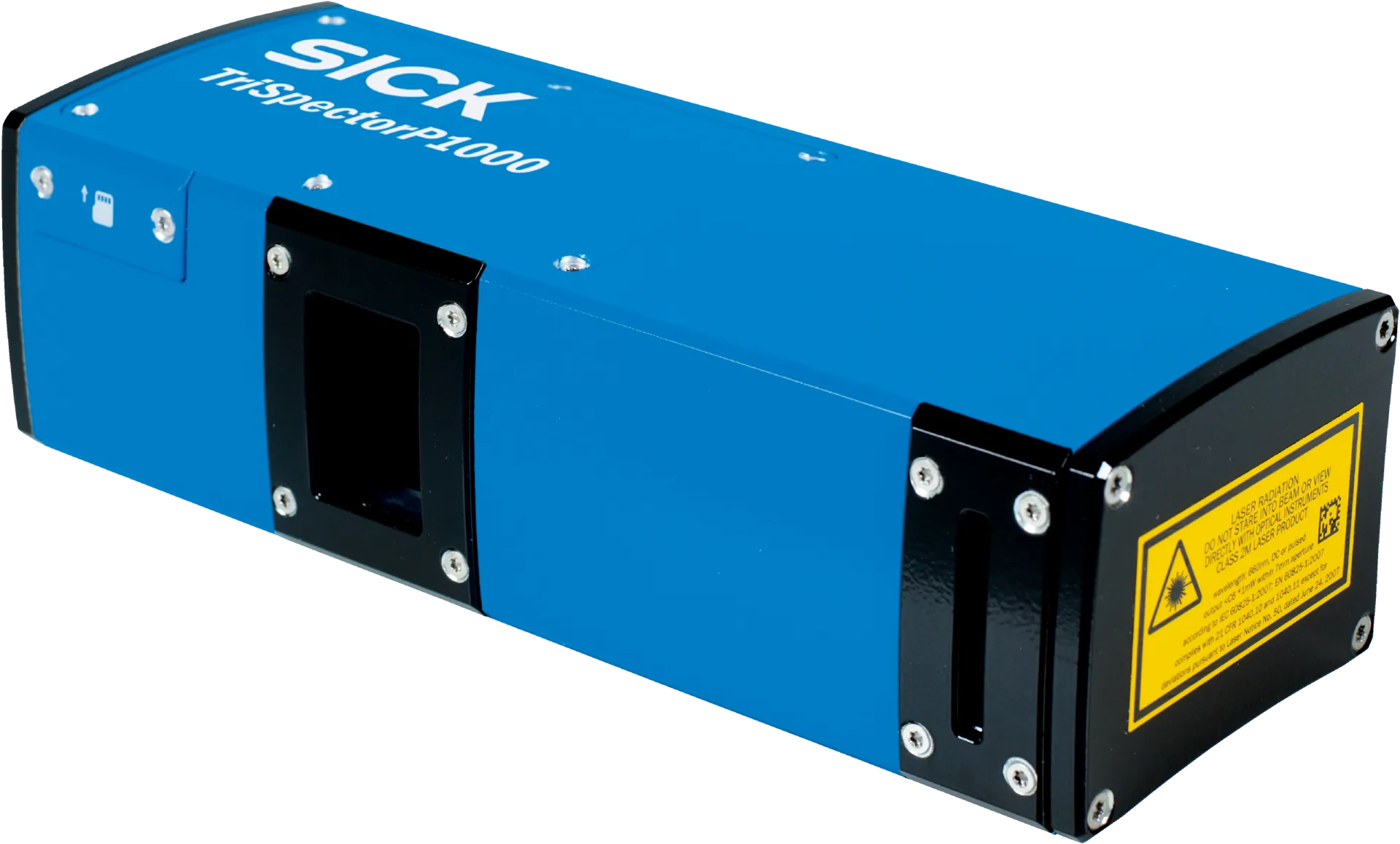

Sick V3T12P-MR32A7
Machine vision | TriSpector1000 | V3T12P-MR32A7 | Product version: TriSpector1030 Programmable | Working distance: 141 mm … 541 mm | Example field of view: 270 mm x 100 mm | Width at maximum operati…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Machine vision | TriSpector1000 | V3T12P-MR32A7 | Product version: TriSpector1030 Programmable | Working distance: 141 mm … 541 mm | Example field of view: 270 mm x 100 mm | Width at maximum operating distance: 330 mm | Window material: Glass | Scan/frame rate: 5,000 3D profiles/s | Data points/profile: 1,536
Specification
Features
| Technology | 3D triangulation |
|---|---|
| Programmable | â |
| Pre-calibrated | â |
| Toolkit | SICK algorithm APIHALCON |
| Working range | 141 mm ... 541 mm |
| Example field of view | 270 mm x 100 mm |
| Illumination | Integrated |
| Illumination color | Red, laser, Visible, 660 nm, ± 7 nm |
| Laser class | 2 (EN 60825-1:2014+A11:2021; IEC 60825-1:2014, Complies with the FDA performance requirements for laser products except for conformance with IEC 60825-1 Ed.3., as described in Laser Notice 56 dated May 8, 2019.) |
| Width at minimum operating distance | 90Â mm |
| Width at maximum operating distance | 330Â mm |
| Maximum height range | 400Â mm |
| Imaging angle | 65° |
| Offline support | Emulator |
| Task | Detecting - Standard objectsDetecting - LevelMeasuring - Dimension, contour and volumeMeasuring - NumberMonitoring and controlling - QualityDetermining position - 3D position determination |
Mechanics/electronics

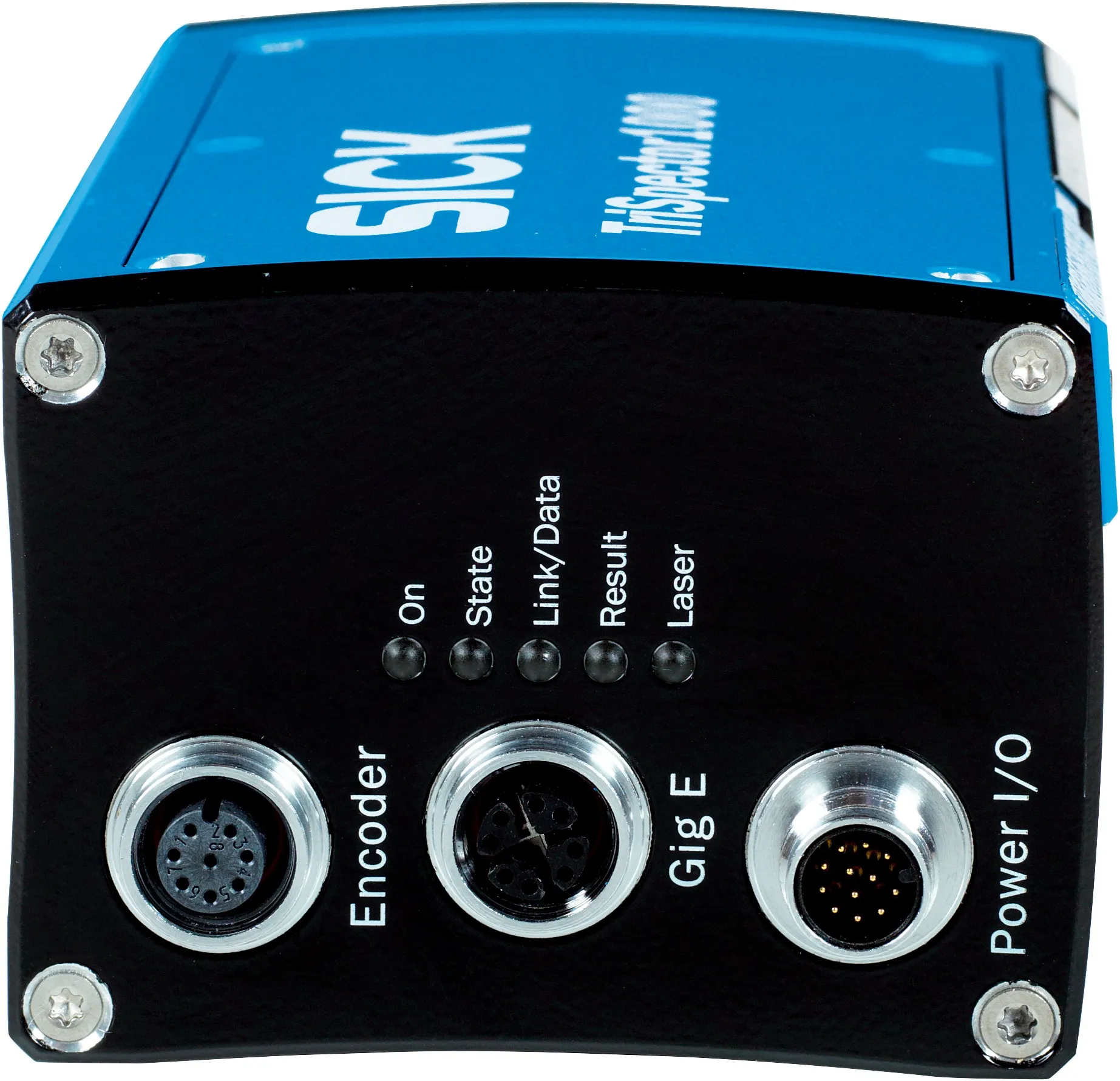

| Connection type | M12, 12-pin male connector, A-coded (voltage supply, I/O)M12, 8-pin socket, X-coded (Gigabit Ethernet)M12, 8-pin female connector, A-coded (encoder) |
|---|---|
| Connector material | Nickel plated brass |
| Supply voltage | 24 V DC, ± 20 % |
| Ripple | <Â 5Â Vpp |
| Power consumption | â¤Â 11 W |
| Current consumption | <Â 400Â mA, without output load |
| Enclosure rating | IP67 |
| Protection class | III |
| Housing material | Anodized aluminum |
| Window material | Glass |
| Weight | 1.3Â kg |
| Dimensions (L x W x H) | 217 mm x 62 mm x 84 mm |
Performance
| Scan/frame rate | 5,000Â 3D profiles/s |
|---|---|
| Maximum number of profiles | 2,500Â Per image |
| Data points/profile | 1,536Â Â |
| Height resolution | 40 µm ... 280 µm |
| 3D profile resolution | 0.215Â mm/px |
Interfaces
| Ethernet | â , TCP/IP |
|---|---|
| Function | FTP, HTTP |
| Data transmission rate | ⤠1,000 Mbit/s |
| Serial | â , RS-232, RS-422 |
| Operator interfaces | Web server |
| Configuration software | SICK AppStudio |
| Digital input | 3Â inputs |
| Configurable outputs | 4Â inputs/outputs |
| Encoder interface | RS-422 / TTL |
| Maximum encoder frequency | Max. 300 kHz |
Ambient data
| Electromagnetic compatibility (EMC) | ENÂ 61000-6-2:2005Â / ENÂ 61000-6-3:2007 |
|---|---|
| Shock load | 15Â g / 6Â ms (ENÂ 60068-2-27) |
| Vibration load | 5 g, 10 Hz ... 150 Hz (EN 60068-2-6) |
| Ambient operating temperature | 0 °C ... +50 °C |
| Storage temperature | â20 °C ... +70 °C 1) |
Classifications
| ECLASS 5.0 | 27310205 |
|---|---|
| ECLASS 5.1.4 | 27310205 |
| ECLASS 6.0 | 27310205 |
| ECLASS 6.2 | 27310205 |
| ECLASS 7.0 | 27310205 |
| ECLASS 8.0 | 27310205 |
| ECLASS 8.1 | 27310205 |
| ECLASS 9.0 | 27310205 |
| ECLASS 10.0 | 27310205 |
| ECLASS 11.0 | 27310205 |
| ECLASS 12.0 | 27310205 |
| ETIM 5.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| UNSPSC 16.0901 | 43211731 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| cTUVus certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
