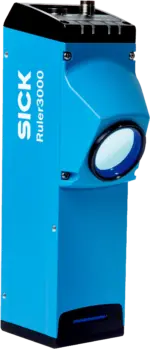

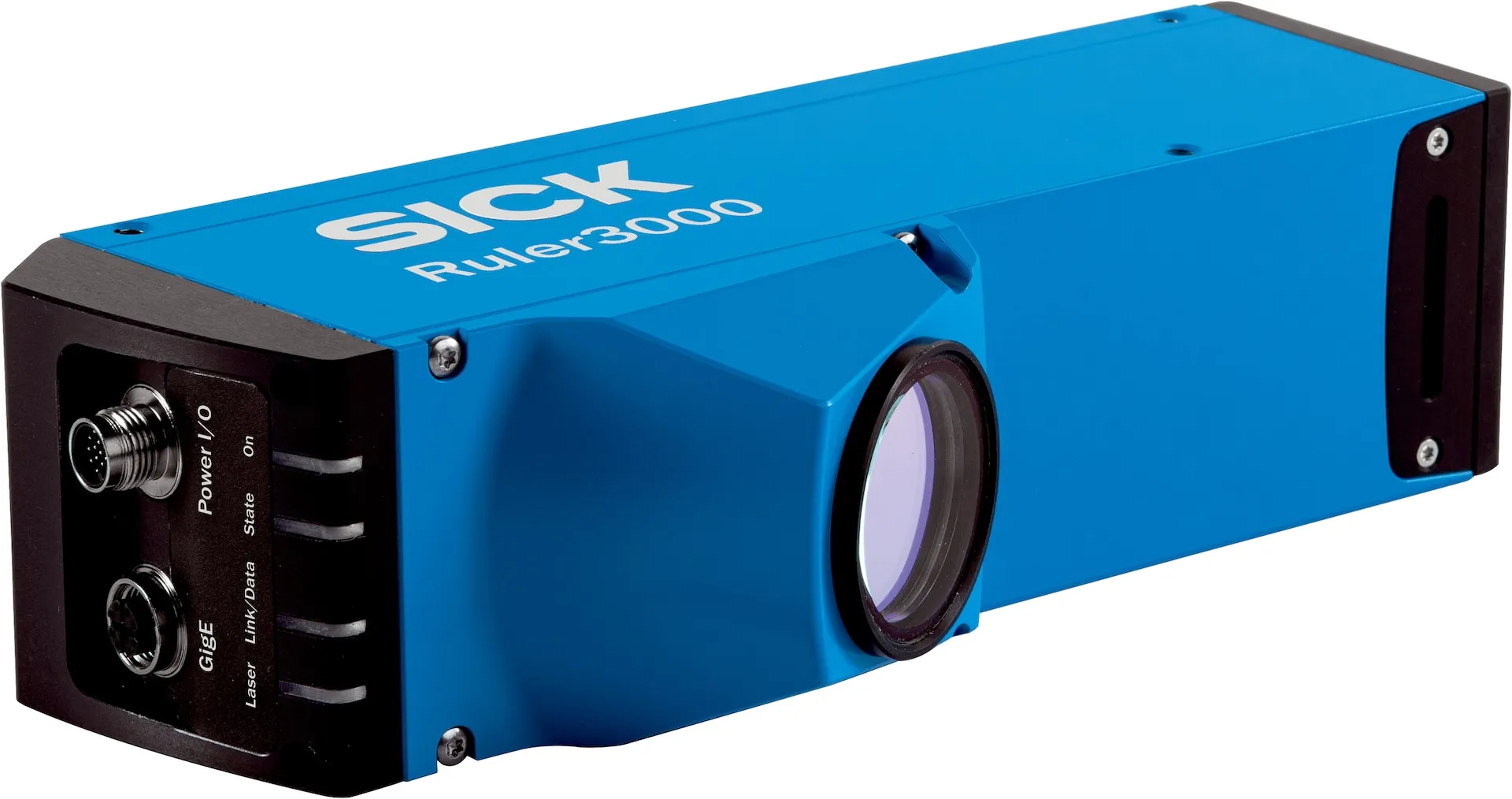

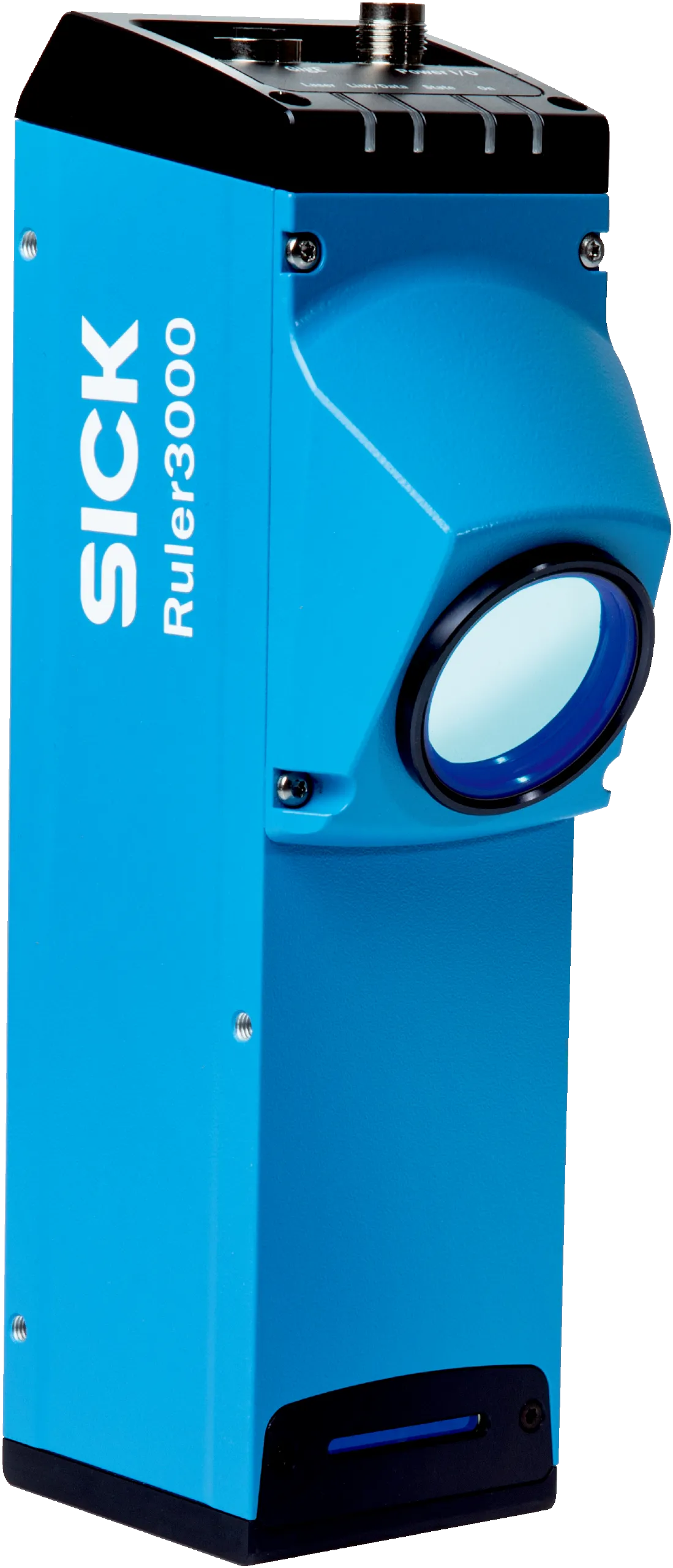

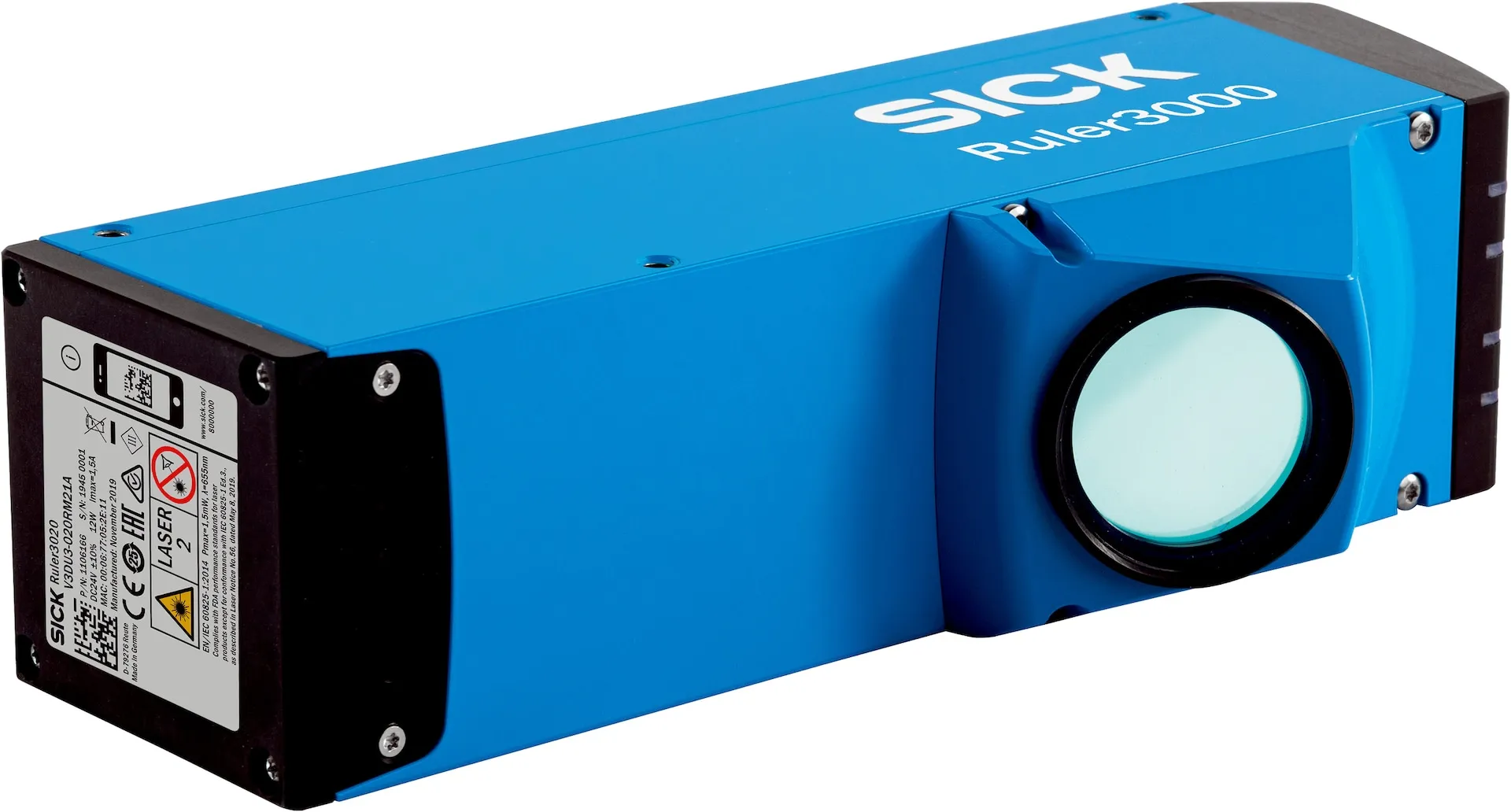

Sick V3DU3-020RM21A
Machine vision | Ruler3000 | V3DU3-020RM21A | Product version: Ruler3020 | Working distance: 245.5 mm … 370.5 mm | Internal lighting: Red, laser, Visible, 660 nm, ± 15 nm | Laser class: 2 | Window m…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Machine vision | Ruler3000 | V3DU3-020RM21A | Product version: Ruler3020 | Working distance: 245.5 mm … 370.5 mm | Internal lighting: Red, laser, Visible, 660 nm, ± 15 nm | Laser class: 2 | Window material: Float glass, anti-reflective coated
Specification
Features
| Technology | 3D triangulation |
|---|---|
| Streaming | â |
| Pre-calibrated | â |
| Shutter technology | Global-Shutter |
| Working range | 245.5 mm ... 370.5 mm |
| Example field of view | 190 mm x 50 mm |
| Exposure mode | LinearHDR |
| Illumination | Integrated |
| Illumination color | Red, laser, Visible, 660 nm, ± 15 nm |
| Laser class | 2 (EN 60825-1:2014+A11:2021; IEC 60825-1:2014, Complies with the FDA performance requirements for laser products except for conformance with IEC 60825-1 Ed.3., as described in Laser Notice 56 dated May 8, 2019.) |
| Data synchronization | Free running, encoder triggered, external triggering |
| 3D measurement | â |
| Scatter measurement | â |
| Reflectance measurement | â |
| Ambient light suppression | â 1) |
| Scheimpflug adapter, integrated | â |
| Width at minimum operating distance | 155Â mm |
| Width at maximum operating distance | 220Â mm |
| Maximum height range | 125Â mm |
| Task | Detecting - Standard objectsDetecting - LevelMeasuring - Dimension, contour and volumeMonitoring and controlling - QualityDetermining position - 3D position determination |
Mechanics/electronics
| Connection type | Voltage â I/O: M12, 17-pin male connectorGigabit Ethernet: M12, 8-pin socket, X-coded |
|---|---|
| Connector material | M12: Nickel-coated brass |
| Supply voltage | 24 V DC, ± 10 % |
| Ripple | <Â 5Â Vpp |
| Power consumption | â¤Â 12 W |
| Current consumption | â¤Â 1.5 A |
| Enclosure rating | IP65IP67 |
| Protection class | III |
| Housing material | Aluminum |
| Housing color | Blue |
| Window material | Float glass, anti-reflective coated |
| Weight | 1.8Â kg |
| Dimensions (L x W x H) | 245 mm x 65 mm x 108 mm |
Performance
| Image sensor | CMOS sensor from SICK with ROCC technology, M30 |
|---|---|
| Scan/frame rate | 46,000Â 3D profiles/s, In reduced ROI7,000Â 3D profiles/s, full format |
| Data points/profile | 3,200Â Â |
| Repeatability | 3.9 µm 1) |
| Typical resolution | Z resolution (height): 8 µm ... 16 µm, X resolution (width): 65 µm ... 92 µm |
Interfaces
| Ethernet | â , UDP/IP |
|---|---|
| Remark | GigE Vision Standard |
| Data transmission rate | ⤠1 Gbit/s |
| Configuration software | Stream Setup |
| Operating system | Windows 10 |
| Application programming interface (API) | GenAPI, GenTL, Proprietary SICK GenIStream |
| Inputs/outputs | 4Â x HIGHÂ = 10Â VÂ ... 28.8Â V, configurable |
| Encoder interface | RS-422 5Â V, 2Â x HTL single-ended |
Ambient data
| Shock load | 15Â g, 3Â cycles per axis |
|---|---|
| Vibration load | 5 g, 10 Hz ... 150 Hz (EN 60068-2-6) |
| Ambient operating temperature | 0 °C ... +50 °C 1) |
| Storage temperature | â30 °C ... +70 °C 1) |
Classifications
| ECLASS 5.0 | 27310205 |
|---|---|
| ECLASS 5.1.4 | 27310205 |
| ECLASS 6.0 | 27310205 |
| ECLASS 6.2 | 27310205 |
| ECLASS 7.0 | 27310205 |
| ECLASS 8.0 | 27310205 |
| ECLASS 8.1 | 27310205 |
| ECLASS 9.0 | 27310205 |
| ECLASS 10.0 | 27310205 |
| ECLASS 11.0 | 27310205 |
| ECLASS 12.0 | 27310205 |
| ETIM 5.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| UNSPSC 16.0901 | 43211731 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| EAC certificate / DoC | â |
| cTUVus certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
| GigE Vision | â |
| GenICam | â |
