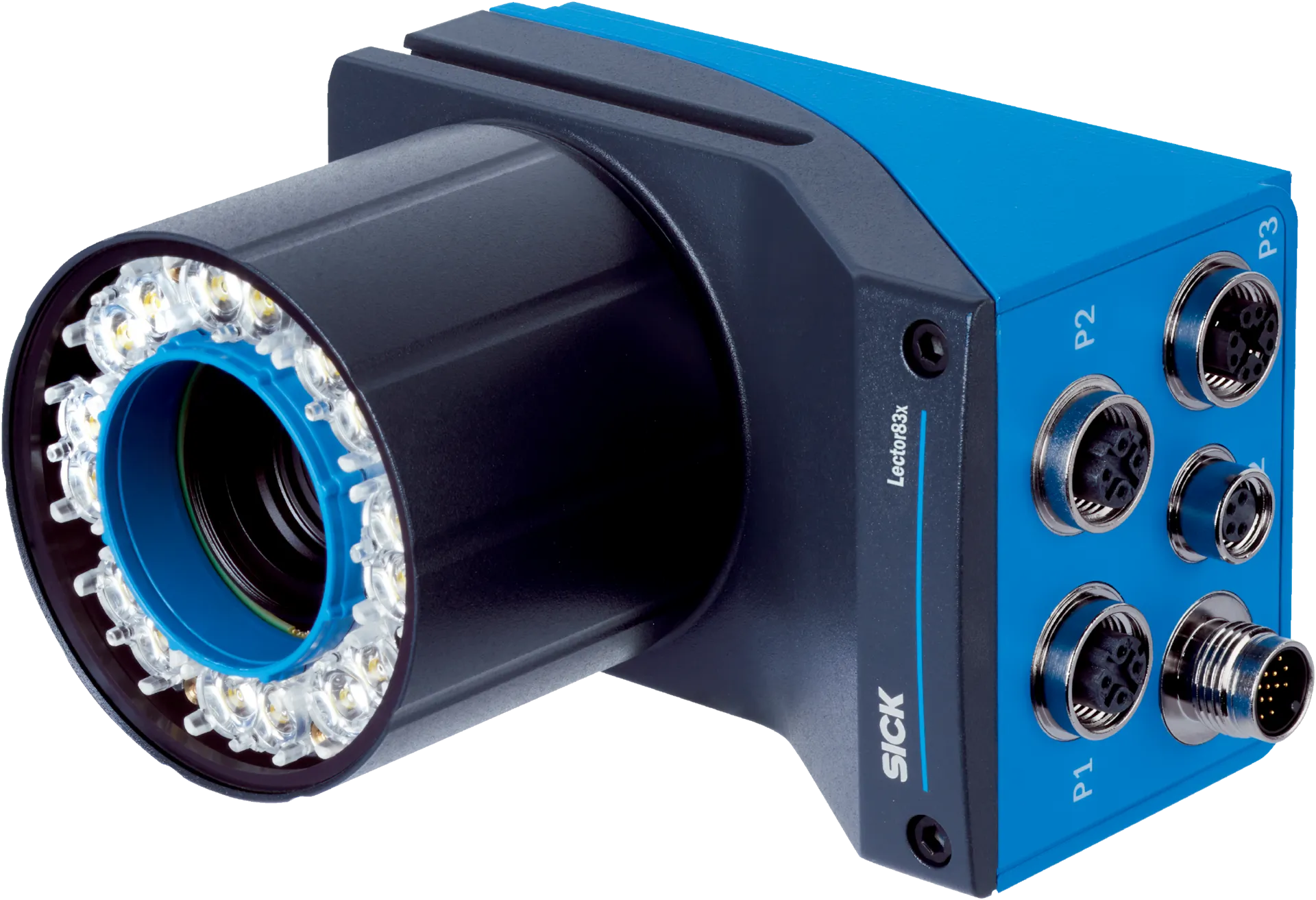

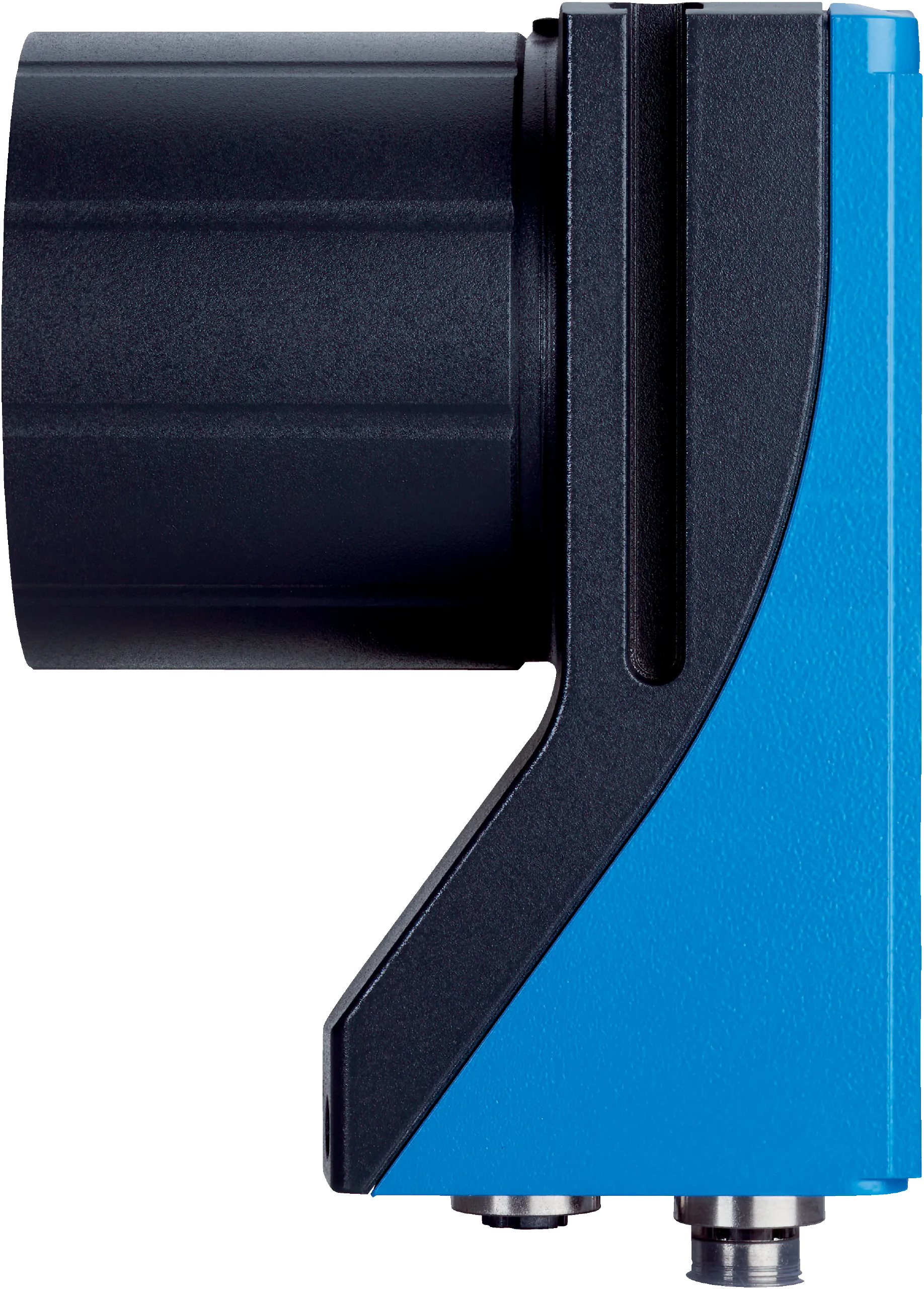

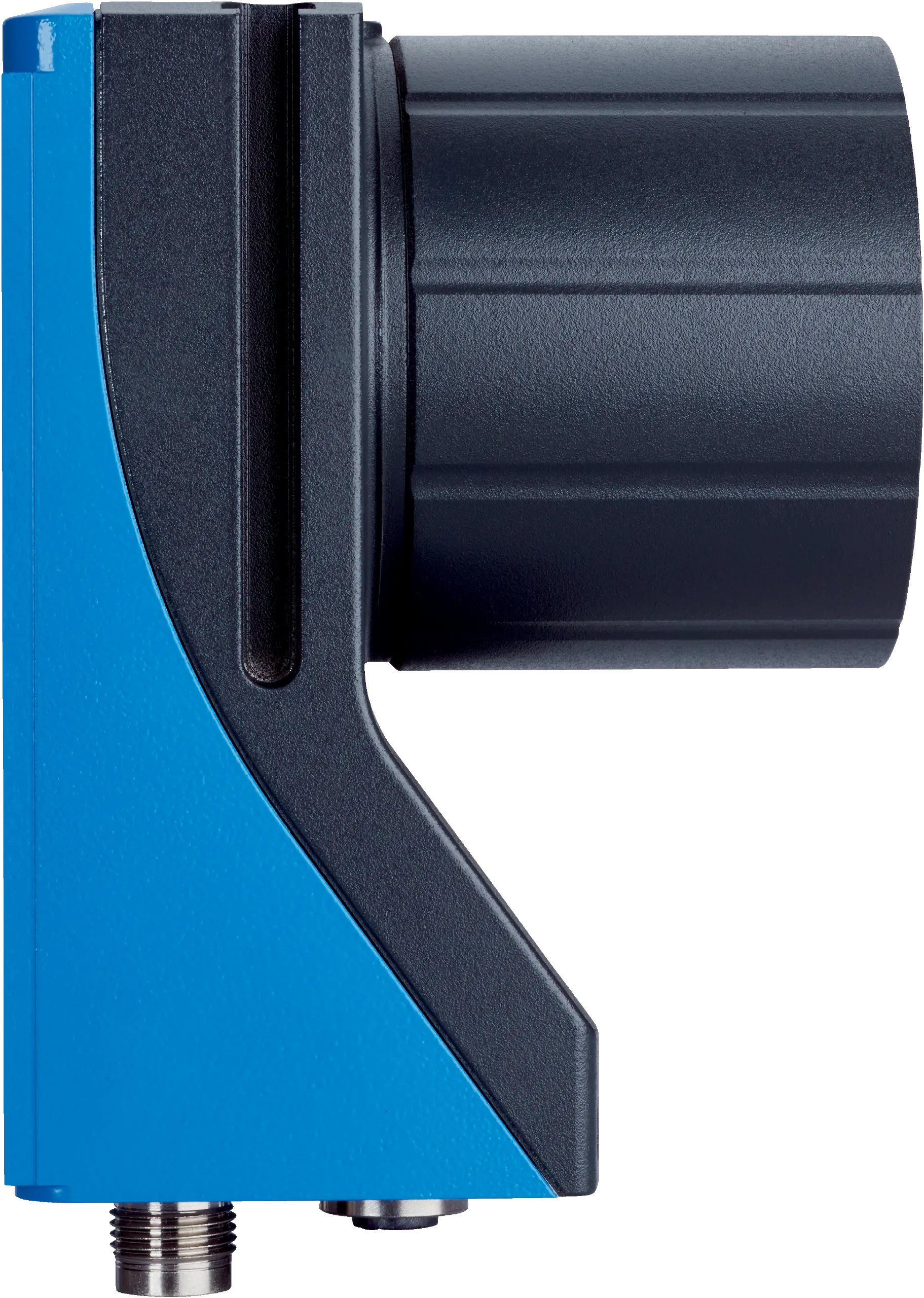

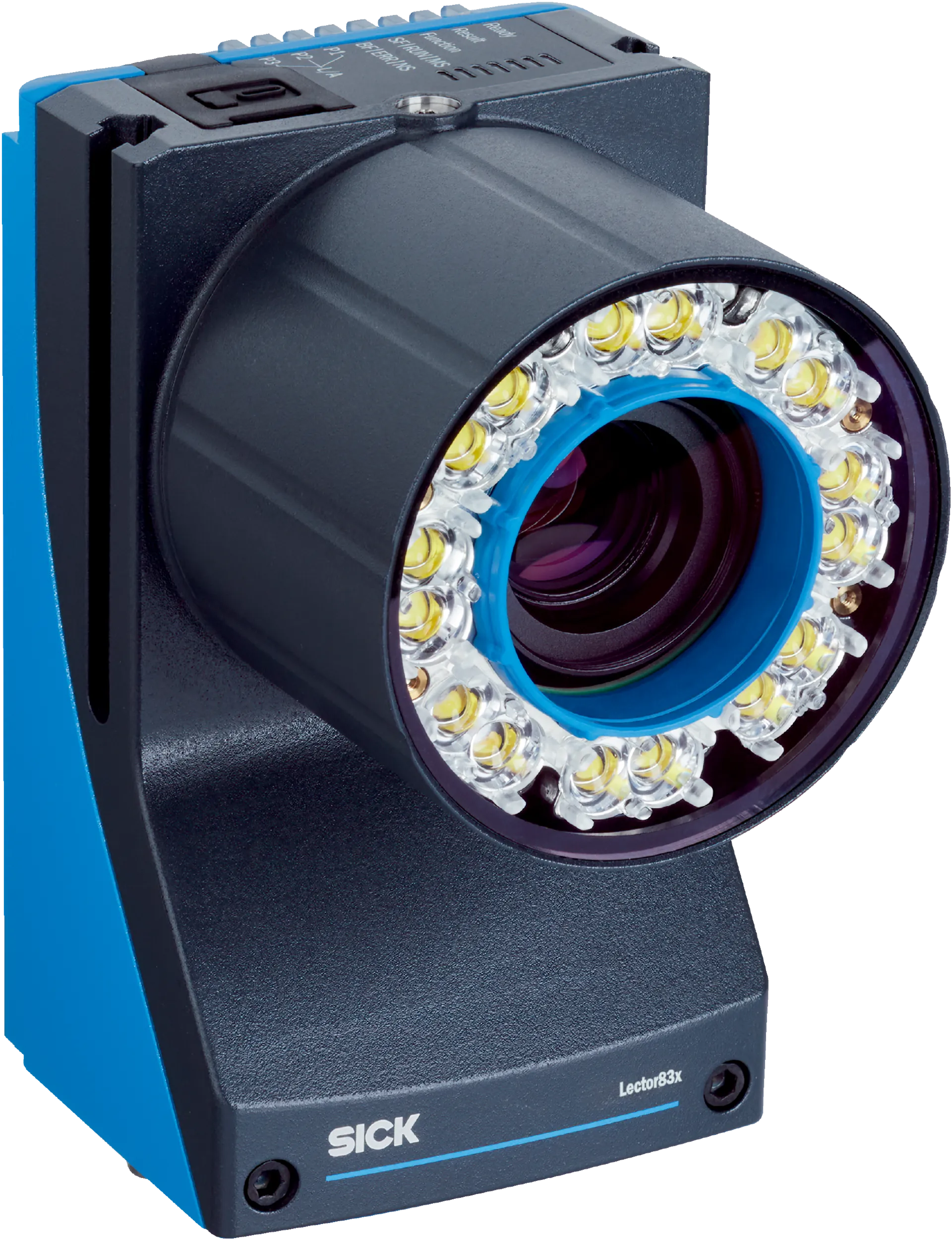

Image-based code readers | Lector83x | V2D8303R-1MCKEXAF1SXXXX | Variant: Complete device | Regulatory Model: C19MAA | Optical focus: Adjustable focus (manual) | Sensor resolution: 2,048 px x 1,536 px…

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Image-based code readers | Lector83x | V2D8303R-1MCKEXAF1SXXXX | Variant: Complete device | Regulatory Model: C19MAA | Optical focus: Adjustable focus (manual) | Sensor resolution: 2,048 px x 1,536 px (3.15 MP) | Illumination color: White | Focal length: 25 mm | Communication interface: Ethernet, CAN, Serial, USB, EtherNet/IP™, PROFINET | Cold storage applications: no

Specification

Features

VariantComplete device
Optical focusAdjustable focus (manual)
SensorCMOS monochrome
Sensor resolution2,048 px x 1,536 px (3.15 MP)
IlluminationIntegrated
Illumination colorWhite, LED, Visible,
Aperture angle31°, illumination
LensC-mount
Optical format1/1.8"
Focal length25Â mm
Aperture1.85Â ... 16
Scanning frequency30Â Hz
Code resolution≥ 0.1 mm 1)
Working range200 mm ... 2,500 mm 1)

Mechanics/electronics

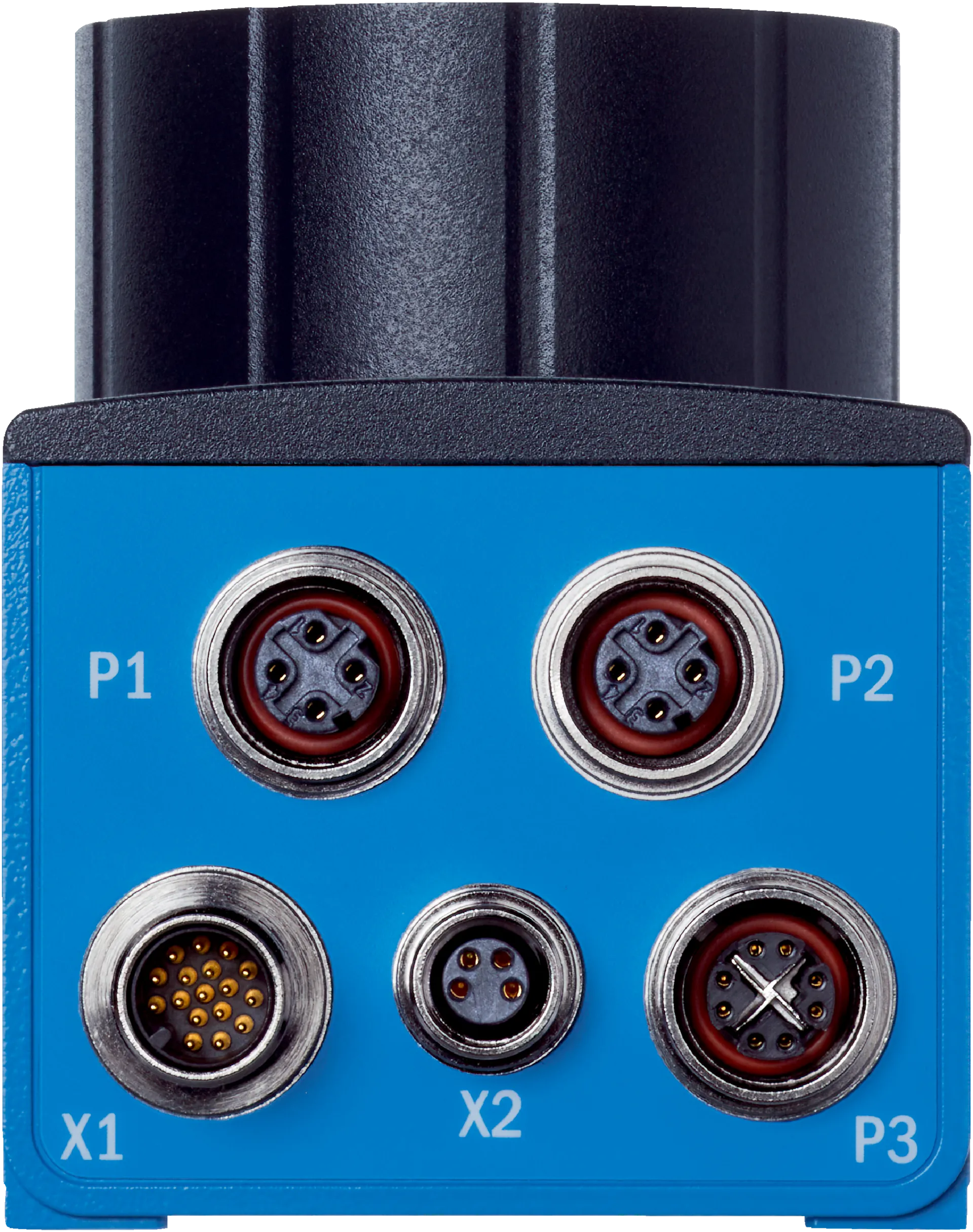

Connection type1Â x M12 ,17-pin male connector, A-coded (power, CAN, serial interface, I/O)1Â x M8, 4-pin socket (external illumination, I/O)Â 1)2Â x M12, 4-pin socket, D-coded (Megabit Ethernet, dual port fieldbus)1Â x M12, 8-pin female connector, X-coded (Gigabit Ethernet)
Supply voltage24 V DC, ± 20 % 2)
Power consumptionTyp. 21 W 3)
Current consumptionMax. 2 A
Housing materialAluminum die cast
Housing colorAnthracite gray (RALÂ 7016)
Window materialPlastic (PMMA), 2Â mm thick, with scratch-proof, anti-reflection (AR) coating on both sides
Enclosure ratingIP65 (IECÂ 60529:2013 +C1:2013 +C2:2015 +AMD2 C1:2019, ENÂ 60529:1991 +A1:2010 +A2:2013 +AC:2019-02)
Electrical safetyENÂ 61010:2010Â / ENÂ 61010-1:2010/A1:2019/AC:2019-04
Weight545Â g, without lens and connection cables
Dimensions (L x W x H)108 mm x 63.1 mm x 84.5 mm
MTBF100,000 h 4)

Safety-related parameters

ConformitiesConformance Class B

Performance

Readable code structures1D codes, 2D codes, Stacked
Bar code typesCode 128, GS1-128, EAN 128, EAN 8, EAN 13, UPC-A, UPC-E, Interleaved 2 of 5, Codabar, Code 93, Postal code
2D code typesData Matrix ECC200, GS1 Data-Matrix, MaxiCode, QR code, Aztec
Stacked code typesPDF417

Interfaces

Ethernet✔ , TCP/IP
FunctionData interface (read result output), service interface, FTP (image transmission)
Data transmission rate10/100/1,000Â Mbit/s, MAC address (device-specific), see type label
CAN✔
FunctionData interface (read result output), Trigger interface
Data transmission rate500Â kbit/s
Serial✔ , RS-232, RS-422
Data transmission rate1.2 kBaud ... 115.2 kBaud
USB✔ , USB 2.0
FunctionService interface (accessing the web server), Ethernet via USB (RNDIS)
Data transmission rate480Â Mbit/s
EtherNet/IP™✔ (2)
FunctionData interface (read result output), Trigger interface
Data transmission rate10/100Â MBit/s
PROFINET✔ (2)
FunctionData interface (read result output), Trigger interface
Data transmission rate10/100Â MBit/s
Supported protocol versionsPROFINET specification V2.43
GSDMLAccording to GSDML specification V2.43
ConformanceConformance Class B
Network managementSNMP, MIB-2, LLDP, MRP client support
Switch properties2Â port real-time switch compliant with IEEE 802
Port properties100Base-TX, auto-negotiation, auto-crossover (MDIX), auto-polarity
Net loadNet load class III in accordance with security level 1Â test
Digital inputs2 (“Sensor 1”, “Sensor 2”, insulated, encoder input, external trigger)
X13 pieces („DIO 4“, „DIO 5“, „DIO 6“) 1)
Reading pulseDigital inputs, CAN, auto pulse

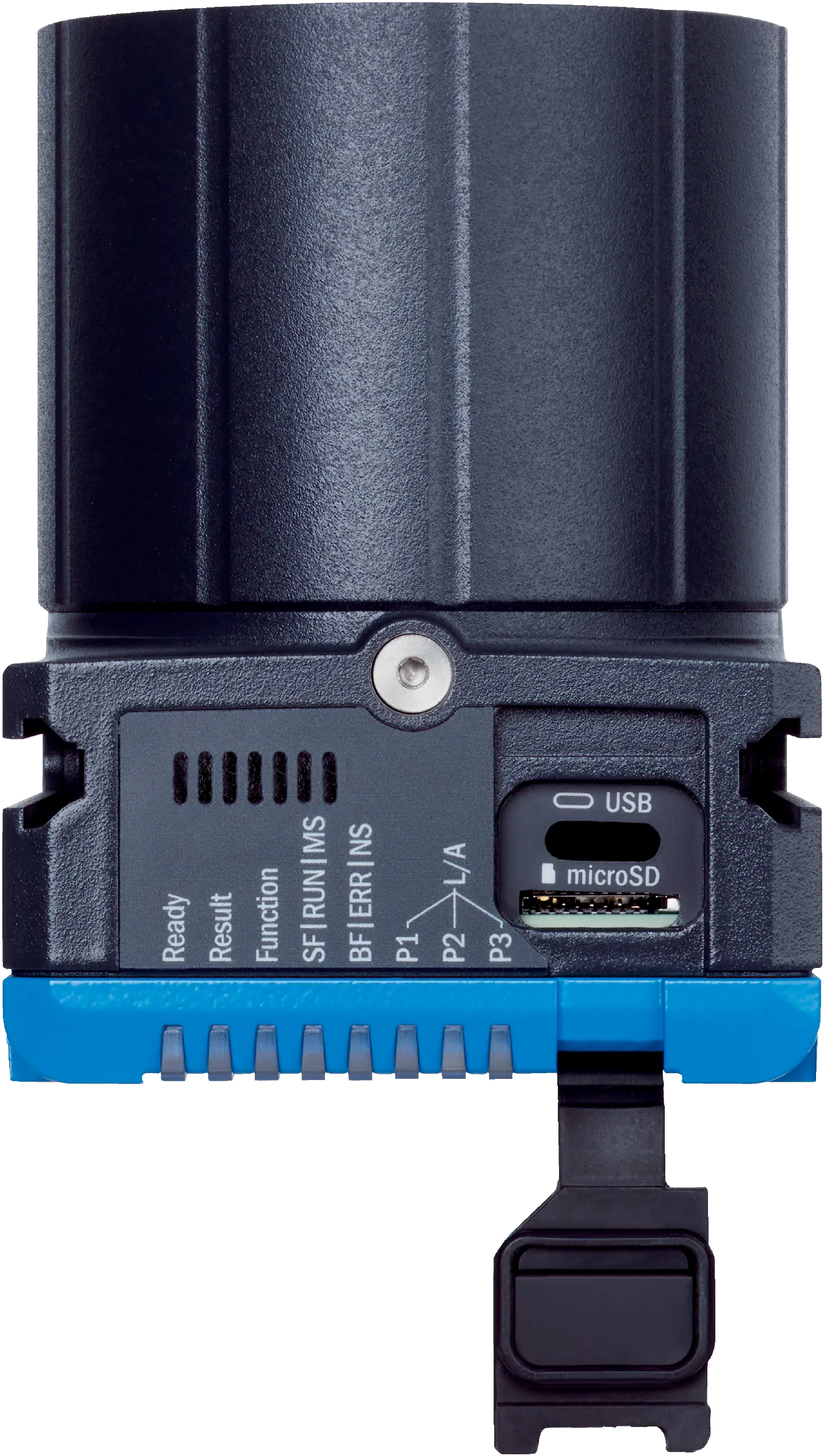

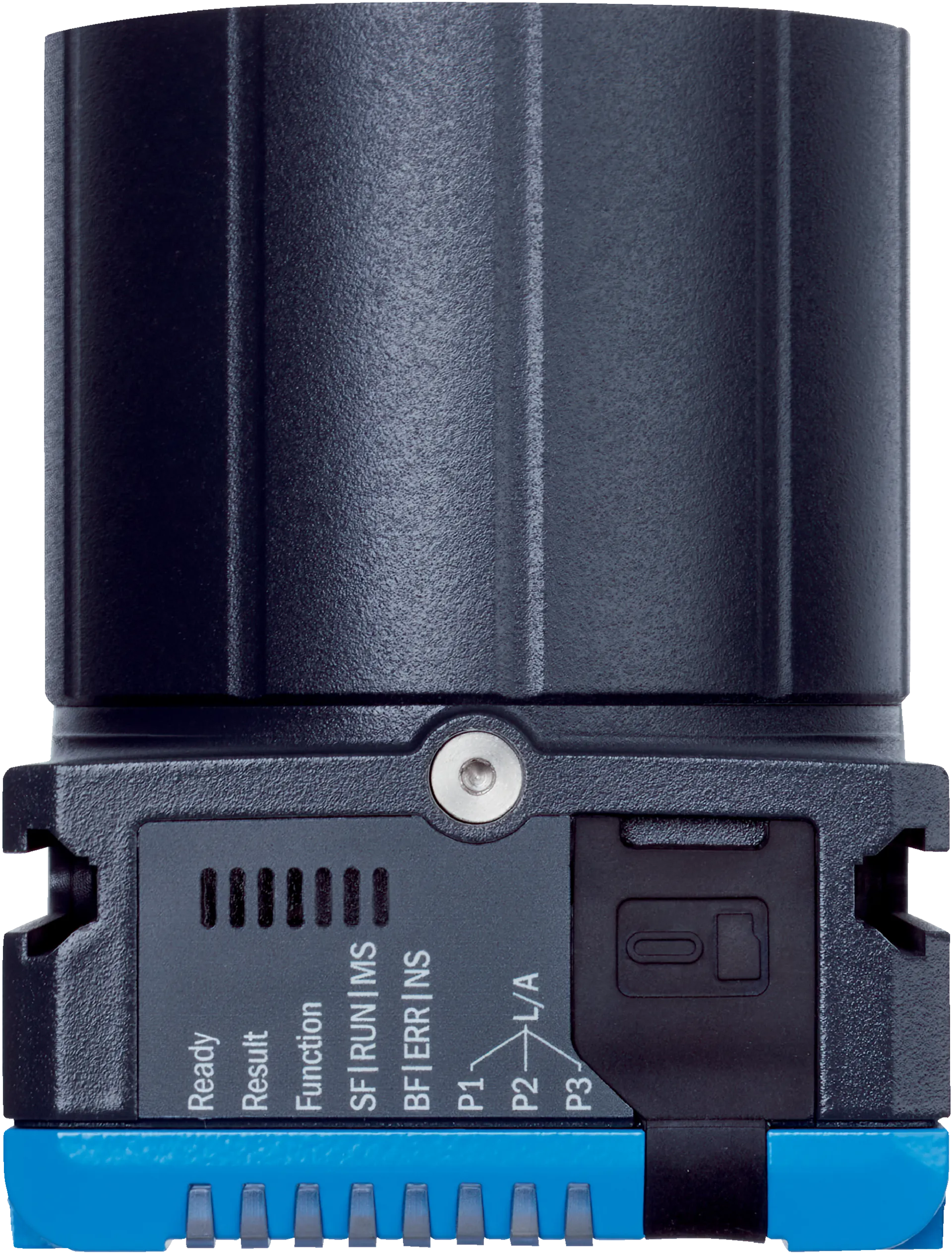

Optical indicators8Â status LEDs
Operator interfacesWeb server
Configuration softwareSOPASair
Memory card slotMicro SD memory card (not included with delivery)Â 2)
Parameter cloningMicro SD memory cardControl software
Data storage and retrievalImage and data storage via external FTP
EncoderFrequencyMax. 50 kHz
External illumination controlVia digital output (max. 24Â V trigger)

Ambient data

Interference resistanceIECÂ 61000-6-2:2016 / ENÂ IECÂ 61000-6-2:2019
Interference emissionIECÂ 61000-6-4:2018 / ENÂ IECÂ 61000-6-4:2019
Vibration resistanceENÂ 60068-2-6:2007, ENÂ 60068-2-64:2019
Shock resistanceENÂ 60068-2-27:2008
Ambient operating temperature0 °C ... +50 °C 1)
Storage temperature–20 °C ... +70 °C
Permissible relative humidity≤ 90 %, Non-condensing
Ambient light immunity2,000Â lx, on code
Contamination rating2Â (ENÂ 61010-1)
Altitude (above sea level)<Â 5,000Â m

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
China RoHS✔
cULus certificate✔
Profinet certificate✔
Ethernet/IP certificate✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)✔

Classifications

ECLASS 5.027280103
ECLASS 5.1.427280103
ECLASS 6.027280103
ECLASS 6.227280103
ECLASS 7.027280103
ECLASS 8.027280103
ECLASS 8.127280103
ECLASS 9.027280103
ECLASS 10.027280103
ECLASS 11.027280103
ECLASS 12.027280103
ETIM 5.0EC002550
ETIM 6.0EC002550
ETIM 7.0EC002999
ETIM 8.0EC002999
UNSPSC 16.090143211701
