Description

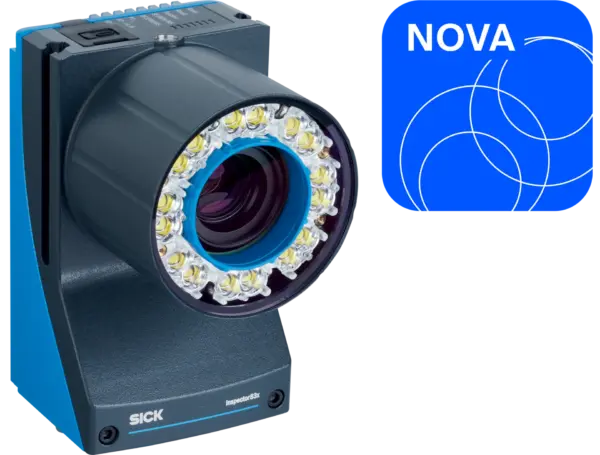

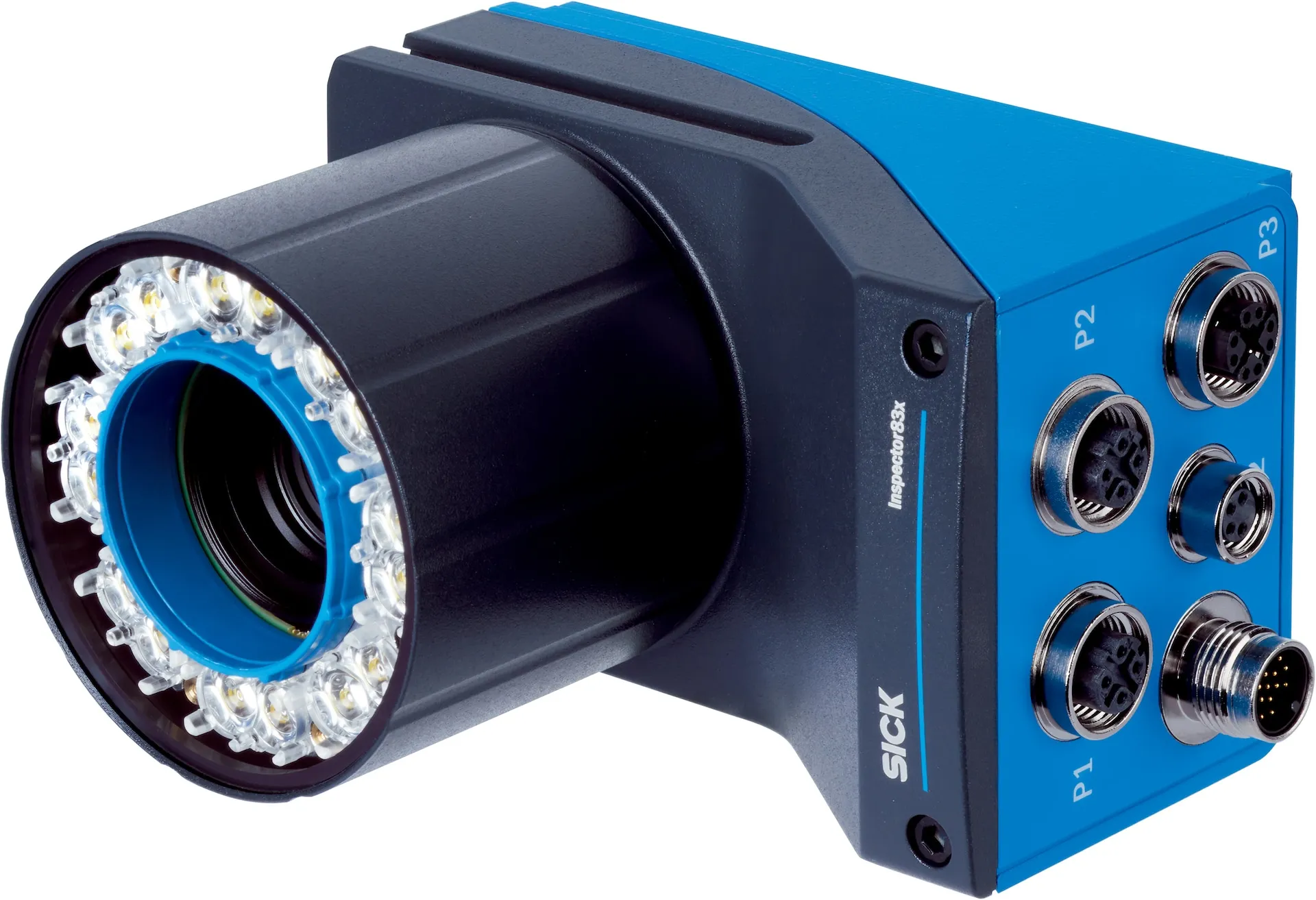

Machine vision | Inspector83x | V2D8301P-1CCIBXAF1SXXXX | License included: Quality Inspection License | Illumination: Integrated | Illumination color: White | Lens: 8 mm, C-mount | Working distance: 200 mm … 2,500 mm | Sensor resolution: 1,232 px x 1,024 px (1.3 MP) | Sensor: CMOS Color | Optical focus: Adjustable focus (manually)
Specification
Features
| Technology | 2D snapshot |
|---|---|
| Programmable | ✔ |
| Configurable | ✔ |
| Application software | Nova Inspector |
| License included | Quality Inspection LicenseOptional upgrade with the Intelligent Inspection Upgrade License, which enables productive use of the complete toolset. |
| Expansion options | The SICK Nova Tool plug-in enables customer-specific or new tools to be added. Development and customization of the tools is supported by SICK AppSpace and SICK AppStudio. |
| License type | The software is provided as a device license. A license is bound to a specific hardware ID. |
| License period | The license is issued without a time limit. |
| Toolkit | SICK algorithm APIHALCON |
| Image sensor | CMOS Color |
| Shutter technology | Global-Shutter |
| Optical focus | Adjustable focus (manually) |
| Working range | 200 mm ... 2,500 mm, depends on lens used 1) |
| Illumination | Integrated |
| Illumination color | White, LED, Visible, 6,500 K, ± 1,000 K |
| LED class | Risk group 1Â (IECÂ 62471 (2006-07) / ENÂ 62471 (2008-09)) |
| Lens | C-mount |
| Optical format | 1/1.8" |
| Focal length | 8Â mm |
| Task | Detecting - Standard objectsMeasuring - Dimension, contour and volumeMeasuring - NumberIdentifying - 2D codeIdentifying - OCRIdentifying - PatternIdentifying - ClassifyingIdentifying - SortingDetermining position - 2D position determination |
Mechanics/electronics

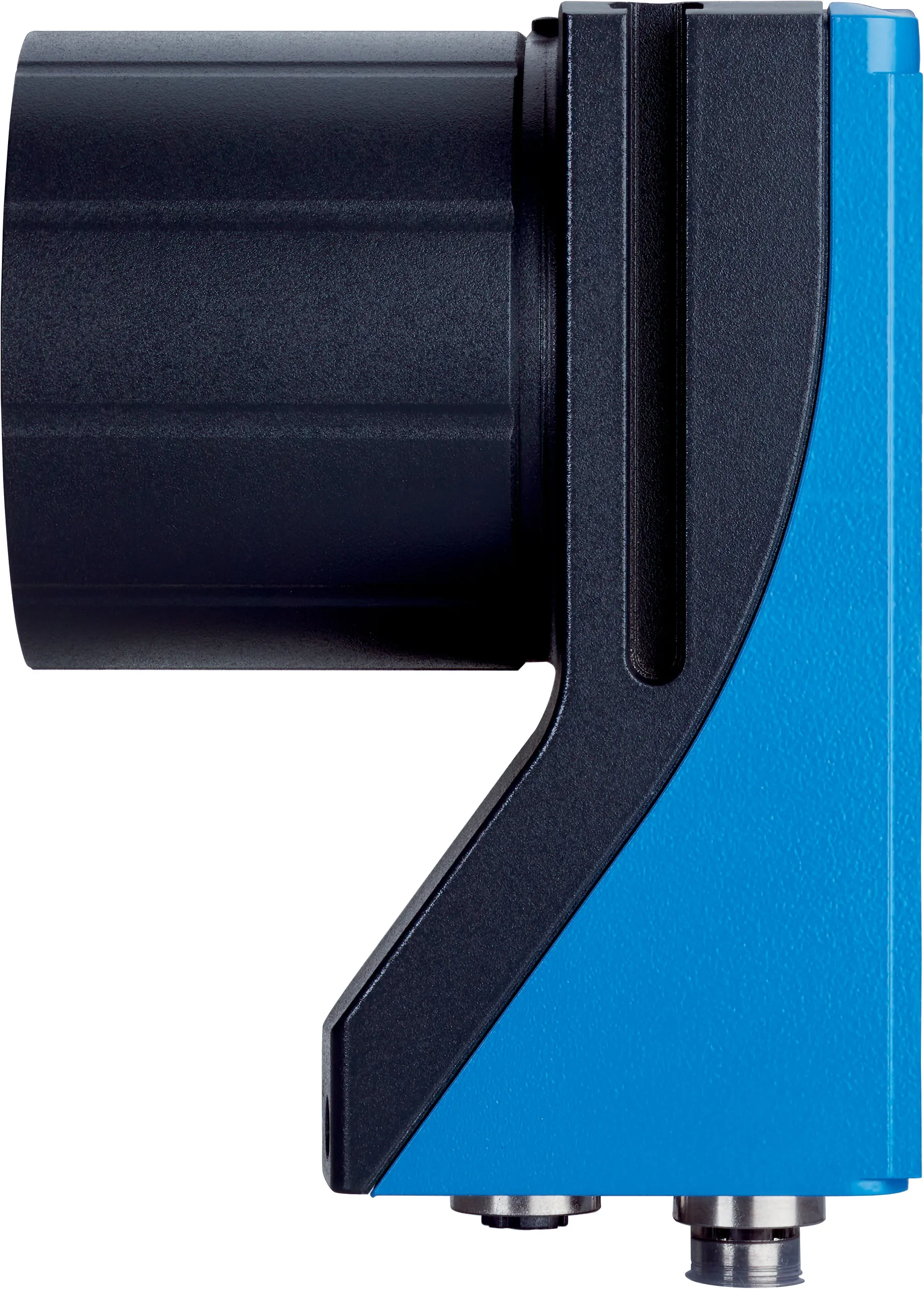

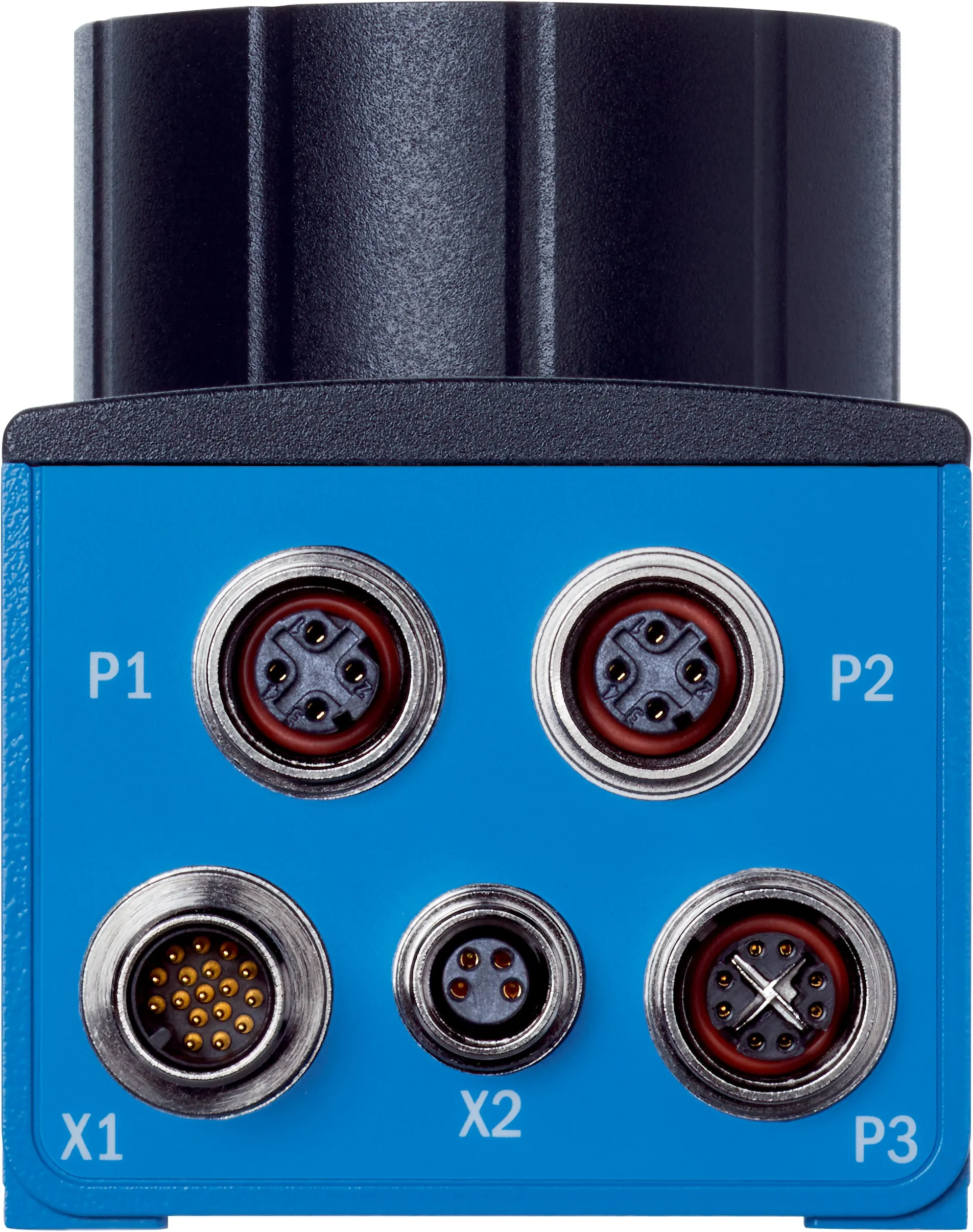

| Connection type | 1 x M12, 17-pin male connector, A-coded (Power, I/O)1 x M8, 4-pin female connector (external illumination)1 x M12, 8-pin female connector, X-coded (Gigabit Ethernet)2 x M12, 4-pin female connector, D-coded (fieldbus Ethernet) |
|---|---|
| Supply voltage | 24 V DC, ± 20 % 1) |
| Power consumption | 21Â WÂ 2) |
| Enclosure rating | IP65 (IECÂ 60529:2013 +C1:2013 +C2:2015 +AMD2 C1:2019, ENÂ 60529:1991 +A1:2010 +A2:2013 +AC:2019-02) |
| Housing material | Aluminum die cast |
| Weight | 545Â g, without lens and connection cables |
| Dimensions (L x W x H) | 108 mm x 63.1 mm x 84.5 mm |
| MTBF | 100,000 h 3) |
Performance
| Sensor resolution | 1,232 px x 1,024 px (1.3 MP) |
|---|---|
| Pixel size | 5.48 µm x 5.48 µm |
| Sensor size | 6.75 mm x 5.61 mm |
| Scan/frame rate | 30 Hz 1) |
Interfaces
| Ethernet | ✔ , TCP/IP |
|---|---|
| Function | FTP |
| Data transmission rate | 10/100/1,000Â Mbit/s, MAC address (device-specific), see type label |
| EtherNet/IP™ | ✔ |
| Function | EtherNet/IP™ Dual Port |
| Data transmission rate | 10/100Â MBit/s |
| PROFINET | ✔ |
| Function | PROFINET Dual Port |
| Data transmission rate | 10/100Â MBit/s |
| Operator interfaces | Web server |
| Configuration software | Web GUI (SensorApp configuration), SICK AppManager (IPÂ determination and configuration, SensorApp installation), SICK AppStudio (programming) |
| Data storage and retrieval | Image and data logging via external FTP |
| Inputs/outputs | 2Â x opto-decoupled inputs, physical, switching6Â x configurable input/output, physical, switching (4Â on the Power-I/O connection, 2Â on the external illumination connection) |
| Output current | ≤ 50 mA |
| Maximum encoder frequency | Max. 50 kHz |
| External illumination | External voltage supply or via Vout (max. 1Â A) at the X2 4-pin female connector as an illumination connection. Trigger via digital output via X1 17-pin male connector or via external illumination connection at the X2 4-pin female connector. |

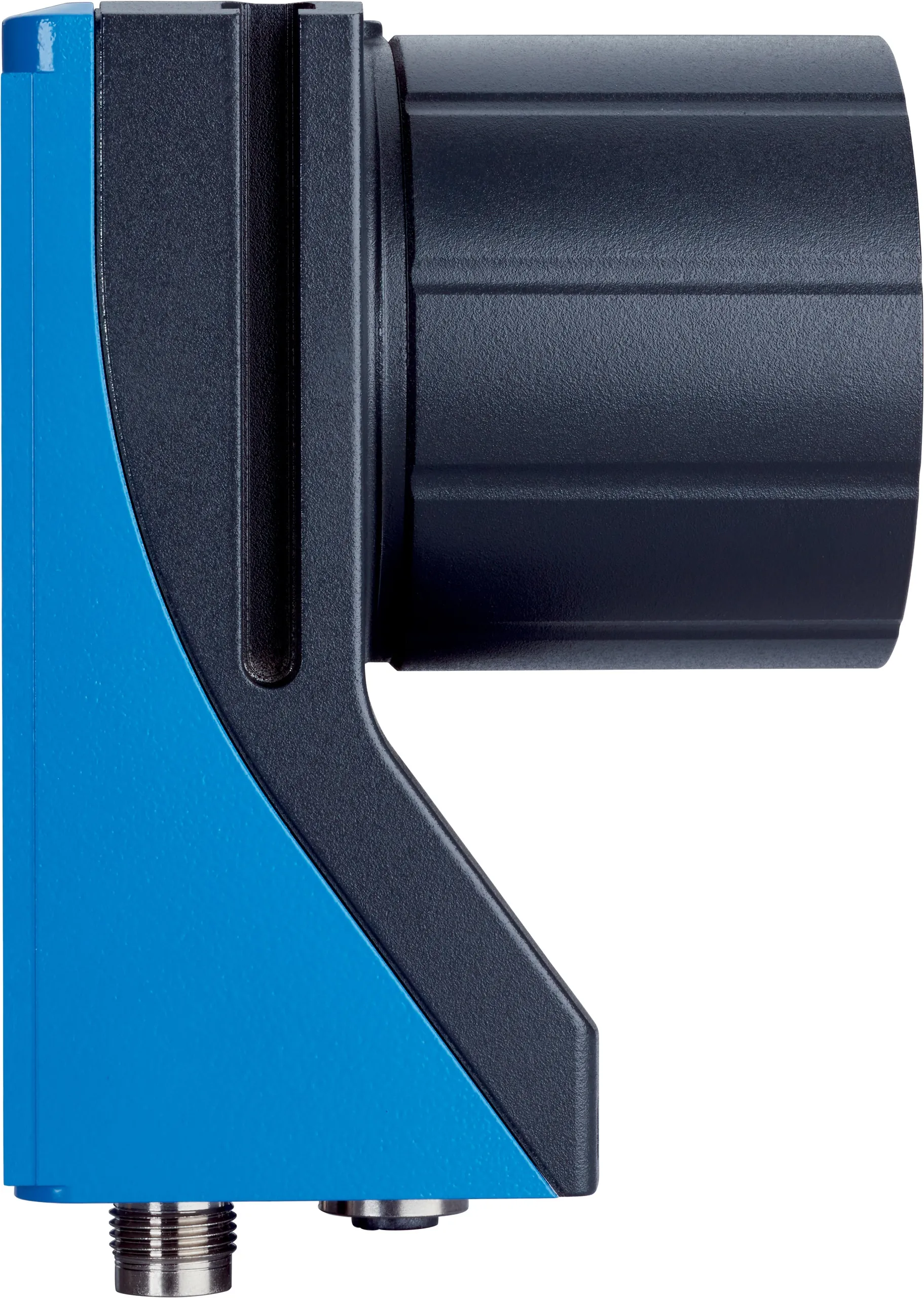

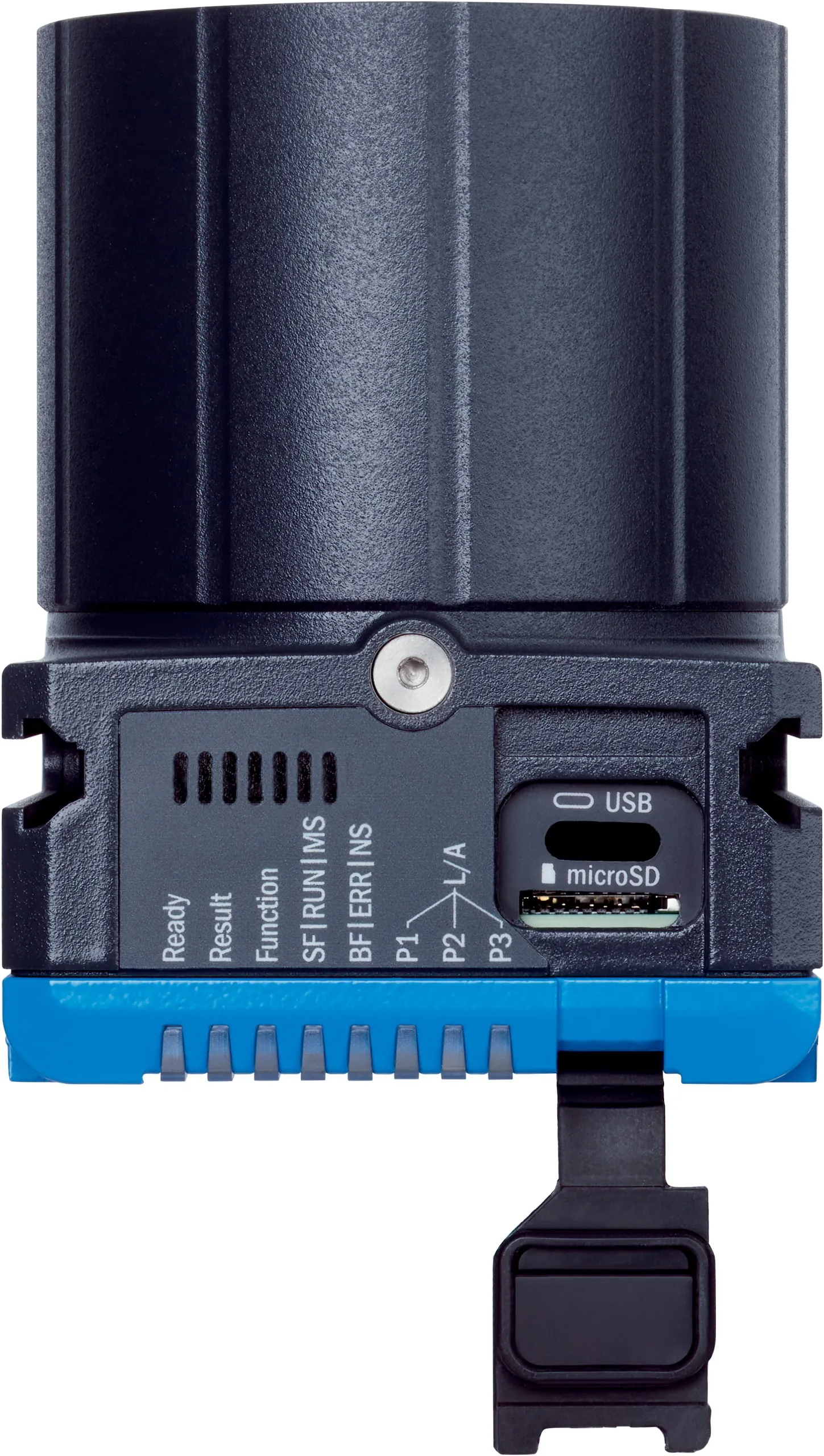

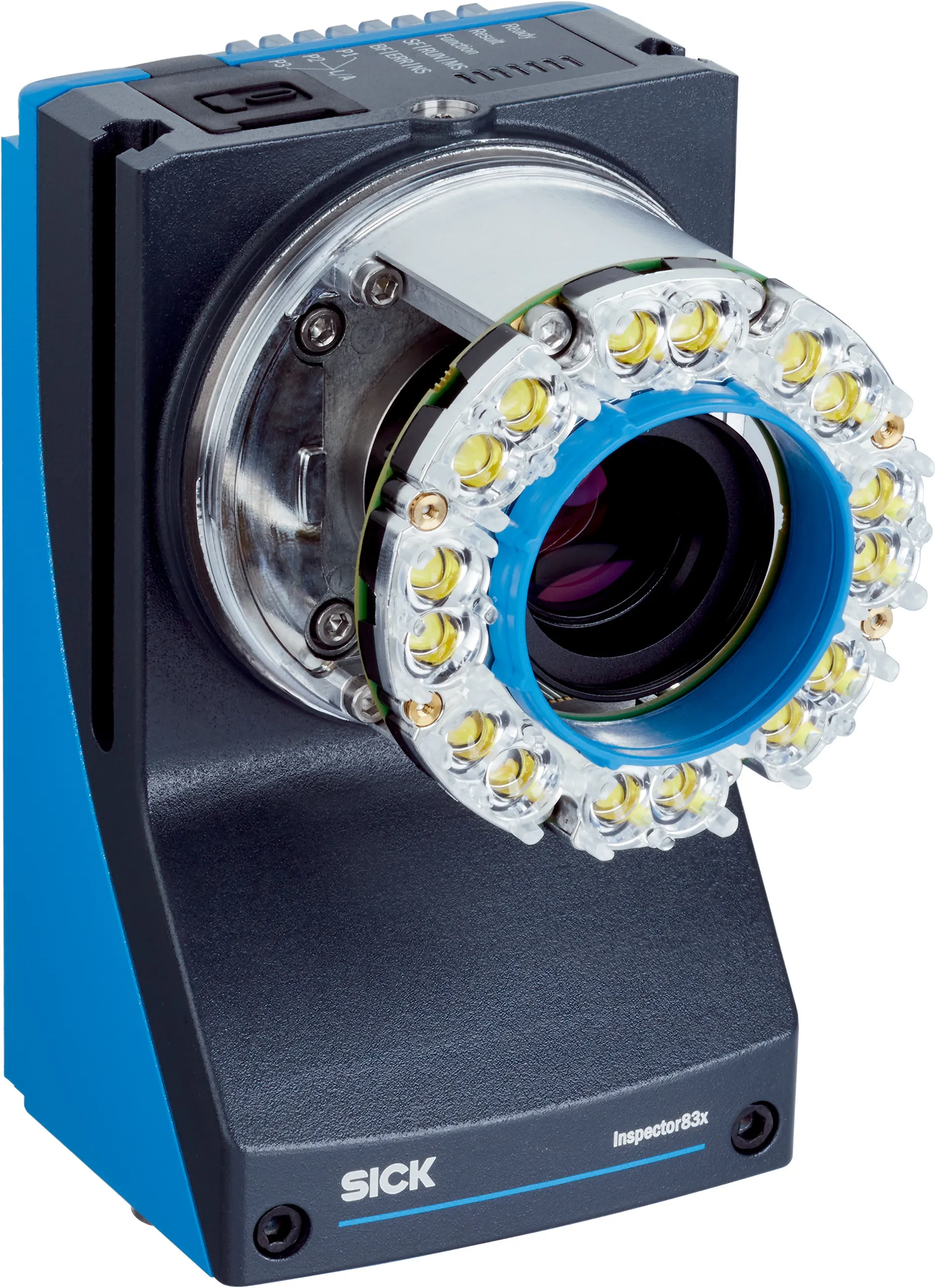

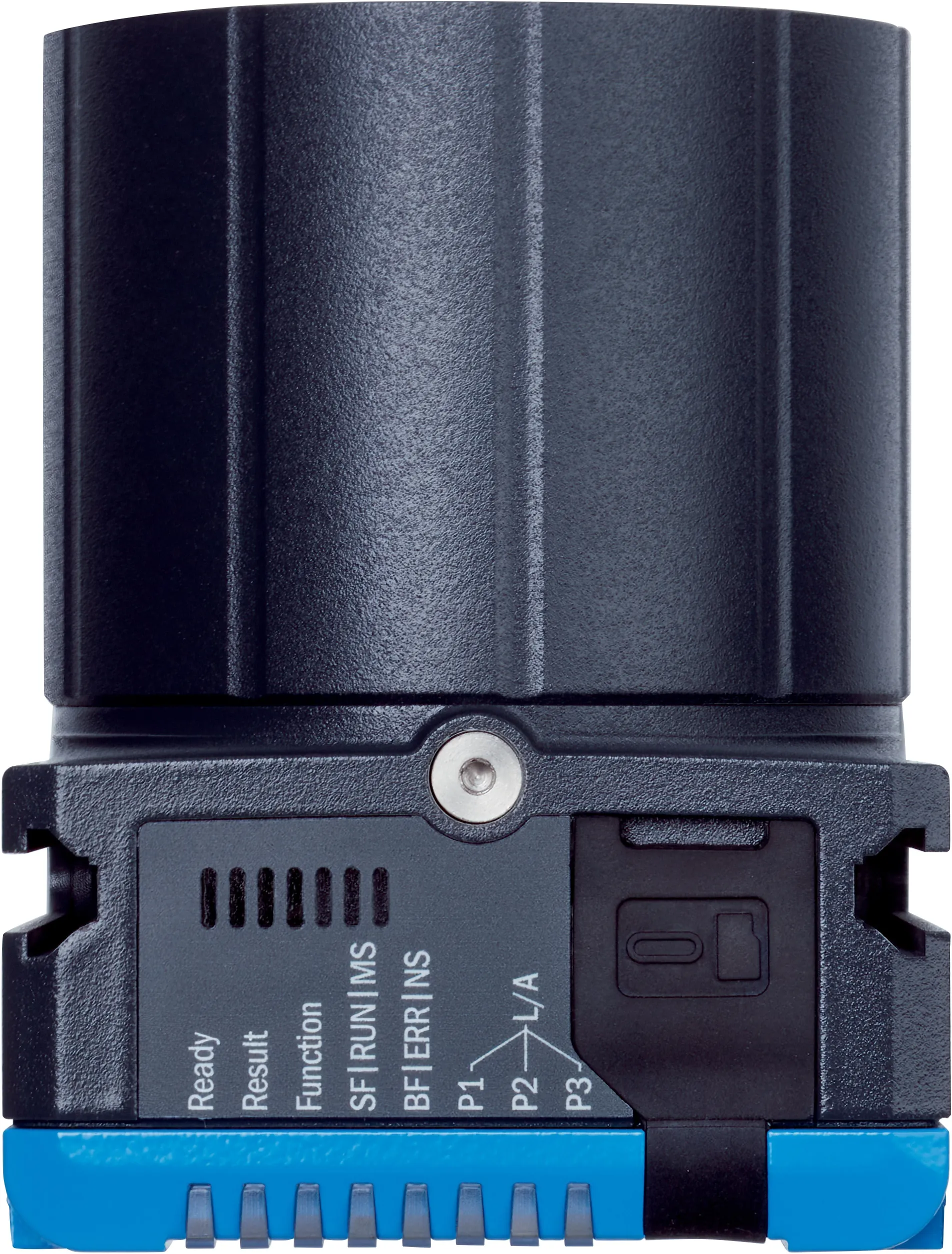

| Optical indicators | 8Â status LEDs |
Ambient data
| Vibration resistance | ENÂ 60068-2-6:2007, ENÂ 60068-2-64:2019 |
|---|---|
| Shock resistance | ENÂ 60068-2-27:2008 |
| Ambient operating temperature | 0 °C ... +40 °C 1) |
| Storage temperature | –20 °C ... +70 °C |
| Relative humidity | ≤ 90 %, Non-condensing |
| Altitude (above sea level) | <Â 5,000Â m |
Licenses
| License included | Quality Inspection LicenseOptional upgrade with the Intelligent Inspection Upgrade License, which enables productive use of the complete toolset. |
|---|---|
| Expansion options | The SICK Nova Tool plug-in enables customer-specific or new tools to be added. Development and customization of the tools is supported by SICK AppSpace and SICK AppStudio. |
Classifications
| ECLASS 5.0 | 27310205 |
|---|---|
| ECLASS 5.1.4 | 27310205 |
| ECLASS 6.0 | 27310205 |
| ECLASS 6.2 | 27310205 |
| ECLASS 7.0 | 27310205 |
| ECLASS 8.0 | 27310205 |
| ECLASS 8.1 | 27310205 |
| ECLASS 9.0 | 27310205 |
| ECLASS 10.0 | 27310205 |
| ECLASS 11.0 | 27310205 |
| ECLASS 12.0 | 27310205 |
| ETIM 5.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| UNSPSC 16.0901 | 43211731 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Profinet certificate | ✔ |
| Ethernet/IP certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
