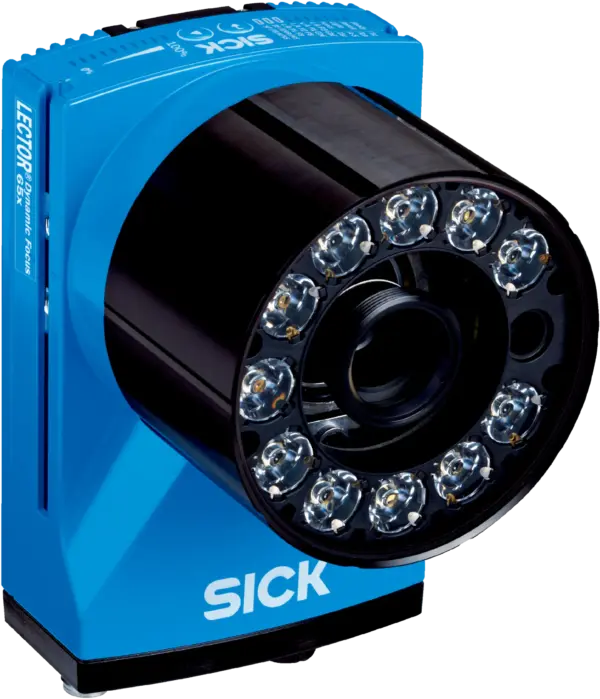

Sick V2D654R-MEBKA6

Image-based code readers | Lector64x/Lector65x | V2D654R-MEBKA6 | Variant: Complete device | Optical focus: Dynamic focus control | Sensor resolution: 2,048 px x 2,048 px (4.2 Mpixel) | Illumination c…

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Image-based code readers | Lector64x/Lector65x | V2D654R-MEBKA6 | Variant: Complete device | Optical focus: Dynamic focus control | Sensor resolution: 2,048 px x 2,048 px (4.2 Mpixel) | Illumination color: Blue | Focal length: 40 mm | Communication interface: Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, PROFIBUS DP | Cold storage applications: no | Note: Additional accessories may be necessary for some communication interfaces (details available online)

Specification

Features

VariantComplete device
Optical focusDynamic focus control
SensorCMOS monochrome
Sensor resolution2,048 px x 2,048 px (4.2 Mpixel)
IlluminationIntegrated
Illumination colorBlue, LED, Visible, 455 nm, ± 20 nm
LED classRisk group 2Â (IECÂ 62471:2006-07, ENÂ 62471:2008-09)
Feedback spotLED, Visible, green, 525 nm, ± 15 nm
Alignment aidLaser, Red, 630 nm ... 680 nm
Laser class1, Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed.3., as described in “Laser Notice No. 56” dated May 8, 2019 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
LensC-mount
Optical format1″
Focal length40Â mm
Aperture8
Scanning frequency40Â Hz, With resolution of 4Â megapixels
Code resolution≥ 0.12 mm 1)
Working range500 mm ... 2,600 mm 2) 3)

Mechanics/electronics

Connection type1Â x M12, 17-pin plug (serial, CAN, I/Os, power supply)2Â x M12, 8-pin socket (Ethernet, P1 not yet with function)1Â x M8, 4-pin socket (USB)
Supply voltage24 V DC, ± 20 %
Power consumptionTyp. 20 W, ± 20 %
Output current≤ 100 mA
Housing materialAluminum die cast
Housing colorLight blue (RAL 5012)
Window materialGlass
Enclosure ratingIP65 (ENÂ 60529 (1991-10), ENÂ 60529/A2 (2002-02))
Protection classIII
Electrical safetyENÂ 60950-1 (2011-01)
Weight963Â g
Dimensions (L x W x H)142.8 mm x 90 mm x 106.1 mm
MTBF100,000Â h

Performance

Readable code structures1D codes, Stacked, 2D codes
Bar code typesGS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, USPS (Postnet, Planet, USPS4SCB), Australian Post, Dutch KIX Post, Royal Mail, Swedish Post
2D code typesData Matrix ECC200, GS1 Data-Matrix, MaxiCode, QR code
Stacked code typesPDF417
Code qualificationOn the basis of ISO/IECÂ 16022, ISO/IECÂ 15415, ISO/IECÂ 18004
Internal image storage512Â MB

Interfaces

Ethernet✔ , TCP/IP
FunctionData interface (read result output), Service interface, FTP (image transmission)
Data transmission rate10/100/1,000Â Mbit/s
PROFINET✔
FunctionPROFINET Single Port (integrated), PROFINET Dual Port (optional via external connection module CDF600-2)
EtherNet/IP™✔
Data transmission rate10/100/1,000Â Mbit/s
Serial✔ , RS-232, RS-422
FunctionData interface (read result output), Service interface
Data transmission rate0.3 kBaud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232)
CAN✔
FunctionSICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server)
Data transmission rate20 kbit/s ... 1 Mbit/s
PROFIBUS DP✔
Type of fieldbus integrationOptional over external fieldbus module CDF600-2
Digital inputs4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional CMC600 parameter memory in CDB650/CDM420)
Configurable inputsEncoder input, external trigger
Digital outputs6 (CDB650: “Result 1”, “Result 2”, “Result 3”, “Result 4”, 2 external outputs via CMC600 or CDM420: “Result 1”, “Result 2”, 2 external outputs via CMC600 or cable with open end: “Result 1”, “Result 2”, “Result 3”, “Result 4”)
Configurable outputsGood read, External illumination control, free configurable output condition, "device ready"
Reading pulseDigital inputs, non-powered, serial interface, Ethernet, CAN, auto pulse, presentation mode
Optical indicators21Â LEDs (10Â x status display, 10Â x LED bar graph, 1Â green feedback spot)
Acoustic indicatorsBeeper/buzzer (can be switched off, can be assigned a function to signal a result)
Control elements2Â buttons (choose and start/stop functions)
Operator interfacesWeb server
Configuration softwareSOPAS ET
Memory cardMicro SD memory card (flash card) max. 16Â GB, optional
Data storage and retrievalImage and data storage via microSD memory card and external FTP
EncoderFrequencyMax. 1 kHz
External illumination controlVia digital output (max. 24Â V trigger) or external illumination connection

Ambient data

Electromagnetic compatibility (EMC)ENÂ 61000-6-2:2005-08Â / ENÂ 61000-6-3 (2007-01)
Vibration resistanceENÂ 60068-2-6:2008-02
Shock resistanceENÂ 60068-2-6
Ambient operating temperature0 °C ... +50 °C
Storage temperature–20 °C ... +70 °C
Permissible relative humidity90Â %, Non-condensing
Ambient light immunity2,000Â lx, on code

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
China RoHS✔
cULus certificate✔
KC Mark certificate✔
BIS registration✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)✔
4Dpro✔

Classifications

ECLASS 5.027280103
ECLASS 5.1.427280103
ECLASS 6.027280103
ECLASS 6.227280103
ECLASS 7.027280103
ECLASS 8.027280103
ECLASS 8.127280103
ECLASS 9.027280103
ECLASS 10.027280103
ECLASS 11.027280103
ECLASS 12.027280103
ETIM 5.0EC002550
ETIM 6.0EC002550
ETIM 7.0EC002999
ETIM 8.0EC002999
UNSPSC 16.090143211701
