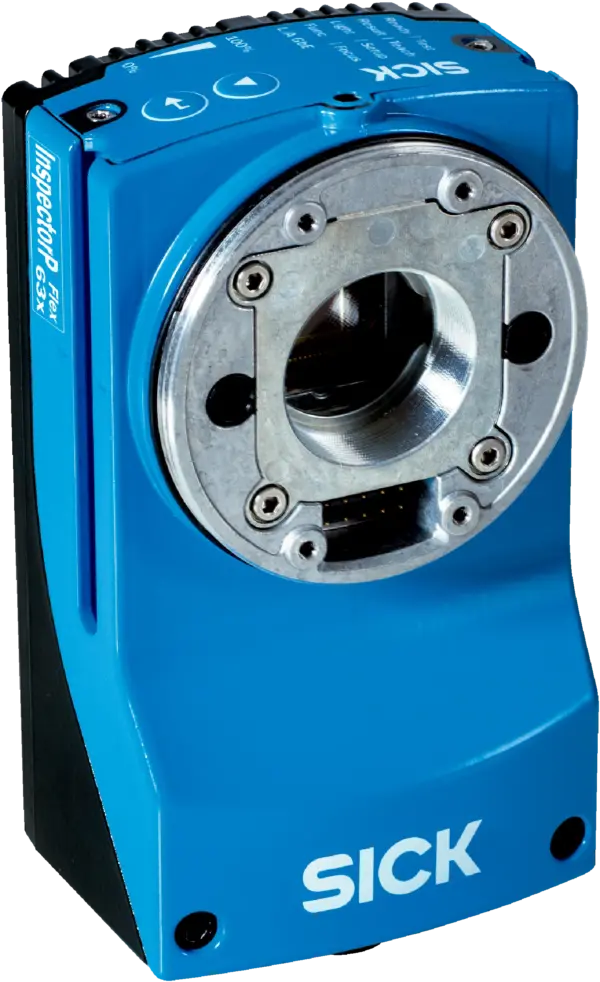

Sick V2D631P-2MXCXB0
Machine vision | InspectorP63x | V2D631P-2MXCXB0 | License included: Quality Inspection License | Illumination: To be ordered separately as accessories | Illumination color: White, Red, Blue, Infrared…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Machine vision | InspectorP63x | V2D631P-2MXCXB0 | License included: Quality Inspection License | Illumination: To be ordered separately as accessories | Illumination color: White, Red, Blue, Infrared | Lens: To be ordered separately as accessories, C-mount | Sensor resolution: 1,280 px x 1,024 px (1.3 Mpixel) | Sensor: CMOS monochrome | Optical focus: Adjustable focus
Specification
Features
| Technology | 2D snapshot |
|---|---|
| Programmable | â |
| Application software | Nova Inspector |
| License included | Quality Inspection LicenseOptional upgrade with the Intelligent Inspection Upgrade License, which enables productive use of the complete toolset. |
| Toolkit | HALCON |
| Image sensor | CMOS monochrome |
| Shutter technology | Global-Shutter |
| Optical focus | Adjustable focus |
| Illumination | To be ordered separately as accessories |
| Illumination color | WhiteRedBlueInfrared |
| Alignment aid | Laser, Red, 630 nm ... 680 nm |
| Laser class | 1, complies with 21Â CFR 1040.10Â except for the conformance according to âLaser Notice No. 50â from June 24, 2007Â (IECÂ 60825-1:2014, ENÂ 60825-1:2014) |
| Spectral range | Approx. 400 nm ... 900 nm |
| Lens | C-mount |
| Optical format | 1/1.8" |
| Note | To be ordered separately as accessories |
| Task | Detecting - Standard objectsMeasuring - Dimension, contour and volumeMeasuring - NumberIdentifying - 2D codeIdentifying - OCRIdentifying - PatternIdentifying - ClassifyingIdentifying - SortingDetermining position - 2D position determination |
Mechanics/electronics
| Connection type | 1 x M12, 17-pin male connector (serial, I/Os, voltage supply)1 x M8, 4-pin female connector (USB, not used)1 x M12, 8-pin socket (Gigabit Ethernet)1 x M8, 4-pin female connector (external illumination) |
|---|---|
| Supply voltage | 12 V DC ... 24 V DC, ± 20 % |
| Power consumption | Typ. 10 W, ± 20 % |
| Enclosure rating | IP67 (ENÂ 60529 (1991-10), ENÂ 60529/A2 (2002-02)) |
| Protection class | III (ENÂ 60950-1 (2014-08)) |
| Housing material | Aluminum die cast |
| Window material | PMMA |
| Weight | 430Â g |
| Dimensions (L x W x H) | 108 mm x 63 mm x 46 mm 1) |
Performance
| Sensor resolution | 1,280 px x 1,024 px (1.3 Mpixel) |
|---|---|
| Scan/frame rate | 50Â Hz |
Interfaces
| Serial | â , RS-232, RS-422 |
|---|---|
| Data transmission rate | 300 Baud ... 115.2 kBaud |
| Ethernet | â , TCP/IP |
| Function | FTP, HTTP |
| Data transmission rate | 10/100/1,000Â Mbit/s |
| CAN | â |
| Function | SICK CAN sensor network (CAN controller/CAN device) |
| EtherNet/IP⢠| â |
| Data transmission rate | 10/100/1,000Â Mbit/s |
| PROFINET | â |
| Function | PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600-2) |
| Data transmission rate | 10/100Â MBit/s |
| Operator interfaces | Web server |
| Configuration software | SICK AppStudio |
| Data storage and retrieval | Image and data logging via microSD memory card and external FTP |
| Inputs/outputs | 2Â opto-decoupled inputs, 4Â inputs/outputs, configurable |
| Output current | â¤Â 100 mA |
| Maximum encoder frequency | Max. 1 kHz |
| External illumination | Via digital output (max. 24Â V trigger) or external illumination connection |
| Control elements | 2Â buttons |
| Optical indicators | 11Â LEDs (5Â status displays, 16Â LEDs, 5Â LED bar graphs, 1Â green/red feedback spot) |
| Acoustic indicators | Beeper |
Ambient data
| Shock load | ENÂ 60068-2-27:2009-05 |
|---|---|
| Vibration load | ENÂ 60068-2-6:2008-02 |
| Ambient operating temperature | 0 °C ... +50 °C 1) |
| Storage temperature | â20 °C ... +70 °C 1) |
Licenses
| License included | Quality Inspection LicenseOptional upgrade with the Intelligent Inspection Upgrade License, which enables productive use of the complete toolset. |
|---|
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| KC Mark certificate | â |
| Profinet certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
| 4Dpro | â |
Classifications
| ECLASS 5.0 | 27310205 |
|---|---|
| ECLASS 5.1.4 | 27310205 |
| ECLASS 6.0 | 27310205 |
| ECLASS 6.2 | 27310205 |
| ECLASS 7.0 | 27310205 |
| ECLASS 8.0 | 27310205 |
| ECLASS 8.1 | 27310205 |
| ECLASS 9.0 | 27310205 |
| ECLASS 10.0 | 27310205 |
| ECLASS 11.0 | 27310205 |
| ECLASS 12.0 | 27310205 |
| ETIM 5.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| UNSPSC 16.0901 | 43211731 |
