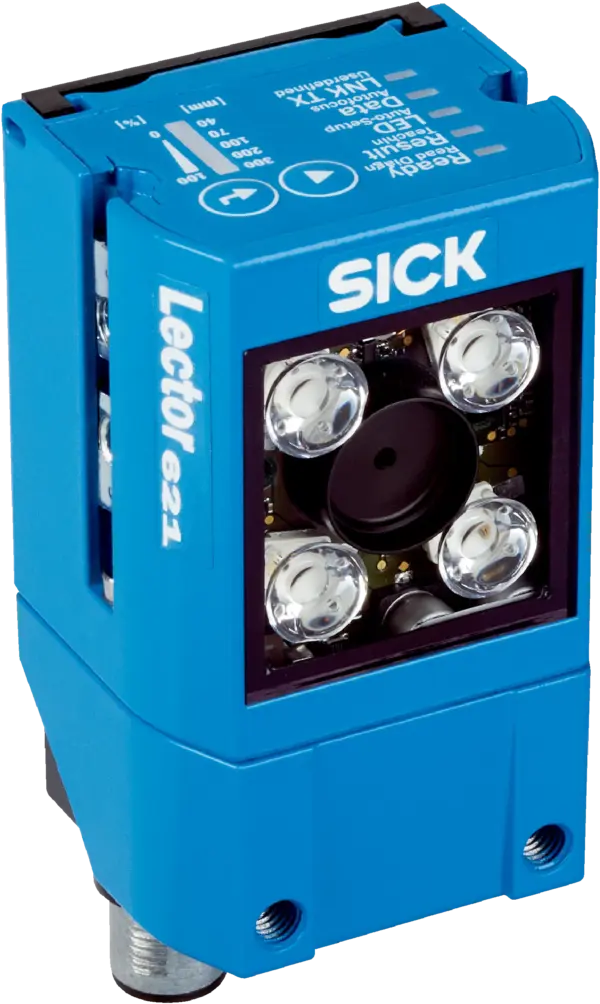

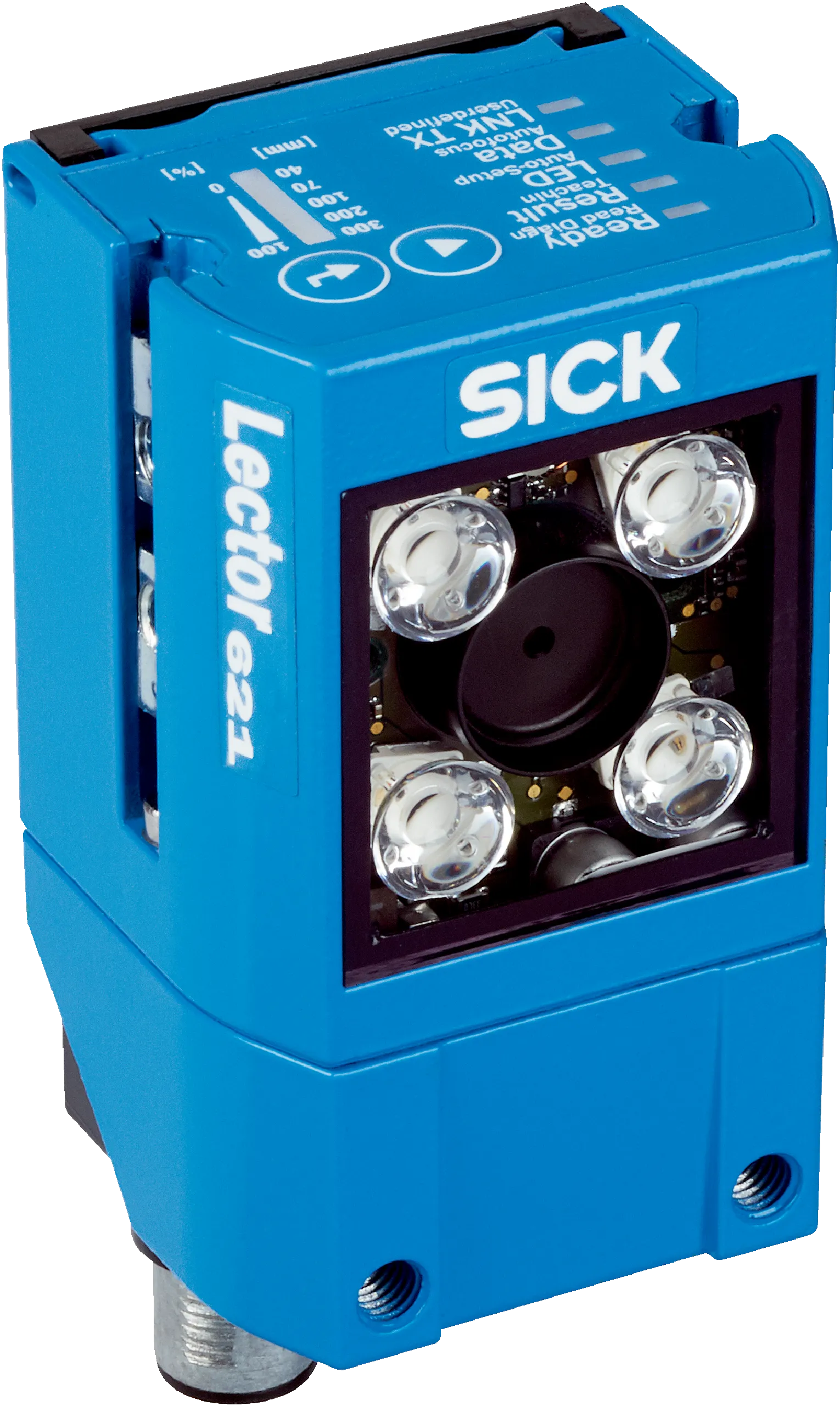

Sick V2D621R-2MSFBB5

Image-based code readers | Lector62x | V2D621R-2MSFBB5 | Variant: Complete device | Optical focus: Teach auto focus | Sensor resolution: 1,280 px x 1,024 px (1.3 MP) | Illumination color: Red, blue |…

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Image-based code readers | Lector62x | V2D621R-2MSFBB5 | Variant: Complete device | Optical focus: Teach auto focus | Sensor resolution: 1,280 px x 1,024 px (1.3 MP) | Illumination color: Red, blue | Focal length: 9.6 mm | Communication interface: Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, PROFIBUS DP | Cold storage applications: no | Note: Additional accessories may be necessary for some communication interfaces (details available online)

Specification

Features

VariantComplete device
Optical focusTeach auto focus
SensorCMOS monochrome
Sensor resolution1,280 px x 1,024 px (1.3 MP)
IlluminationIntegrated
Illumination colorRed, LED, Visible, 617 nm, ± 15 nmBlue, LED, Visible, 470 nm, ± 15 nm
LED class1Â (IECÂ 62471:2006-07, ENÂ 62471:2008-09)
Feedback spotLED, Visible, green, 525 nm, ± 15 nm
Alignment aidLaser, Red, 630 nm ... 680 nm
Laser class1, Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed.3., as described in “Laser Notice No. 56” dated May 8, 2019 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
Focal length9.6Â mm
Scanning frequency50Â Hz
Code resolution≥ 0.05 mm 1)
Working range70 mm ... 1,500 mm 1)

Mechanics/electronics

Connection type1Â x M12, 17-pin male connector1Â x M12, 4-pin Ethernet female connectorCircular plug-in connector
Supply voltage12 V DC ... 24 V DC, ± 20 %
Power consumptionTyp. 4 W
Housing materialAluminum die cast
Housing colorLight blue (RAL 5012)
Window materialPlastic
Enclosure ratingIP65 (ENÂ 60529, ENÂ 60529/A2)
Protection classIII
Electrical safetyENÂ 62368
Weight170Â g
Dimensions (L x W x H)71 mm x 43 mm x 35.6 mm 1)
MTTFd270Â years

Safety-related parameters

MTTFD270Â years

Performance

Readable code structures1D codes, Stacked, 2D codes
Bar code typesGS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, Plessey Code, MSI/Plessey, Telepen, postal codes
2D code typesData Matrix ECC200, GS1 Data-Matrix, PDF417, PDF417 Truncated, QR code, MaxiCode
Code qualificationOn the basis of ISO/IECÂ 16022, ISO/IECÂ 15415, ISO/IECÂ 15416, ISO/IECÂ 18004
No. of codes per reading interval1Â ... 50
No. of characters per reading interval500Â (for multiplexer function in CAN operation)
Automated parameter switching✔

Interfaces

Ethernet✔ , TCP/IP
FunctionData interface (read result output), Service interface, FTP (image transmission)
Data transmission rate10/100Â MBit/s
PROFINET✔
FunctionPROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600-2)
Data transmission rate10/100Â MBit/s
EtherNet/IP™✔
Data transmission rate10/100Â MBit/s
EtherCAT®✔
Type of fieldbus integrationOptional over external fieldbus module CDF600
Serial✔ , RS-232, RS-422
FunctionData interface (read result output), Service interface
Data transmission rate0.3 kBaud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232)
CAN✔
FunctionSICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server)
Data transmission rate20 kbit/s ... 1 Mbit/s
CANopen✔
Data transmission rate20 kbit/s ... 1 Mbit/s
PROFIBUS DP✔
Type of fieldbus integrationOptional over external fieldbus module CDF600-2
Digital inputs4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional parameter storage CMC600 in CDM420)
Digital outputs4 (“Result 1”, “Result 2”, 2 outputs via CMC and CDM420 or “Result 1”, “Result 2”, “Result 3”, “Result 4” when using the 17-wire cable with open cable end)
Reading pulseDigital inputs, non-powered, serial interface, Ethernet, CAN, auto pulse, presentation mode
Optical indicators16Â LEDs (5Â x status display, 10Â x LED bar graph, 1Â green feedback spot)
Acoustic indicatorsBeeper/buzzer (can be switched off, can be assigned a function to signal a result)
Control elements2Â buttons (choose and start/stop functions)
Operator interfacesWeb server
Configuration softwareSOPAS ET
Memory cardmicroSD memory card (flash card), optional
Data storage and retrievalImage and data storage via microSD memory card and external FTP
EncoderFrequencyMax. 300 Hz
External illumination controlVia digital output (max. 24Â V trigger)

Ambient data

Electromagnetic compatibility (EMC)ENÂ 61000-6-2:2005-08Â / ENÂ 61000-6-4 (2007-01) + A1 (2011)
Vibration resistanceENÂ 60068-2-6:2008-02
Shock resistanceENÂ 60068-2-27:2009-05
Ambient operating temperature0 °C ... +50 °C
Storage temperature–20 °C ... +70 °C
Permissible relative humidity90Â %, Non-condensing
Ambient light immunity2,000Â lx, on code

Classifications

ECLASS 5.027280103
ECLASS 5.1.427280103
ECLASS 6.027280103
ECLASS 6.227280103
ECLASS 7.027280103
ECLASS 8.027280103
ECLASS 8.127280103
ECLASS 9.027280103
ECLASS 10.027280103
ECLASS 11.027280103
ECLASS 12.027280103
ETIM 5.0EC002550
ETIM 6.0EC002550
ETIM 7.0EC002999
ETIM 8.0EC002999
UNSPSC 16.090143211701

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
China RoHS✔
cULus certificate✔
KC Mark certificate✔
BIS registration✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)✔
4Dpro✔
