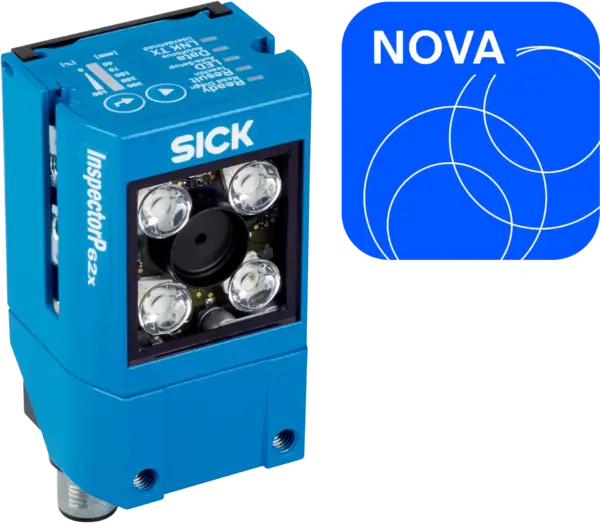

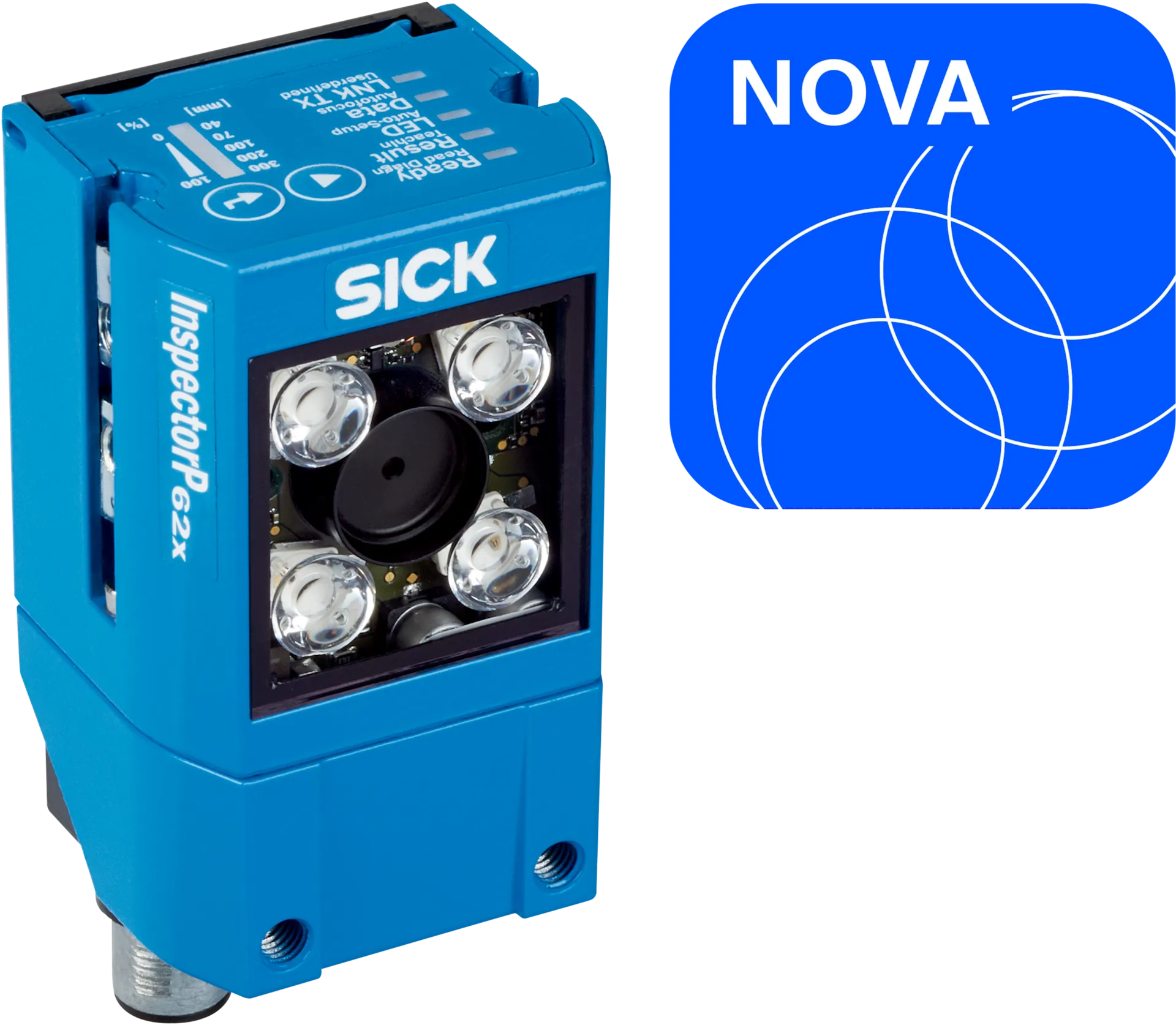

Sick V2D621P-2MDFCB5

Machine vision | InspectorP62x | V2D621P-2MDFCB5 | License included: Quality Inspection License | Illumination: Integrated | Illumination color: Infrared | Lens: 9.6 mm | Working distance: 70 mm … 1…

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Machine vision | InspectorP62x | V2D621P-2MDFCB5 | License included: Quality Inspection License | Illumination: Integrated | Illumination color: Infrared | Lens: 9.6 mm | Working distance: 70 mm … 1,500 mm | Sensor resolution: 1,280 px x 1,024 px (1.3 MP) | Sensor: CMOS monochrome | Optical focus: Adjustable focus (electric)

Specification

Features

Technology2D snapshot
Programmable✔
Configurable✔
Application softwareNova Inspector
License includedQuality Inspection License
Expansion optionsThe SICK Nova Tool plug-in enables customer-specific or new tools to be added. Development and customization of the tools is supported by SICK AppSpace and SICK AppStudio.
ToolkitSICK algorithm APIHALCON
Image sensorCMOS monochrome
Shutter technologyGlobal-Shutter
Optical focusAdjustable focus (electric)
Working range70 mm ... 1,500 mm 1)
IlluminationIntegrated
Illumination colorInfrared, LED, invisible, 850 nm, ± 25 nm
Feedback spotLED, Visible, green, 525 nm, ± 15 nm
Alignment aidLaser, Red, 630 nm ... 680 nm
Laser class1, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014)
LED classRisk group 1Â (IECÂ 62471 (2006-07) / ENÂ 62471 (2008-09))
Spectral rangeApprox. 800 nm ... 900 nm
Focal length9.6Â mm
TaskDetecting - Standard objectsMeasuring - Dimension, contour and volumeMeasuring - NumberIdentifying - 2D codeIdentifying - OCRIdentifying - PatternIdentifying - ClassifyingIdentifying - SortingDetermining position - 2D position determination

Mechanics/electronics

Connection type1 x M12, 17-pin male connector (serial, I/Os, voltage supply)1 x M12, 4-pin female connector (Ethernet)
Supply voltage12 V DC ... 24 V DC, ± 10 %
Power consumptionTyp. 4 W
Enclosure ratingIP65 (ENÂ 60529 (1991-10), ENÂ 60529/A2 (2002-02))
Protection classIII
Housing materialAluminum die cast
Window materialGlass
Weight170Â g
Dimensions (L x W x H)71 mm x 43 mm x 35.6 mm
MTBF75,000Â h

Performance

Sensor resolution1,280 px x 1,024 px (1.3 MP)
Scan/frame rate50 Hz 1)

Interfaces

Serial✔ , RS-232, RS-422
Data transmission rate300 Baud ... 115.2 kBaud
Ethernet✔ , TCP/IP, UDP
FunctionFTP, HTTP, HTTPS, NTP
Data transmission rate10/100Â MBit/s
CAN✔
RemarkNot yet available in the pre-installed Quality Inspection SensorApp
FunctionSICK CAN sensor network (CAN controller/CAN device)
EtherNet/IP™✔
Data transmission rate10/100Â MBit/s
EtherCAT®✔
Type of fieldbus integrationOptional over external fieldbus module CDF600
RemarkNot yet available in the pre-installed Quality Inspection SensorApp
PROFINET✔
FunctionPROFINET Single Port
Data transmission rate10/100Â MBit/s
PROFIBUS DP✔
Type of fieldbus integrationOptional over external fieldbus module CDF600-2
RemarkNot yet available in the pre-installed Quality Inspection SensorApp
Operator interfacesWeb server
Configuration softwareWeb GUI (SensorApp configuration), SICK AppManager (IPÂ determination and configuration, SensorApp installation), SICK AppStudio (programming)
Data storage and retrievalImage and data logging via microSD memory card and external FTP
Inputs/outputs2Â opto-decoupled inputs, 4Â inputs/outputs, configurable
Output current≤ 100 mA
Maximum encoder frequencyMax. 300 Hz
External illuminationVia digital output (max. 24Â V trigger)
Control elements2 buttons 1)
Optical indicators16Â LEDs (5Â status displays, 10Â LED bar graphs, 1Â green/red feedback spot)
Acoustic indicatorsBeeper 1)

Ambient data

Shock loadENÂ 60068-2-27:2009-05
Vibration loadENÂ 60068-2-6:2008-02
Ambient operating temperature0 °C ... +50 °C 1)
Storage temperature–20 °C ... +70 °C 1)

Licenses

License includedQuality Inspection License
DescriptionThe Quality Inspection license enables productive use of a large subset of the tools of a SICK Nova SensorApp. The Quality Inspection toolkit is used to ensure that products comply with exact requirements after production, for instance when it comes to dimensions and angular degrees.Optional upgrade with the Intelligent Inspection Upgrade License, which enables productive use of the complete toolset.
Product typeSoftware
License typeDevice license
License descriptionThe software is provided as a device license. A license is bound to a specific hardware ID.
Scope of useFull version
License periodThe license is issued without a time limit.
Expansion optionsThe SICK Nova Tool plug-in enables customer-specific or new tools to be added. Development and customization of the tools is supported by SICK AppSpace and SICK AppStudio.

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
China RoHS✔
cULus certificate✔
Profinet certificate✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)✔
4Dpro✔

Classifications

ECLASS 5.027310205
ECLASS 5.1.427310205
ECLASS 6.027310205
ECLASS 6.227310205
ECLASS 7.027310205
ECLASS 8.027310205
ECLASS 8.127310205
ECLASS 9.027310205
ECLASS 10.027310205
ECLASS 11.027310205
ECLASS 12.027310205
ETIM 5.0EC001820
ETIM 6.0EC001820
ETIM 7.0EC001820
ETIM 8.0EC001820
UNSPSC 16.090143211731
