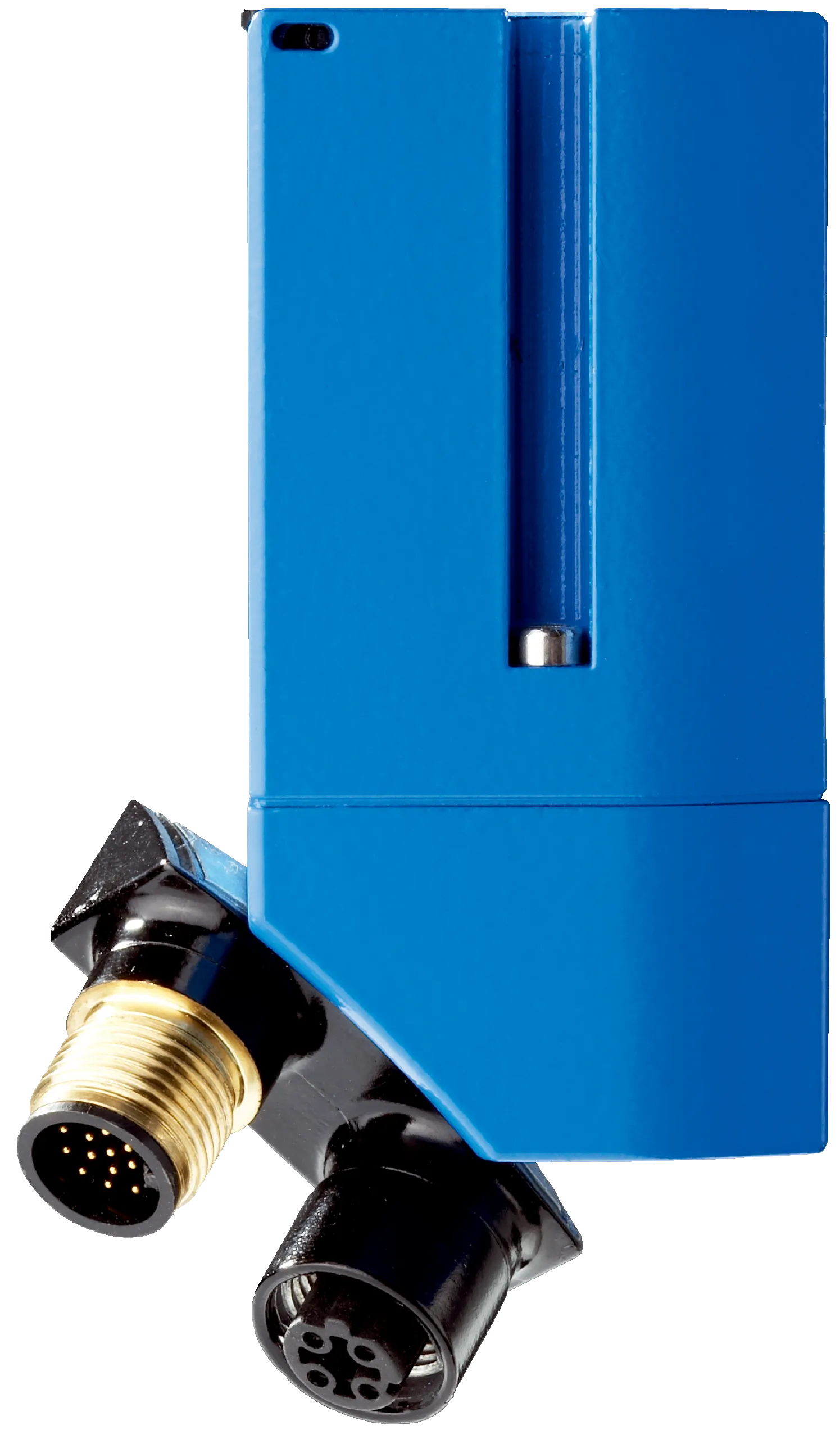

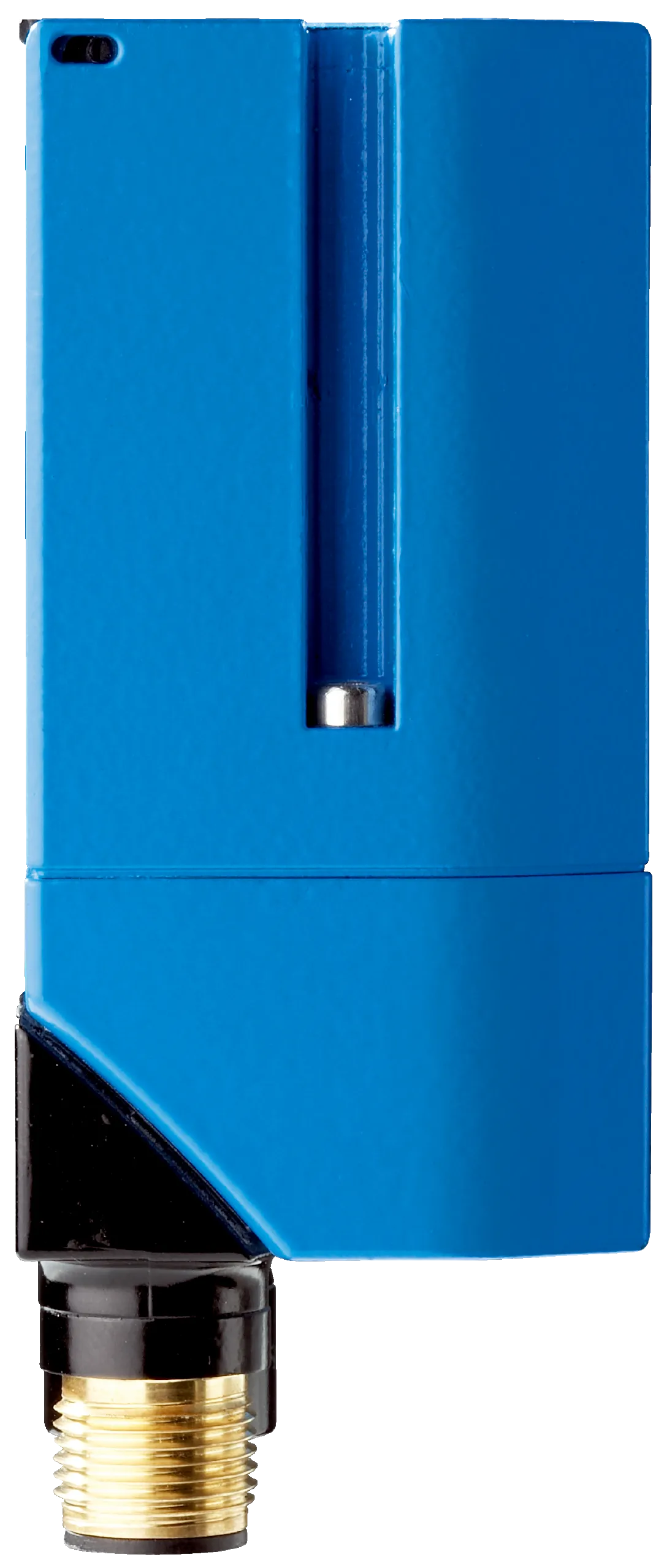

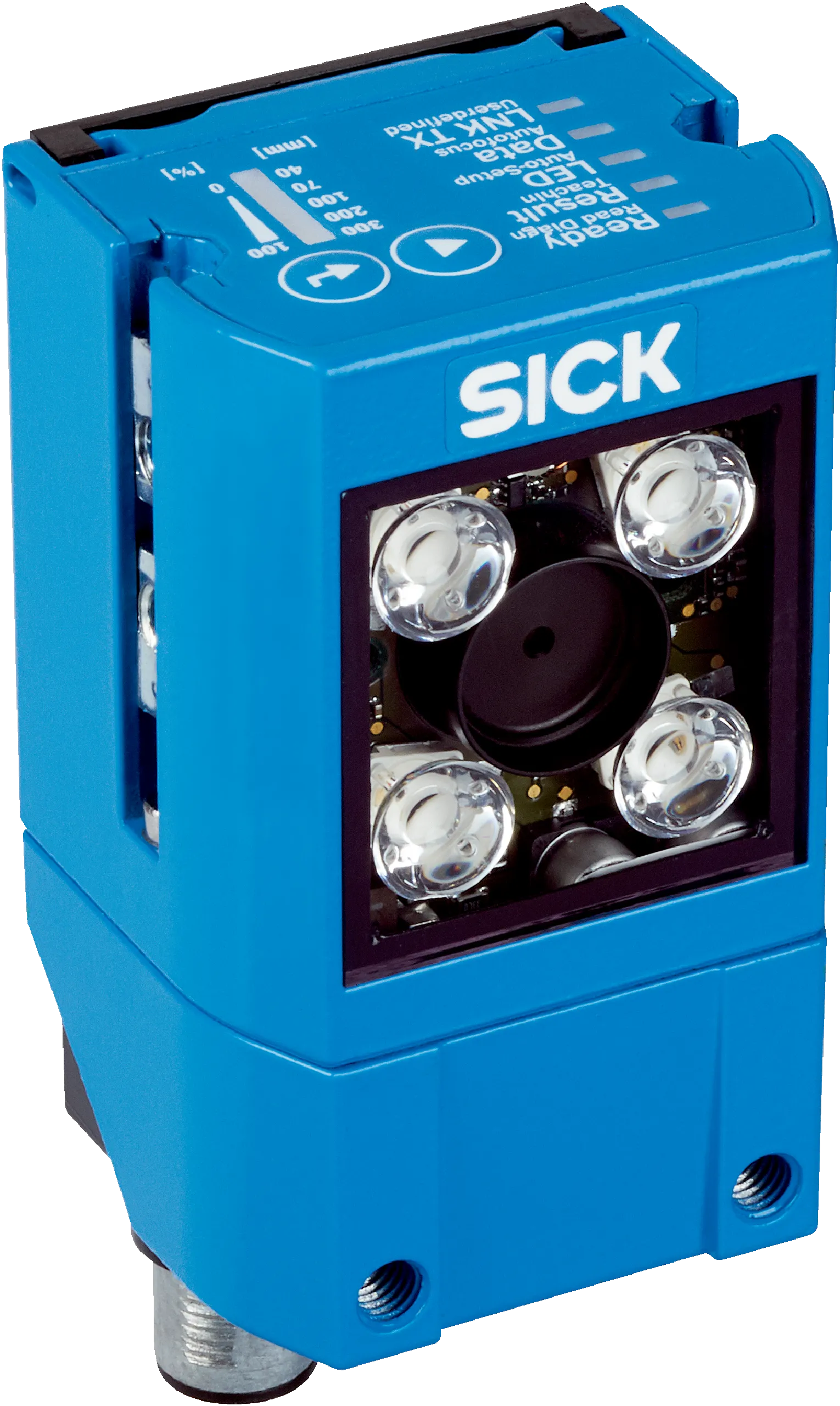

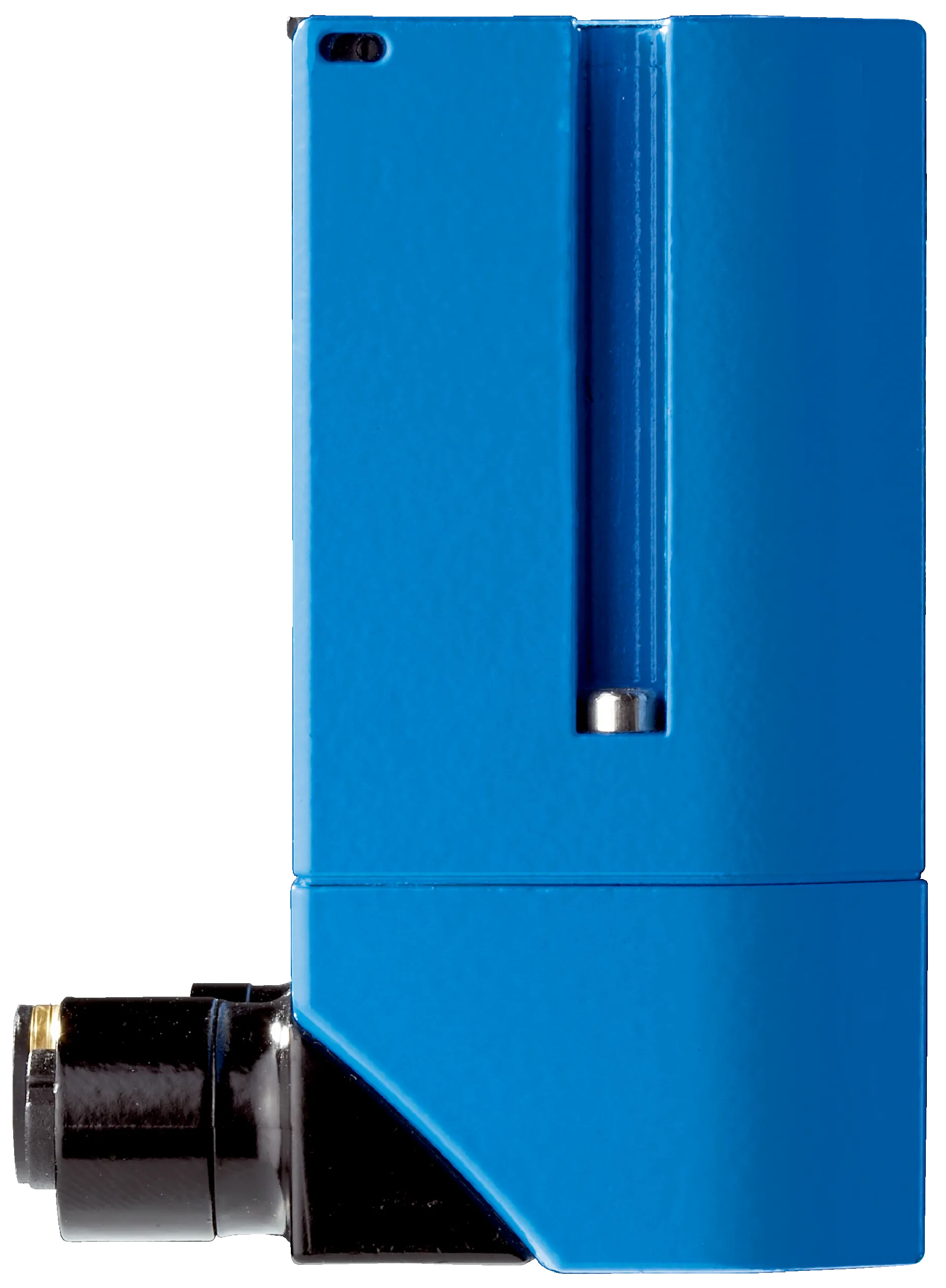

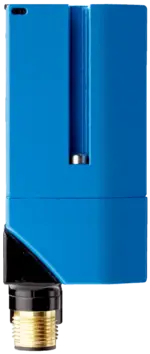

Sick V2D621G-2MSXBB5
Image-based code readers | GLS6 | V2D621G-2MSXBB5 | Reading distance: 70 mm … 500 mm | Overrun speed: ≤ 5 m/s | 2D code types: Data Matrix ECC200, QR code | Enclosure rating: IP65 | Communication in…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Image-based code readers | GLS6 | V2D621G-2MSXBB5 | Reading distance: 70 mm … 500 mm | Overrun speed: ≤ 5 m/s | 2D code types: Data Matrix ECC200, QR code | Enclosure rating: IP65 | Communication interface: Ethernet, PROFINET, EtherNet/IP™, Serial, CAN, CANopen, USB USB 2.0 (for parameterization only)
Specification
Features
| Optical focus | Teach auto focus 1) |
|---|---|
| Illumination | Integrated |
| Illumination color | Red, LED, Visible, 617 nm, ± 15 nmBlue, LED, Visible, 470 nm, ± 15 nm |
| LED class | 1Â (IECÂ 62471:2006-07, ENÂ 62471:2008-09) |
| Feedback spot | LED, Visible, green, 525 nm, ± 15 nm |
| Alignment aid | Laser, Visible, 630 nm ... 680 nm |
| Laser class | 1, complies with 21Â CFR 1040.10Â except for the conformance according to âLaser Notice No. 50â from June 24, 2007Â (IECÂ 60825-1:2014, ENÂ 60825-1:2014+A11:2021) |
| Reading distance | 70 mm ... 500 mm |
| Overrun speed | â¤Â 5 m/s |
| Accuracy (position) | ± 0.1 mm 2) |
| Repeatability (position) | ± 0.05 mm 2) |
| Working range | 70 mm ... 500 mm |
Mechanics/electronics
| Connection type | 1Â x M12, 17-pin male connector1Â x M12, 4-pin Ethernet female connectorCircular plug-in connector |
|---|---|
| Supply voltage | 12 V AC ... 24 V DC, ± 20 % |
| Power consumption | Typ. 4 W |
| Output current | â¤Â 100 mA |
| Housing material | Aluminum die cast |
| Housing color | Light blue (RAL 5012) |
| Enclosure rating | IP65 (ENÂ 60529, ENÂ 60529/A2) |
| Protection class | III |
| Electrical safety | ENÂ 62368 |
| Weight | 170Â g |
| Dimensions (L x W x H) | 71 mm x 43 mm x 35.6 mm 1) |
| MTTFd | 270Â years |
Safety-related parameters
| MTTFD | 270Â years |
|---|
Performance
| Readable code structures | 2D codes |
|---|---|
| 2D code types | Data Matrix ECC200, QR code |
| Code qualification | On the basis of ISO/IECÂ 16022, ISO/IECÂ 15415, ISO/IECÂ 15416, ISO/IECÂ 18004 |
Interfaces
| Ethernet | â , TCP/IP |
|---|---|
| Function | Data interface (read result output), Service interface, OPC DA Server, FTP (image transmission) |
| Data transmission rate | 10/100Â MBit/s |
| PROFINET | â |
| Function | PROFINET Single Port |
| Data transmission rate | 10/100Â MBit/s |
| EtherNet/IP⢠| â |
| Data transmission rate | 10/100Â MBit/s |
| Serial | â , RS-232, RS-422 |
| Function | Data interface (read result output), Service interface |
| Data transmission rate | 0.3 kBaud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232) |
| CAN | â |
| Function | SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server) |
| Data transmission rate | 20 kbit/s ... 1 Mbit/s |
| CANopen | â |
| Data transmission rate | 20 kbit/s ... 1 Mbit/s |
| USB | â |
| Remark | USB 2.0Â (for parameterization only) |
| Function | Service interface |
| Digital outputs | 4Â (âResult 1â, âResult 2â, 2Â outputs via CMC and CDB620/CDM420 or âResult 1â, âResult 2â, âResult 3â, âResult 4â when using the 17-wire cable with open cable end) |
| Optical indicators | 16Â LEDs (5Â x status display, 10Â x LED bar graph, 1Â green feedback spot) |
| Acoustic indicators | Beeper/buzzer (can be switched on, can be assigned a function to signal a result) |
| Configuration software | SOPAS ET (version 2018.04Â or higher) |
| Memory card | microSD memory card (flash card), optional |
| Data storage and retrieval | Image and data storage via microSD memory card and external FTP |
| EncoderFrequency | Max. 300 Hz |
| External illumination control | Via digital output (max. 24Â V trigger) |
Ambient data
| Electromagnetic compatibility (EMC) | ENÂ 61000-6-2:2005-08Â / ENÂ 61000-6-4 (2007-01) + A1 (2011) |
|---|---|
| Vibration resistance | ENÂ 60068-2-6:2008-02 |
| Shock resistance | ENÂ 60068-2-27:2009-05 |
| Ambient operating temperature | 0 °C ... +50 °C 1) |
| Storage temperature | â20 °C ... +70 °C |
| Permissible relative humidity | 90Â %, Non-condensing |
| Ambient light immunity | 2,000Â lx, on code |
Classifications
| ECLASS 5.0 | 27280103 |
|---|---|
| ECLASS 5.1.4 | 27280103 |
| ECLASS 6.0 | 27280103 |
| ECLASS 6.2 | 27280103 |
| ECLASS 7.0 | 27280103 |
| ECLASS 8.0 | 27280103 |
| ECLASS 8.1 | 27280103 |
| ECLASS 9.0 | 27280103 |
| ECLASS 10.0 | 27280103 |
| ECLASS 11.0 | 27280103 |
| ECLASS 12.0 | 27280103 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002999 |
| ETIM 8.0 | EC002999 |
| UNSPSC 16.0901 | 43211701 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| KC Mark certificate | â |
| BIS registration | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
| 4Dpro | â |
