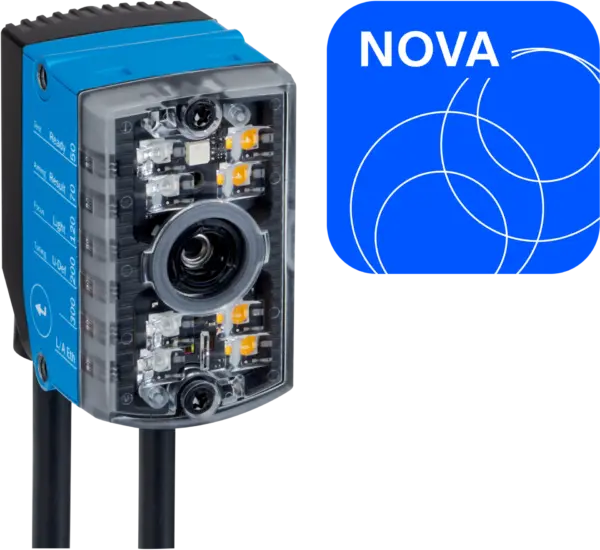

Sick V2D611P-MLSCI5
Machine vision | InspectorP61x | V2D611P-MLSCI5 | License included: Quality Inspection License | Illumination: Integrated | Illumination color: Amber, Blue | Lens: 12 mm | Working distance: 50 mm ……
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Machine vision | InspectorP61x | V2D611P-MLSCI5 | License included: Quality Inspection License | Illumination: Integrated | Illumination color: Amber, Blue | Lens: 12 mm | Working distance: 50 mm … 300 mm | Sensor resolution: 1,280 px x 960 px (1.2 MP) | Sensor: CMOS monochrome | Optical focus: Teach auto focus (liquid lens)
Specification
Features
| Technology | 2D snapshot |
|---|---|
| Programmable | â |
| Configurable | â |
| Application software | Nova Inspector |
| License included | Quality Inspection LicenseOptional upgrade with the Intelligent Inspection Upgrade License, which enables productive use of the complete toolset. |
| Toolkit | SICK algorithm APIHALCON |
| Image sensor | CMOS monochrome |
| Shutter technology | Global-Shutter |
| Optical focus | Teach auto focus (liquid lens) |
| Working range | 50 mm ... 300 mm, with internal illumination, can be extended to longer distances when using external illumination 1) |
| Illumination | Integrated |
| Illumination color | Amber, LED, Visible, 617 nm, ± 50 nmBlue, LED, Visible, 470 nm, ± 15 nm |
| Feedback spot | LED, Visible, green, 525 nm, ± 15 nm |
| Alignment aid | LED, Red, 630 nm, ± 15 nm |
| Laser class | 1, complies with 21Â CFR 1040.10Â except for the conformance according to âLaser Notice No. 56â from May 8, 2019Â (IECÂ 60825-1:2014, ENÂ 60825-1:2014) |
| LED class | Risk group 1Â (IECÂ 62471 (2006-07) / ENÂ 62471 (2008-09)) |
| Spectral range | Approx. 400 nm ... 900 nm |
| Focal length | 12Â mm |
| Task | Detecting - Standard objectsMeasuring - Dimension, contour and volumeMeasuring - NumberIdentifying - 2D codeIdentifying - OCRIdentifying - PatternIdentifying - ClassifyingIdentifying - SortingDetermining position - 2D position determination |
Mechanics/electronics
| Connection type | 1 x M12, 17-pin male connector (serial, I/Os, voltage supply)1 x M12, 4-pin female connector (Ethernet) |
|---|---|
| Supply voltage | 12 V DC ... 24 V DC, ± 15 % |
| Power consumption | Typ. 3.5 W |
| Enclosure rating | IP65 (ENÂ 60529, ENÂ 60529/A2) |
| Protection class | III |
| Housing material | Zinc diecast |
| Window material | PMMA |
| Weight | 166Â g |
| Dimensions (L x W x H) | 50 mm x 40.3 mm x 29.6 mm |
| MTBF | 75,000Â h |
Performance
| Sensor resolution | 1,280 px x 960 px (1.2 MP) |
|---|---|
| Scan/frame rate | 40 Hz 1) |
Interfaces
| Serial | â , RS-232 |
|---|---|
| Remark | Not yet available in the pre-installed Quality Inspection SensorApp |
| Data transmission rate | 300 Baud ... 115.2 kBaud |
| Ethernet | â , TCP/IP |
| Function | FTP |
| Data transmission rate | 10/100Â MBit/s |
| EtherNet/IP⢠| â |
| Data transmission rate | 10/100Â MBit/s |
| PROFINET | â |
| Function | PROFINET Single Port |
| Data transmission rate | 10/100Â MBit/s |
| Operator interfaces | Web server |
| Configuration software | Web GUI (SensorApp configuration), SICK AppManager (IPÂ determination and configuration, SensorApp installation), SICK AppStudio (programming) |
| Data storage and retrieval | Image and data logging via external FTP |
| Inputs/outputs | 2Â Ã input, physical, switching3Â x configurable input / output, physical, switching1Â x output, physical, switching |
| Output current | â¤Â 50 mA |
| Maximum encoder frequency | Max. 300 Hz |
| External illumination | Via digital output (max. 24Â V trigger) |
| Control elements | 1Â pushbutton |
| Optical indicators | 9Â LEDs (6Â status displays, 2Â LED alignment aids, 1Â feedback spot) |
Ambient data
| Shock load | ENÂ 60068-2-27:2009-05 |
|---|---|
| Vibration load | ENÂ 60068-2-6:2008-02 |
| Ambient operating temperature | 0 °C ... +40 °C 1) 2) |
| Storage temperature | â20 °C ... +70 °C 1) |
Licenses
| License included | Quality Inspection LicenseOptional upgrade with the Intelligent Inspection Upgrade License, which enables productive use of the complete toolset. |
|---|
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| EAC certificate / DoC | â |
| Profinet certificate | â |
| ESD conformity | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27310205 |
|---|---|
| ECLASS 5.1.4 | 27310205 |
| ECLASS 6.0 | 27310205 |
| ECLASS 6.2 | 27310205 |
| ECLASS 7.0 | 27310205 |
| ECLASS 8.0 | 27310205 |
| ECLASS 8.1 | 27310205 |
| ECLASS 9.0 | 27310205 |
| ECLASS 10.0 | 27310205 |
| ECLASS 11.0 | 27310205 |
| ECLASS 12.0 | 27310205 |
| ETIM 5.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| UNSPSC 16.0901 | 43211731 |
