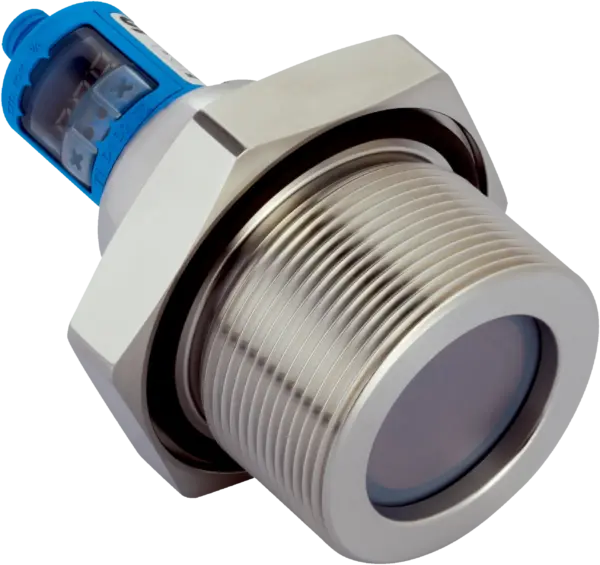

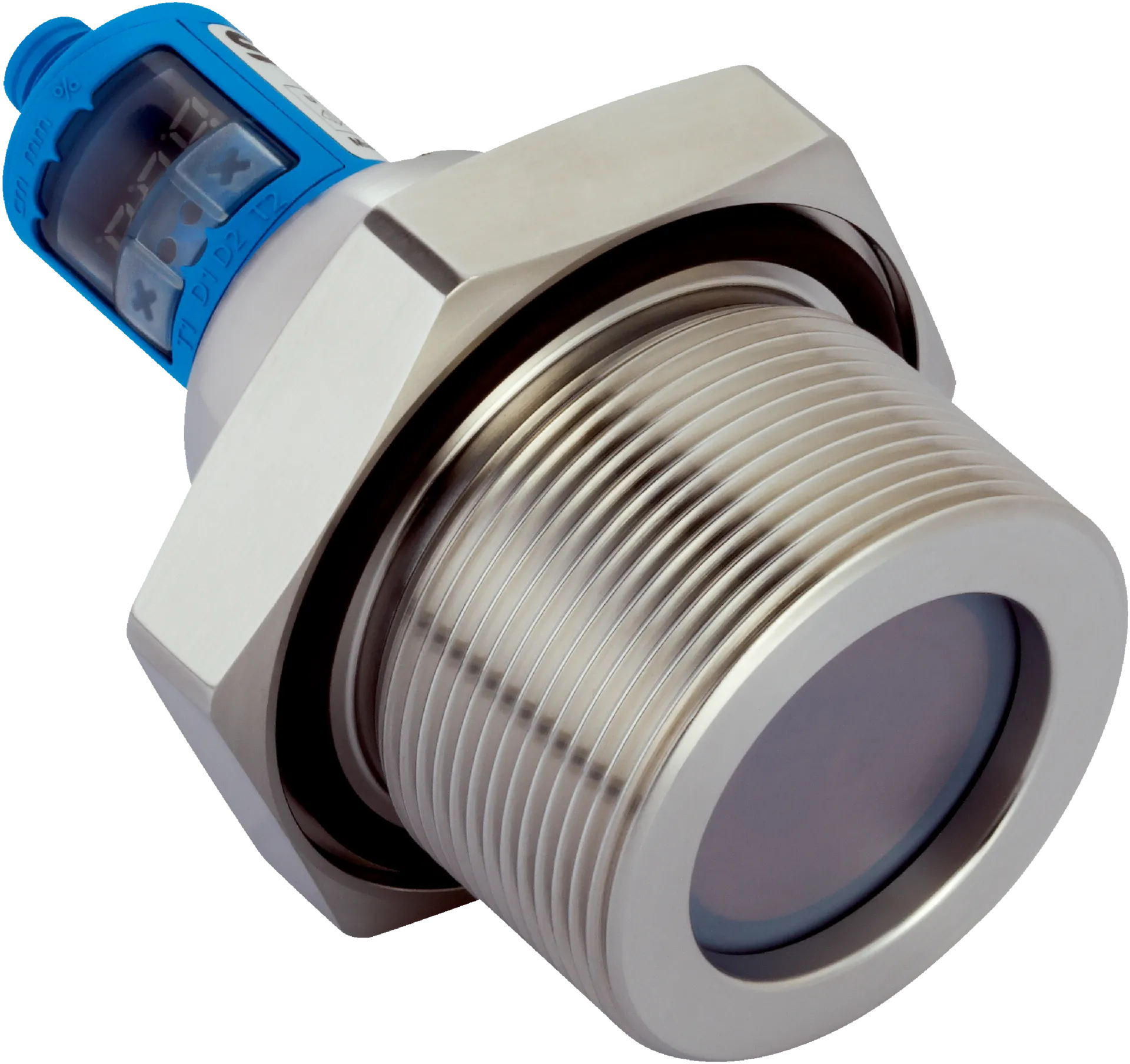

Sick UP56-214114
Level sensors | UP56 | UP56-214114 | Communication interface: – | Process connection: G 2 A PN 6 | Remote amplifier: No | Output signal: 2 x NPN | Connection type: Round connector M12 x 1, 5-pin | Pro…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Level sensors | UP56 | UP56-214114 | Communication interface: – | Process connection: G 2 A PN 6 | Remote amplifier: No | Output signal: 2 x NPN | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C … +70 °C | Process pressure: 0 bar … 6 bar | Wetted parts: Stainless steel 1.4571, FFKM | Housing material: Stainless steel 1.4571, PBT, TPU | Measuring range in tank: 350 mm … 3,400 mm | Measuring range immersion tube: 350 mm … 8,000 mm | Enclosure rating: IP67 | Display: yes | PWIS-cleaned: no | Bluetooth: no
Specification
Features
| Medium | Fluids, bulk solids |
|---|---|
| Measurement | Switch, Continuous |
| Measuring range in tank | 350 mm ... 3,400 mm |
| Measuring range immersion tube | 350 mm ... 8,000 mm |
| Process pressure | 0 bar ... 6 bar 1) |
| Process temperature | â25 °C ... +70 °C |
| Display | With display |
Performance
| Accuracy of sensor element | â¤Â 2 % 1) |
|---|---|
| Reproducibility | ± 0.15 % 1) |
| Resolution | 0.18Â mm |
| Response time | 240 ms 2) |
| MTTF | >Â 100Â years |
| Display | â |
Electronics
| Communication interface | - |
|---|---|
| Supply voltage | 9Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
| Residual ripple | ± 10 % |
| Power consumption | â¤Â 80 mA 2) |
| Protection class | III |
| Connection type | Round connector M12Â x 1, 5-pin |
| Output signal | 2Â x NPN |
| Hysteresis | 50Â mm |
| Output current | 200Â mA |
| Time delay before availability | â¤Â 300 ms |
| Enclosure rating | IP67 |
| Ultrasonic frequency | 120Â kHz |
| Ultrasonic transducer | PTFE coating, FFKM |
Mechanics
| Wetted parts | Stainless steel 1.4571FFKM |
|---|---|
| Process connection | G 2Â A PN 6 |
| Housing material | Stainless steel 1.4571, PBT, TPU |
| Housing design | Standard |
| Weight | +Â 1,200Â g |
Ambient data
| Ambient operating temperature | â25 °C ... +70 °C 1) |
|---|---|
| Ambient temperature, storage | â40 °C ... +85 °C |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27200506 |
|---|---|
| ECLASS 5.1.4 | 27200506 |
| ECLASS 6.0 | 27200506 |
| ECLASS 6.2 | 27200506 |
| ECLASS 7.0 | 27200506 |
| ECLASS 8.0 | 27200506 |
| ECLASS 8.1 | 27200506 |
| ECLASS 9.0 | 27200506 |
| ECLASS 10.0 | 27200506 |
| ECLASS 11.0 | 27200506 |
| ECLASS 12.0 | 27200506 |
| ETIM 5.0 | EC001447 |
| ETIM 6.0 | EC001447 |
| ETIM 7.0 | EC001447 |
| ETIM 8.0 | EC001447 |
| UNSPSC 16.0901 | 41111950 |
