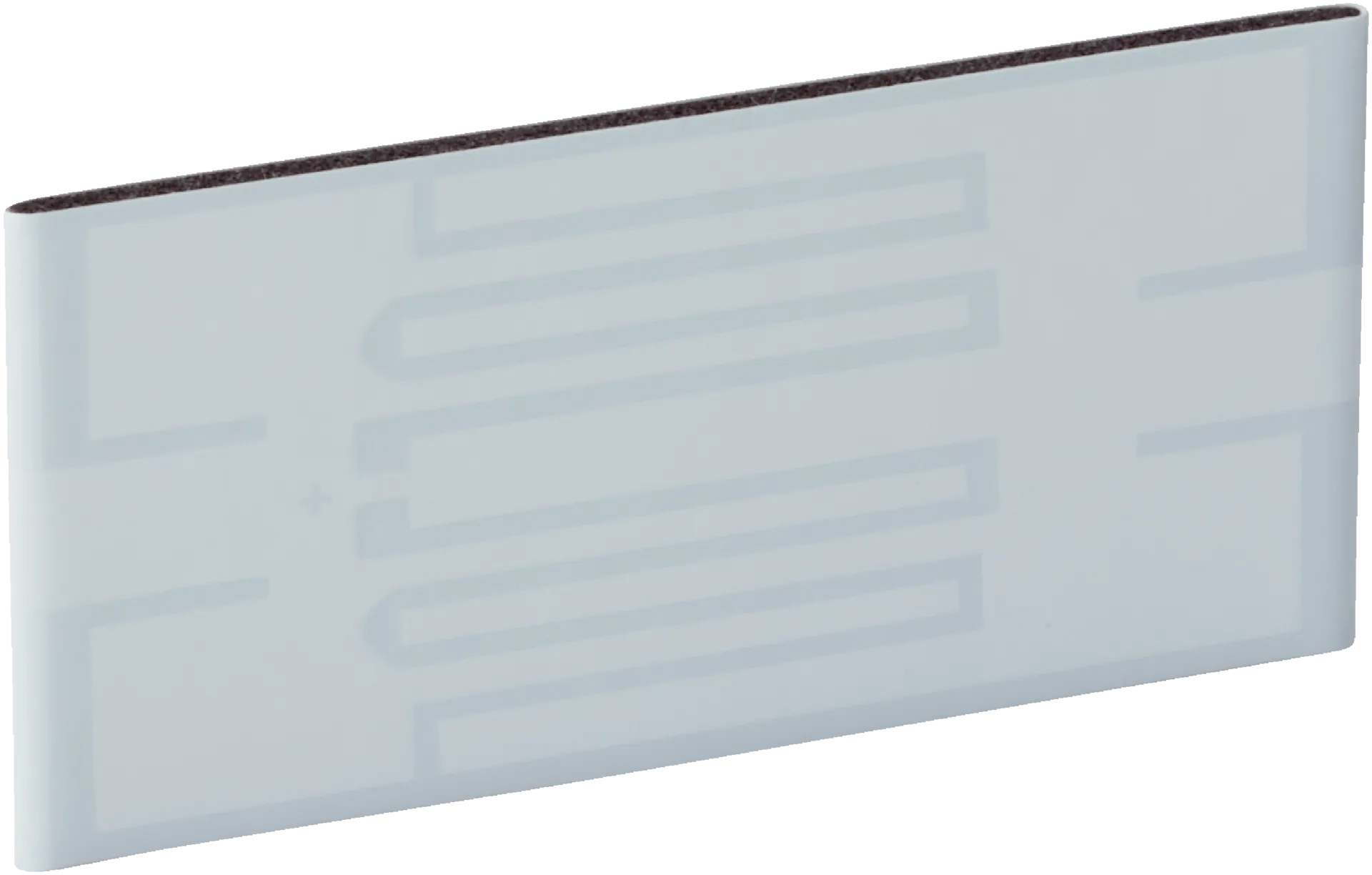

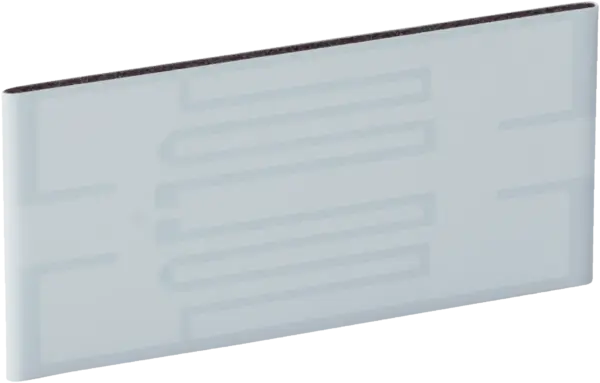

Sick UHF Transponder, label, On-Metal, global
RFID transponders | UHF transponders | UHF Transponder, label, On-Metal, global | Items supplied: 1 unit corresponds to one roll. One roll contains 250 labels | Carrier frequency: 865 MHz … 928 MHz…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
RFID transponders | UHF transponders | UHF Transponder, label, On-Metal, global | Items supplied: 1 unit corresponds to one roll. One roll contains 250 labels | Carrier frequency: 865 MHz … 928 MHz | Memory capacity (EPC / user memory): 128/752 bits (EPC / User Memory), 256/624 bit (EPC / User Memory), 496/384 bit (EPC / User Memory) | Dimensions (L x W x H): 54 mm x 25 mm x 1.8 mm
Specification
Features
| Product segment | RFID transponders, RFID |
|---|---|
| Product | UHF transponders |
| Scope | Marking of metal parts |
| Frequency band | UHF (860 MHz ... 960 MHz) |
| Carrier frequency | 865 MHz ... 928 MHz |
| Design | Rectangular |
| Housing material | Plastic PBT (polyester) |
| Ambient operating temperature | â20 °C ... +85 °C 1) |
| Storage temperature | â20 °C ... +85 °C |
| Housing color | White |
| IC type | NXP UCODE 9xm |
| Storage capacity | 128/752Â bits (EPC / User Memory), 256/624Â bit (EPC / User Memory), 496/384Â bit (EPC / User Memory) |
| IC data retention time | <Â 20Â years |
| Mounting method | Self-adhesive |
| Dimensions (W x H x L) | 25 mm x 1.8 mm x 54 mm |
| Weight | 2.5Â g |
| RFU61x | 20 cm 2) |
| RFU62x | 70 cm 2) |
| RFU63x/RFU65x | 400 cm 2) |
Classifications
| ECLASS 5.0 | 27280401 |
|---|---|
| ECLASS 5.1.4 | 27280401 |
| ECLASS 6.0 | 27280401 |
| ECLASS 6.2 | 27280401 |
| ECLASS 7.0 | 27280401 |
| ECLASS 8.0 | 27280401 |
| ECLASS 8.1 | 27280402 |
| ECLASS 9.0 | 27280402 |
| ECLASS 10.0 | 27280402 |
| ECLASS 11.0 | 27280402 |
| ECLASS 12.0 | 27280402 |
| ETIM 5.0 | EC002593 |
| ETIM 6.0 | EC002998 |
| ETIM 7.0 | EC002998 |
| ETIM 8.0 | EC002998 |
| UNSPSC 16.0901 | 52161523 |
